N-EM-CCO Kontrol Pintu Air

6.2.2.2.- TINGKAT DAN KONTROL ALIRAN

SISTEM INOVATIF

"N-EM-CCO" represents a sluice gate control system.

Lihat uraian umum

Katalog

Spesifikasi Kontes

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

GAMBARAN UMUM

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

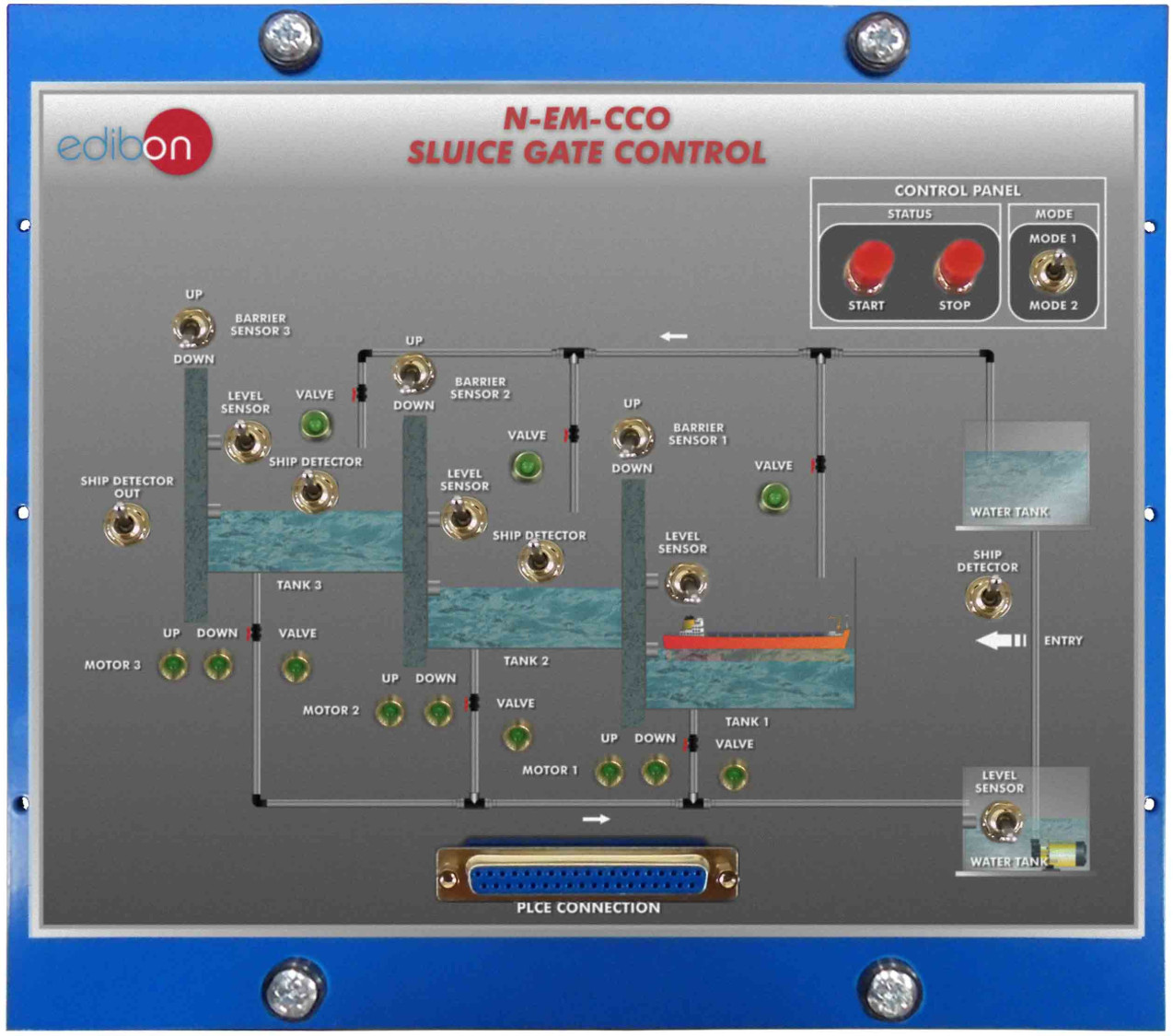

"N-EM-CCO" represents a sluice gate control system. The sluice system is composed by three sluice gates, and we have to control them using the water pumps and the gates control. The switches and pushbuttons emulate the state of the sluice doors, the level sensors of each tanks, the state of the presence sensors, etc.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

All "N-EM" modules allow to perform the following practical exercises:

Temporization.
Counting.
Sequential counting.
All the practical exercises include the diagrams and the flow charts of the example programs used.
