PL Lisimeter Demonstrasi

13.1.- HIDROLOGI DAN HIDROGEOLOGI
DEMONSTRATION LYSIMETER - PL

SISTEM INOVATIF

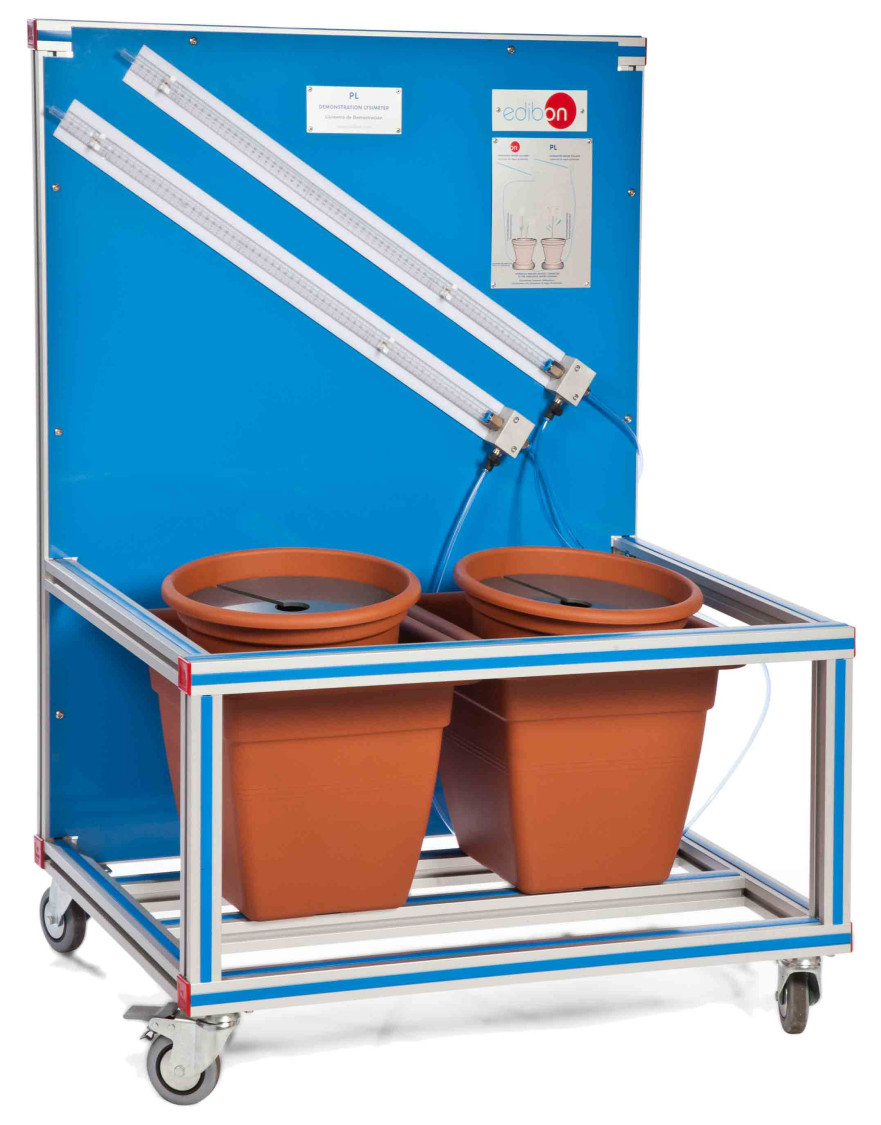

The Demonstration Lysimeter, "PL", is a unit designed by EDIBON to measure the evapotranspiration using the water balance method.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

Laboratorium

13TV
 Laboratorium Lingkungan untuk Pendidikan Teknik dan Kejuruan
13HE
 Laboratorium Lingkungan untuk Pendidikan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Penangkapan Udara Langsung: Teknologi Kunci dalam Perang Melawan Perubahan Iklim
Penangkapan Udara Langsung: Teknologi Kunci dalam Perang Melawan Perubahan Iklim
Direct Air Capture (DAC) adalah teknologi inovatif yang menghilangkan CO₂ langsung dari udara menggunakan reaksi kimia dengan pelarut cair atau penyerap padat. Meskipun menghadapi tantangan seperti biaya tinggi dan konsumsi energi, DAC menawarkan solusi potensial untuk mengurangi konsentrasi CO₂...
Baca lebih lanjut
Memahami dan Meningkatkan Sistem Pengolahan Air Minum
Memahami dan Meningkatkan Sistem Pengolahan Air Minum
Instalasi Pengolahan Air Limbah Sementara pabrik pengolahan air minum berfokus pada penyediaan air minum yang aman, instalasi pengolahan air limbah menangani pengolahan air bekas sebelum dilepaskan kembali ke lingkungan. Instalasi ini memainkan peran penting dalam melindungi sumber daya air dan...
Baca lebih lanjut

GAMBARAN UMUM

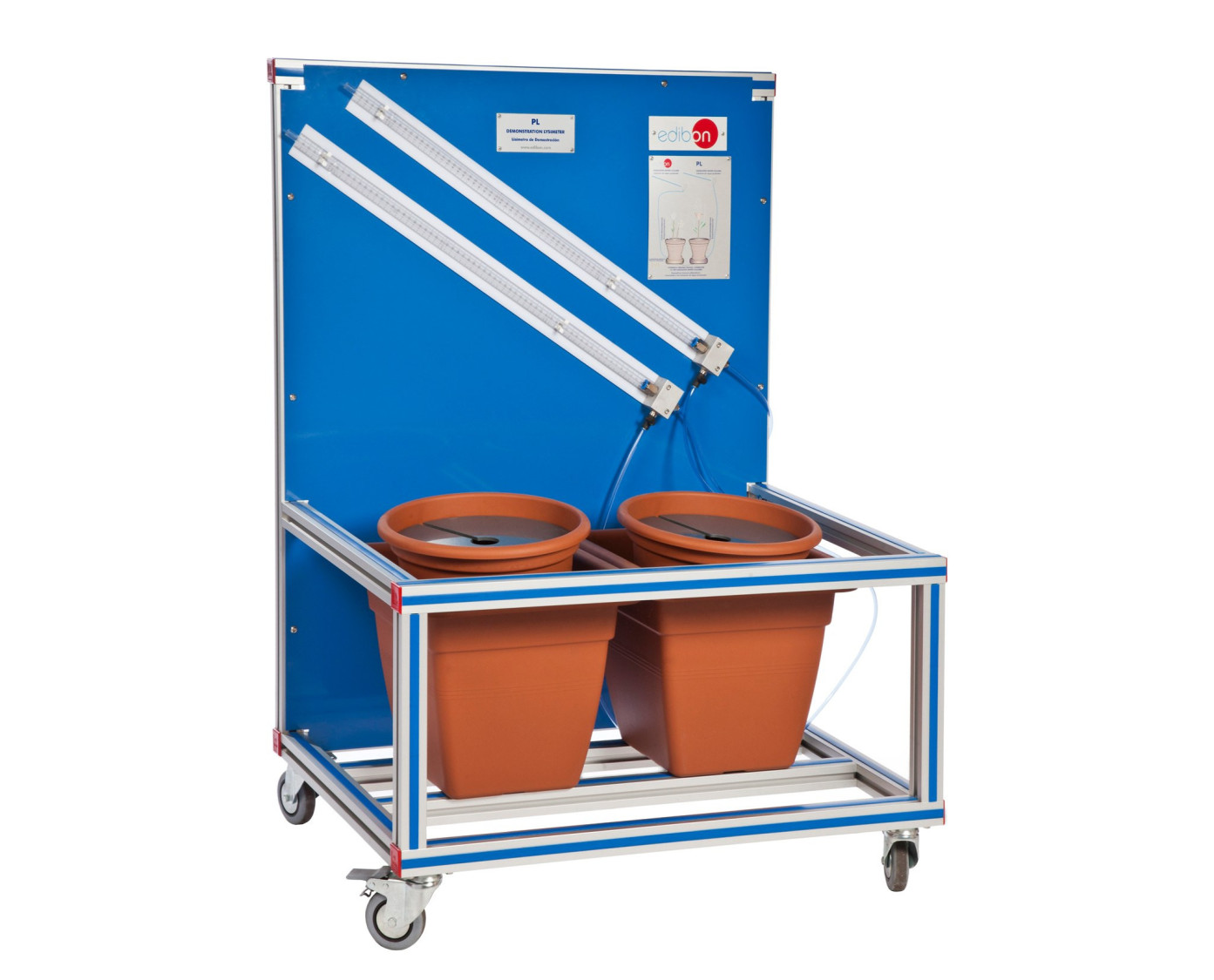

The Demonstration Lysimeter, "PL", is a unit designed by EDIBON to measure the evapotranspiration using the water balance method.

The unit consists of two independent lysimeters that allows the user to perform two practical exercises at the same time. Water losses or increases of the analyzed soil can be measured by two inclined-tube manometers.

Each lysimeter consists of a square-based vessel with a hydraulic device inside that, connected to the graduated tubes, allows the user to observe changes in the water level.

There is a vessel on each hydraulic device. Each vessel is filled with soil to plant the vegetation in order to analyze their evapotranspiration

Two lids are included to cover the top of the vessels, so water losses by evaporation are reduced and only transpiration is studied. ,

There is a tank and a pipe to fill the hydraulic device with water so that it transfers the pressure exerted by the weight of each vessel to both graduated tubes.

Besides, a set of weights to calibrate the manometric tubes in function of the weight change to which the hydraulic device is subjected are supplied with the unit.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Study of the evapotranspiration measurement by the water-balance method.
  2. Study of a lysimeter operation.
  3. Measurement of the evapotranspiration in a grass crop.
  4. Study of the influence of the leaf size in the evapotranspiration.
  5. Study of the influence of the evaporation in the evapotranspiration.
  6. Determination of the plants water use.
  7. Study and understanding of the relationship between reference maximum transpiration and actual transpiration.
