8.1.- LABORATORIUM MODULER MEKANIK FLUIDA

Hidraulika adalah cabang ilmu yang mempelajari sifat mekanik fluida, dan Mekanika Fluida adalah dasar dari hidraulika. EDIBON bertujuan untuk memberikan jawaban yang sederhana dan praktis terhadap permintaan akademis untuk pengajaran dan pembelajaran dasar-dasar Mekanika Fluida. Untuk itu, ia menawarkan sistem fleksibel dan modular untuk pembelajaran Mekanika Fluida Dasar.

Lihat Lebih Banyak

Dengan serangkaian modul yang diusulkan, siswa melakukan eksperimen yang dengan jelas menunjukkan hukum-hukum hidraulika. Melalui eksperimen ini, siswa memperoleh pengalaman dalam penggunaan instrumen hidrolik dan alat-alat dengan cara yang alami, menyenangkan, dan tidak rumit.

Peralatan yang termasuk dalam laboratorium mekanika fluida memungkinkan karakterisasi fluida, pengukuran dan kontrol aliran fluida, studi tentang fenomena dan prinsip utama yang mengatur mekanika fluida, dan pemahaman tentang peralatan yang banyak digunakan dalam industri.

Lihat Produk

LABORATORIUM MODULER MEKANIK FLUIDA PERALATAN

Menampilkan 1 -30 dari 45 produk

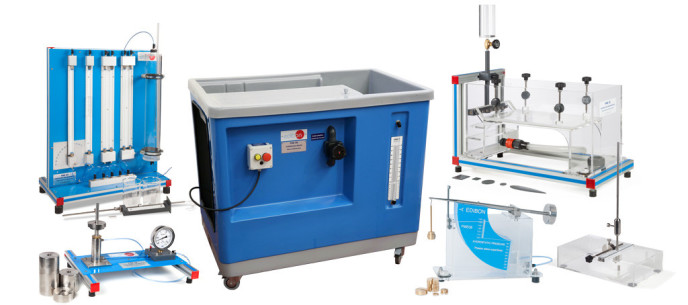

BASIC FLUIDS MECHANICS INTEGRATED LABORATORY - LIFLUBA

LIFLUBA

Available

8.1.7.- MESIN HIDROLIK: TURBIN

LIFLUBA

Laboratorium Terpadu Mekanika Fluida Dasar

Hydraulics is the branch of science that deals with the mechanical properties of fluids, and Fluid Mechanics provides the foundation for hydraulics.With LIFLUBA (Basic Fluids Mechanics Integrated Laboratory), EDIBON tries to give answer to the...

FME00

Available

8.1.1.- UNIT DASAR

FME00

Unit Hidrolik

The Hydraulics Bench, "FME00", designed by EDIBON, allows the study of fluid behaviour, hydraulic theory and the properties of fluid mechanics.It is formed by a movable hydraulics bench used to hold a wide variety of modules, which allow the...

FME00/B

Available

8.1.1.- UNIT DASAR

FME00/B

Sistem Pengumpan Hidrolik Dasar

The Basic Hydraulic Feed System, "FME00/B", designed by EDIBON is a service unit for different Fluid Mechanics Units as: "FME" type modules, Fluid Friction in Pipes Unit "AFT", etc., increasing the equipment profitability.

FME02

Available

8.1.2.- PENGUKURAN

FME02

Aliran Berlebih Weirs

The Flow over Weirs, "FME02", designed by EDIBON, has many elements that are used in combination with the Hydraulics Bench (FME00): A special mouthpiece is coupled to the outlet mouthpiece for water in the Hydraulics Bench (FME00).Two soothing...

FME10

Available

8.1.2.- PENGUKURAN

FME10

Kalibrator Berat Mati

The Pressure Gauge Calibrator, "FME10", designed by EDIBON, allows the study of the operation of a Bourdon type pressure gauge using a standard set of calibrated weights and the determination and the study of the pressure gauge hysteresis...

FME37

Available

8.1.2.- PENGUKURAN

FME37

Kalibrator Alat Ukur Aliran

The Flowmeter Calibrator, "FME37", designed by EDIBON, allows for the assessment of the accuracy and performance of the most commonly used flow meters. It features a panel of four-tube pressure gauges displaying pressure differences at various...

FME18

Available

8.1.2.- PENGUKURAN

FME18

Demonstrasi Flowmeter

The Flow Meter Demonstration, "FME18", designed by EDIBON, allows through 3 different flow measurement accessories: Venturi tube, orifice plate and a variable area meter installed in series in the unit, the study to find the flow rate of the fluid...

DEPRESSION MEASUREMENT SYSTEM (VACUUM GAUGE) - FME26

FME26

Available

8.1.2.- PENGUKURAN

FME26

Sistem Pengukur Depresi (vacuum gauge)

The Depression Measurement System (vacuum gauge), "FME 26", is designed to be connected to the inlet of some flow aspiration system, in a way that we could measure the depression made by the so-called aspiration system. Such system will be...

FME30

Available

8.1.2.- PENGUKURAN

FME30

Vortex Flowmeter

The Transparent Vortex Flow Meter, "FME30", designed by EDIBON allows to perform studies and experiments of different volumetric and mass flow measurement methods, as well as the comparison of continuous and discontinuous methods.This unit...

FME30/I

Available

8.1.2.- PENGUKURAN

FME30/I

Flowmeter Jenis Vortex

The Vortex Flowmeter, "FME30/I", designed by EDIBON, allows to perform different studies and experiments of various volumetric and mass flow measurement methods, as well as the comparison of continuous and discontinuous methods.This unit includes...

FME32

Available

8.1.2.- PENGUKURAN

FME32

Tabung Statis Pitot

The Static Pitot Tube, "FME32", designed by EDIBON, the change in flow speed within a tube can be determined.The Pitot static tube can be moved across the whole cross-section of the tube, and thus to measure the pressure profile.This tube is...

FME34

Available

8.1.2.- PENGUKURAN

FME34

Fluida Statik dan Manometri

The Fluid Statics and Manometry, "FME34", designed by EDIBON, allows the study of static fluids and manometry providing the user with an introduction in the behavior of liquids under hydrostatic conditions (fluids at standstill) and the...

FME36

Available

8.1.2.- PENGUKURAN

FME36

Rotameter

The Rotameter, "FME36", designed by EDIBON, is a variable area flowmeter with floater. This type of flowmeter can be used for flow measurements in almost any environment.The operation mode of this type of flowmeter is based on the fact that if a...

FME38

Available

8.1.6.- MESIN HIDROLIK: POMPA

FME38

Pompa Ariete Hidrolik

The Hydraulic Ram Pump, "FME38", designed by EDIBON, utilizes the water hammer effect to raise water to a higher level than its power source. It operates by harnessing the rapid change in water velocity in a pipe that occurs when its flow is...

DATA ACQUISITION SYSTEM AND SENSORS - BDAS

BDAS

Available

8.1.7.- MESIN HIDROLIK: TURBIN

BDAS

Sistem Akuisisi Data dan Sensor

BDAS is designed to monitor the measurements of each unit type "FME" from a computer (PC).This system can monitor any unit, checking the revolutions given by the water pump or the torque, differential pressures for Bernoulli theorems, pressure...

FME08

Available

8.1.3.- HIDROSTATIS

FME08

Tekanan Hidrostatik

The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.This unit consists of a quadrant mounted on the arm of a balance that pivots around an axis.When the...

FME11

Available

8.1.3.- HIDROSTATIS

FME11

Tinggi Metasentrik

The Metacentric Height Demonstration Unit, "FME11", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height.The unit consists of a floating methacrylate prismatic base, on which a vertical...

METACENTRIC HEIGHT DEMOSTRATION OF A "V" SHAPED FLOATING BODY - FME11-A

FME11-A

Available

8.1.3.- HIDROSTATIS

FME11-A

Demonstrasi Tinggi Metasentrik dari Benda Berbentuk "V" Mengambangating

The Metacentric Height Demostration of a "V" Shaped Floating Object, "FME11-A", designed by EDIBON, allows the study of the stability of a floating object by calculating the metacentric height of a floating object starting from a V-shaped floating...

METACENTRIC HEIGHT DEMOSTRATION OF A "U" SHAPED FLOATING BODY - FME11-B

FME11-B

Available

8.1.3.- HIDROSTATIS

FME11-B

Demonstrasi Tinggi Metasentrik dari Objek Mengambang Bentuk "U"

The Metacentric Height Demostration of a "U" Shaped Floating Object, "FME11-B", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height starting from a U-shaped floating body.The unit...

PASCAL'S PRINCIPLE DEMONSTRATION - FME33

FME33

Available

8.1.3.- HIDROSTATIS

FME33

Demonstrasi Prinsip Pascal

The Pascal's Principle Demonstration Unit, "FME33", designed by EDIBON, allows to demonstrate Pascal's principle, i.e. that the pressure in an incompressible fluid is independent of the column size section but depends only on its height (liquid...

FME35

Available

8.1.3.- HIDROSTATIS

FME35

Sifat-sifat Fluida

The Fluid Properties Unit, "FME35", designed by EDIBON, allows the study of the fluids fundamental properties that affect their behavior in practical applications.We can study capillarity, density and relative density (specific gravity), buoyancy...

FME01

Available

8.1.4.- HIDRODINAMIS

FME01

Dampak Jet pada Permukaan

The unit consists of a cylindrical tank with lateral transparent surfaces where a nozzle, connected to the Hydraulics Bench (FME00), is aligned with a device in which the problem surface is fitted. The vertical force made by the water against the...

BERNOULLI'S THEOREM DEMONSTRATION - FME03

FME03

Available

8.1.4.- HIDRODINAMIS

FME03

Demonstrasi Teorema Bernoulli's

The Bernoulli's Theorem Demonstration unit, "FME03", designed by EDIBON is mainly composed of a circular section pipe with the shape of a truncated cone, transparent and with seven pressure taps that allows to measure, simultaneously, the static...

FME04

Available

8.1.4.- HIDRODINAMIS

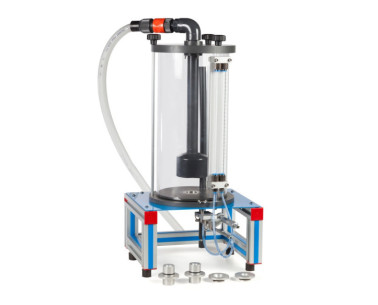

FME04

Lubang Pengosongan

The Orifice Discharge Unit, "FME04", designed by EDIBON allows the study of the different concentration, discharge and velocity coefficients for thin and/or thick wall for different types: colloidal, Venturi or diaphragm.The unit consists of a...

FME14

Available

8.1.4.- HIDRODINAMIS

FME14

Vortex Bebas dan Paksa

The Forced and Free Vortex unit, "FME14", designed by EDIBON, allows the study of the fluid rotation in relation to an axis and the study of circular flow at changing velocities.The unit has a cylindrical and transparent deposit with two inlet...

FME17

Available

8.1.4.- HIDRODINAMIS

FME17

Peralatan Aliran dan Lubang

The Orifice and Free Jet Flow unit, "FME17", designed by EDIBON, allows the study of the different discharge and velocity coefficients in permanent or variable regime as well as the calculation of the discharge times.The unit consists of a...

CAVITATION PHENOMENON DEMONSTRATION - FME19

FME19

Available

8.1.4.- HIDRODINAMIS

FME19

Demonstras Penomena Kavitasi

The Cavitation Phenomenon Demonstration unit, "FME19", designed by EDIBON is composed of a Venturi tube with a rectangular cross section, one of its sides being transparent, allowing a better visualization of the cavitation phenomenon.It includes...

VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

FME22

Available

8.1.4.- HIDRODINAMIS

FME22

Peralatan Venturi, Bernoulli, dan Kavitasinya

The Venturi, Bernoulli and Cavitation unit, "FME22", has been designed by EDIBON to demonstrate some of the practical possibilities that can be achieved with a Venturi tube.This unit is designed for demonstrating some practical possibilities with...

FME06

Available

8.1.5.- VISUALISASI ALIRAN

FME06

Demonstrasi Osborne Reynolds

The Osborne Reynolds Demonstration Unit, "FME06", designed by EDIBON, consists of a cylindrical tank endowed with a nozzle, that is fitted to a methacrylate pipe, which allows the fluid visualization.A spillway guarantees the homogeneity of the...

FME09

Available

8.1.5.- VISUALISASI ALIRAN

FME09

Visualisasi Aliran pada Kanal

The Flow Visualization in Channels unit, "FME09", designed by EDIBON, allows the visualization of liquid spillage phenomena in weirs and the study of objects submerged in a fluid stream (aerodynamics).The unit consists of a transparent...
