7.1.2.- MESIN SEDERHANA

MESIN SEDERHANA UNITS

Menampilkan 1 -22 dari 22 produk

Available

7.1.2.1.- MEKANISME

MBD

Mekanisme Luncur Batang Penghubung

The Slider Crank Mechanism, "MBD", designed by EDIBON, is an example of slider-crank mechanism.This mechanism is made of aluminum and consists of a rotary element (graduated disc), called crank, connected to a rigid bar, calledconnecting rod. When...

Available

7.1.2.1.- MEKANISME

MYE

Mekanisme Yoke Skotlandia

The Scotch Yoke Mechanism, "MYE", designed by EDIBON, is an example of slider-crank mechanism for converting the linear motion of a slider into rotational motion or vice versa.It is made of aluminum and consists of a rotary element, called crank,...

MBM1

Available

7.1.2.1.- MEKANISME

MBM1

Mekanisme Batang Penghubung dan Engkol

The Slotted Link Mechanism, "MBM1", is an example of a quick-return mechanism, capable of transforming circular motion into reciprocating motion. It is made of aluminum and consists of a rotary element (graduated disk), called crank, connected to...

MBM2

Available

7.1.2.1.- MEKANISME

MBM2

Mekanisme Pengembalian Cepat Whitworth

The Whitworth Quick Return Mechanism, "MBM2", is a mechanism able to transform circular movement into reciprocating movement. It ismade of aluminum and consists of a rotary element, called crank, with a graduated disk, connected to a rigid bar,...

Available

7.1.2.1.- MEKANISME

MCA

Mekanisme Empat Batang

The Four-Bar Mechanism, "MCA", designed by EDIBON, is a bench-top unit to perform laboratory experiments.It is made of anodized aluminum and consists of two rotary elements (graduated discs) mounted on ball bearings. The discs include a scale to...

Available

7.1.2.1.- MEKANISME

MME

Mekanisme Jenewa

The Geneva Stop Mechanism, "MME", designed by EDIBON, is a mechanism that transforms continuous circular motion into intermittent motion. It is a positive drive in which the driven wheel is positively moved or locked.It is made of aluminum and...

Available

7.1.2.1.- MEKANISME

MAC

Mekanisme Kopling

The Coupling Mechanism, "MAC", represents a simple Oldham type coupling. The lateral displacement of the input and output shafts may be varied and circular scales are fitted to the input and output flanges.It consists of two outer discs made of...

Available

7.1.2.1.- MEKANISME

MUN

Mekanisme Sambungan Universal

The Hooke’s Joint Mechanism, "MUN", designed by EDIBON, represents a universal coupling, also called a U-joint, Hooke joint or cardan joint. The Hooke joint is a universal mechanism that is often used to transmit rotary motion between two...

Available

7.1.2.1.- MEKANISME

MEX

Mekanisme Cam-Follower

The Cam and Follower Mechanism, "MEX", allows to study the cam-follower and eccentric-follower mechanisms. For that purpose, several plate cam models in different forms, one eccentric and several roller-shaped, flat-shaped, wedge-shaped and...

Available

7.1.2.1.- MEKANISME

MBI

Mekanisme Batang Penghubung

The Crank Mechanism "MBI", is a unit designed to observe, study and record the motion of a crank and the forces involved in a simple engine mechanism. The piston is linearly displaced through a cylinder with the aid of a guide.Bearings are coupled...

Available

7.1.2.1.- MEKANISME

MDA

Mekanisme Kemudi "Ackermann"

The Ackermann Steering Mechanism, "MDA", is a bench-mounted unit designed to determine the lead angle of a steering trapezoid in an Ackermann steering mechanism, the disadvantages of incorrectly adjusted track rods and the influence of the track...

MMEL

Available

7.1.2.1.- MEKANISME

MMEL

Mekanisme Pengangkat

The Winch Mechanism, "MMEL", allows to study the lifting velocity and load transmission of a winch. Efficiency and load transmission can be determined by force balance.The unit consists of a gear transmission mechanism. One gear is the input gear...

MBLU

Available

7.1.2.1.- MEKANISME

MBLU

Peralatan Kopling Batang

The Bar Linkages Unit "MBLU" allows many experiments using different arrangements of their parts.The "MBLU" unit includes a selection of more than twenty perforated bars of different lengths and pivots or "joints" to allow students to configure...

MTSF

Available

14.1.2.2.- RODA GIGI

MTSF

Peralatan Roda Gigi Cacing

The Worm and Wheel Unit, "MTSF", allows to demonstrate the principle of a worm gear.The unit consists in a worm and a wheel. These parts are mounted on ball bearings and fixed to a vertical panel.The worm and wheel are positioned a set distance...

ACCELERATION OF GEARED SYSTEM UNIT - MAE

Available

14.1.2.2.- RODA GIGI

MAE

Peralatan Percepatan pada Sistem Roda Gigi

The Acceleration of Geared Systems Unit, "MAE", designed by EDIBON, allows to perform tests to calculate the moment of inertia of a gear train system.The MAE unit includes six gears. Two of them can have another position in the shafts to vary the...

UNIT TO STUDY SIMPLE DRIVES ASSEMBLY - MSDA

MSDA

Available

14.1.2.2.- RODA GIGI

MSDA

Peralatan Pemasangan Transmisi Sederhana

The Simple Drives Assembly Unit, "MSDA", allows the knowledge and learning of the fundamentals of the mechanical transmission technique, as well as the assembly, disassembly and experimentation with simple gears.The unit allows to carry out...

UNIT TO STUDY COMBINED DRIVES ASSEMBLY - MCDA

MCDA

Available

14.1.2.2.- RODA GIGI

MCDA

Peralatan Pemasangan Transmisi Gabungan

The Combined Drives Assembly Unit, "MCDA", allows carrying out advanced exercises and provides an understanding of the significant components and arrangements of the mechanical drive technology.With this unit, practices can be carried out to...

UNIT TO STUDY GEAR TRAIN ASSEMBLY - MGTA

MGTA

Available

14.1.2.2.- RODA GIGI

MGTA

Peralatan Pemasangan Rangkaian Roda Gigi

The Study Gear Train Assembly Unit, "MGTA", designed by EDIBON, allows to perform diverse assemblies of gearboxes. The student will essentially learn the practice of assembling gear components in transmissions and will be introduced to the...

Available

14.1.2.2.- RODA GIGI

MGE

Peralatan Pembuatan Roda Gigi

The Gear Generation Unit, "MGE", has been designed by EDIBON to study rack and pinion systems. With this unit the student can draw by an easy procedure the profile of a tooth, produced by the involute process of the rack when passing over the...

Available

14.1.2.2.- RODA GIGI

MEE

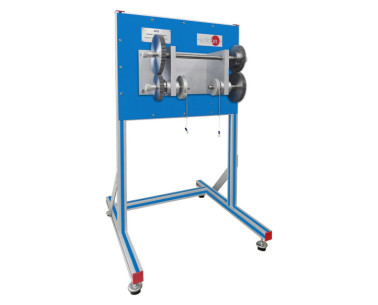

Peralatan Pengangkat dengan Roda Gigi

The Geared Lifting Unit, "MEE", has been designed to study a simple lifting mechanism and its use to determine the speed ratio, its mechanical advantages and efficiency.The unit is mounted on a metal structure with bearings that support the gear...

MESE-T

Available

7.1.2.2.- RODA GIGI

MESE-T

Studi Roda Gigi

The Geared Study Drive Unit, "MESE", has been designed by EDIBON to dynamic study of different gears, including a standard three shaft gear train for study, which can be modified with a simple setting to obtain a simple transmission.For the...

UNIT FOR THE KINEMATIC STUDY OF GEAR TRAINS - KSGT

KSGT

Available

7.1.2.2.- RODA GIGI

KSGT

Peralatan untuk Studi Kinematika Kereta Roda Gigi

The Unit for the Kinematic Study of Gear Trains, "KSGT", unit includes a pivoting rail with a fixed axle to which two more axles can be fixed in any position in function of the feature to study.The cogwheels may be assembled on the axles in...
