MCA Mekanisme Empat Batang

7.1.2.1.- MEKANISME 14.1.2.1.- MEKANISME

SISTEM INOVATIF

The Four-Bar Mechanism, "MCA", designed by EDIBON, is a bench-top unit to perform laboratory experiments.

Lihat uraian umum

Katalog

Spesifikasi Kontes

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

7TV

Laboratorium Mekanika, Otomotif dan Material untuk Pendidikan Teknik dan Vokasi

7HE

Laboratorium Mekanika, Otomotif dan Material Pendidikan Tinggi

BERITA TERKAIT

GAMBARAN UMUM

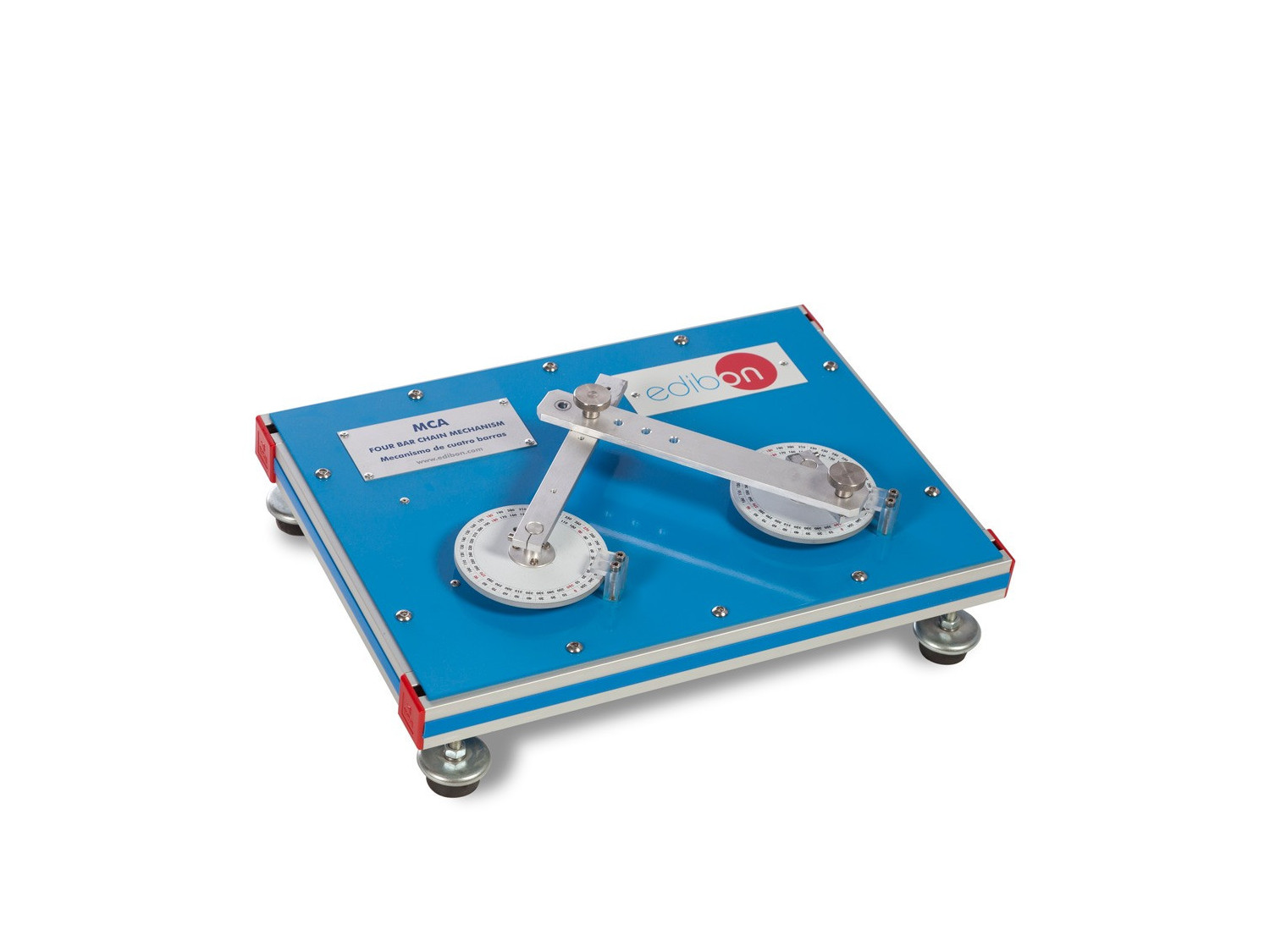

The Four-Bar Mechanism, "MCA", designed by EDIBON, is a bench-top unit to perform laboratory experiments.

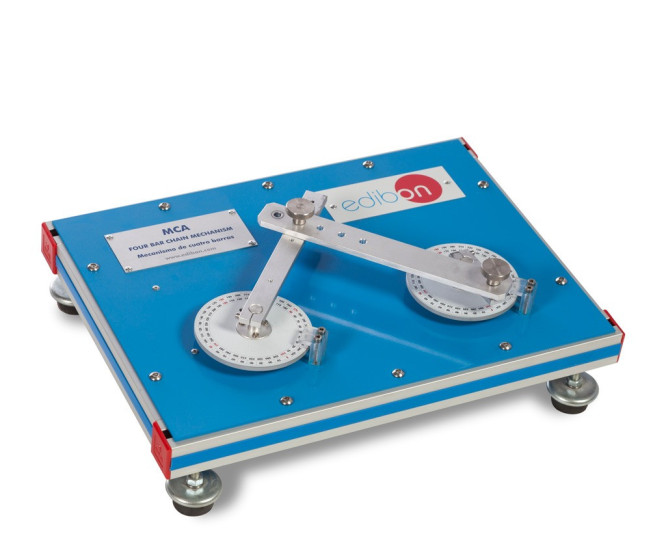

It is made of anodized aluminum and consists of two rotary elements (graduated discs) mounted on ball bearings. The discs include a scale to measure the input and output angles accurately with the aid of a methacrylate indicator.

The rotary motion of one of the discs is transferred through the bars and generates the rotary motion of the other disc. The bars, made of anodized aluminum, can be connected at different lengths using easy to fit knurled bolts.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

To demonstrate the action of a four-bar mechanism with different geometrical arrangements of joints.
To demonstrate Grashof law.
To determine graphically the relationship between the angular displacements of the input crank and the output joint of a simple four-bar system.
To determine the velocity and acceleration of the output joint by graphical differentiation and compared with the values obtained in velocity and acceleration diagrams.

PERALATAN KOMPLEMENTER

Available

7.1.2.1.- MEKANISME

MBD

Mekanisme Luncur Batang Penghubung

The Slider Crank Mechanism, "MBD", designed by EDIBON, is an example of slider-crank mechanism.This mechanism is made of aluminum and consists of a rotary element (graduated disc), called crank, connected to a rigid bar, calledconnecting rod. When...

Available

7.1.2.1.- MEKANISME

MYE

Mekanisme Yoke Skotlandia

The Scotch Yoke Mechanism, "MYE", designed by EDIBON, is an example of slider-crank mechanism for converting the linear motion of a slider into rotational motion or vice versa.It is made of aluminum and consists of a rotary element, called crank,...

MBM1

Available

7.1.2.1.- MEKANISME

MBM1

Mekanisme Batang Penghubung dan Engkol

The Slotted Link Mechanism, "MBM1", is an example of a quick-return mechanism, capable of transforming circular motion into reciprocating motion. It is made of aluminum and consists of a rotary element (graduated disk), called crank, connected to...

MBM2

Available

7.1.2.1.- MEKANISME

MBM2

Mekanisme Pengembalian Cepat Whitworth

The Whitworth Quick Return Mechanism, "MBM2", is a mechanism able to transform circular movement into reciprocating movement. It ismade of aluminum and consists of a rotary element, called crank, with a graduated disk, connected to a rigid bar,...

Available

7.1.2.1.- MEKANISME

MME

Mekanisme Jenewa

The Geneva Stop Mechanism, "MME", designed by EDIBON, is a mechanism that transforms continuous circular motion into intermittent motion. It is a positive drive in which the driven wheel is positively moved or locked.It is made of aluminum and...

Available

7.1.2.1.- MEKANISME

MAC

Mekanisme Kopling

The Coupling Mechanism, "MAC", represents a simple Oldham type coupling. The lateral displacement of the input and output shafts may be varied and circular scales are fitted to the input and output flanges.It consists of two outer discs made of...

Available

7.1.2.1.- MEKANISME

MUN

Mekanisme Sambungan Universal

The Hooke’s Joint Mechanism, "MUN", designed by EDIBON, represents a universal coupling, also called a U-joint, Hooke joint or cardan joint. The Hooke joint is a universal mechanism that is often used to transmit rotary motion between two...

Available

7.1.2.1.- MEKANISME

MEX

Mekanisme Cam-Follower

The Cam and Follower Mechanism, "MEX", allows to study the cam-follower and eccentric-follower mechanisms. For that purpose, several plate cam models in different forms, one eccentric and several roller-shaped, flat-shaped, wedge-shaped and...

Available

7.1.2.1.- MEKANISME

MBI

Mekanisme Batang Penghubung

The Crank Mechanism "MBI", is a unit designed to observe, study and record the motion of a crank and the forces involved in a simple engine mechanism. The piston is linearly displaced through a cylinder with the aid of a guide.Bearings are coupled...

Available

7.1.2.1.- MEKANISME

MDA

Mekanisme Kemudi "Ackermann"

The Ackermann Steering Mechanism, "MDA", is a bench-mounted unit designed to determine the lead angle of a steering trapezoid in an Ackermann steering mechanism, the disadvantages of incorrectly adjusted track rods and the influence of the track...

MMEL

Available

7.1.2.1.- MEKANISME

MMEL

Mekanisme Pengangkat

The Winch Mechanism, "MMEL", allows to study the lifting velocity and load transmission of a winch. Efficiency and load transmission can be determined by force balance.The unit consists of a gear transmission mechanism. One gear is the input gear...

MBLU

Available

7.1.2.1.- MEKANISME

MBLU

Peralatan Kopling Batang

The Bar Linkages Unit "MBLU" allows many experiments using different arrangements of their parts.The "MBLU" unit includes a selection of more than twenty perforated bars of different lengths and pivots or "joints" to allow students to configure...
