MME Mekanisme Jenewa

7.1.2.1.- MEKANISME 14.1.2.1.- MEKANISME
GENEVA STOP MECHANISM - MME

SISTEM INOVATIF

The Geneva Stop Mechanism, "MME", designed by EDIBON, is a mechanism that transforms continuous circular motion into intermittent motion.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

7TV
 Laboratorium Mekanika, Otomotif dan Material untuk Pendidikan Teknik dan Vokasi
7HE
 Laboratorium Mekanika, Otomotif dan Material Pendidikan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

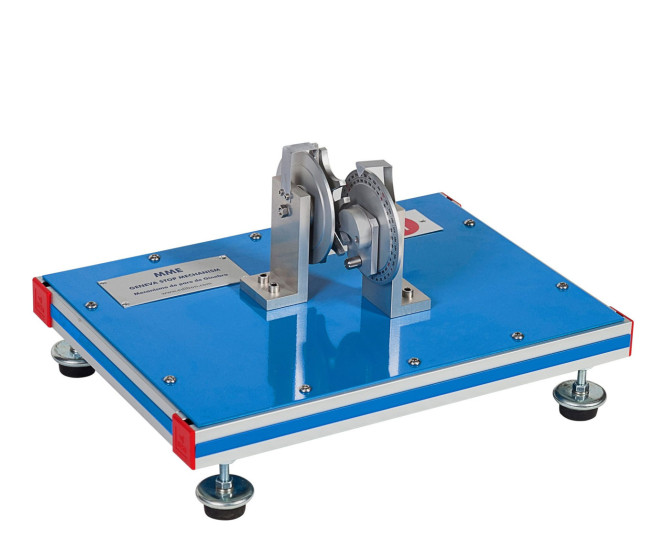

The Geneva Stop Mechanism, "MME", designed by EDIBON, is a mechanism that transforms continuous circular motion into intermittent motion. It is a positive drive in which the driven wheel is positively moved or locked.

It is made of aluminum and consists of a rotating drive wheel and a driven wheel with six slots. The drive wheel has a pin that reaches into a slot of the driven wheel, advancing it by one step. The drive wheel also has a raised half-moon blocking disc that locks the driven wheel in position between steps.

The drive wheel and the driven wheel are mounted in two graduated discs, where the angle of both wheels can be measured.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Demonstrating the action of a Geneva mechanism during the indexing and dwell periods.
  2. Plotting the relationship between the angular displacement of the input crank and the output Geneva wheel during the indexing period.
  3. Determining the velocity and acceleration of the Geneva wheel by graphical differentiation.
  4. Comparing the values obtained by the equations of motion or the use of velocity and acceleration diagrams.

KUALITAS

LAYANAN PURNA JUAL

Meminta informasi
