MBD Mekanisme Luncur Batang Penghubung

7.1.2.1.- MEKANISME 14.1.2.1.- MEKANISME
SLIDER CRANK MECHANISM - MBD

SISTEM INOVATIF

The Slider Crank Mechanism, "MBD", designed by EDIBON, is an example of slider-crank mechanism.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

7TV
 Laboratorium Mekanika, Otomotif dan Material untuk Pendidikan Teknik dan Vokasi
7HE
 Laboratorium Mekanika, Otomotif dan Material Pendidikan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

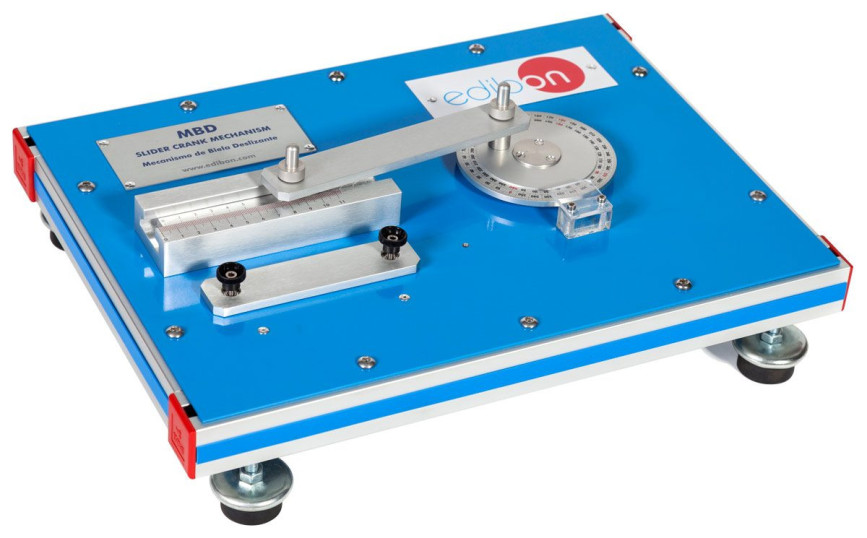

The Slider Crank Mechanism, "MBD", designed by EDIBON, is an example of slider-crank mechanism.

This mechanism is made of aluminum and consists of a rotary element (graduated disc), called crank, connected to a rigid bar, calledconnecting rod. When the crank rotates, the connecting rod moves backwards and forwards.

The input angle is set on the ball bearing mounted crank disc and read on an angle measuring scale. A millimeter scale is fitted for thelinear motion of the connecting rod. The "MBD" unit includes two connecting rods of different length so that they can be compared.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Demonstration of the action of a simple in-line slider-crank mechanism.
  2. Study of the relationship between the linear displacement of the sliding block (connecting rod) and the angular displacement of the rotary element (crank).
  3. To illustrate graphically and study the effect of changing the length of the connecting rod.
  4. Determination of the velocity and acceleration of the sliding block by graphical differentiation and compared with the values obtained by equations of motion or by velocity and acceleration diagrams.
