MBM2 Mekanisme Pengembalian Cepat Whitworth

7.1.2.1.- MEKANISME 14.1.2.1.- MEKANISME

SISTEM INOVATIF

The Whitworth Quick Return Mechanism, "MBM2", is a mechanism able to transform circular movement into reciprocating movement.

Lihat uraian umum

Katalog

Spesifikasi Kontes

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

7TV

Laboratorium Mekanika, Otomotif dan Material untuk Pendidikan Teknik dan Vokasi

7HE

Laboratorium Mekanika, Otomotif dan Material Pendidikan Tinggi

BERITA TERKAIT

GAMBARAN UMUM

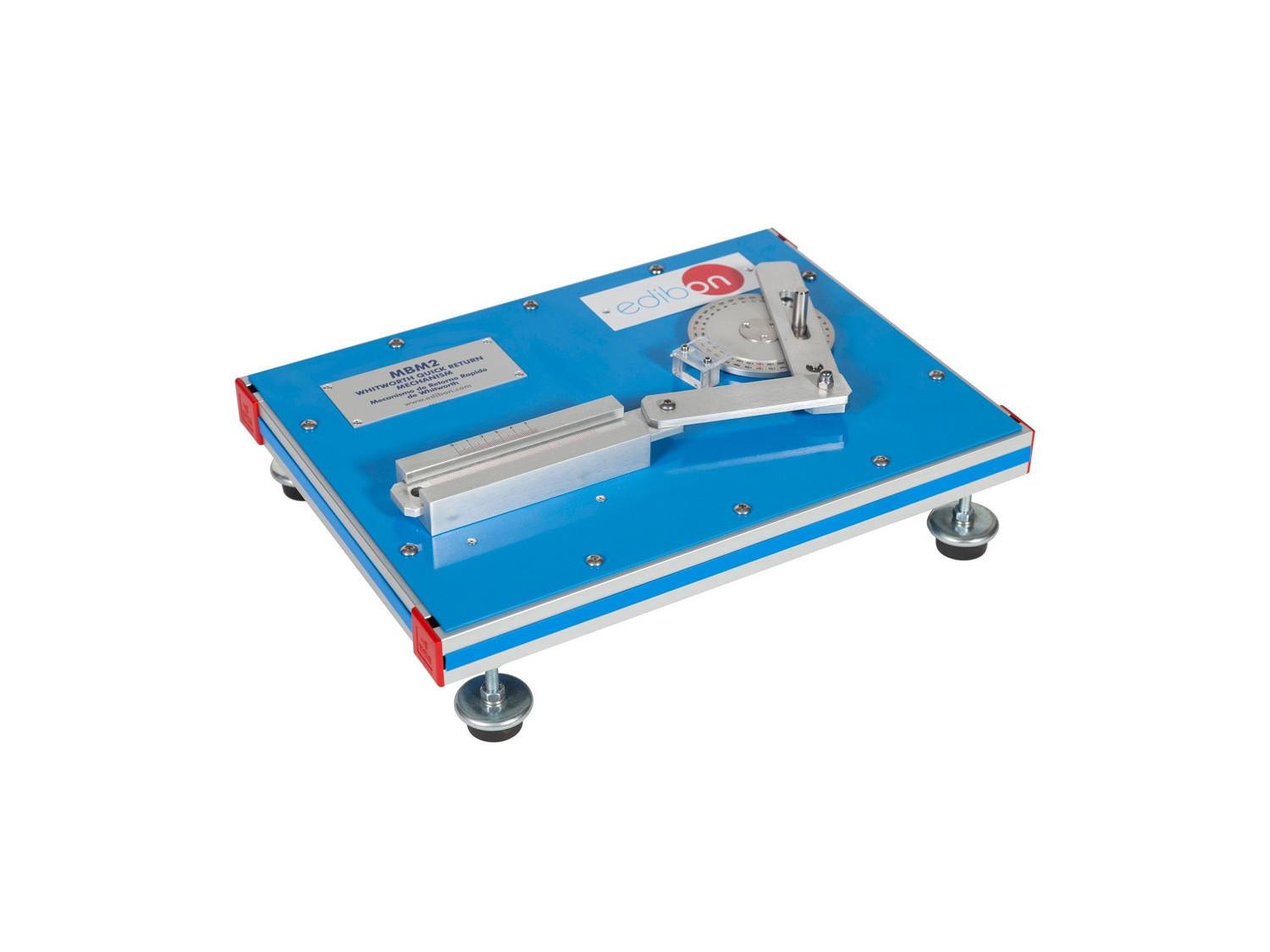

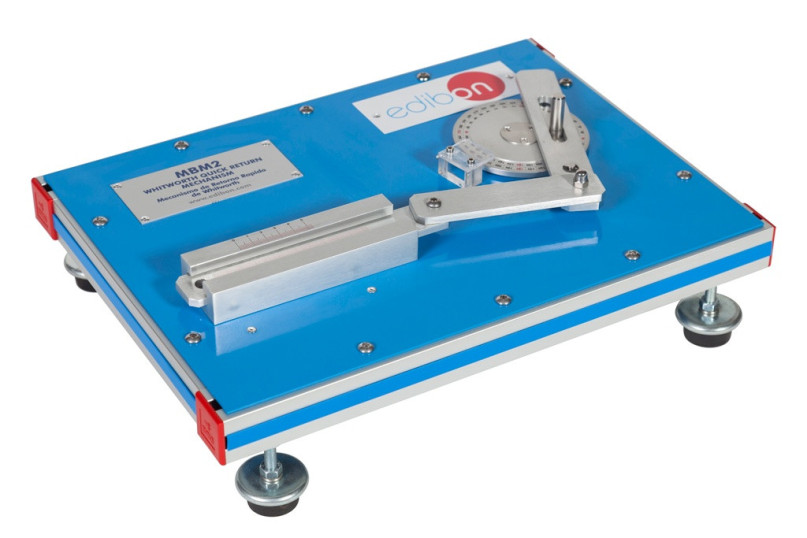

The Whitworth Quick Return Mechanism, "MBM2", is a mechanism able to transform circular movement into reciprocating movement. It ismade of aluminum and consists of a rotary element, called crank, with a graduated disk, connected to a rigid bar, called connecting rod.

When rotating the crank, the connecting rod moves back and forward. The rotation motion of a crank or crankshaft causes a rectilinear reciprocating motion of a piston or plunger.

The forward reciprocating motion is at a different rate than the backward stroke.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

To demonstrate the action of a simple Whitworth quickreturn mechanism.
Graphic determination of the relationship between the linear displacement of the connecting rod and the angular displacement of the input crank.
More exercises and practices may include the determination of the velocity and acceleration of the connecting rod by graphical differentiation and comparison with the values obtained by velocity and acceleration diagrams.
