MUN Mekanisme Sambungan Universal

7.1.2.1.- MEKANISME 14.1.2.1.- MEKANISME
HOOKE'S JOINT MECHANISM - MUN

SISTEM INOVATIF

The Hooke’s Joint Mechanism, "MUN", designed by EDIBON, allows the study of a cardan joint shaft.

Lihat uraian umum

Laboratorium

7TV
 Laboratorium Mekanika, Otomotif dan Material untuk Pendidikan Teknik dan Vokasi
7HE
 Laboratorium Mekanika, Otomotif dan Material Pendidikan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

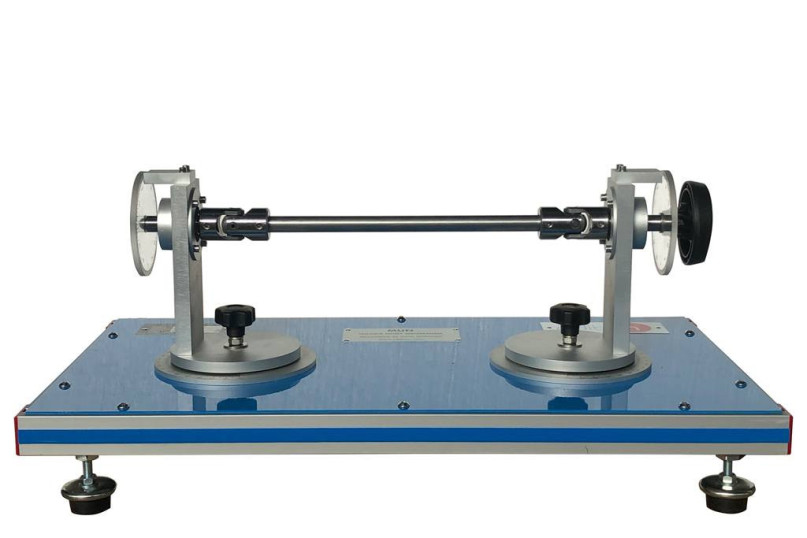

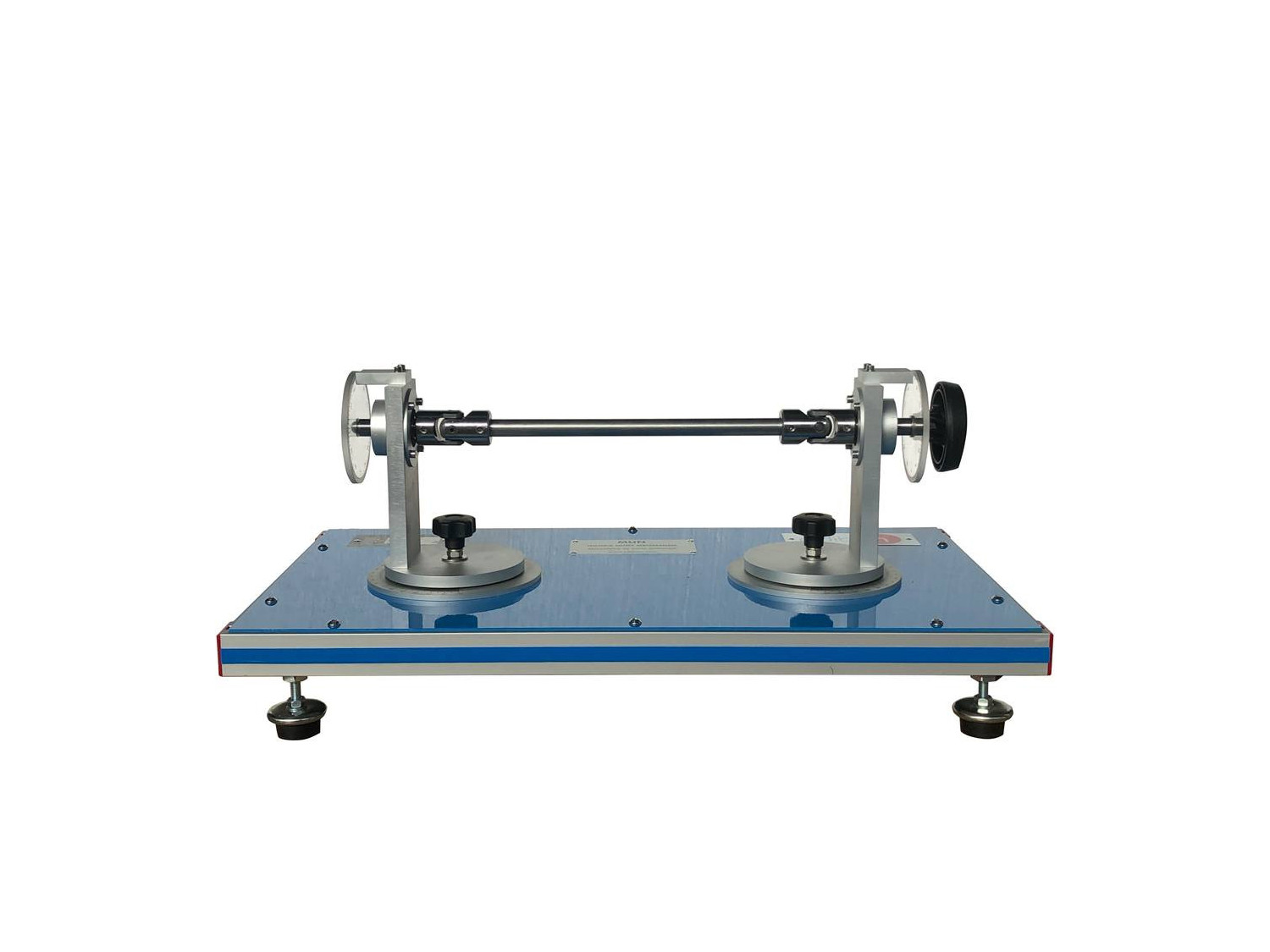

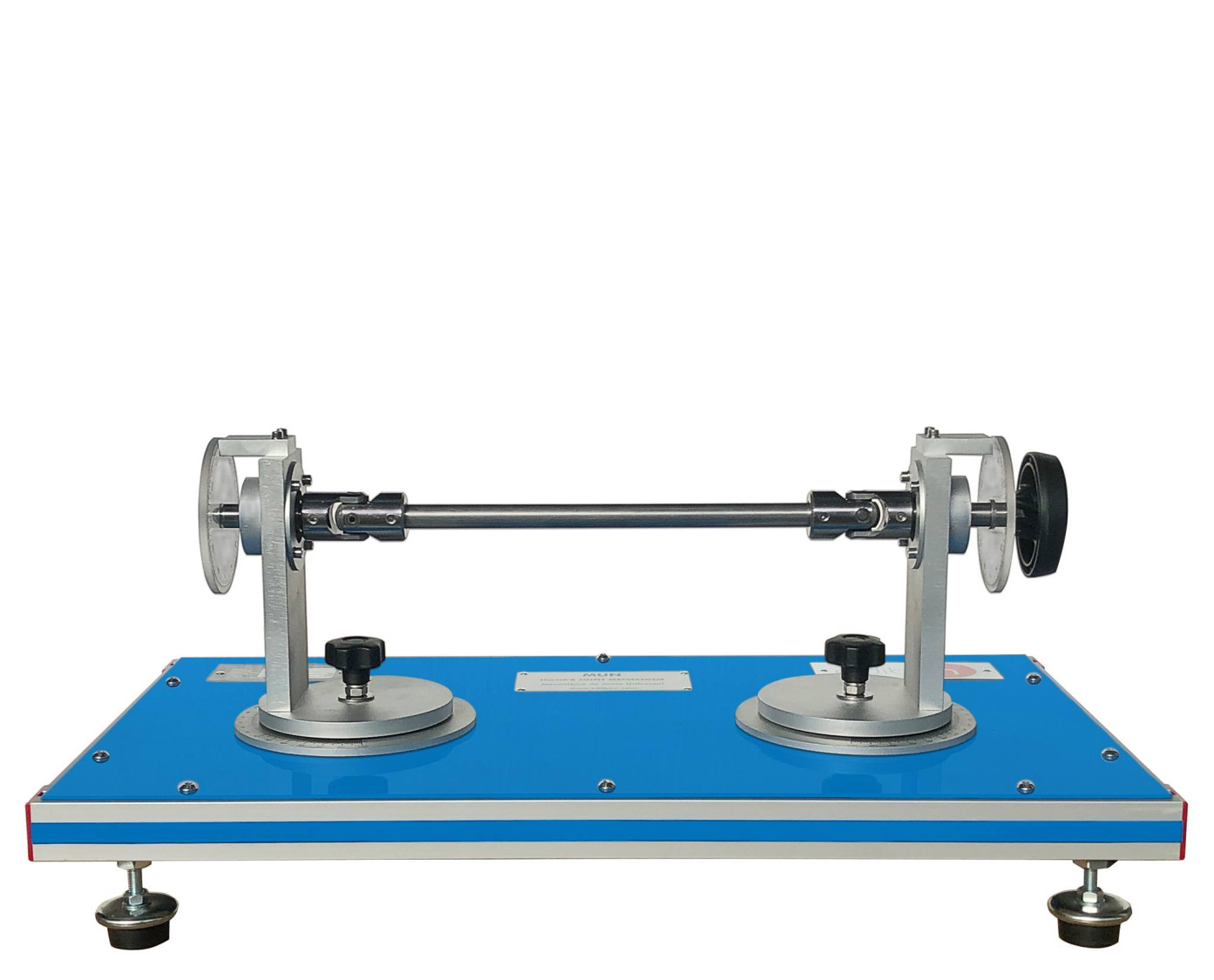

The Hooke’s Joint Mechanism, "MUN", designed by EDIBON, represents a universal coupling, also called a U-joint, Hooke joint or cardan joint. The Hooke joint is a universal mechanism that is often used to transmit rotary motion between two non-parallel but intersecting shafts.

The mechanism includes two universal couplings (cardan joints) joined by an intermediate shaft, allowing the adjustment and reading of the angle between inlet shaft and other outlet shaft by means of graduated discs fixed on the base panel.

Both couplings are mounted on two graduated discs, allowing the reading of the rotation at the input and output.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Demonstrate the action of a single universal joint by connecting two axes that have small misalignments.
  2. Determine graphically the relationship between the angular displacements of two shafts connected by a single universal joint with different degrees of misalignment.
  3. Study how the universal joint arrangement and the angle of deflection affect the cardan error.
  4. Determine graphically the relationship between the angular displacements of two shafts connected by a double universal joint with different degrees of misalignment.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Determination of the velocity and acceleration of the output shaft on a single Hooke´s joint by graphical differentiation.
