N-M15 Modul Pengembangan Sendiri

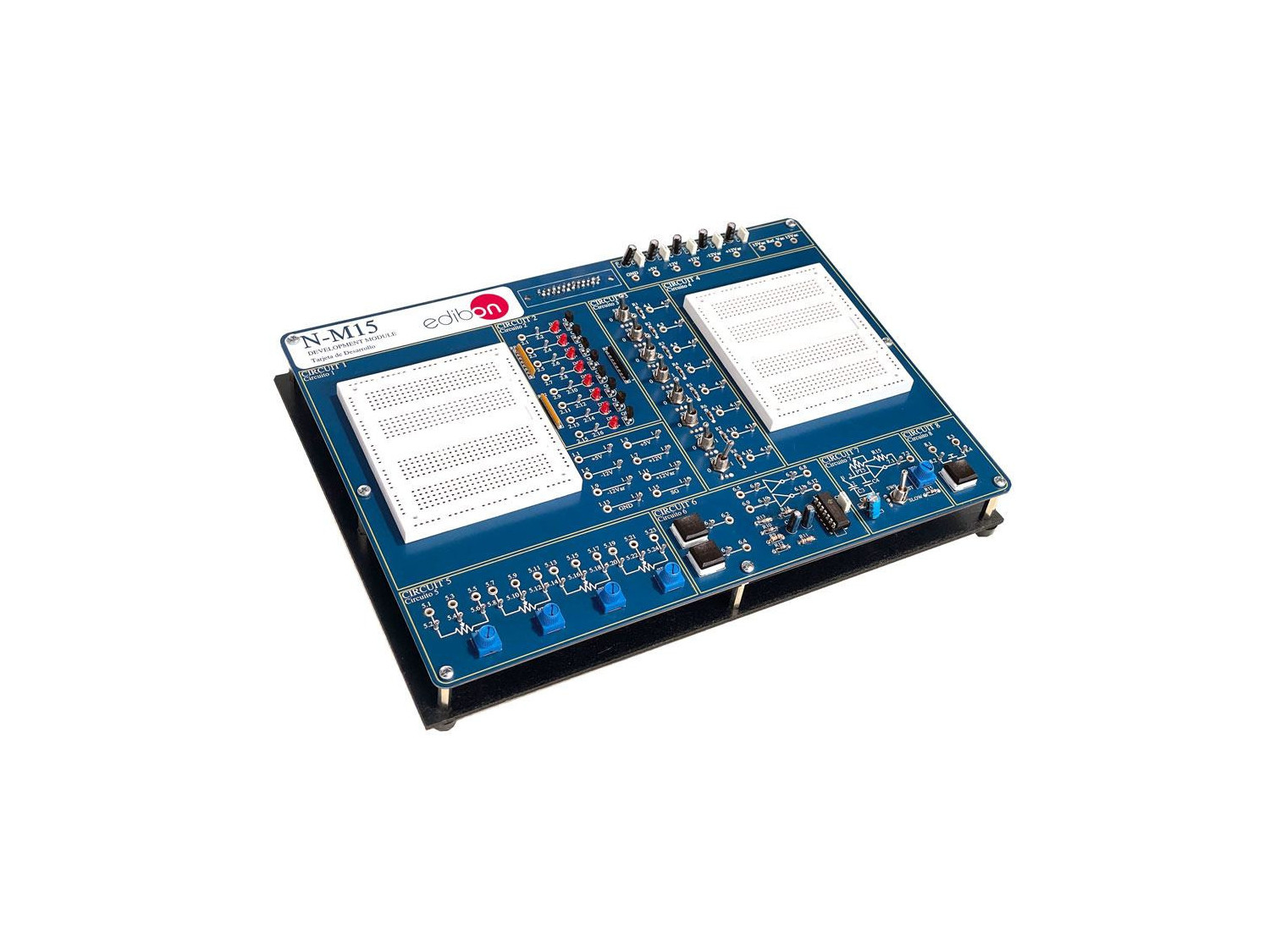

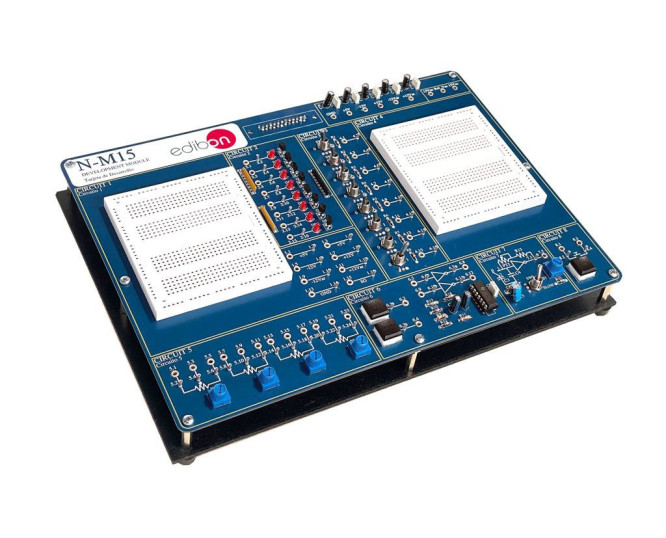

The Own Development Module "N-M15", designed by EDIBON, consists of a circuit board that will allow the realization of a set of assemblies on the mentioned board, allowing the study of the basic concepts of direct current circuits.

The circuits can be made using real elements such as resistors, capacitors, integrated circuits, etc.

For those circuits in which we wish to see a specific digital input or output, the development board incorporates a circuit to visualise when a signal is a logical 1 or 0. It also allows us to generate logic ones and zeros by switching switches.

Four potentiometers of various values are provided on the board, to be used in the circuits to be designed.

To generate pulses, there is a circuit with two pushbuttons, which when pressed introduce a logic 1 at the output. In addition, a small circuit provides a clock signal whose frequency depends on the position of the switch in its circuit.
