PNEUMATIC TEST MODULE FOR PLC - BS9-PLC

SISTEM INOVATIF

The "BS9-PLC" has been designed to study the control and handling techniques of a pneumatic actuator through a PLC.

Lihat uraian umum

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut

GAMBARAN UMUM

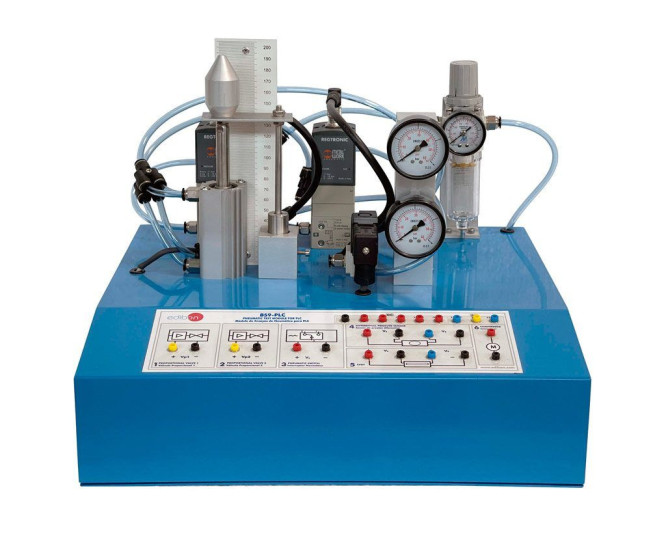

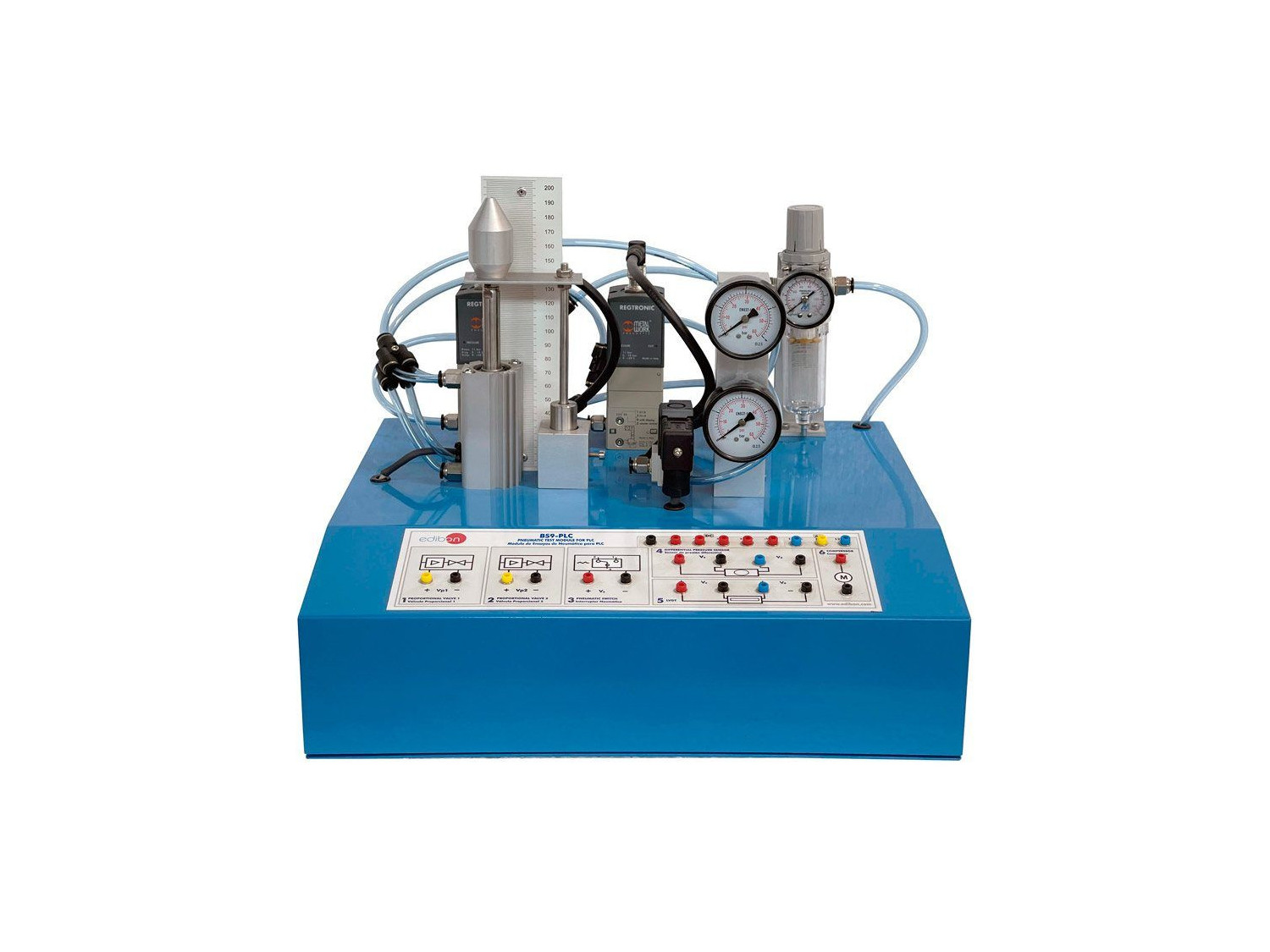

The "BS9-PLC" has been designed to study the control and handling techniques of a pneumatic actuator through a PLC. The actuator is a double acting pneumatic cylinder that allows moving a platform. The displacement of the piston axle is detected by a linear displacement sensor LVDT. The position of the pneumatic cylinder is controlled by two proportional electronic valves. The pressure difference between the piston inlets is measured by a differential pressure sensor and the supply of compressed air is provided by a compressor. The pneumatic cylinder position is controlled by PLC depending on the obtained signals from the position sensor.

* Available PLC models of different manufacturers: PANASONIC, SIEMENS, OMRON, MITSUBISHI, ALLEN BRADLEY, etc.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Proportional valves. To control electronically the vertical displacement of a double effect pneumatic piston using proportional valves.
  2. Differential pressure sensor. To use a pressure sensor for measuring the pressure difference between both pneumatic piston air inlets.
  3. Pneumatic switch. To deflect the air flow using a pneumatic switch.
  4. LVDT Linear Displacement Sensor. To measure pneumatic piston displacement using an excitation and DC output LVDT.
  5. Using the analogs input and outputs of the PLC to read and write analog signals.
  6. Read the position sensor signal with the PLC.
  7. Manual control of the actuator through the PLC.
  8. PID control of the cylinder position through the PLC.
  9. Observe the effects of the position control to changes in the PID parameters.
