THREE-PHASE CIRCUITS MODULE - N-M18

SISTEM INOVATIF

The Three-phase Circuits Module, "N-M18", designed by EDIBON, is used to study the generation of three-phase systems, load balancing between phases, operation of three-phase rectifiers, etc.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
EMSK

Kit Pengembangan Simulasi Sirkuit EDIBON, Didukung oleh NI LabVIEW™

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Baca lebih lanjut

GAMBARAN UMUM

Three-phase voltage is essentially a system of three alternating voltages, coupled (all 3 are produced simultaneously in a generator) and 120º out of phase with each other (i.e. one third of the period).

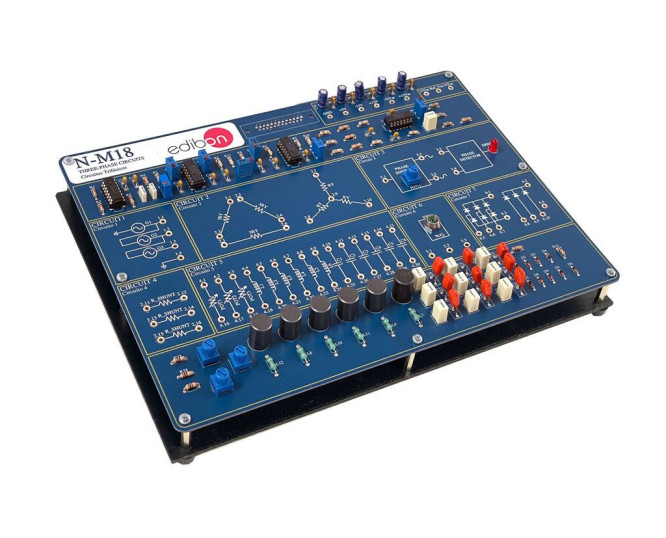

The Three-phase Circuits Module, "N-M18", designed by EDIBON, is used to study the generation of three-phase systems, load balancing between phases, operation of three-phase rectifiers, etc.

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

Generation of a three-phase system:

  1. Checking of the three-phase system.
  2. Calculation of the voltage values.

Three-phase load in star and delta:

  1. Star-delta equivalence.
  2. Decompensation of the star.
  3. Out-phase between voltage and current (reactance).
  4. Measurement of the power factor.
  5. Correction of the power factor.

Synchronism detector:

  1. Out-phase generation between waves.
  2. Detection of out-phase between waves.

Phase-sequence detector:

  1. Waves in direct sequence.
  2. Waves in inverse sequence.

Three-phase rectifier:

  1. Half-wave three-phase rectifier.
  2. Full-wave three-phase rectifier.
Lihat Lebih Banyak

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Several other exercises can be done and designed by the user.
