DIGITAL SYSTEMS & CONVERTERS MODULE - N-M10

SISTEM INOVATIF

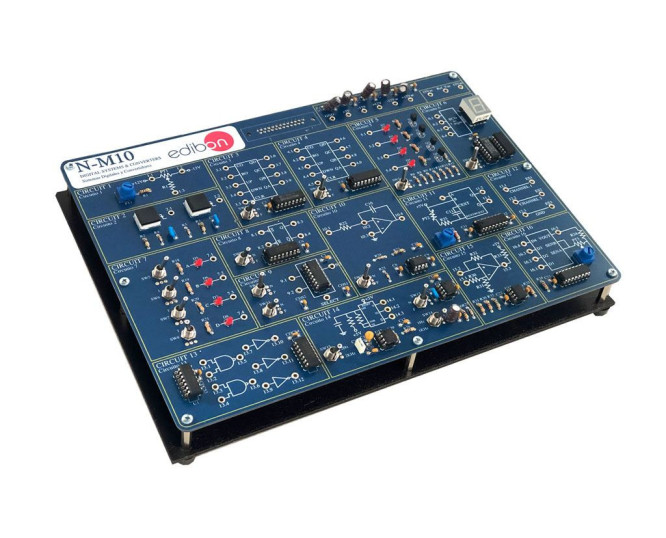

With Digital Systems and Converters Module, "N-M10", designed by EDIBON, the behaviour of BCD/Binary counters, comparators and analogue integrators can be studied, as well as analogue/digital conversion and vice versa.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
EMSK

Kit Pengembangan Simulasi Sirkuit EDIBON, Didukung oleh NI LabVIEW™

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Baca lebih lanjut

GAMBARAN UMUM

Generally, an analog to digital converter is an electronic device that converts an analog voltage input to a digital number.

digital number. The digital output can use different coding schemes, such as binary, although some non-electrical or partially electrical devices can be considered as analog to digital converters.

non-electrical or partially electrical devices can be considered as analog-to-digital converters.

The resolution of a converter indicates the number of discrete values it can produce over a range of voltage values (usually expressed in bits). For the implementation of digital circuits, logic gates (AND, OR and NOT) and transistors are used.

With Digital Systems and Converters Module, "N-M10", designed by EDIBON, the behaviour of BCD/Binary counters, comparators and analogue integrators can be studied, as well as analogue/digital conversion and vice versa.

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

Analog switching. Bistable, astable and monostable family:

  1. Characteristics of an analog switch chip.
  2. Faults study of F1 in the analog multiplexer.
  3. Faults study of F3 in the analog multiplexer.
  4. Characteristics of a Latch integrated circuit type S-R.
  5. Faults study of F2 in the bistable.
  6. Characteristics of an astable integrated circuit.
  7. Faults study of F8 in the astable.
  8. Characteristics of a monostable integrated circuit.
  9. Theoretical/practical exercises.

Binary/BCD Counters and 7-segments Displays:

  1. Characteristics of a 74ALS193 Binary Up/Down Counter and a 7-segment Display.
  2. Faults study of F6 in the binary counter.
  3. Characteristics of the BCD UP/DOWN counter and 7-Segment Display.
  4. Faults study in the BCD counter.
  5. Theoretical/practical exercises.

Comparators and analog integrators:

  1. Characteristics of an analog comparator.
  2. Analog integrator.
  3. Faults study of F7 in the analog integrator.
  4. Triangular wave generation.
  5. Theoretical/practical exercises.

A/D and D/A conversion:

  1. D/A Converter.
  2. A/D Converter.
  3. Theoretical/practical exercises.

Applications:

  1. Random number generator.
  2. Measuring the time between two events.
  3. Theoretical/practical exercises.
Lihat Lebih Banyak

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Synchronous/Asynchronous Counter.
  2. Several other exercises can be done and designed by the user.
