POWER SUPPLIES MODULE - N-M5

SISTEM INOVATIF

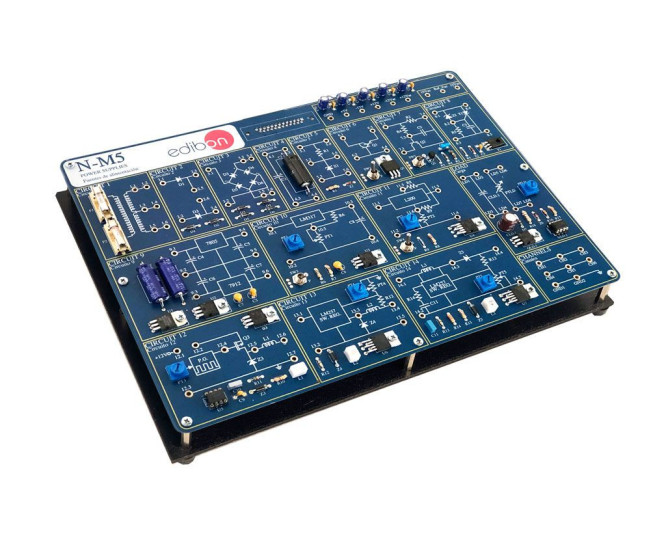

With the Power Supplies Module "N-M5", designed by EDIBON, symmetrical voltage regulators, operation of fixed, symmetrical and switched-mode power supplies as well as rectification (conversion of an AC voltage to a DC voltage) can be studied.
