GAMBARAN UMUM

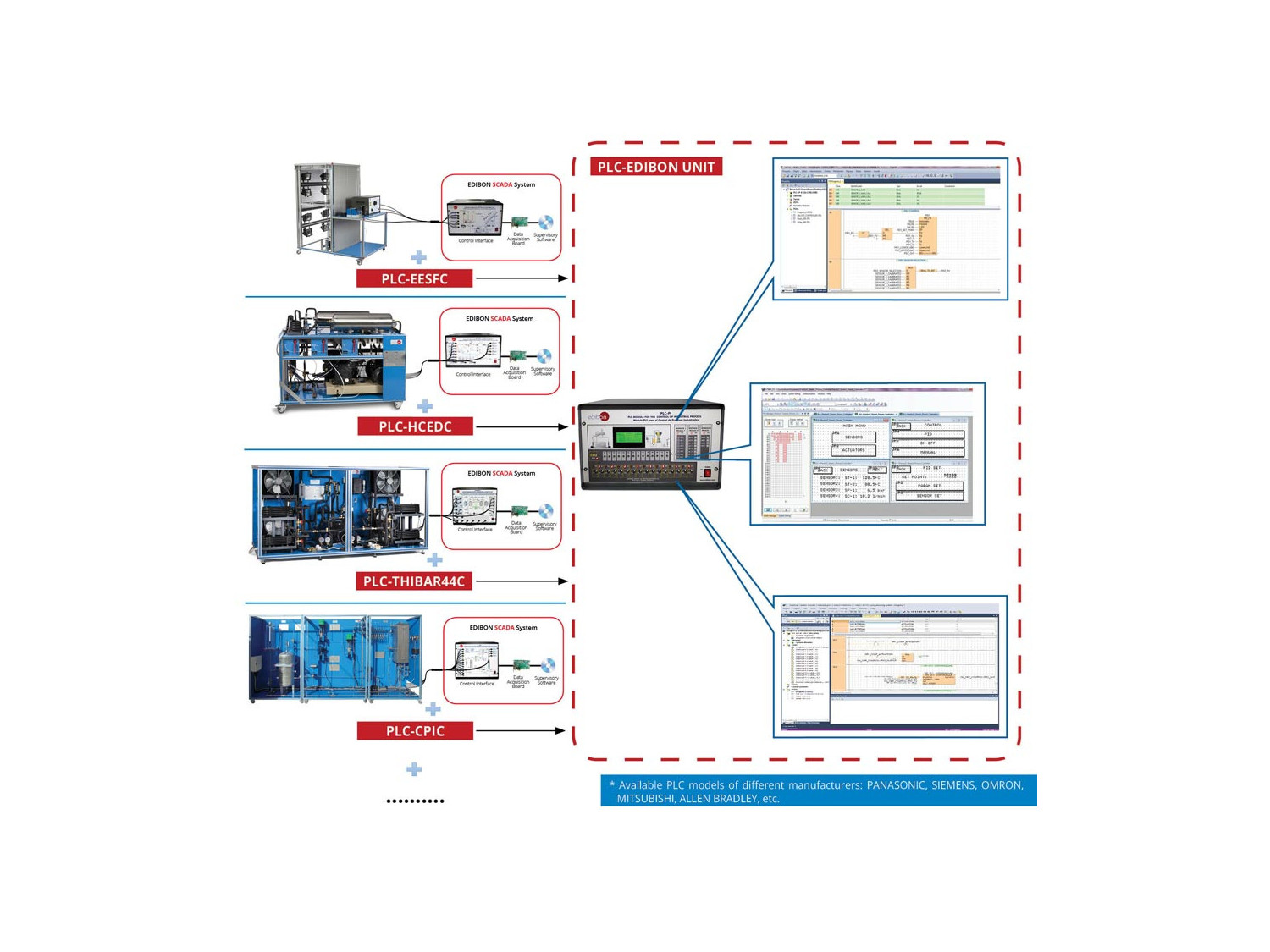

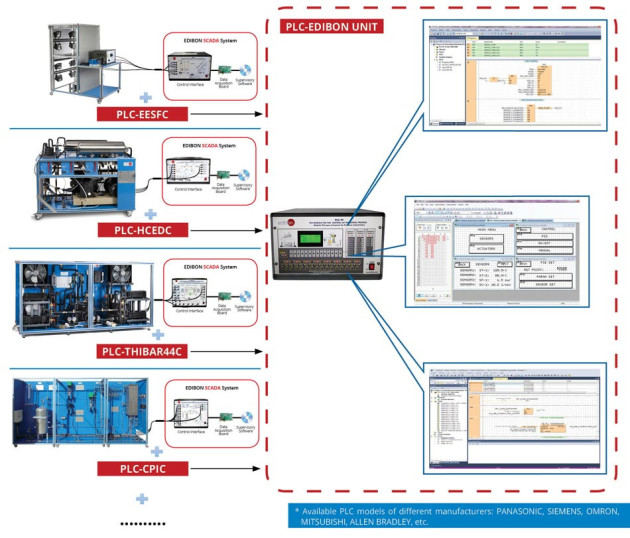

The PLC expansion is a PLC-based system designed to work in conjunction with other units from EDIBON.

The units can be controlled by the PLC expansion to obtain a required function.

The objective is to learn how PLCs are integrated in real industrial applications. The unit includes an industrial PLC, a HMI to expand the I/O functionality of the PLC system and different I/O modules such as a digital I/O module to acquire binary signals and control two-state actuators, an analog I/O to acquire analog signals (sensors, transducers and other analog signal sources) and control analog actuators (valves, pumps, etc.). and a communication module to communicate with a PC via USB.

LATIHAN DAN PRAKTEK PEDOMAN

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

Sample program to use Variables, Timers and Counters.
Sample program to program in different languages: ST (Structured Text), LD (Ladder Diagram) and SFC (Sequential Function Chart).
Sample program to use Digital Inputs/Outputs.
Sample program to use Analog Inputs/Outputs.
Sample program to program an HMI.
Sample program for Data Sensor Acquisition.
Sample program for Data Sensor Calibration.
Sample program for Manual Control of a Process (analog).
Sample program for Manual Control of a Process (digital).
Sample program for PID Control of a Process.
Sample program for ON-OFF Control of a Process.
Sample program for a Generic Process Controller.
