COMPUTER CONTROLLED SPRAY DRIER - SSPC

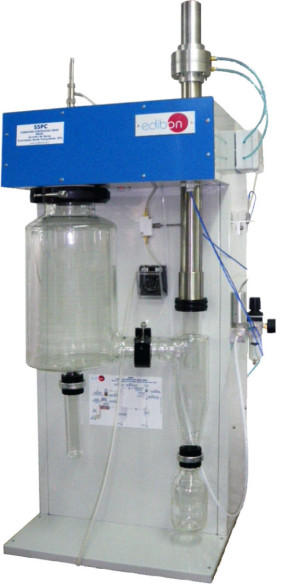

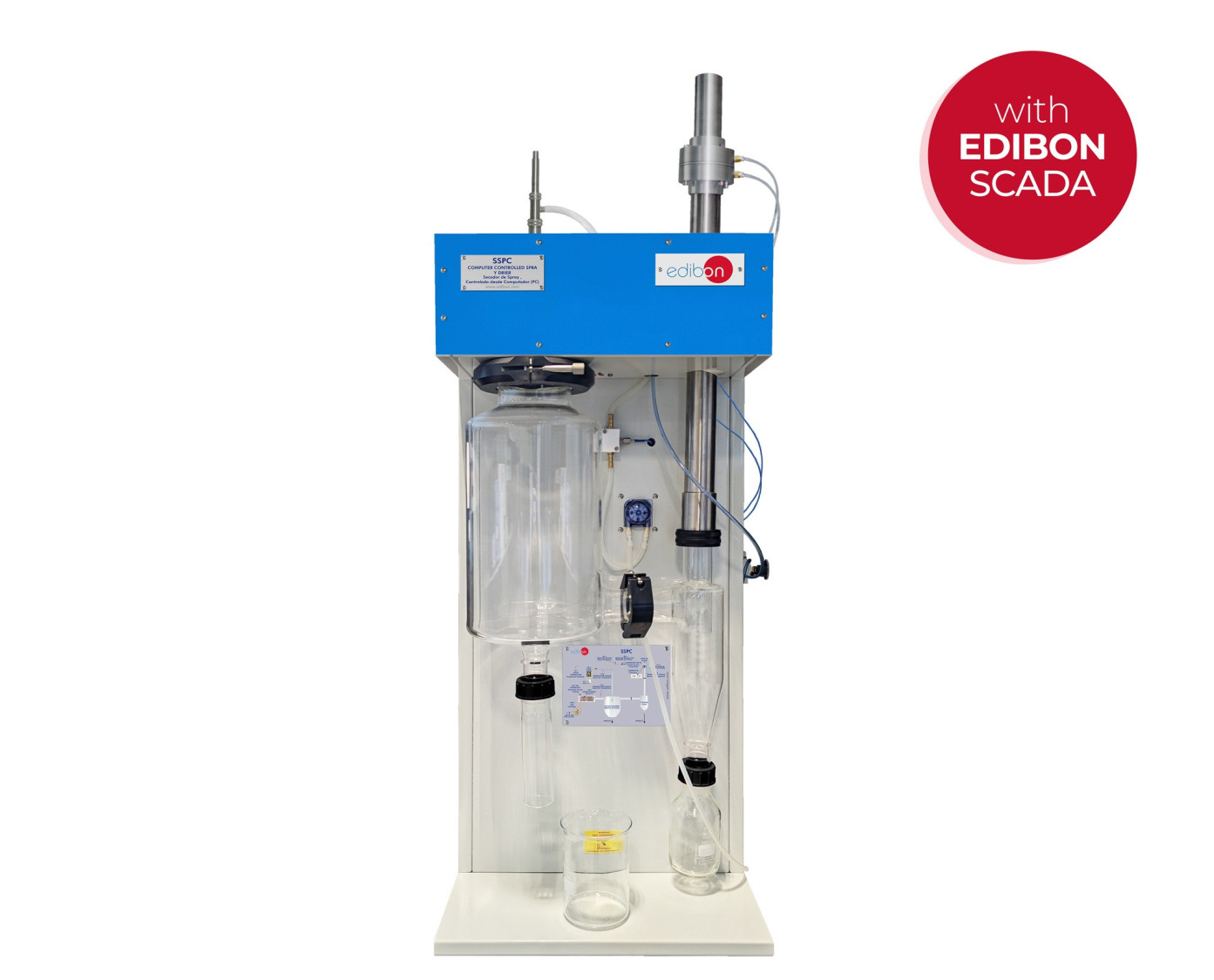

Unit: SSPC. Computer Controlled Spray Drier

COMPUTER CONTROLLED SPRAY DRIER - SSPC

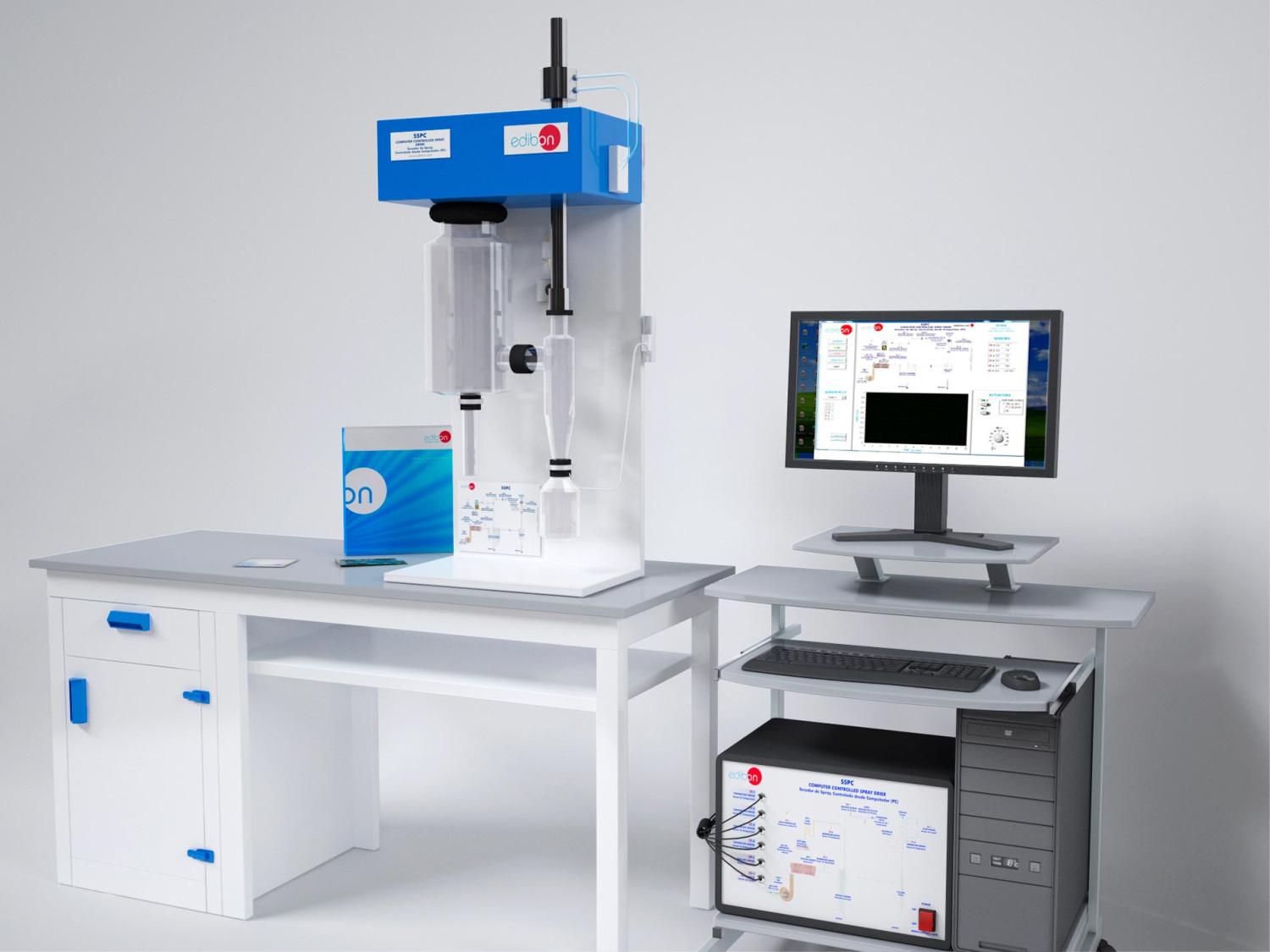

Complete SSPC Unit

COMPUTER CONTROLLED SPRAY DRIER - SSPC
COMPUTER CONTROLLED SPRAY DRIER - SSPC

SISTEM INOVATIF

The Computer Controlled Spray Drier, "SSPC", allows to study processes that involve aqueous emulsions, solutions, suspensions andcolloidal solutions.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
FSS

Sistem Simulasi Kegagalan
PLC

Pengendalian Proses Industri oleh PLC
PLCHMI

Kontrol dan Pemantauan IIoT Lokal/Jarak Jauh dengan HMI
ELK

Kit Pengembangan Perangkat Lunak EDIBON, Didukung oleh NI LabVIEW™
ECR

Sistem Industri Modular EDIBON dengan NI CompactRIO
ESN

Sistem EDIBON Scada-Net
ECL

Pendidikan Jarak Jauh EDIBON

Laboratorium

11TV
 Laboratorium Teknik Kimia untuk Pendidikan Teknik dan Vokasi
11HE
 Laboratorium Teknik Kimia untuk Perguruan Tinggi
11PTC
 Laboratorium Pusat Pelatihan Perminyakan
12TV
 Laboratorium Teknologi Pangan untuk Pendidikan Teknik dan Vokasi
12HE
 Laboratorium Teknologi Pangan untuk Perguruan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Baca lebih lanjut
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
Baca lebih lanjut

GAMBARAN UMUM

The Computer Controlled Spray Drier, "SSPC", allows to study processes that involve aqueous emulsions, solutions, suspensions andcolloidal solutions.

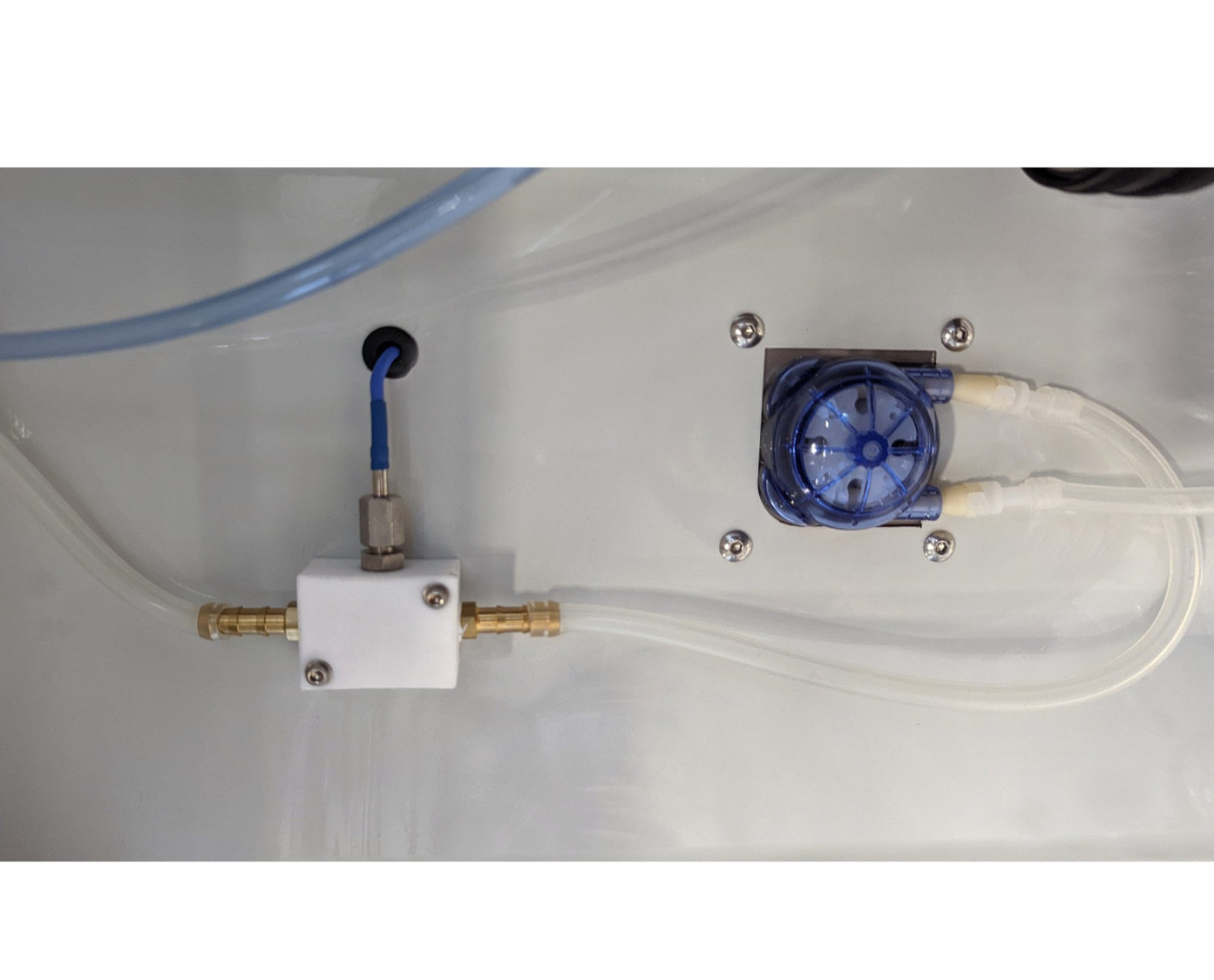

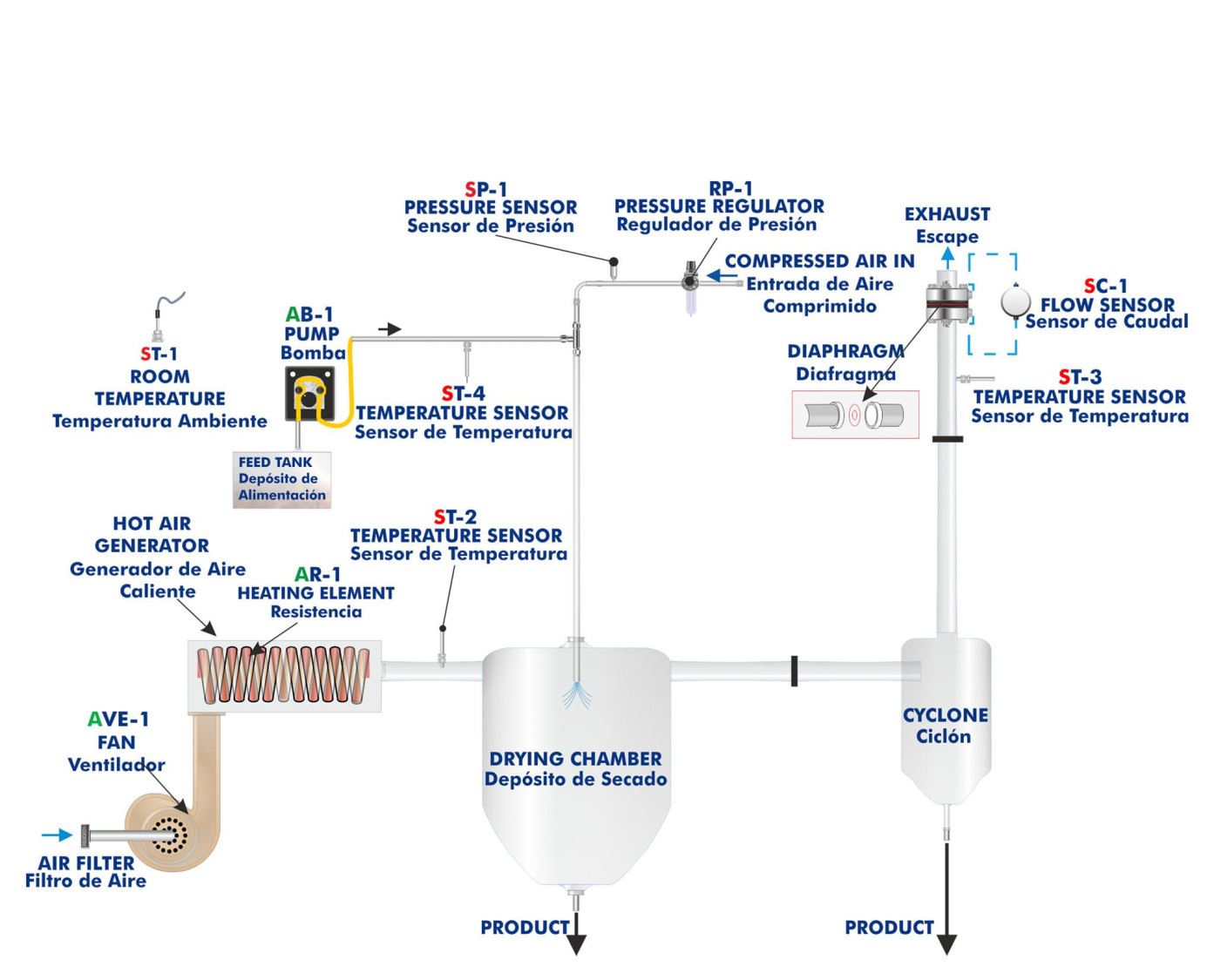

Peristaltic pump delivers the liquid sample from a container through a small diameter jet into the drying chamber. At the same timecompressed air enters the outer tube of the jet which causes the liquid to emerge as a fine atomized spray into the drying chamber. Heatedair is blown through the drying chamber evaporating the liquid content of the atomized spray.

The solid particles of the material are separated from the exhaust air flow by a cyclone and collected in the sample collection bottle. Theexhaust airflow is directed to the atmosphere or to an extraction system existing in the laboratory.

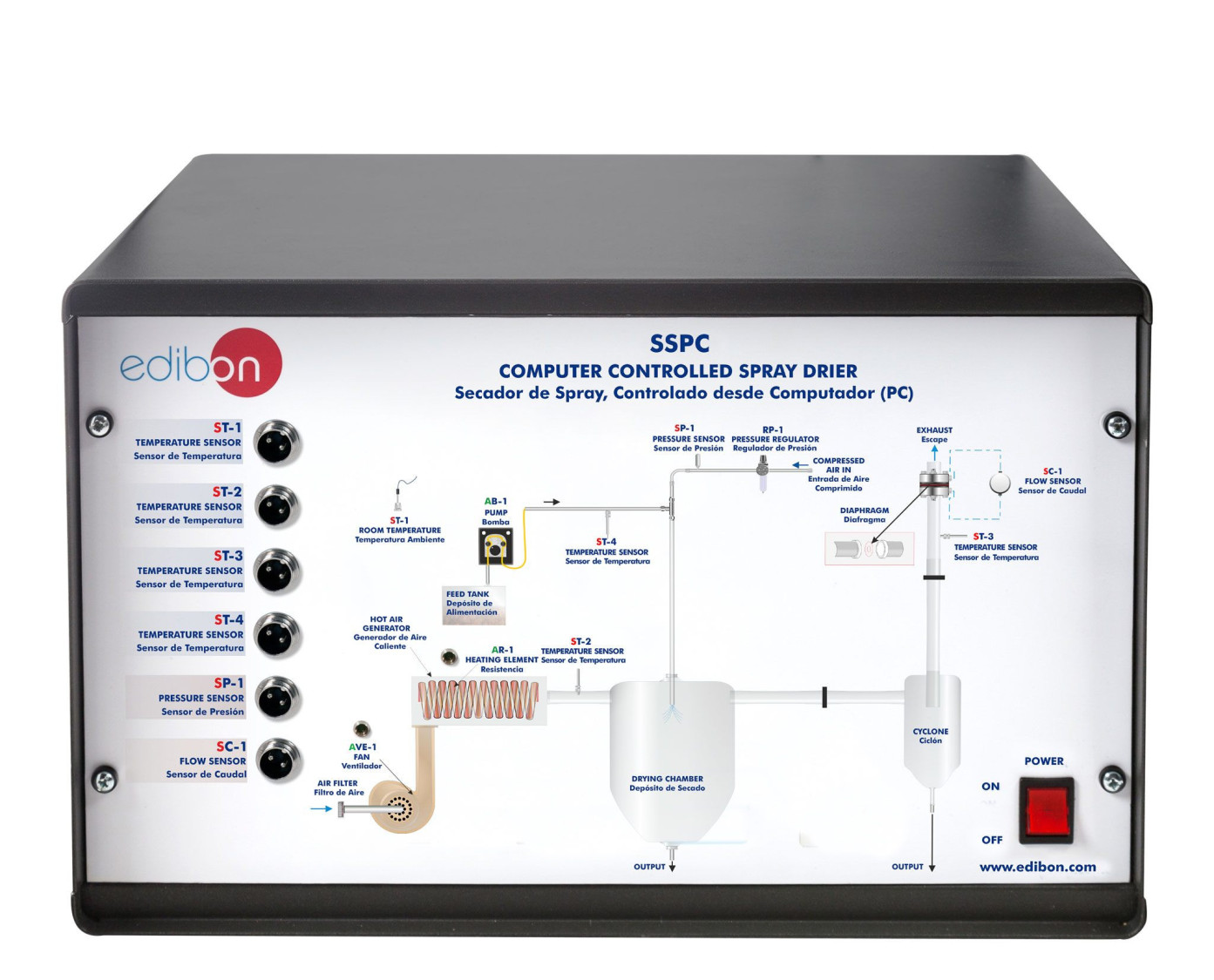

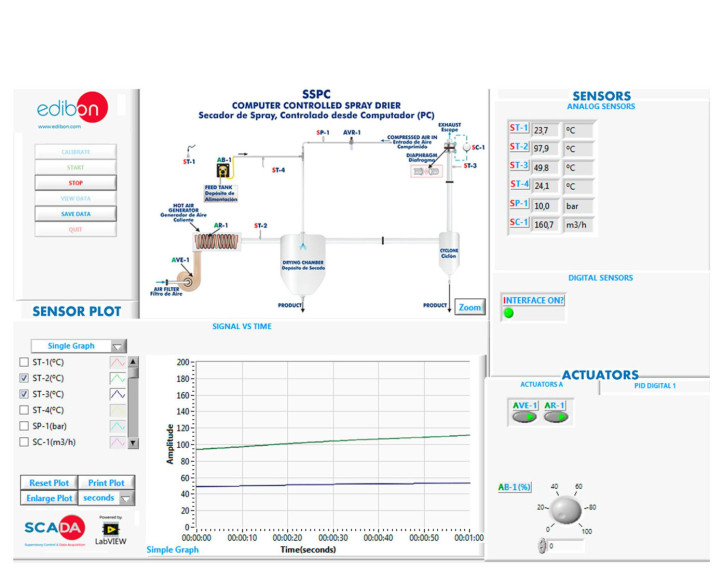

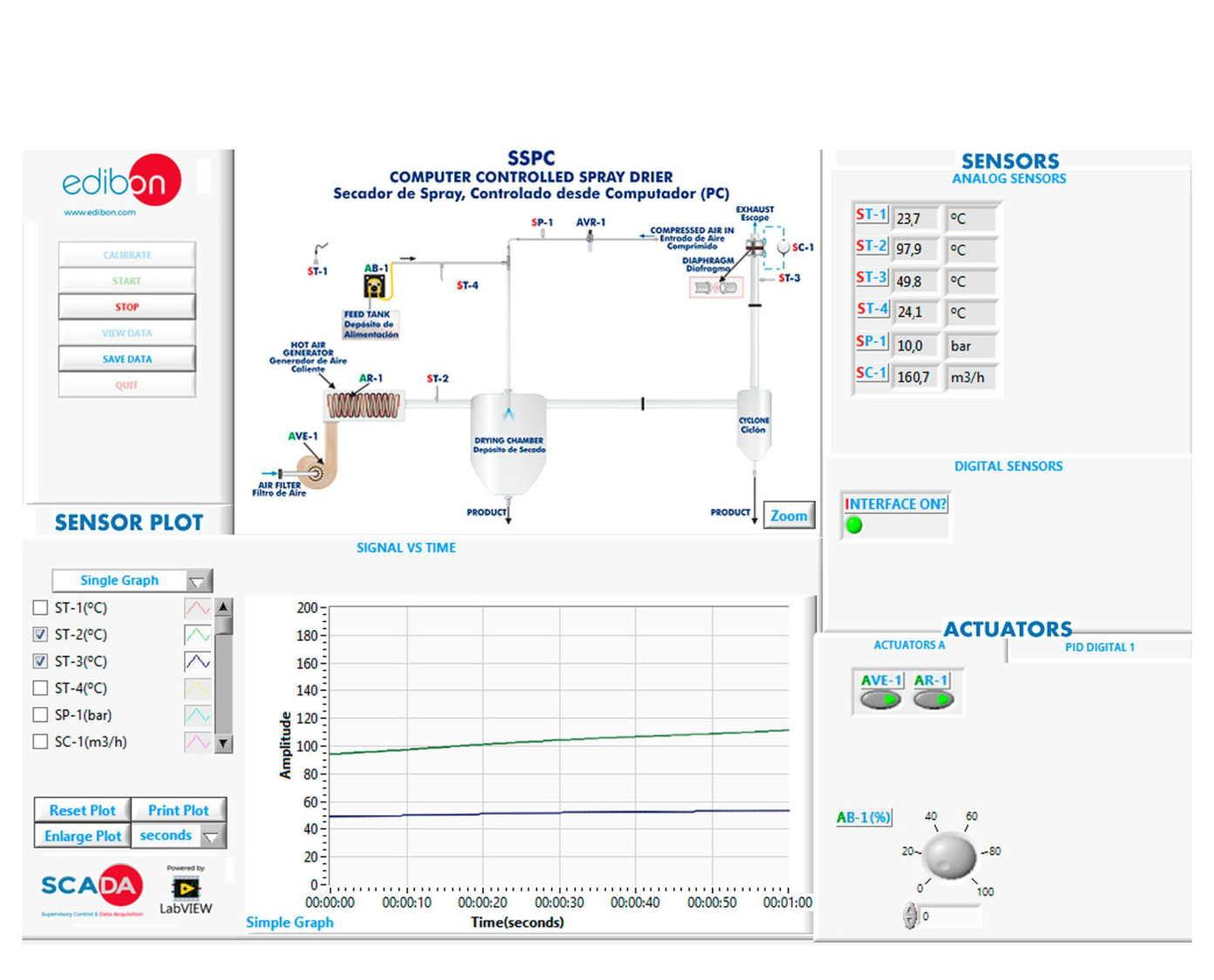

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + aControl Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, forcontrolling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Operation principle of a spray drier.
  2. Effect of the drop size on the drying process.
  3. Effect of the air input temperature on the drying process.
  4. Effect of the feed flow of the product on the drying process.
  5. Mass balance of a spray drier.
  6. Spray drier efficiency.
  7. Sensors calibration.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Energy balance of a spray drier.

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivate parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the SSPC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the SSPC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
