TACS Peralatan AC Dua Blok (Split)

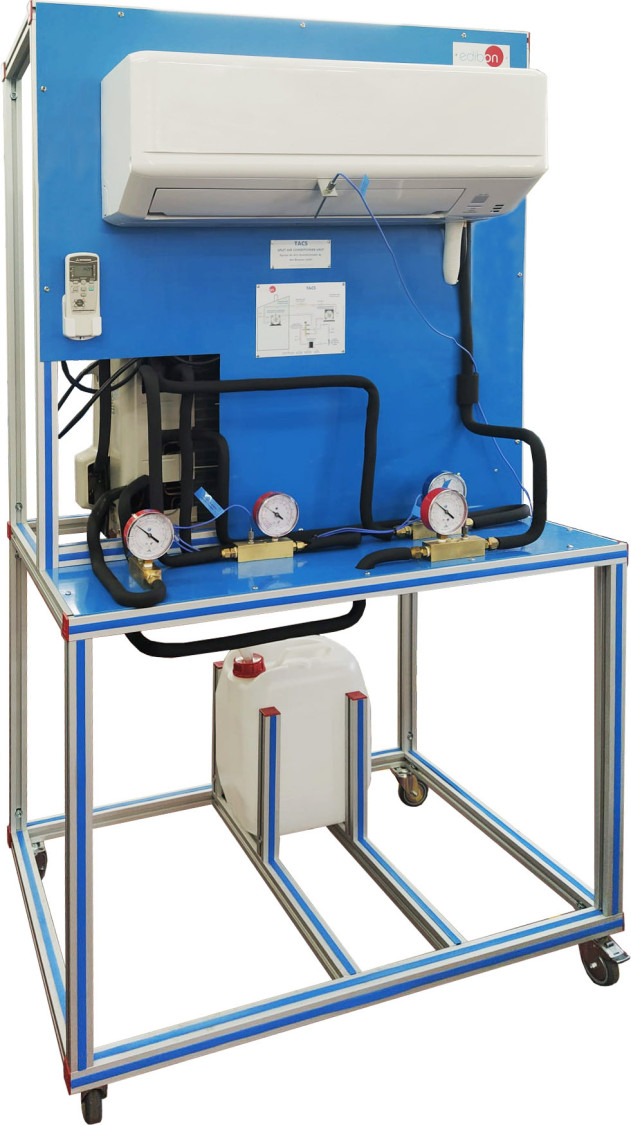

The Split Air Conditioner Unit, "TACS", designed by EDIBON allows the study of the operation of a split system air conditioner with heat pump function to heat or cool, apart from other operation modes available.The main element of the Split Air Conditioner Unit, "TACS", is a noiseless split system air conditioner mounted in a panel (dividing wall) made of painted steel that simulates a real air conditioning system.The inner unit with fan is located at the front and the outer unit is located at the back. It includes a rotary compressor, a heat exchanger, a capillary tube for the expansion, a storage tank and a valve to switch the operation mode of the heat pump.For a better understanding of the cycle, two additional manometers are included to check the refrigerant pressure before and after the compression stage.

The unit can be operated in different modes:

• Cooling.
• Heating.
• Dehumidifying: light cooling.Ventilation: using only the fan of the inner unit.

Service mode: the user selects the operation of the fan and the desired room temperature with the remote control.Automatic mode: the user sets a temperature and the service mode is automatically selected till that temperature is reached in function of the real ambient temperature.The additional functions can be set with the remote control:

• Timer for switching on and off (the remaining service time is indicated).
• "Sleep" mode: low noise and energy saving.
• "Swing" mode: fixed or movable position of the lamella at the air outlet for air distribution.
