HFCC Peralatan Aliran Fluida Kompresibel, Dikendalikan dari Komputer (PC)

8.7.5.- KOMPRESOR 8.8.- SISTEM PIPA FLUIDA 9.1.- FUNDAMENTAL DAN KONSEP DASAR TERMODINAMIKA
COMPUTER CONTROLLED FLOW OF COMPRESSIBLE FLUIDS UNIT - HFCC

Unit: HFCC. Computer Controlled Flow of Compressible Fluids Unit

COMPUTER CONTROLLED FLOW OF COMPRESSIBLE FLUIDS UNIT - HFCC

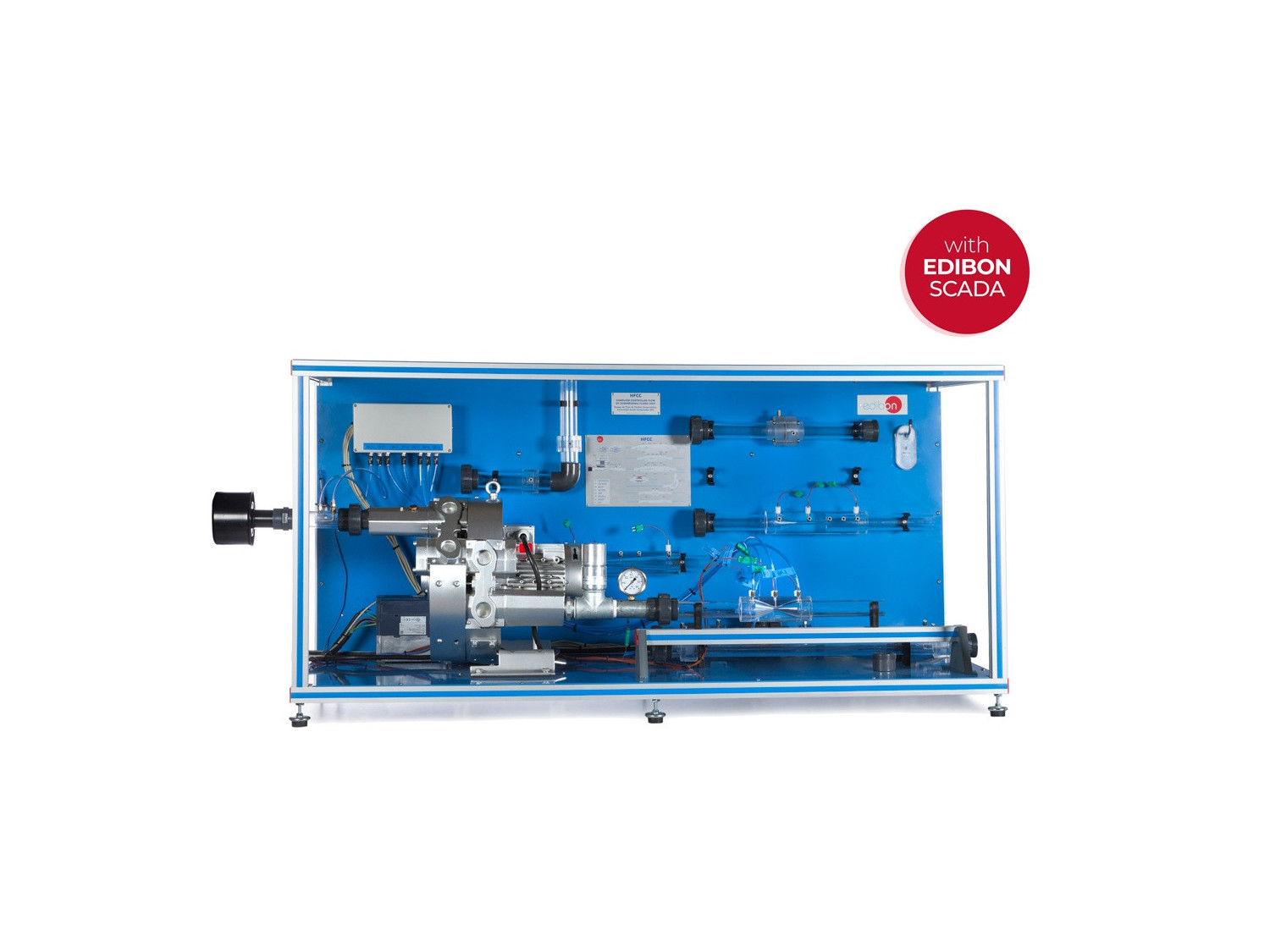

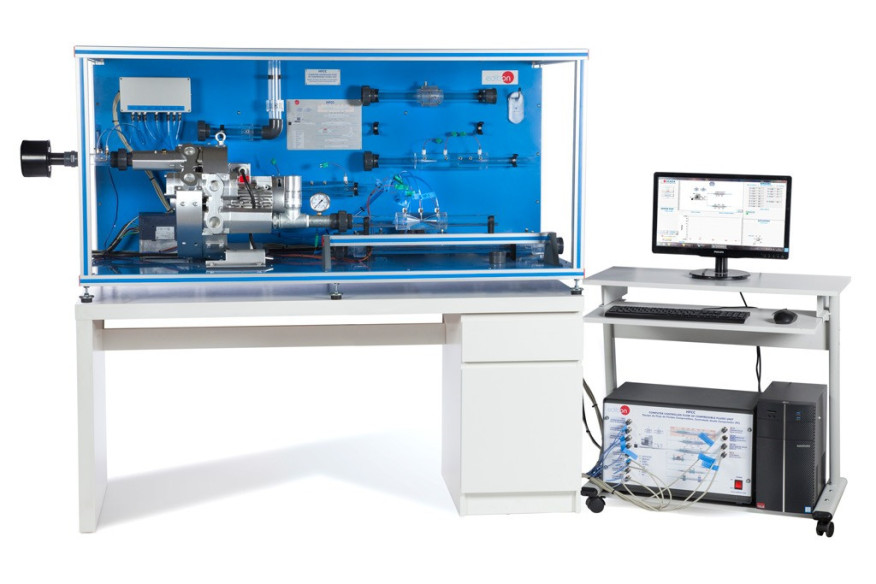

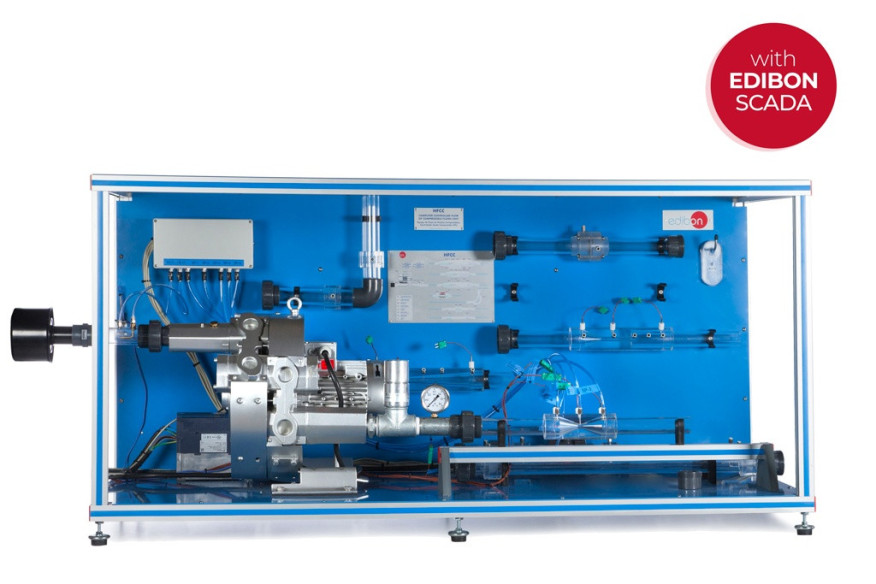

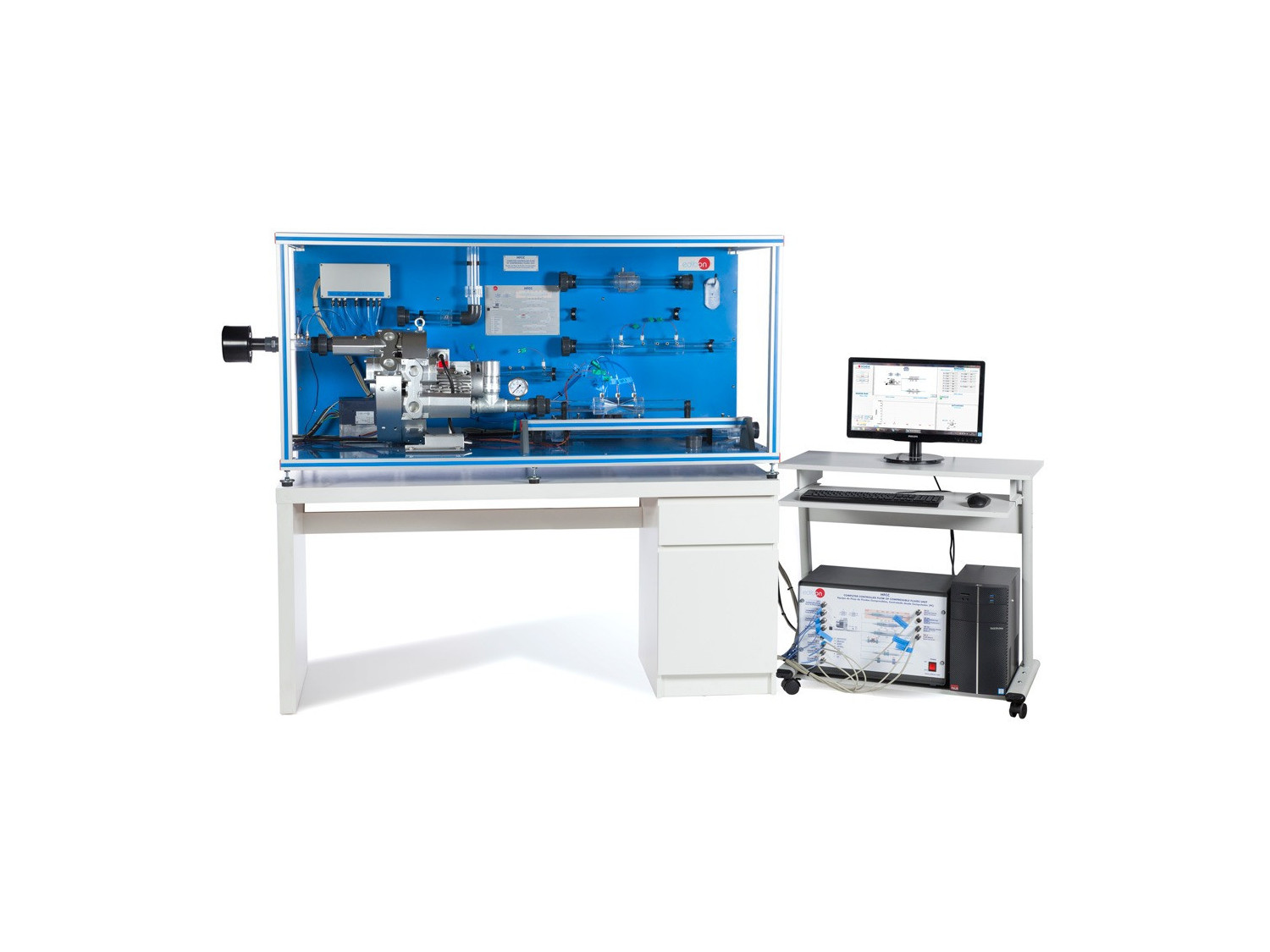

Complete HFCC unit

COMPUTER CONTROLLED FLOW OF COMPRESSIBLE FLUIDS UNIT - HFCC

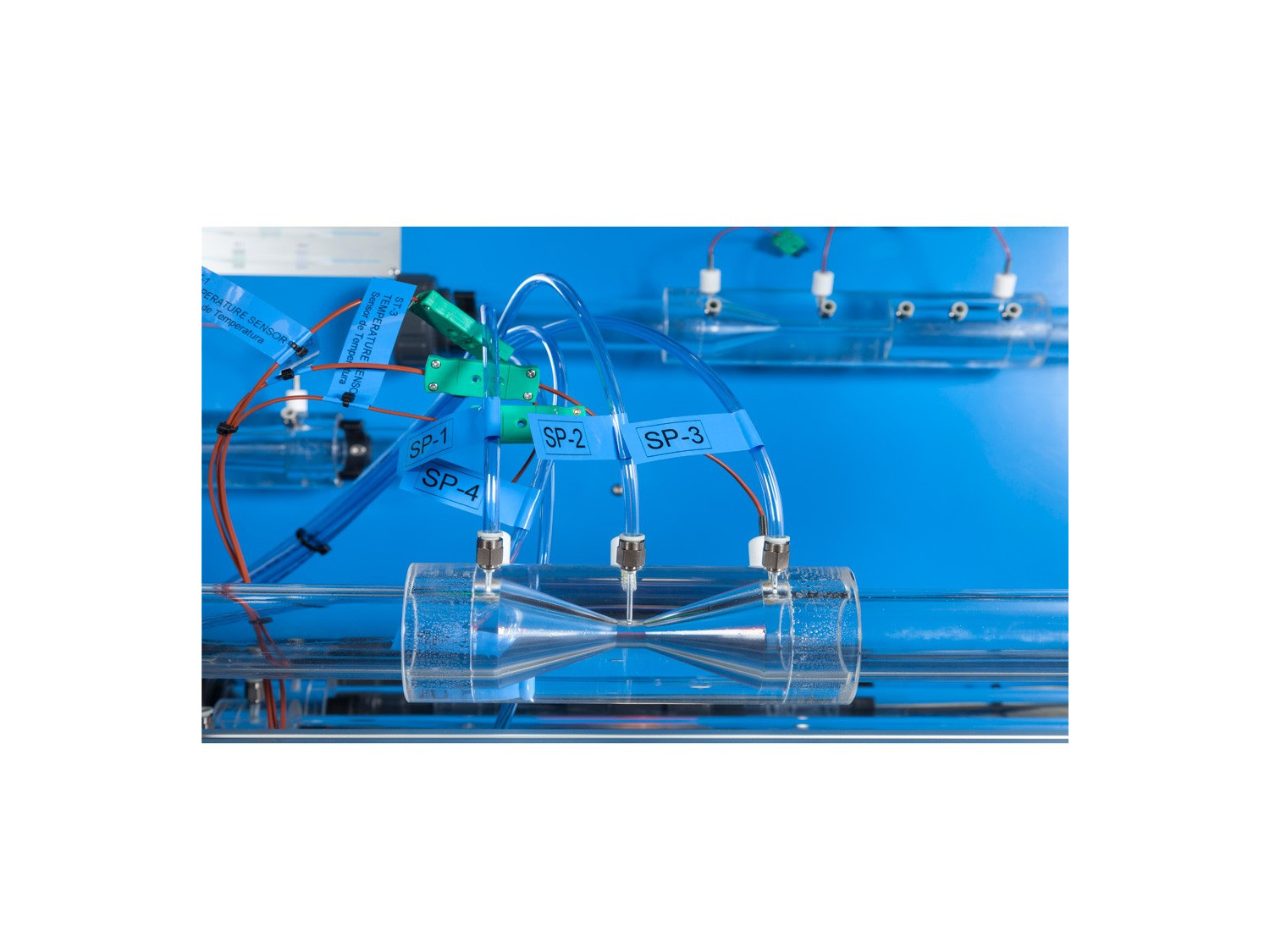

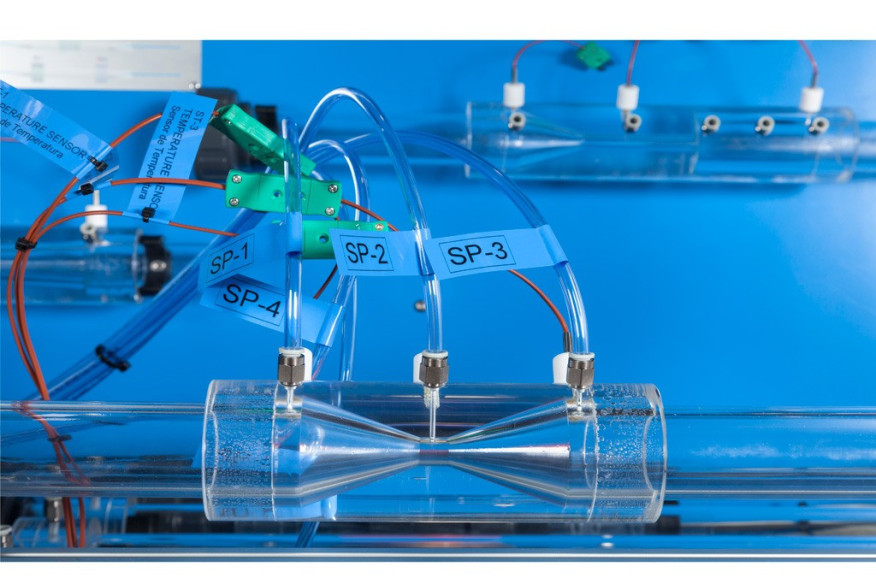

Unit details

COMPUTER CONTROLLED FLOW OF COMPRESSIBLE FLUIDS UNIT - HFCC

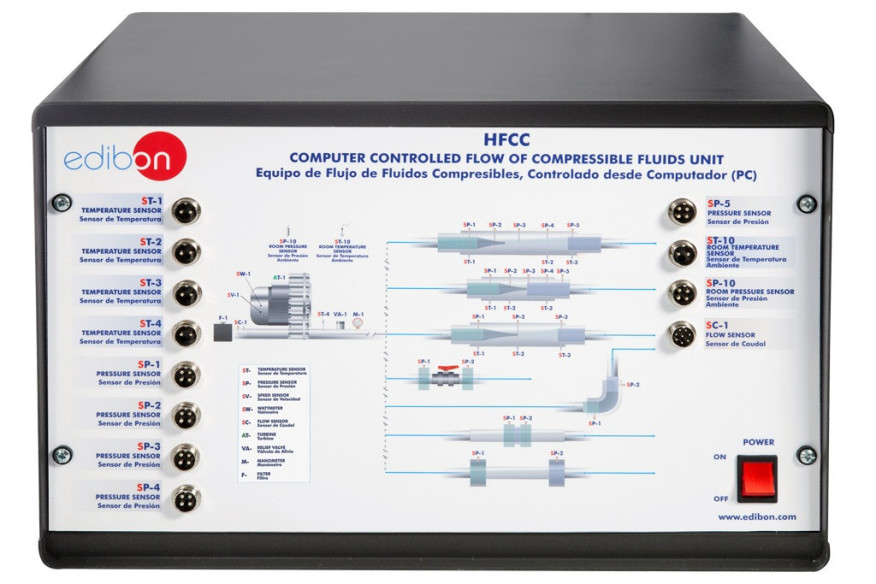

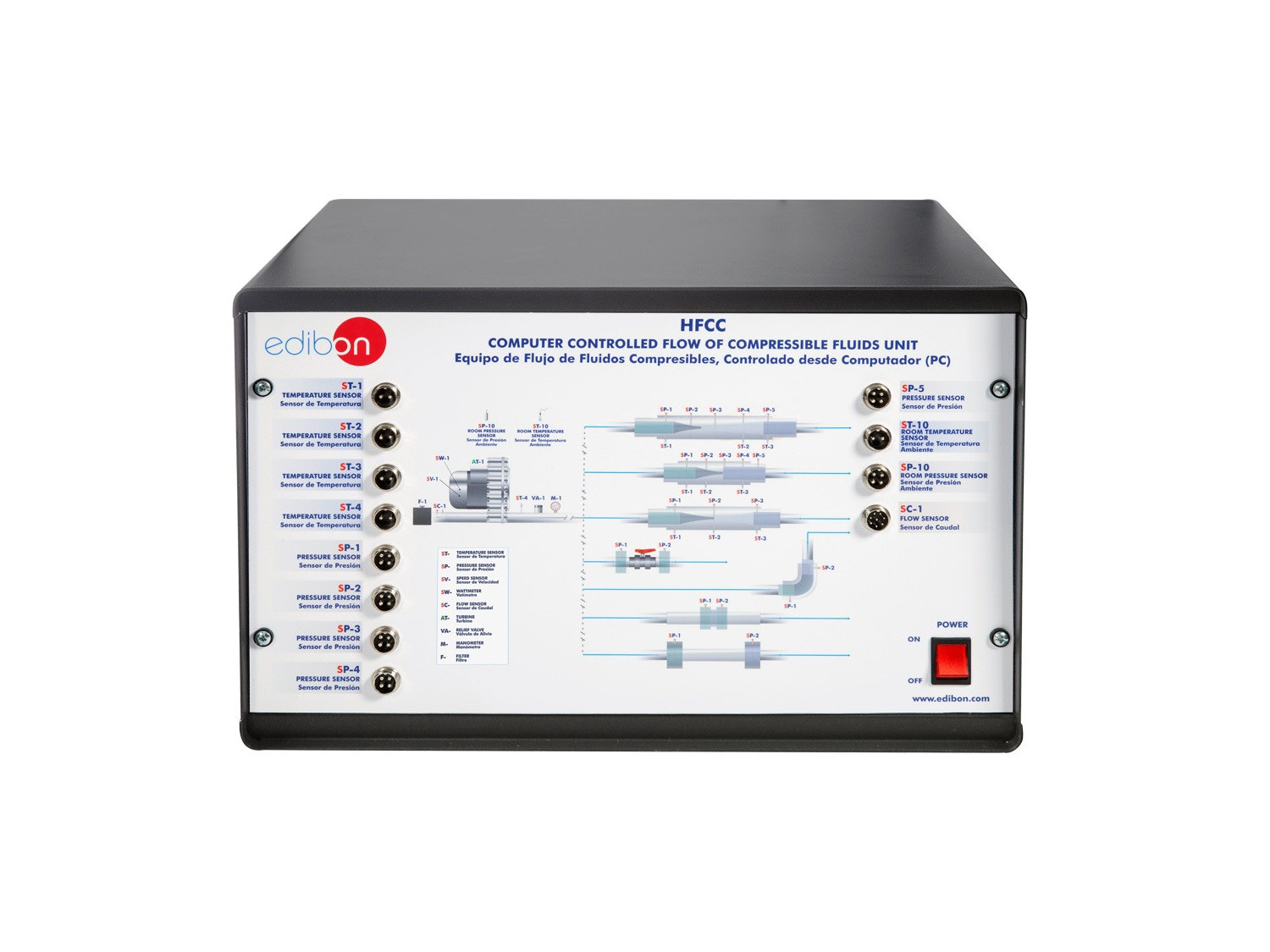

HFCC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED FLOW OF COMPRESSIBLE FLUIDS UNIT - HFCC

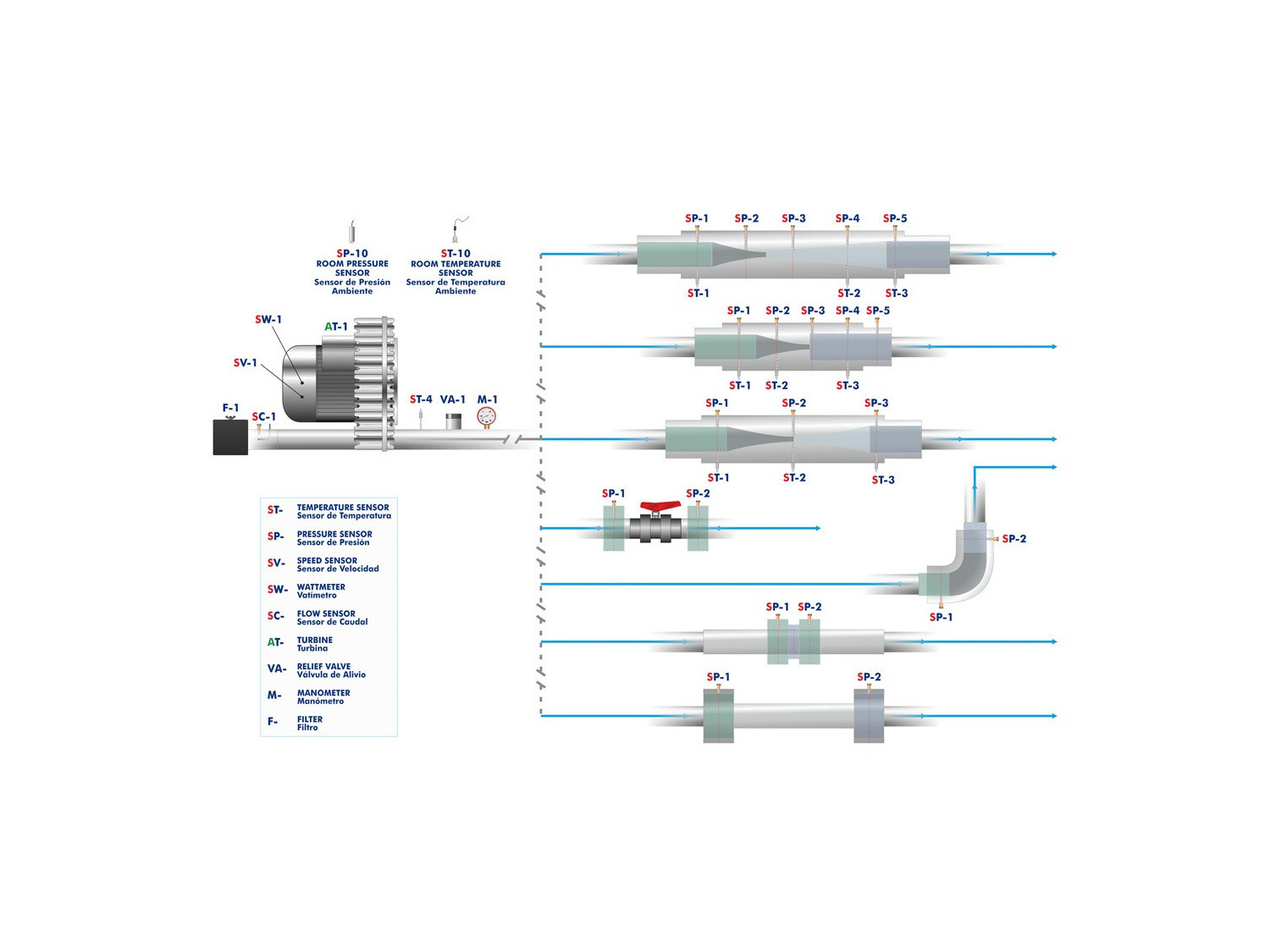

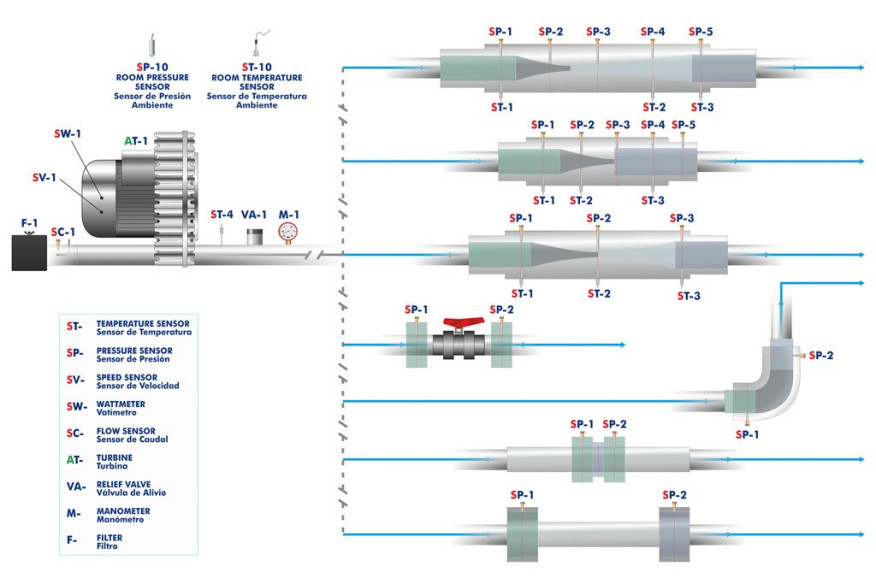

Process diagram and unit elements allocation

COMPUTER CONTROLLED FLOW OF COMPRESSIBLE FLUIDS UNIT - HFCC

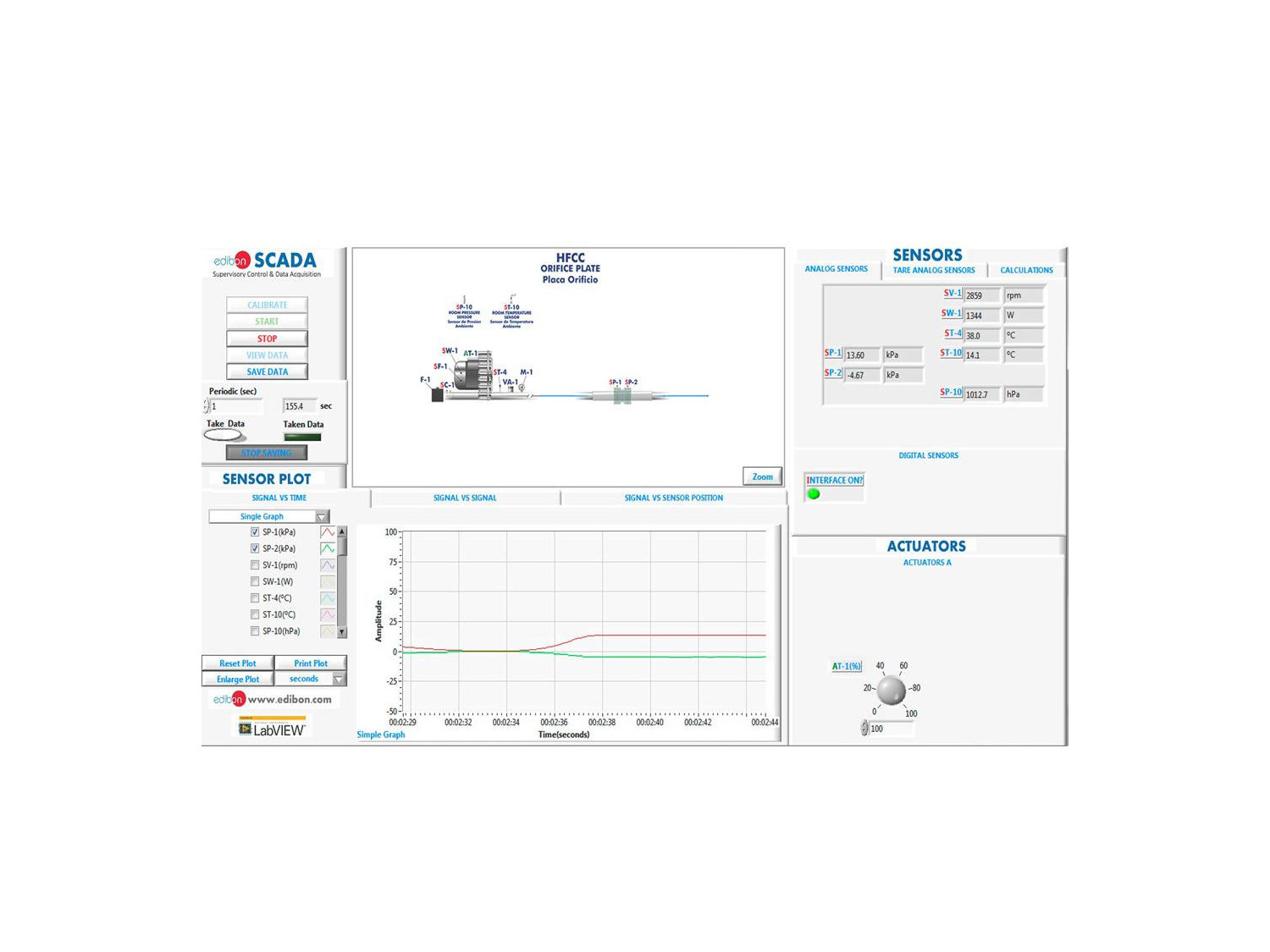

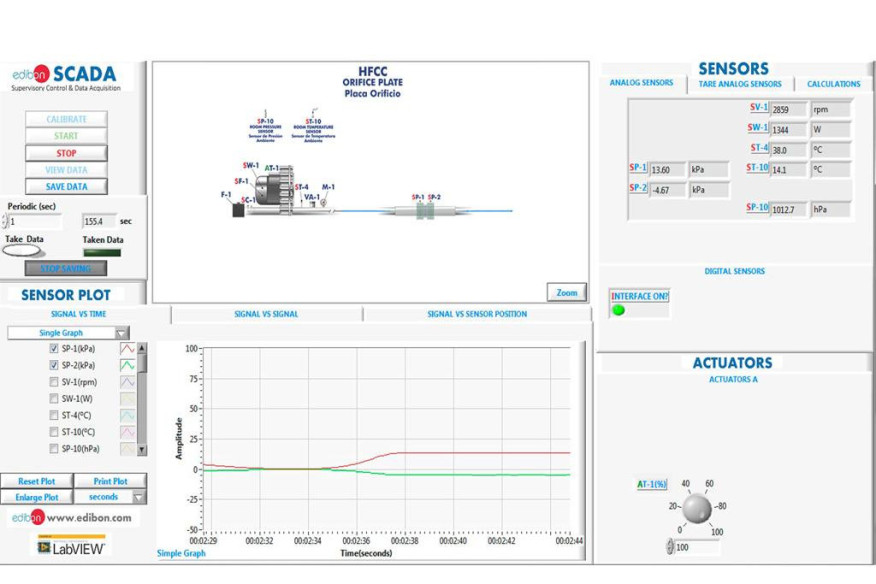

HFCC/SOF. HFCC Software. Main Screen

COMPUTER CONTROLLED FLOW OF COMPRESSIBLE FLUIDS UNIT - HFCC
COMPUTER CONTROLLED FLOW OF COMPRESSIBLE FLUIDS UNIT - HFCC
COMPUTER CONTROLLED FLOW OF COMPRESSIBLE FLUIDS UNIT - HFCC
COMPUTER CONTROLLED FLOW OF COMPRESSIBLE FLUIDS UNIT - HFCC
COMPUTER CONTROLLED FLOW OF COMPRESSIBLE FLUIDS UNIT - HFCC
COMPUTER CONTROLLED FLOW OF COMPRESSIBLE FLUIDS UNIT - HFCC

SISTEM INOVATIF

The Computer Controlled Flow of Compressible Fluids Unit, "HFCC", allows to study the variation of pressure and density, the speeds of the fluid, the different fluctuations that the fluid presents when fluids across different sections in a pipe, and the thermodynamics and fluid dynamics characteristics that the fluid has.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
PLCHMI

Kontrol dan Pemantauan IIoT Lokal/Jarak Jauh dengan HMI
ELK

Kit Pengembangan Perangkat Lunak EDIBON, Didukung oleh NI LabVIEW™
ESN

Sistem EDIBON Scada-Net
ECL

Pendidikan Jarak Jauh EDIBON

Laboratorium

11PTC
 Laboratorium Pusat Pelatihan Perminyakan
8TV
 Laboratorium Mekanika Fluida untuk Pendidikan Teknik dan Kejuruan
8HE
 Laboratorium Mekanika Fluida untuk Perguruan Tinggi

BERITA TERKAIT

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Baca lebih lanjut
Installation at ENSGTI - Ecole Nationale Superieure En Genie Des Technologies Industrielles.
Installation at ENSGTI - Ecole Nationale Superieure En Genie Des Technologies Industrielles.
We are happy to announce a new installation of our Computer Controlled Flow of Compressible Fluids Unit, HFCC, in the Ecole Nationale Superieure En Genie Des Technologies Industrielles, Ensgti . Students will be able to study the variation of pressure and density and the thermodynamics and fluid...
Baca lebih lanjut
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

The Computer Controlled Flow of Compressible Fluids Unit, "HFCC", allows to study the variation of pressure and density, the speeds of the fluid, the different fluctuations that the fluid presents when fluids across different sections in a pipe, and the thermodynamics and fluid dynamics characteristics that the fluid has.

The air enters by the intake tube, where there is a dust filter. It provides a current free of particles in suspension and other substances dragged by air.

After the filter, the flow is measured with a Pitot tube installed in the pipe.

After the air is impelled by the turbine, it leaves this device through a straight pipe that includes a safety relief valve, a thermocouple that measures the outlet temperature and a static pressure manometer that measures pressure inthe wall of the tube.

There is a quick-release fitting at the outlet of the exhaust pipe to connect the different accessories of the unit.

This unit allows for studying different flow situations:

  • Abrupt widening.
  • Venturi tube.
  • Ball valve.
  • Bend of 90°.
  • Orifice plate.
  • Straights pipes sections.
  • Laval nozzle.

To analyze the different parameters studied, all accessories have the connections for the instrumentation included.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + aControl Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Determination of pressure drops in straight pipe sections.
  2. Study of the relationship between velocity and pressure drops in a straight pipe section.
  3. Determination of pressure drops in a pipe with a bend of 90º.
  4. Determination of pressure drops in an abrupt widening.
  5. Determination of pressure drops in a Venturi tube.
  6. Introduction to supersonic flow in convergent-divergent geometry nozzles.
  7. Determination of pressure drops through an orifice plate with different interchangeable sections.
  8. Determination of the mass flow rate through an orifice plate with different interchangeable sections.
  9. Determination of the characteristic curve of the compressor with the ball valve.
  10. Sensors calibration.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Study of pressure recovery after an abrupt widening.
  2. Friction coefficient change with Reynolds number.
  3. Study of the friction coefficient for compressible flow.
  4. Determination of the mass flow with the study sections.
  5. Use of the energy balance in the compressor.
  6. Study of the characteristics of the compressor: pressure, flow, efficiency and power.
  7. Observing the generation of shock waves inside a Laval nozzle.
  8. Determination of the air pressure in a convergent-divergent section.
  9. Study of the compressibility effect on the fluid equations.
  10. Determination of the speed of sound in the air.

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the HFCC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the HFCC unit process.
  9. Several other exercises can be done and designed by the user.
