MINI-EEE Peralatan Dasar Energi Angin

5.3.3.- ENERGI ANGIN 8.7.4.- AEROGENERATOR
WIND ENERGY BASIC UNIT - MINI-EEE

SISTEM INOVATIF

The Wind Energy Basic Unit, "MINI-EEE", is a small-scale unit designed to study wind energy and the influence of some factors on its generation.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Baca lebih lanjut
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Installation at University of Sebha
Installation at University of Sebha
Today, we can announce the setting up of a complete installation, including the Linear Heat Conduction Module TXC/CL, TXC/CC, TTEC, MINI-EEE, EEU/20KN or EBVR, among others, at the University of Sebha, in Libya. We are confident that this new equipment will allow students to test empirically the...
Baca lebih lanjut
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

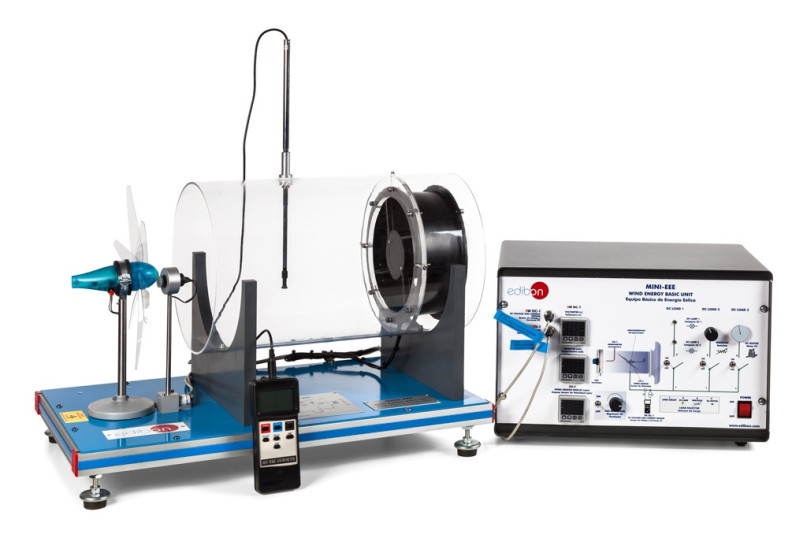

The Wind Energy Basic Unit, "MINI-EEE", is a small-scale unit designed to study wind energy and the influence of some factors on its generation.

This unit consists of a transparent tunnel, a wind turbine with rotor to place up to six blades and a variable speed axial fan.

The air speed is varied by changing the rotational speed of the axial fan and a sensor allows for measuring that air velocity.

This fan generates the required air flow to make the rotor of the wind energy unit work. The generator converts the kinetic energy of the rotor into electric energy. The rotational speed of the wind turbine can be measured with a sensor.

The unit includes a DC load module with LEDs, a rheostat, a DC motor, a load selector and switches to select the type of load. Thus, the wind turbine may work in open circuit or connected to LEDS, to a rheostat or to a DC motor.

A voltage and current sensor measures the voltage and current provided by the wind turbine in order to determine the power.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Study of the aerogenerator operation depending on the wind speed variation.
  2. Determination of the aerogenerator characteristic parameters.
  3. Study of the differences in the operation by using the three available blades'configurations (aerogenerator with six, three or two blades).
  4. Study of the influence of the load variation in the aerogenerator.
  5. Study of voltage, power and current.
  6. Experimental determination of efficiency.
  7. Study of the power generated by the aerogenerator depending on the wind speed.
  8. Study of the power generated by the aerogenerator depending on the number of blades.
  9. Determination of the wind energy measurement.
  10. Study of the characteristic curve of the aerogenerator at constant wind speed.
  11. Study of the characteristic curve of the aerogenerator at constant revolutions.
  12. Study of the DC loads connection.

PERALATAN SIMILAR TERSEDIA

WIND ENERGY UNIT - EEE
  • EEE
Available
5.3.3.- ENERGI ANGIN
EEE
Peralatan Energi Angin
The Wind Energy Unit, "EEE", contains an aerogenerator, in laboratory-scale, and is used to study the conversion of kinetic wind energy into electrical energy and to study the influence of some factors on this generation.The unit consists of a...
Lihat Unit
COMPUTER CONTROLLED WIND ENERGY UNIT - EEEC
  • EEEC
Available
5.3.3.- ENERGI ANGIN
EEEC
Peralatan Energi Angin, Dikendalikan dari Komputer (PC)
The Computer Controlled Wind Energy Unit, "EEEC", contains an aerogenerator, in laboratory-scale, and is used to study the conversion of kinetic wind energy into electrical energy and to study the influence of some factors on this generation.The...
Lihat Unit

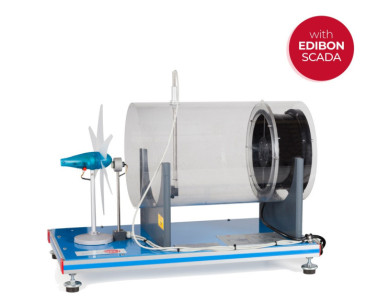

COMPUTER CONTROLLED WIND ENERGY BASIC UNIT - MINI-EEEC
