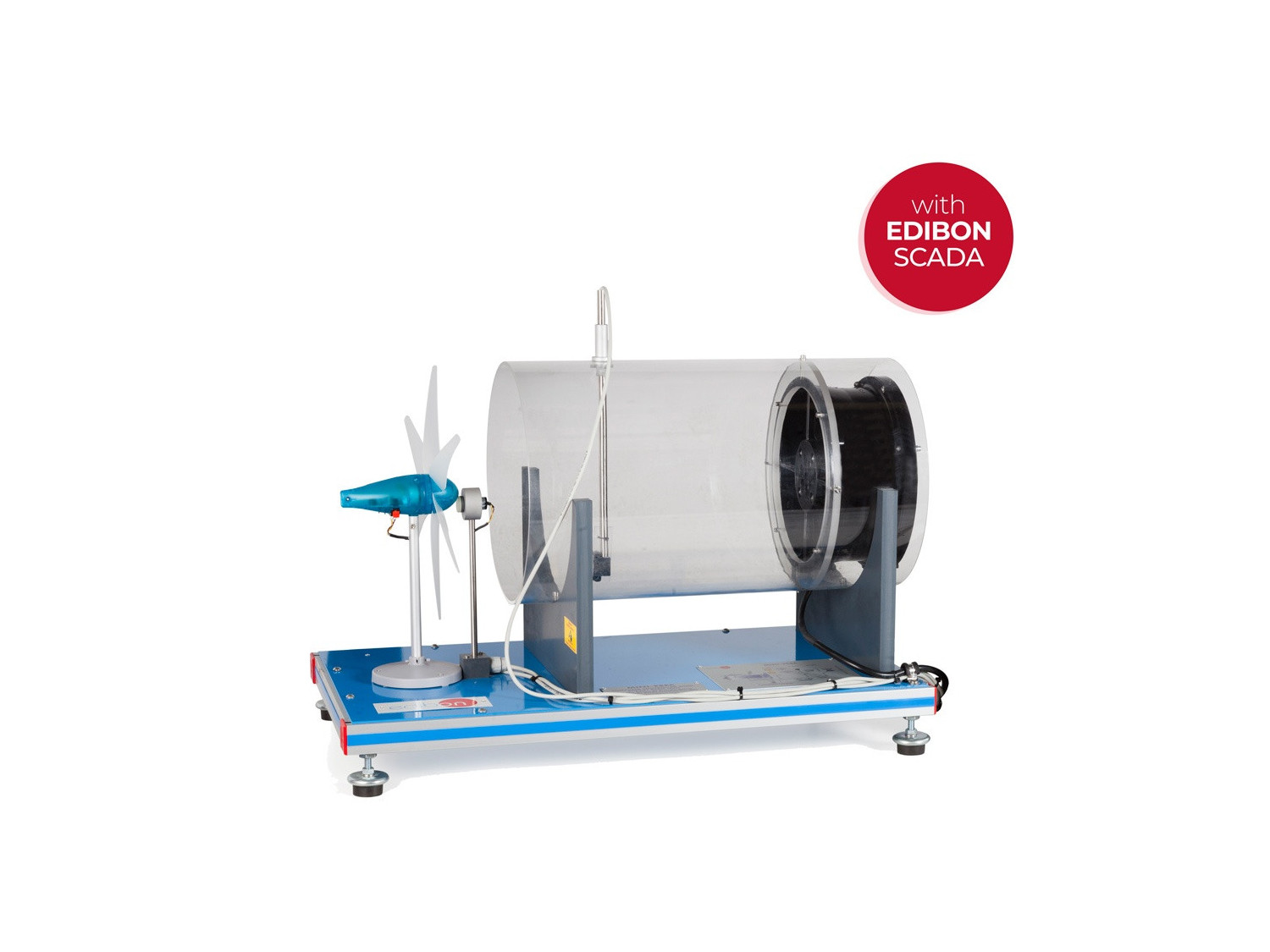

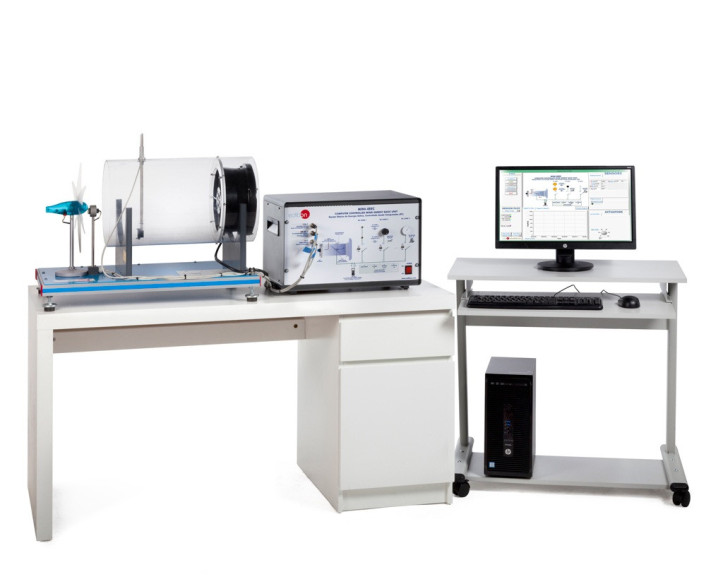

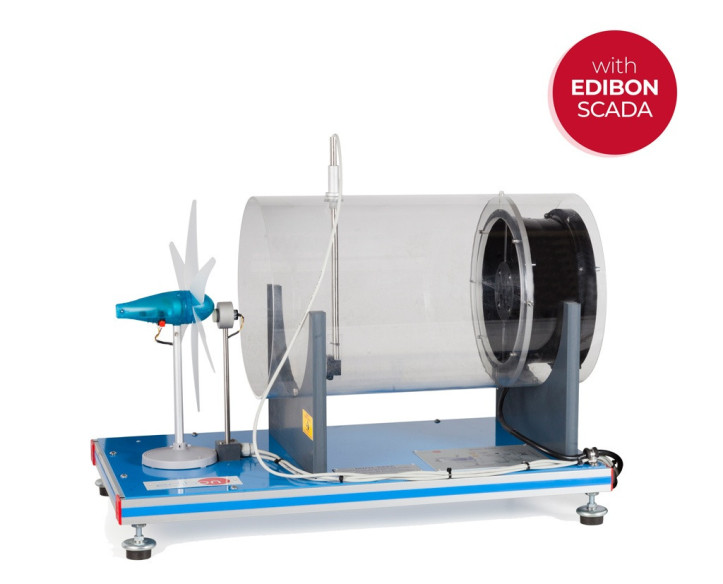

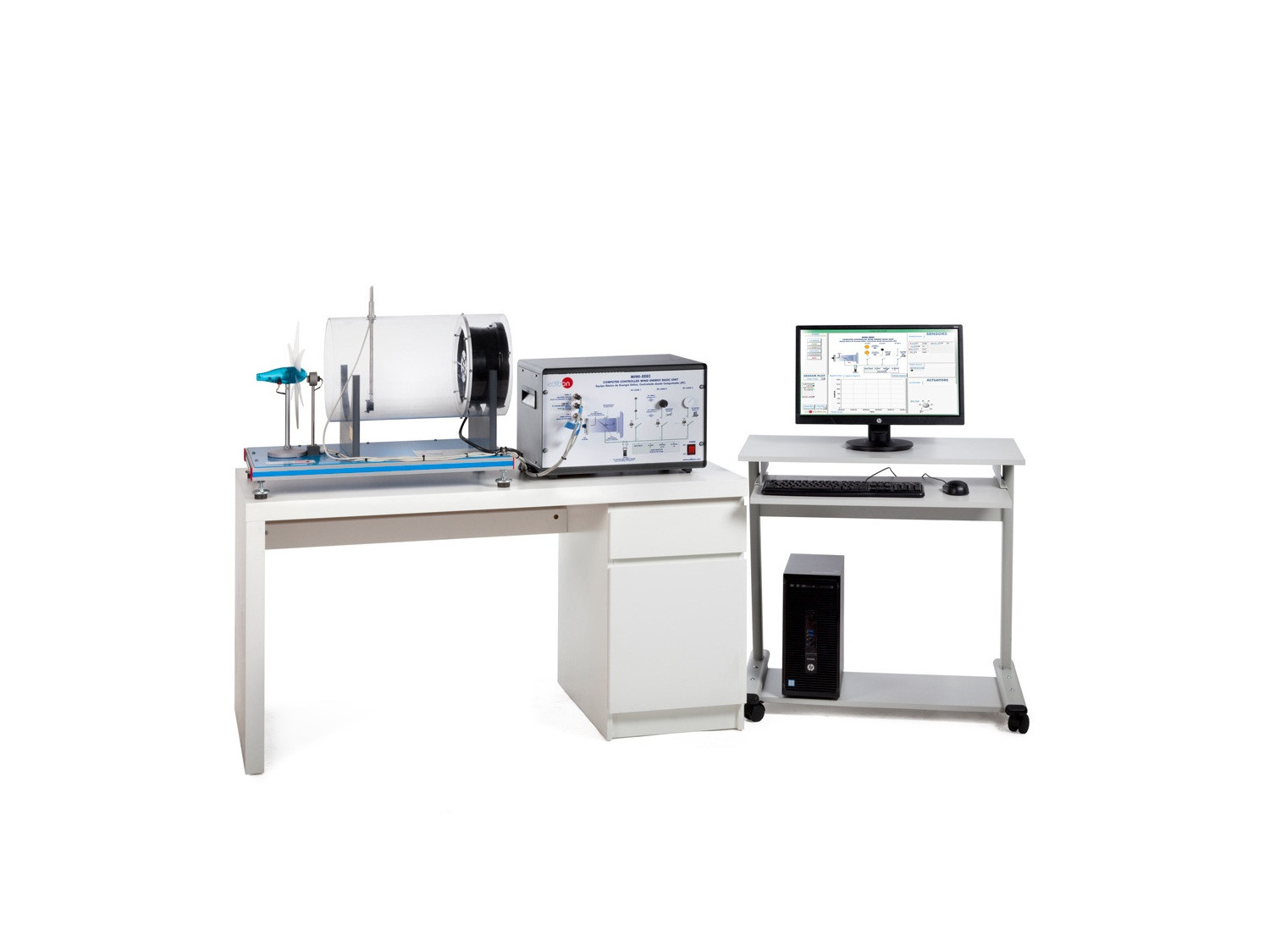

Complete MINI-EEEC unit

COMPUTER CONTROLLED WIND ENERGY BASIC UNIT - MINI-EEEC

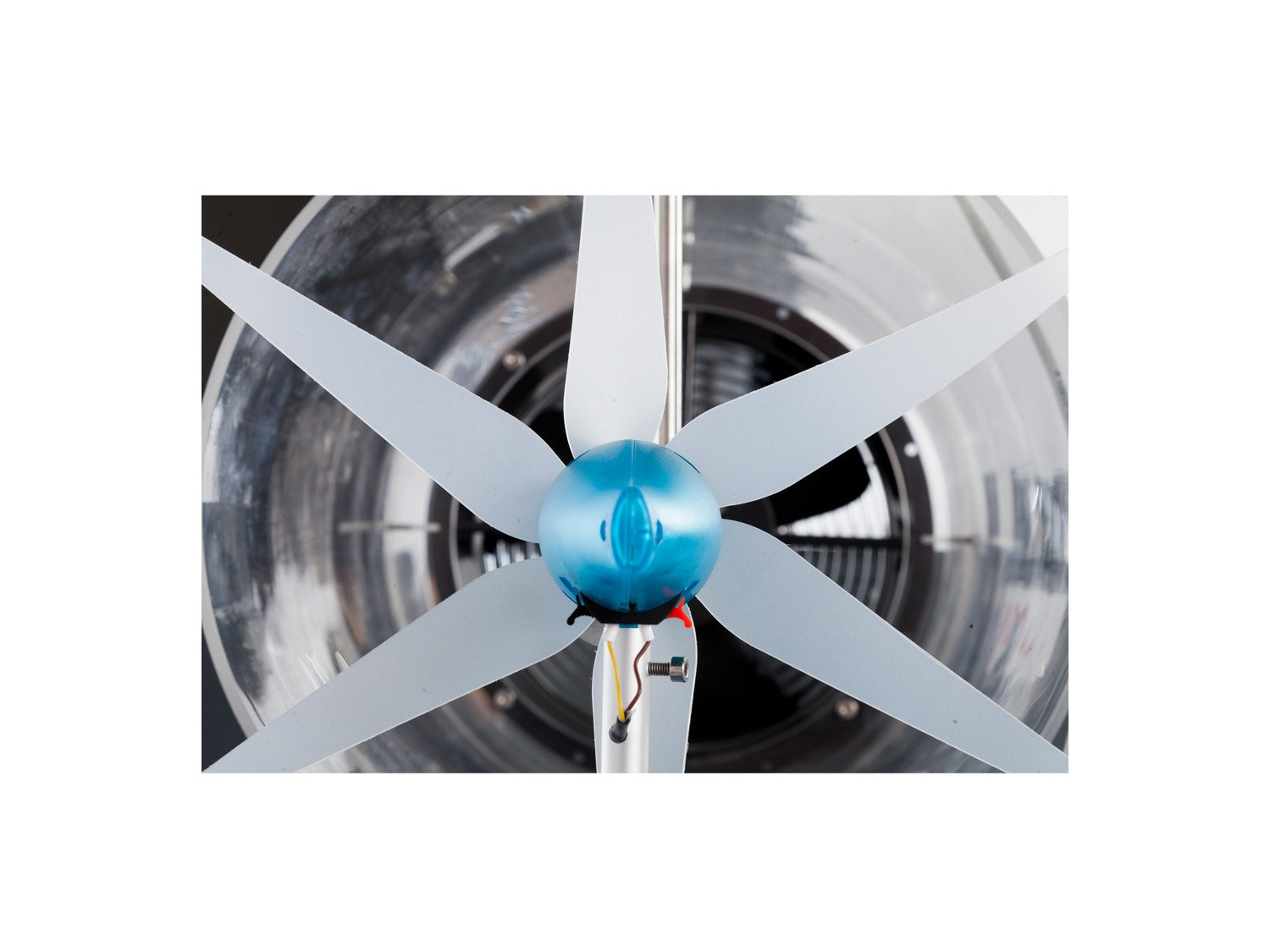

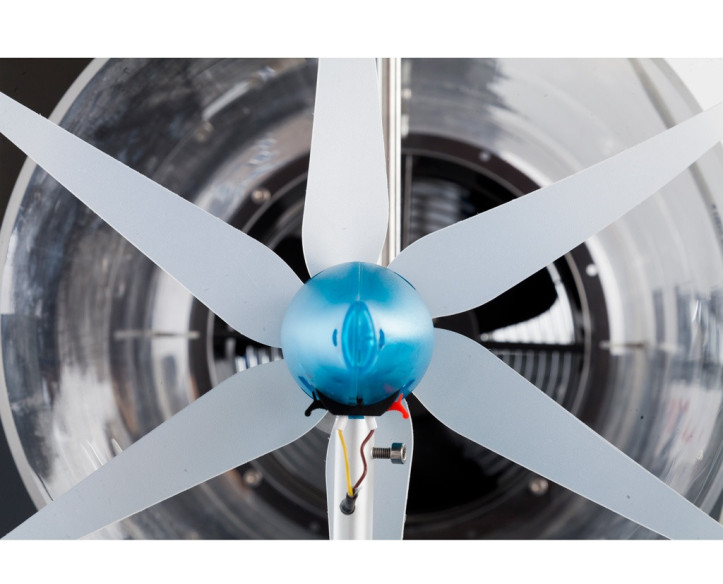

Unit details

COMPUTER CONTROLLED WIND ENERGY BASIC UNIT - MINI-EEEC

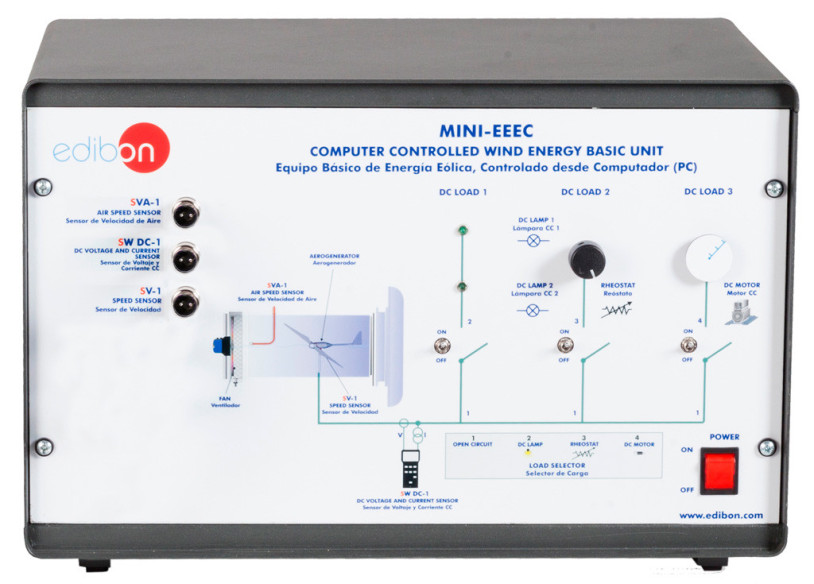

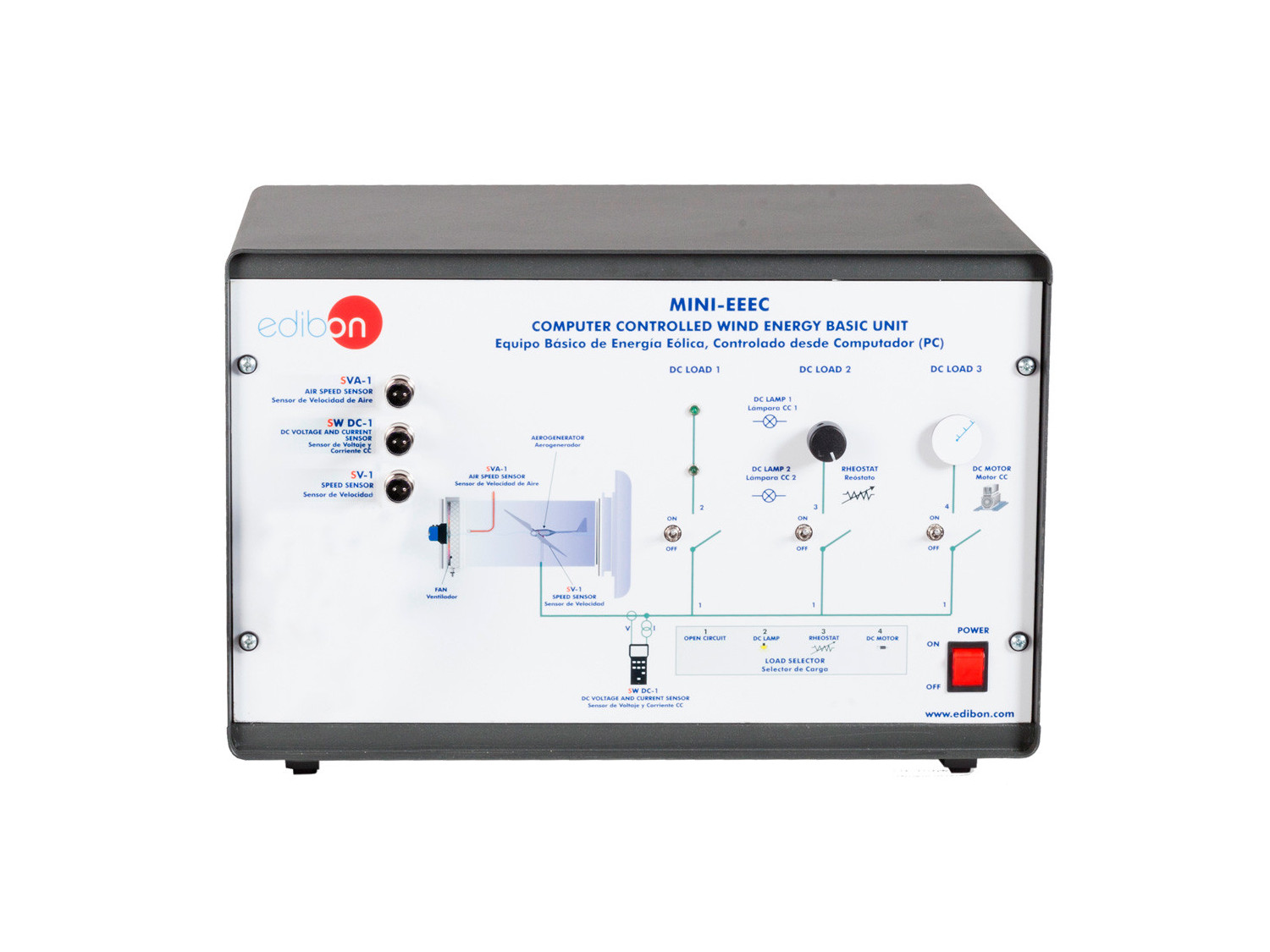

MINI-EEEC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED WIND ENERGY BASIC UNIT - MINI-EEEC

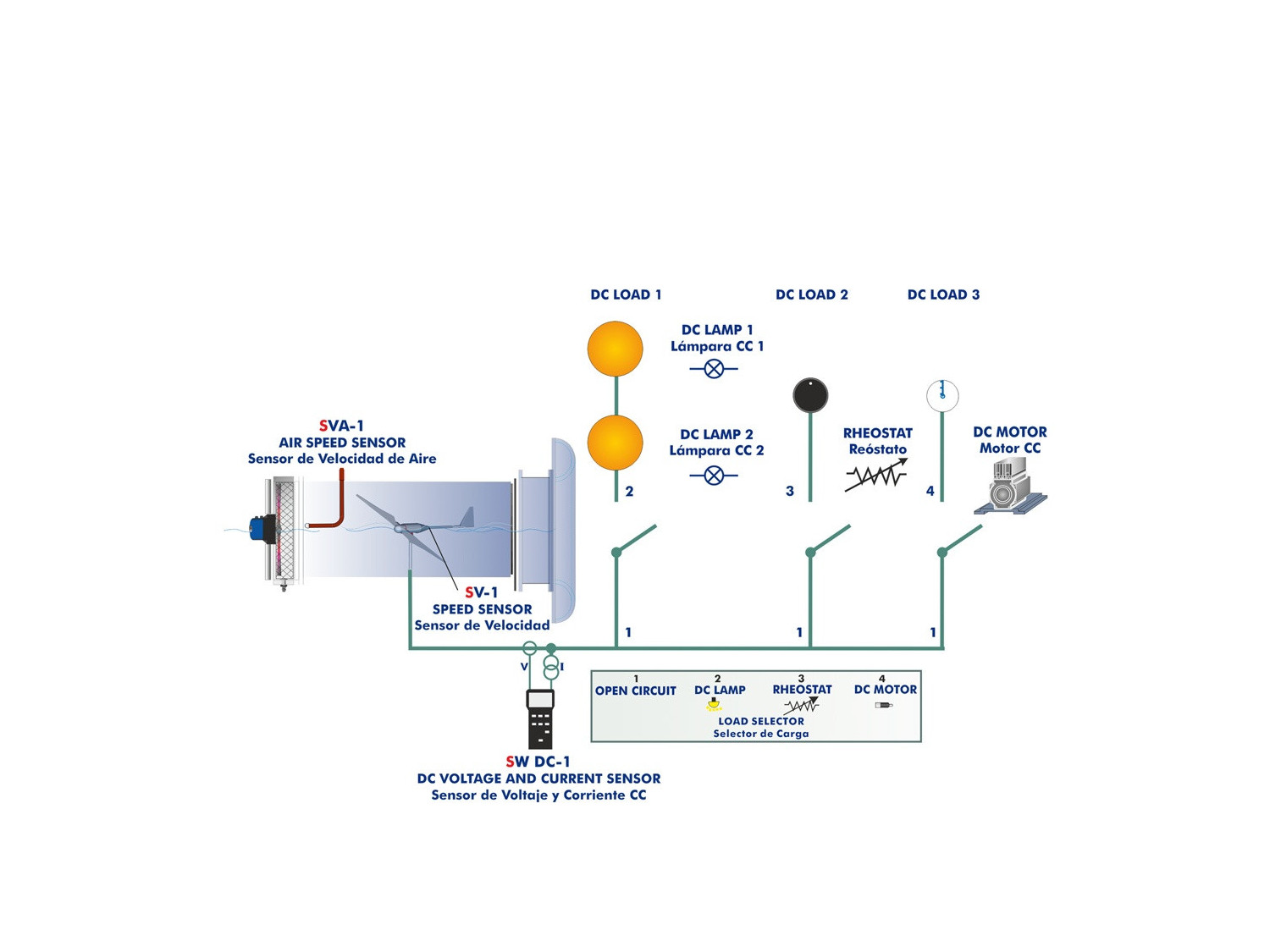

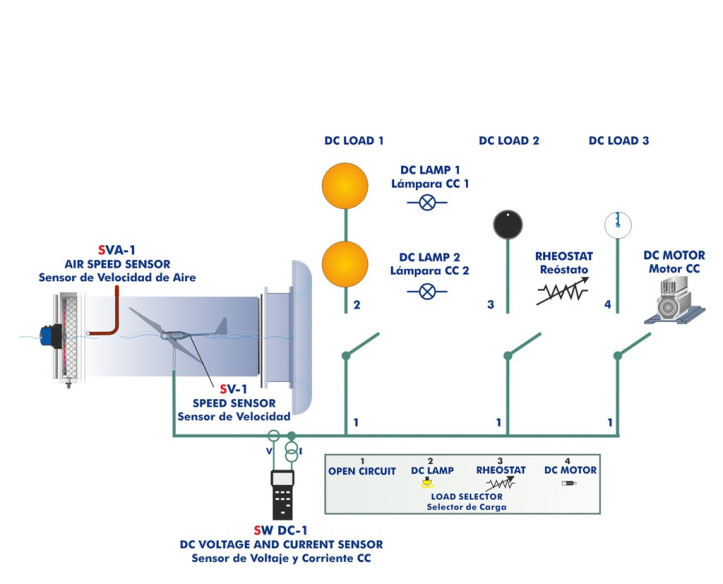

Process diagram and unit elements allocation

COMPUTER CONTROLLED WIND ENERGY BASIC UNIT - MINI-EEEC

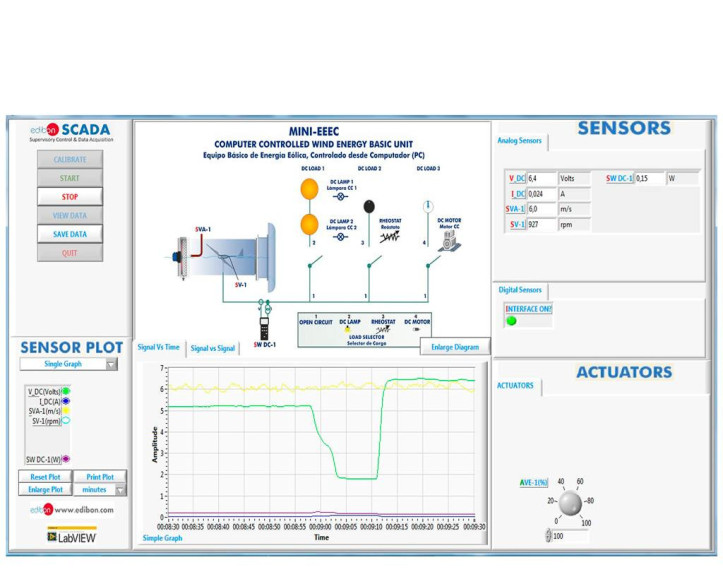

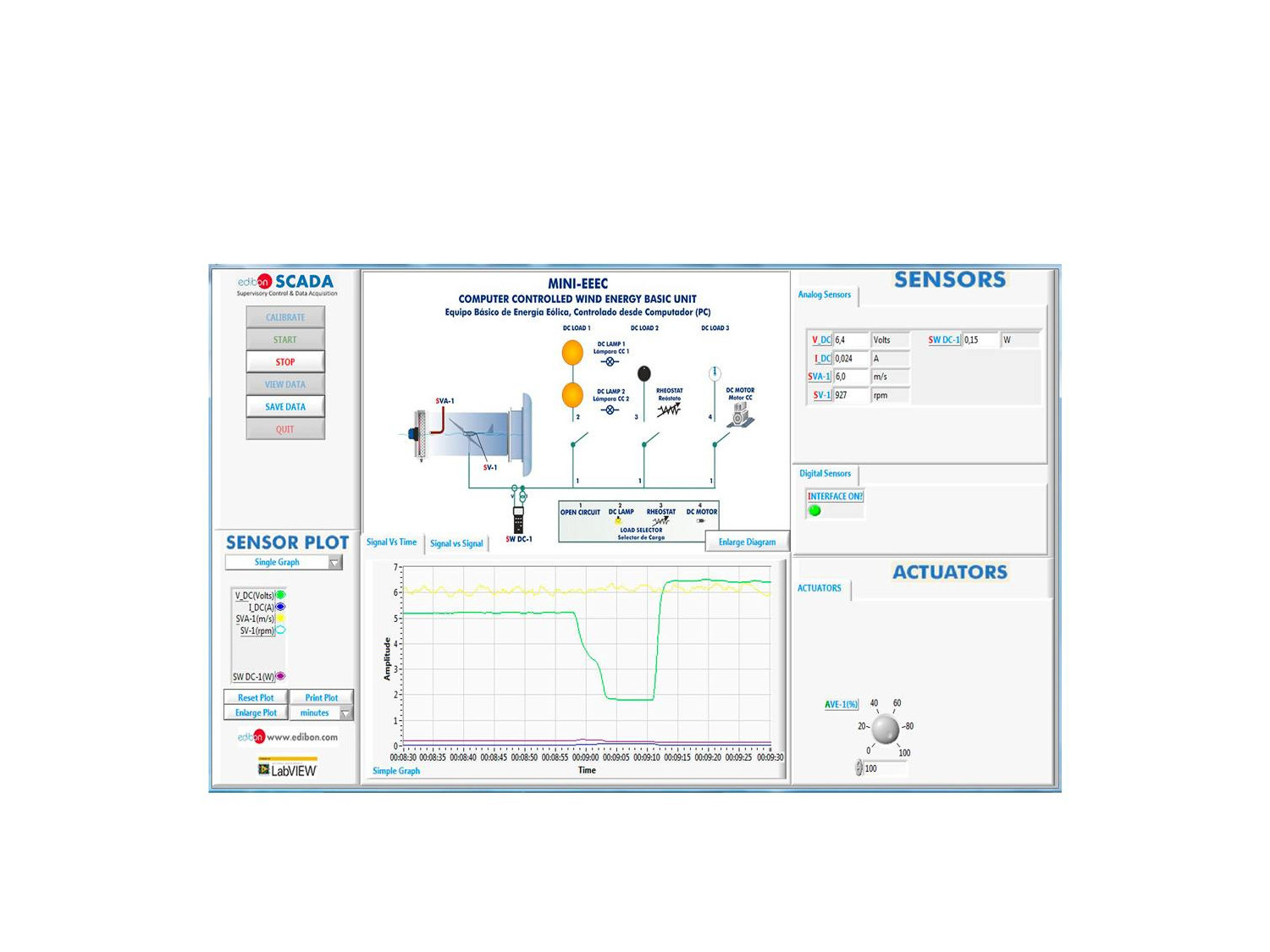

MINI-EEEC/SOF. MINI-EEEC Software. Main Screen

COMPUTER CONTROLLED WIND ENERGY BASIC UNIT - MINI-EEEC
COMPUTER CONTROLLED WIND ENERGY BASIC UNIT - MINI-EEEC
COMPUTER CONTROLLED WIND ENERGY BASIC UNIT - MINI-EEEC
COMPUTER CONTROLLED WIND ENERGY BASIC UNIT - MINI-EEEC
COMPUTER CONTROLLED WIND ENERGY BASIC UNIT - MINI-EEEC
COMPUTER CONTROLLED WIND ENERGY BASIC UNIT - MINI-EEEC

SISTEM INOVATIF

The Computer Controlled Wind Energy Basic Unit, "MINI-EEEC", is a small-scale unit designed to study wind energy and the influence of some factors on its generation.

Lihat uraian umum
Katalog Katalog
Spesifikasi Kontes
Meminta informasi

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
FSS

Sistem Simulasi Kegagalan
PLC

Pengendalian Proses Industri oleh PLC
PLCHMI

Kontrol dan Pemantauan IIoT Lokal/Jarak Jauh dengan HMI
ELK

Kit Pengembangan Perangkat Lunak EDIBON, Didukung oleh NI LabVIEW™
ECR

Sistem Industri Modular EDIBON dengan NI CompactRIO
ESN

Sistem EDIBON Scada-Net
ECL

Pendidikan Jarak Jauh EDIBON

BERITA TERKAIT

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Baca lebih lanjut
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

The Computer Controlled Wind Energy Basic Unit, "MINI-EEEC", is a small-scale unit designed to study wind energy and the influence of some factors on its generation.

This unit consists of a transparent tunnel, a wind turbine with rotor to place up to six blades and a computer controlled variable speed axial fan.

The air speed is varied by changing the rotational speed of the axial fan and a sensor allows for measuring that air velocity.

This fan generates the required air flow to make the rotor of the wind energy unit work. The generator converts the kinetic energy of the rotor into electric energy. The rotational speed of the wind turbine can be measured with a sensor.

The unit includes a DC load module with LEDs, a rheostat, a DC motor, a load selector and switches to select the type of load. Thus, the wind turbine may work in open circuit or connected to LEDS, to a rheostat or to a DC motor.

A voltage and current sensor measures the voltage and current provided by the wind turbine in order to determine the power.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Study of the aerogenerator operation depending on the wind speed variation.
  2. Determination of the aerogenerator characteristic parameters.
  3. Study of the differences in the operation by using the three available blades'configurations (aerogenerator with six, three or two blades).
  4. Study of the influence of the load variation in the aerogenerator.
  5. Study of voltage, power and current.
  6. Experimental determination of efficiency.
  7. Study of the power generated by the aerogenerator depending on the wind speed.
  8. Study of the power generated by the aerogenerator depending on the number of blades.
  9. Determination of the wind energy measurement.
  10. Study of the characteristic curve of the aerogenerator at constant wind speed.
  11. Study of the characteristic curve of the aerogenerator at constant revolutions.
  12. Study of the DC loads connection.
  13. Sensors calibration.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the MINI-EEEC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the MINI-EEEC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
