The Basic Unit of Mechanical Drive Systems, "MDSU", consists of a main frame where a series of accessories and elements are arranged, distributed in modules of different level, thought to introduce the user in the field of mechanical systems and their components.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Setting up at Perenco in Gabon
Setting up at Perenco in Gabon
Today we want to talk to you about the latest installation we have done at Perenco in Gabon. We moved there to install the following units from our Fluid Mechanics area
Baca lebih lanjut

GAMBARAN UMUM

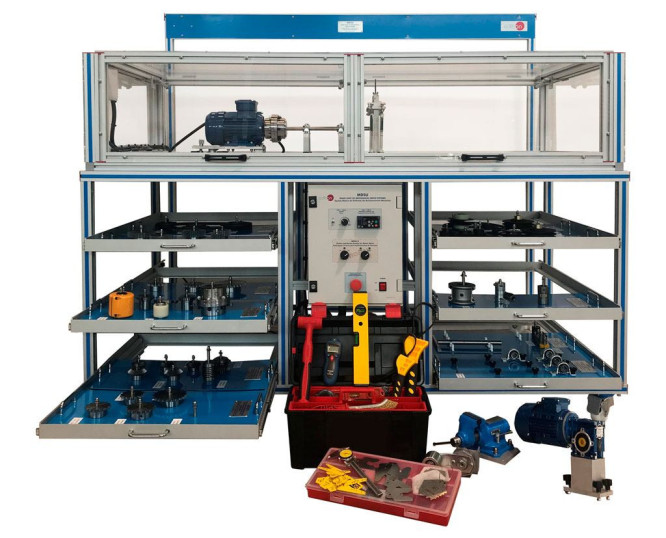

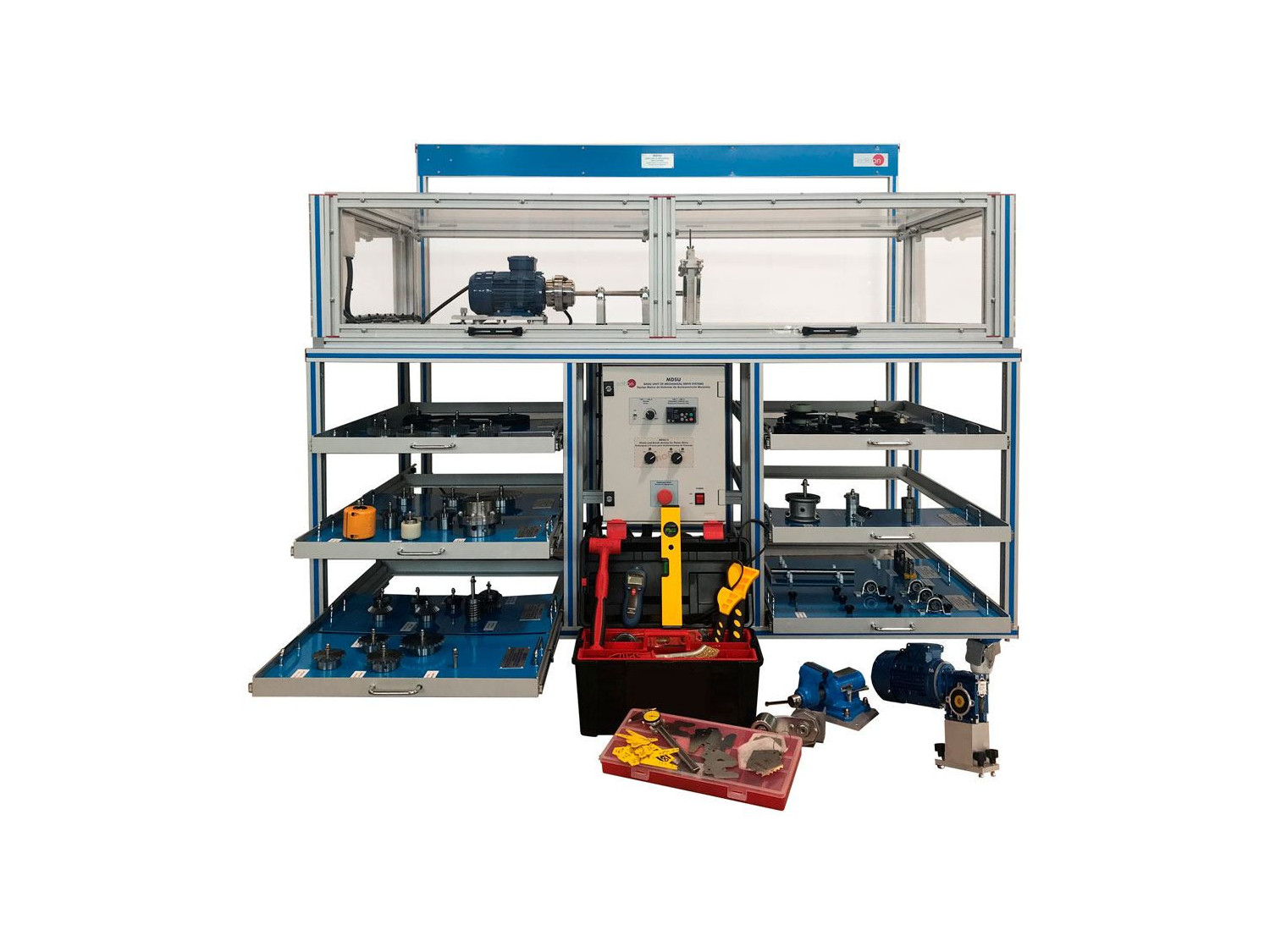

The Basic Unit of Mechanical Drive Systems, "MDSU", consists of a main frame where a series of accessories and elements are arranged, distributed in modules of different level, thought to introduce the user in the field of mechanical systems and their components. The main frame can be divided so that different working groups can work at the same time. The elements are assembled to the main frame by quick release fittings that facilitate the assembly of elements in the configuration required by the user for the study. Apart from the main frame, a variable speed rotary motor is included. It will generate the initial motion along a shaft that will drive the rest of mechanical elements of the system, such as belts, gears, chains, etc.
