TECNEL/B Peralatan Dasar untuk Studi Elektronika Daya (tanpa IGBT, (AC/DC + AC/AC)), Dikendalikan dari PC

2.4.3.- DAYA ELEKTRONIK 6.1.2.2.- ELEKTRONIK TENAGA DAN ELEKTRONIK INDUSTRI
COMPUTER CONTROLLED BASIC TEACHING UNIT FOR THE STUDY OF POWER ELECTRONICS (NO IGBTS). (CONVERTERS: AC/DC+AC/AC) - TECNEL/B

SISTEM INOVATIF

The TECNEL/B is a Unit with Computer Control and Data Acquisition System designed to study the basis of Power Electronics.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
EMSK

Kit Pengembangan Simulasi Sirkuit EDIBON, Didukung oleh NI LabVIEW™
ESN

Sistem EDIBON Scada-Net

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Baca lebih lanjut

GAMBARAN UMUM

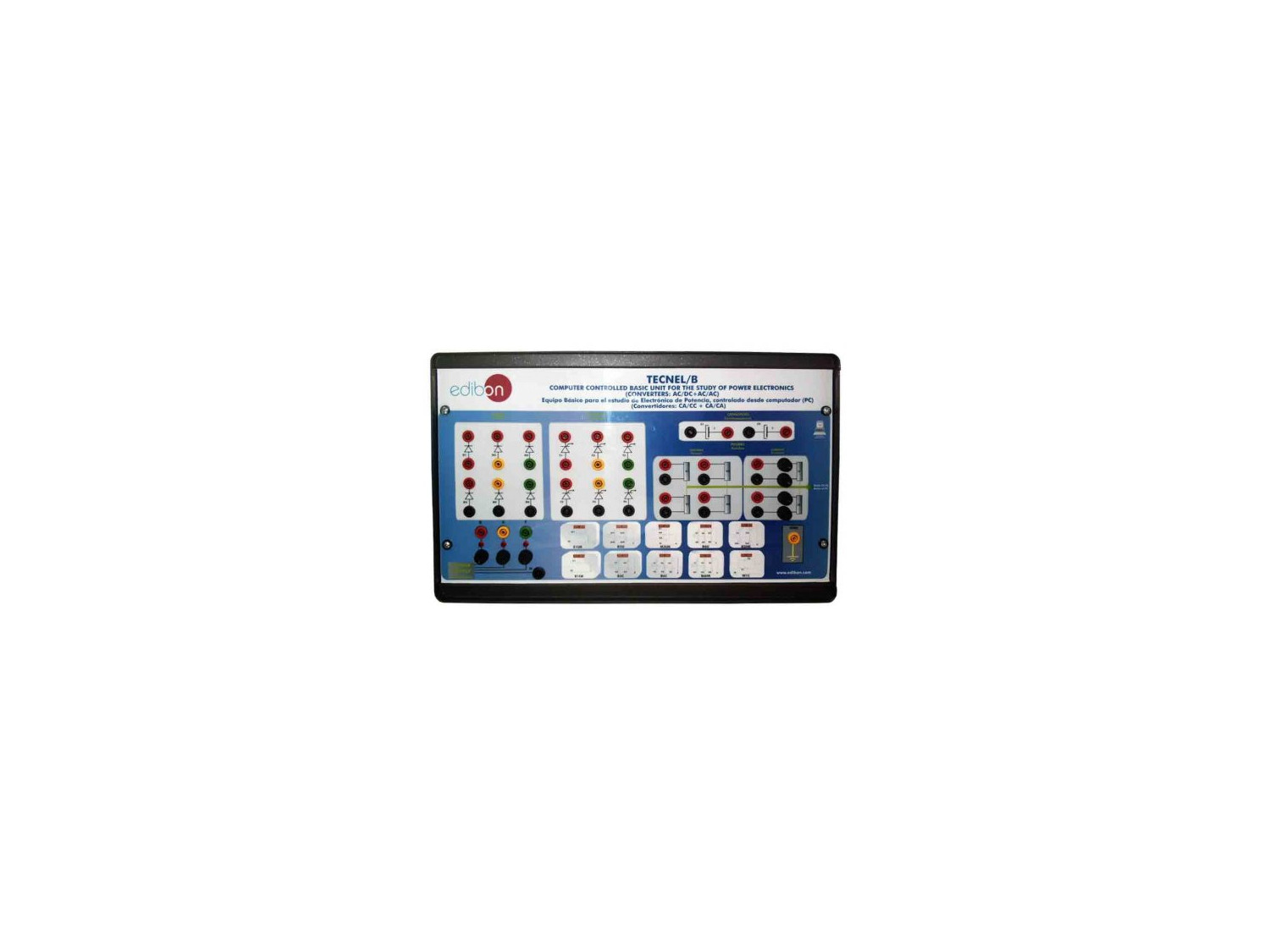

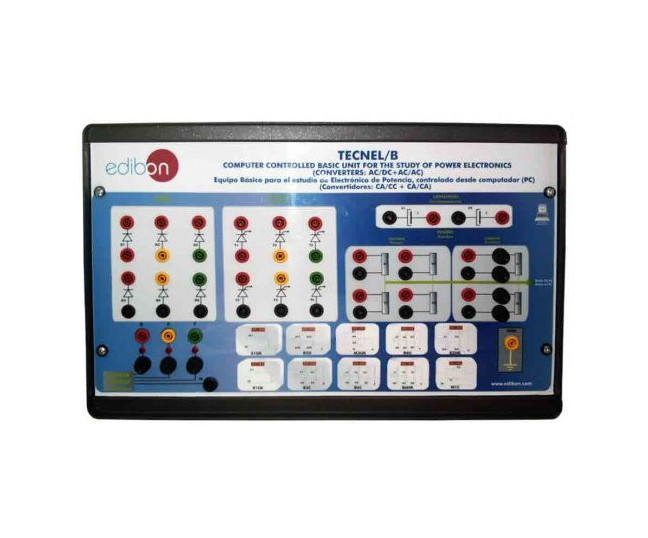

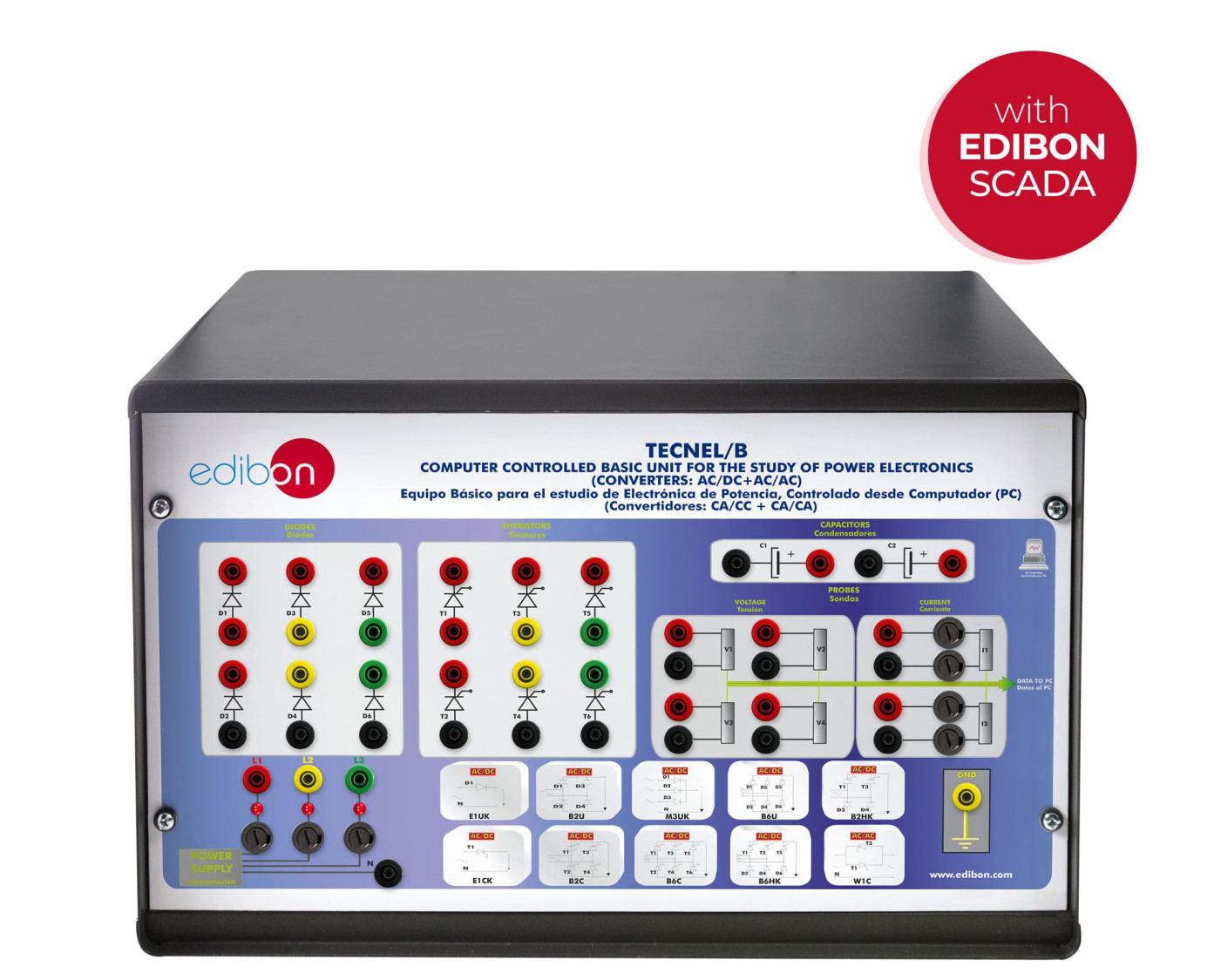

The Computer Controlled Basic Teaching Unit for the Study of Power Electronics (no IGBTS). (Converters: AC/DC+AC/AC), "TECNEL/B", is a unit with Computer Control and Data Acquisition System designed to study the basis of Power Electronics. It allows students to study AC/DC, AC/AC converters.

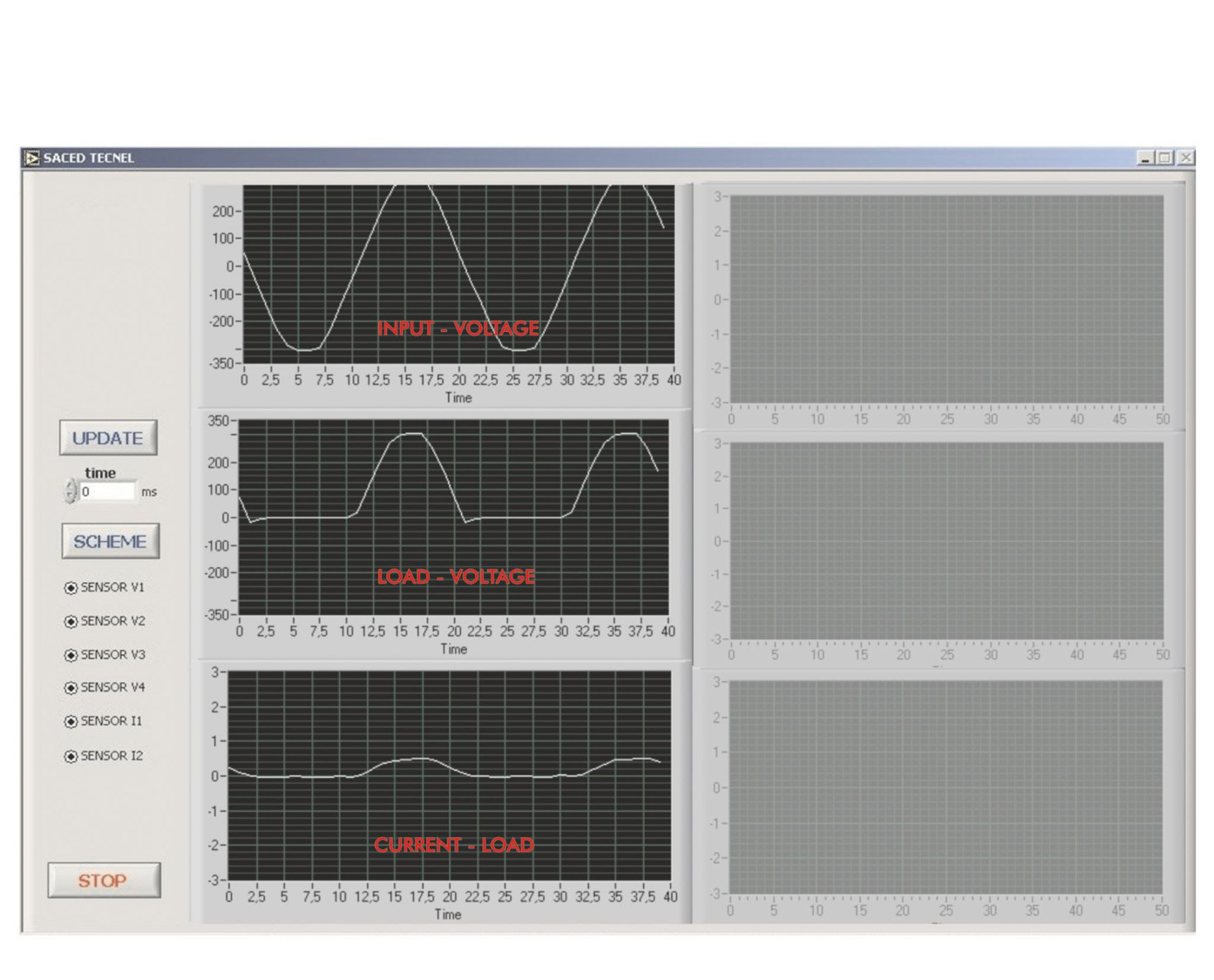

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Single phase half-wave rectifier with load R.
  2. Single phase half-wave rectifier with load R-L.
  3. Single-phase half-wave rectifier with R-L load with free wheeling diode (FWD).
  4. Single-phase full-wave rectifier.
  5. Three-phase half-wave uncontrolled rectifier.
  6. Three-phase full-wave uncontrolled rectifier.
  7. Single-phase half-wave controlled rectifier.
  8. Single-phase full-wave controlled rectifier.
  9. Single-phase full-wave controlled rectifier with a DC motor.
  10. Three-phase full-wave completely controlled.
  11. Single-phase semi-controlled rectifier.
  12. Three-phase full-wave semi-controlled rectifier.
  13. Alternating regulators: R and R-L load.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Several other exercises can be done and designed by the user.
