HCCC Peralatan Demonstrasi Kompresor Sentrifugal, Dikendalikan dari Komputer (PC)

8.7.5.- KOMPRESOR
COMPUTER CONTROLLED CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT - HCCC

Unit: HCCC. Computer Controlled Centrifugal Compressor Demonstration Unit

COMPUTER CONTROLLED CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT - HCCC

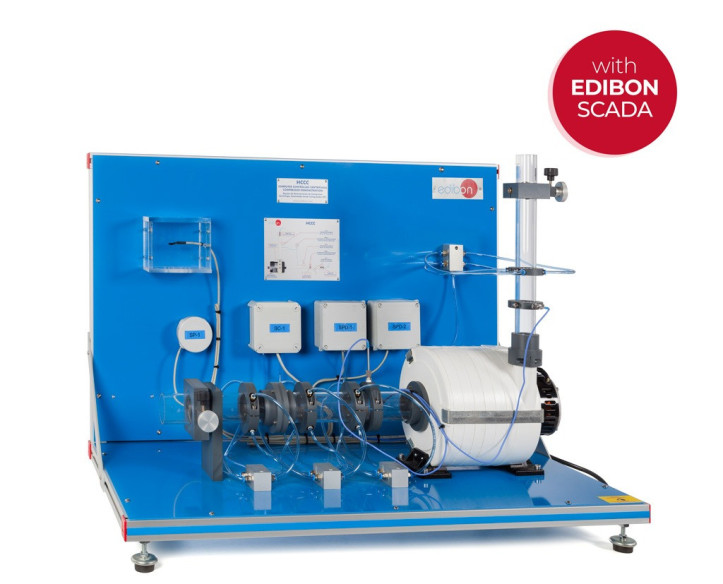

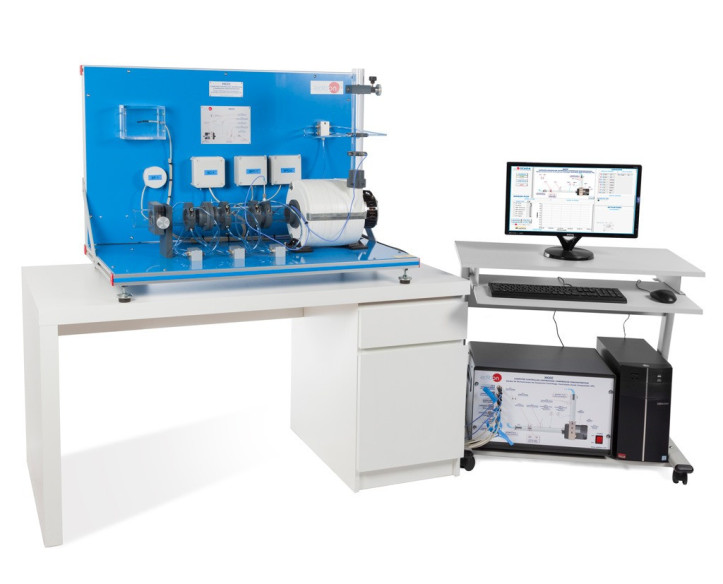

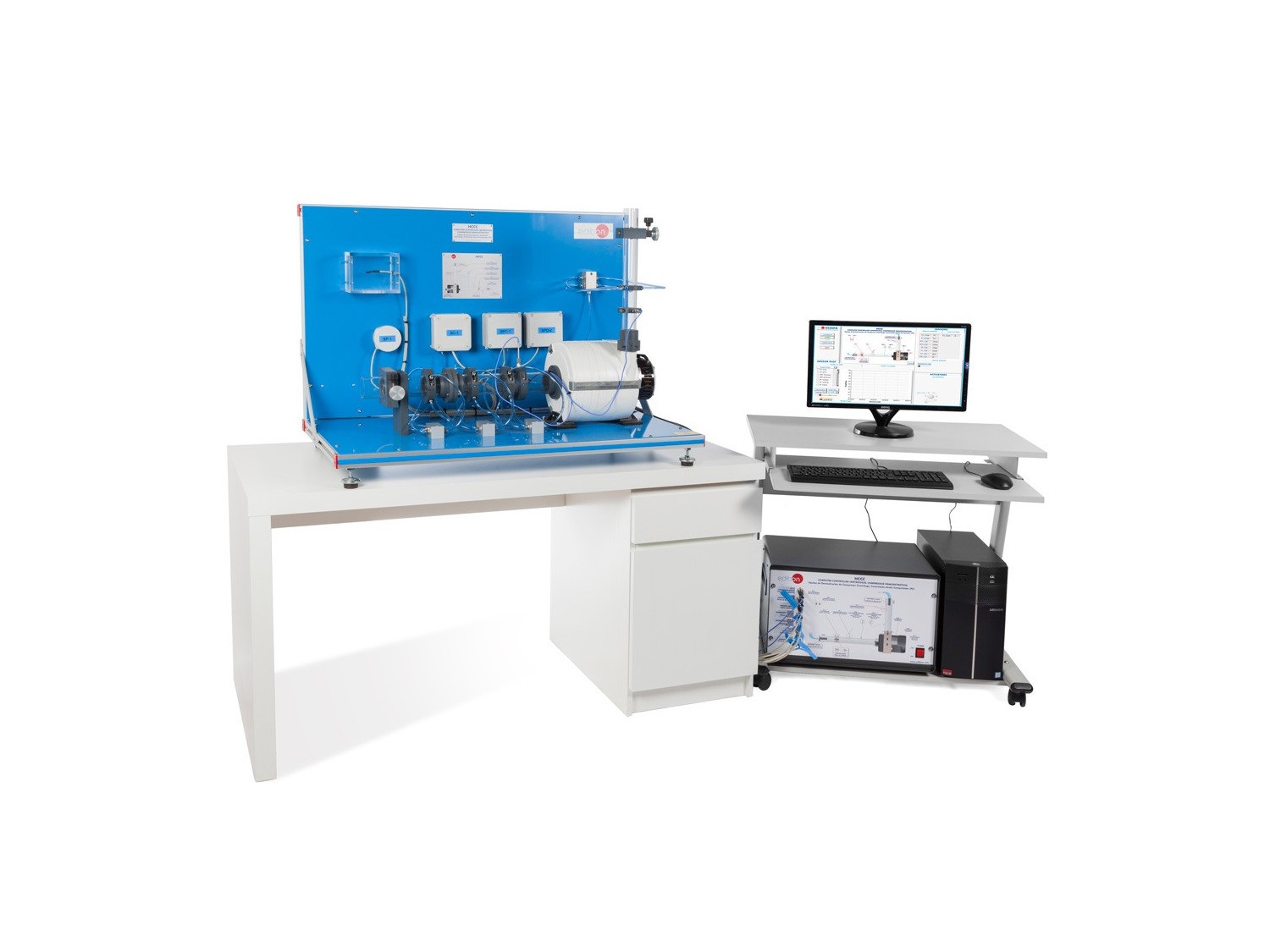

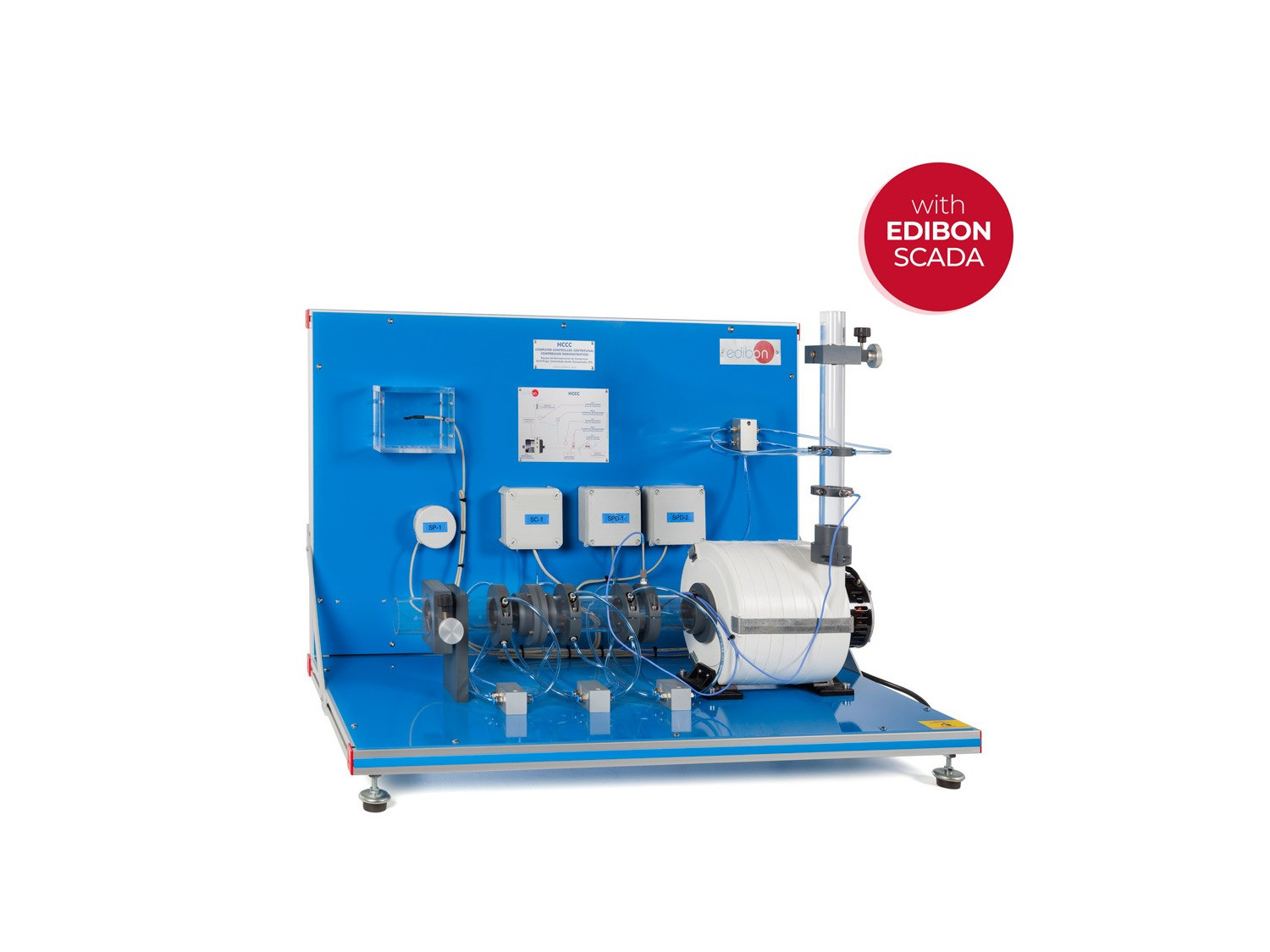

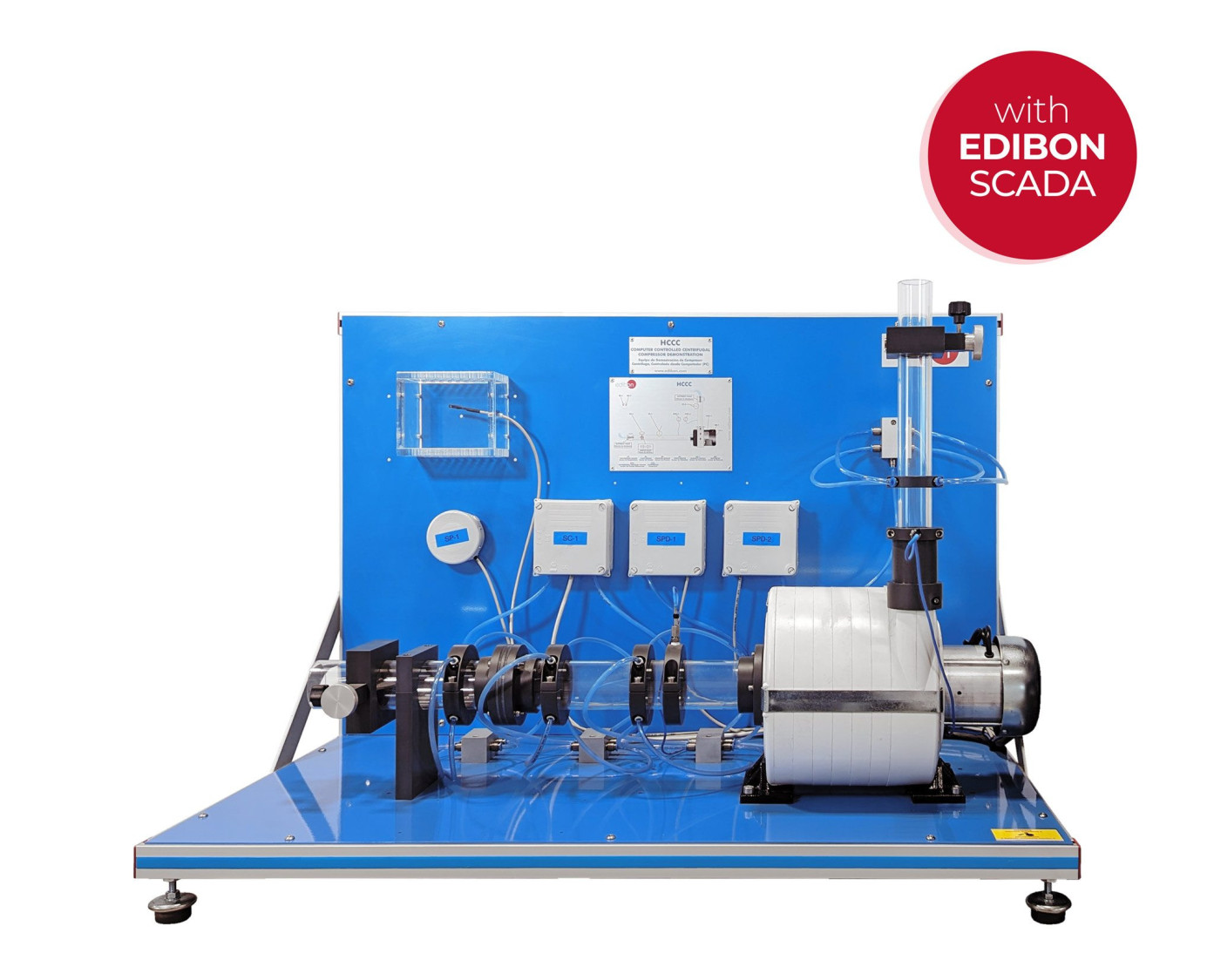

Complete HCCC unit

COMPUTER CONTROLLED CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT - HCCC

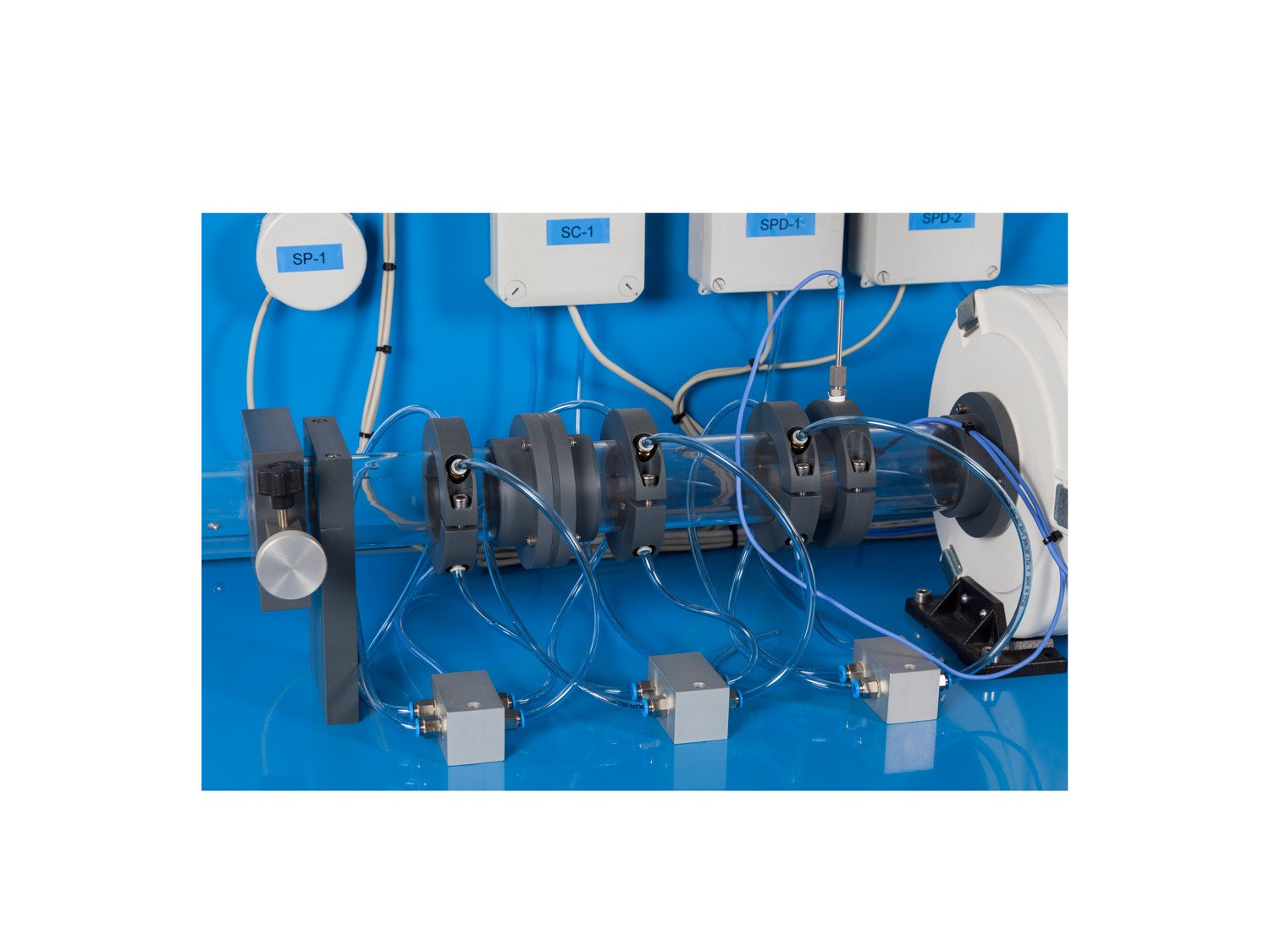

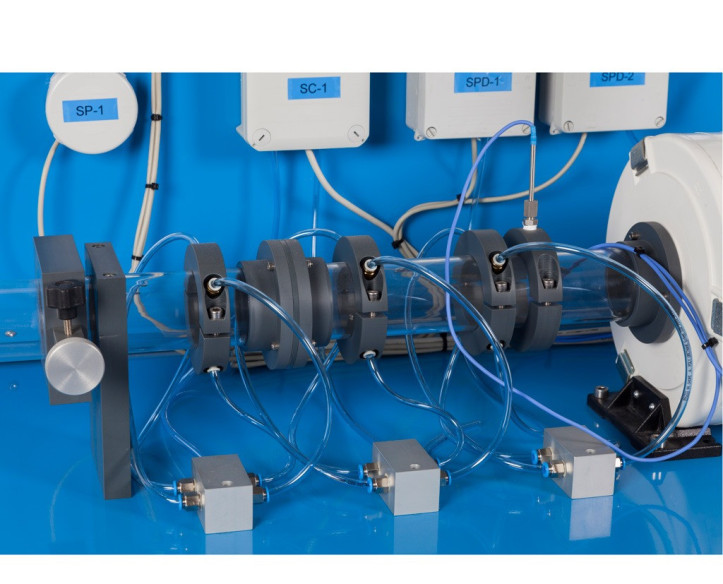

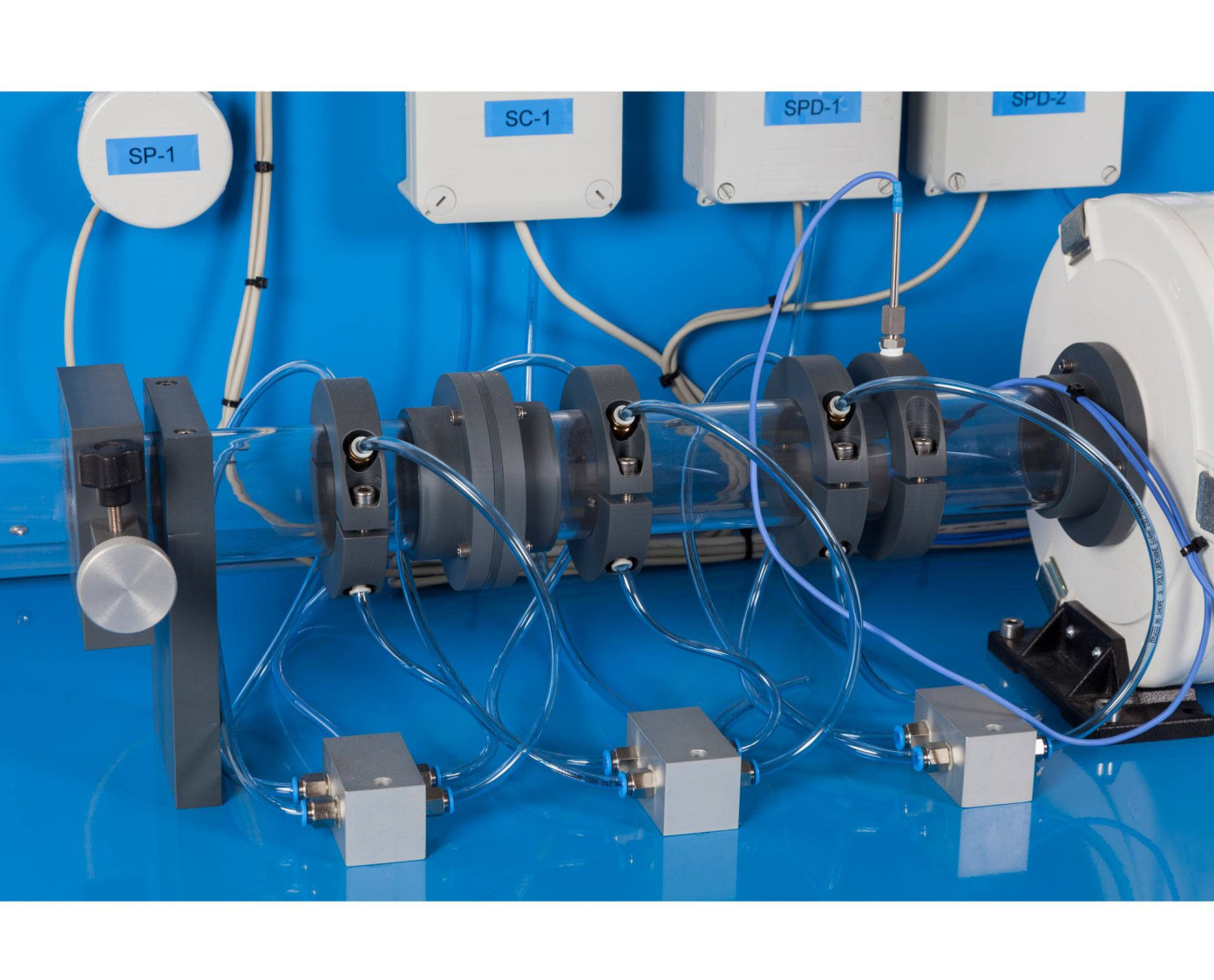

Unit details

COMPUTER CONTROLLED CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT - HCCC

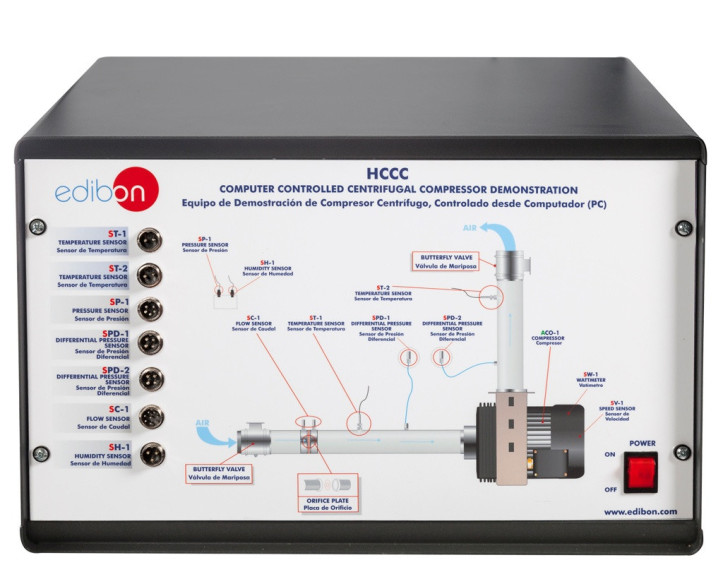

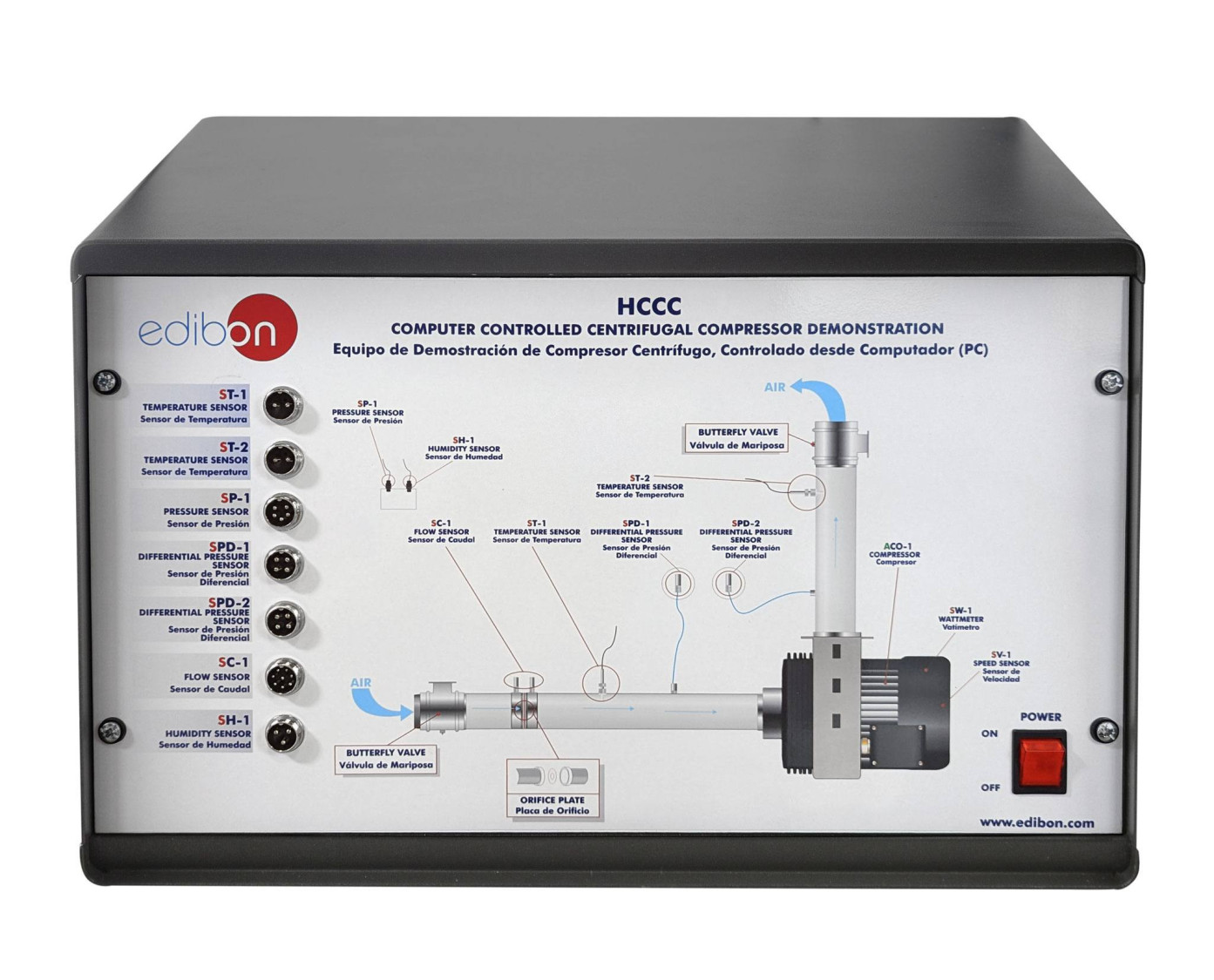

HCCC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT - HCCC

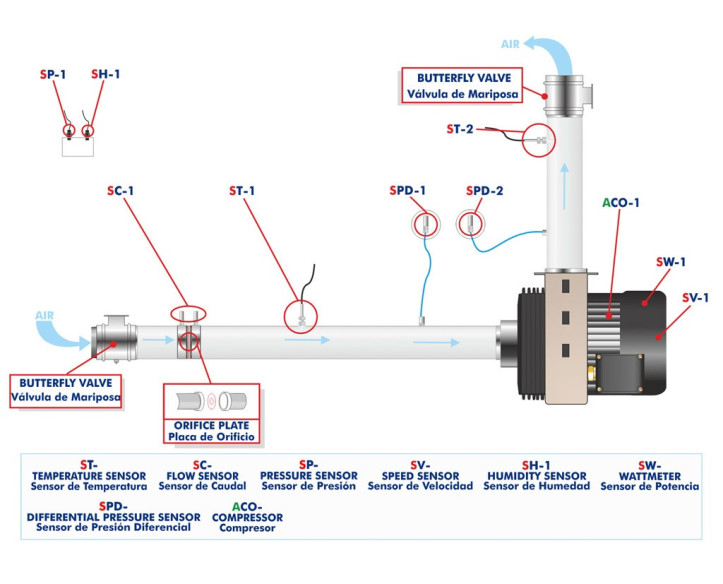

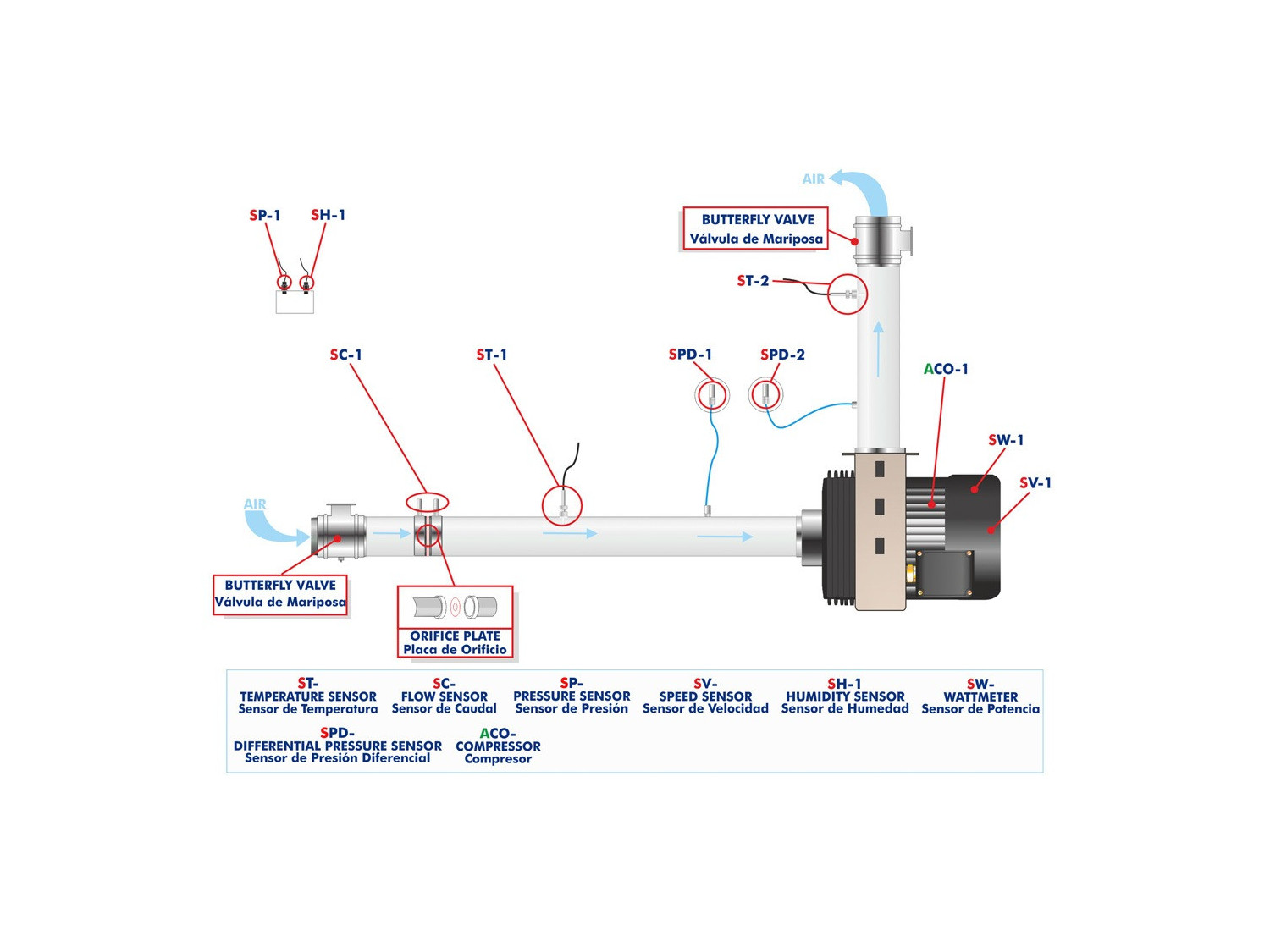

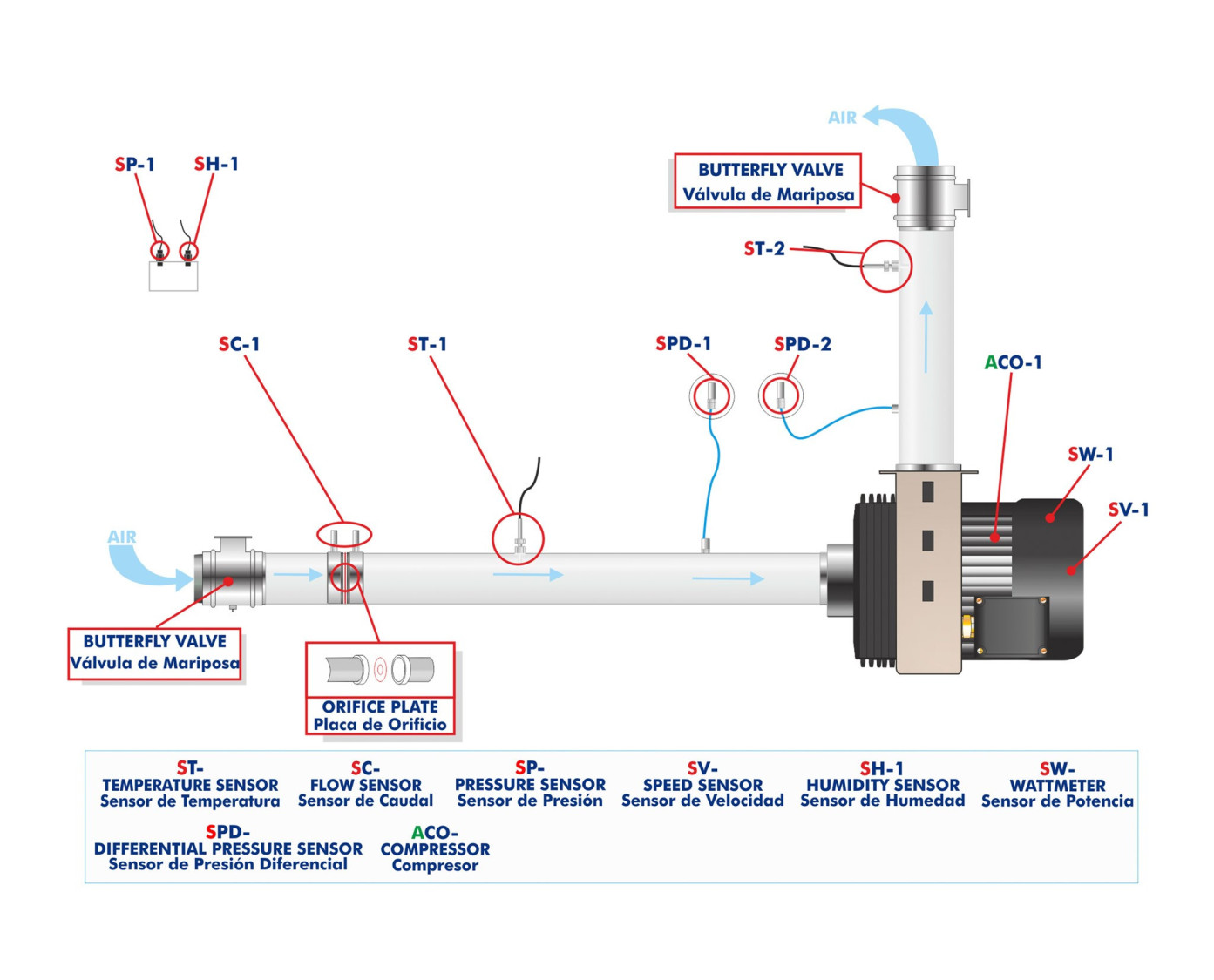

Process diagram and unit elements allocation

COMPUTER CONTROLLED CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT - HCCC

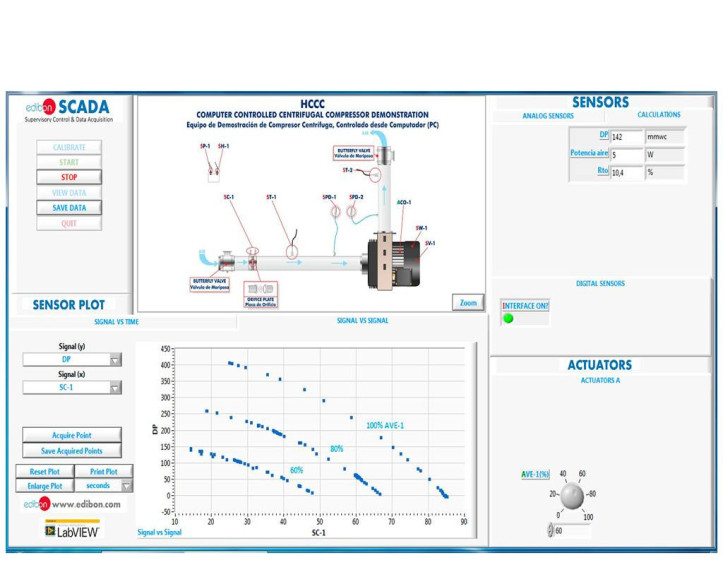

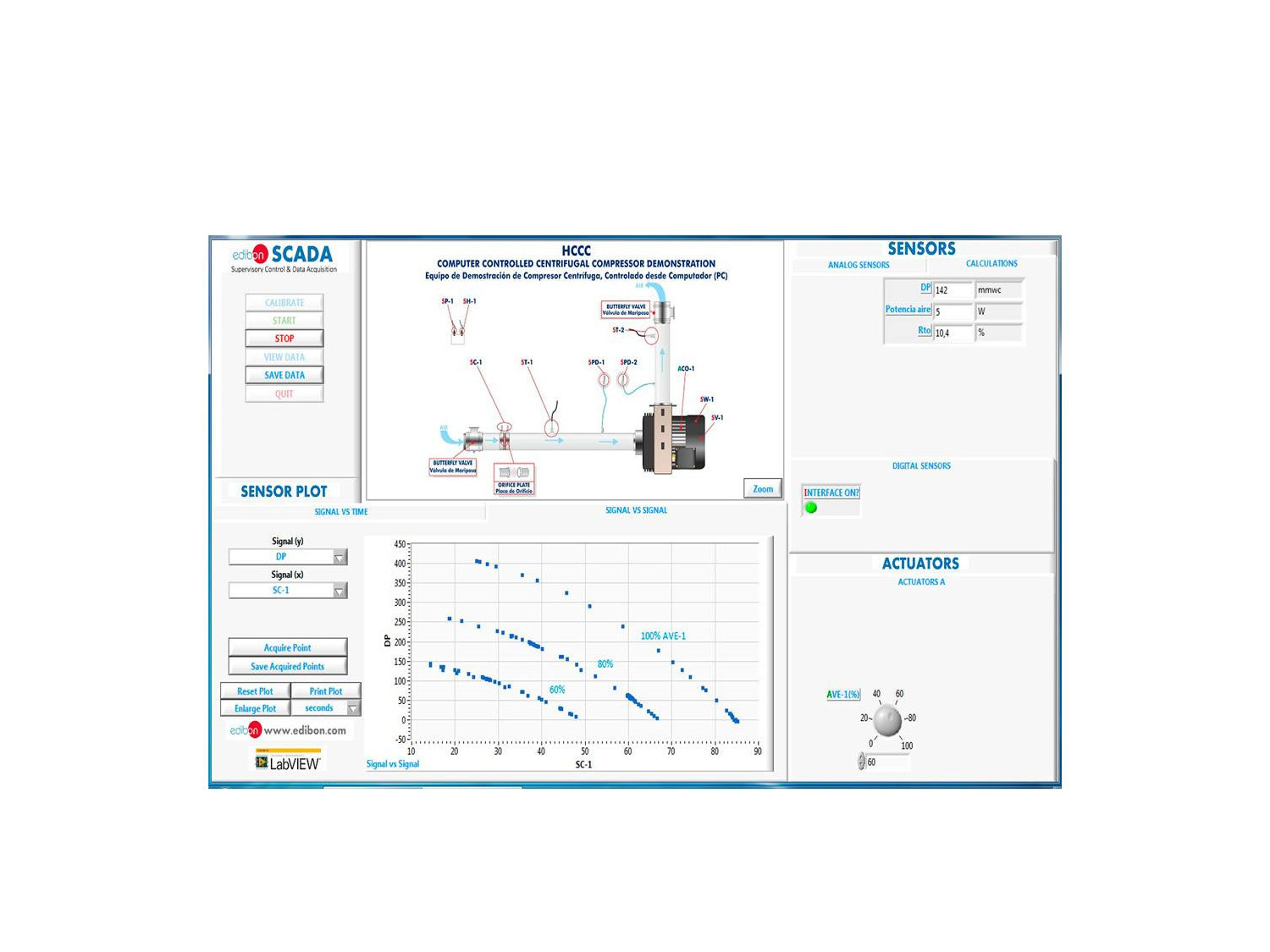

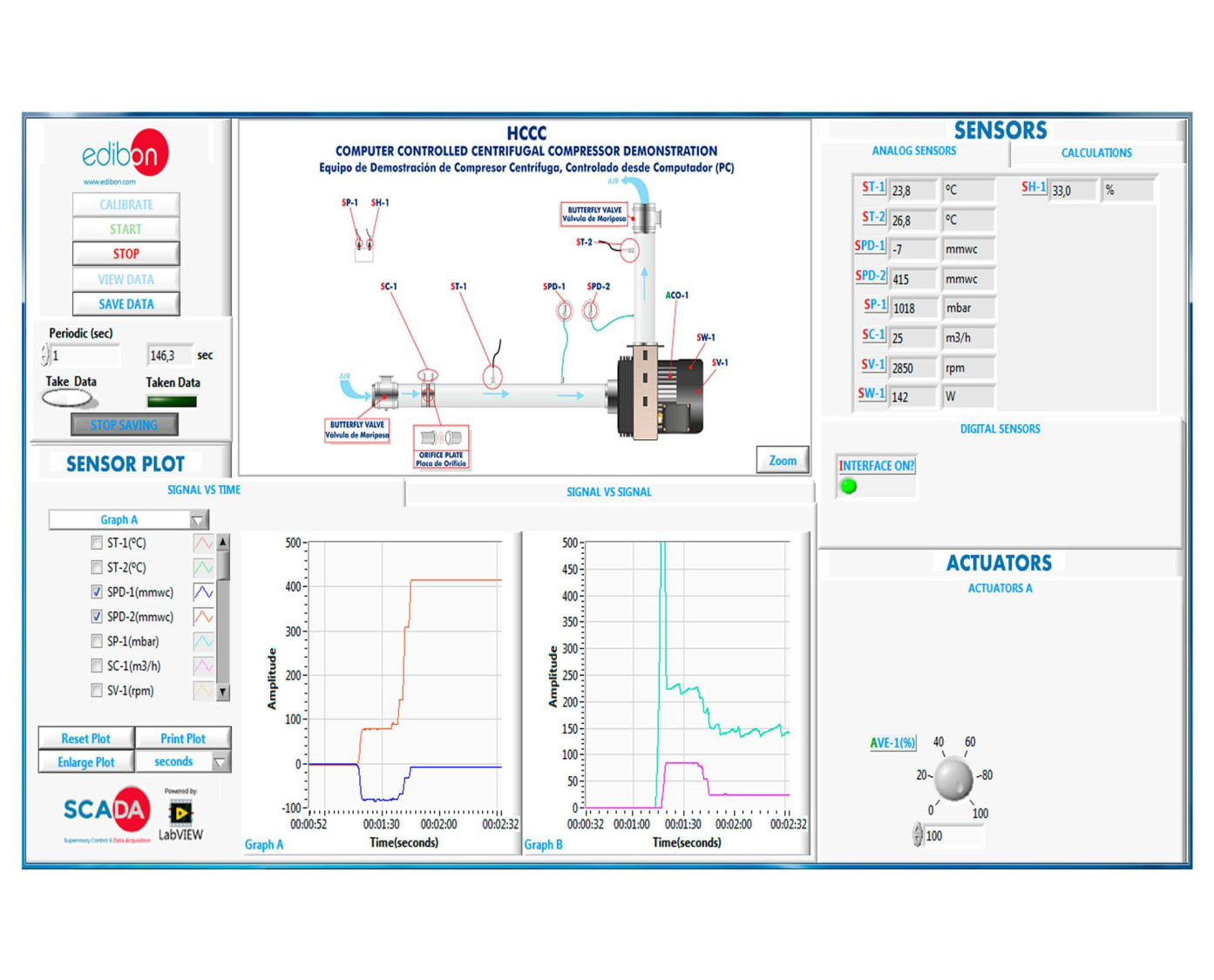

HCCC/SOF. HCCC Software. Main Screen

COMPUTER CONTROLLED CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT - HCCC
COMPUTER CONTROLLED CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT - HCCC
COMPUTER CONTROLLED CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT - HCCC
COMPUTER CONTROLLED CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT - HCCC
COMPUTER CONTROLLED CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT - HCCC
COMPUTER CONTROLLED CENTRIFUGAL COMPRESSOR DEMONSTRATION UNIT - HCCC

SISTEM INOVATIF

The Computer Controlled Centrifugal Compressor Demonstration Unit, "HCCC", allows the students to measure the operation characteristics of a multistage centrifugal compressor.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
FSS

Sistem Simulasi Kegagalan
PLC

Pengendalian Proses Industri oleh PLC
PLCHMI

Kontrol dan Pemantauan IIoT Lokal/Jarak Jauh dengan HMI
ELK

Kit Pengembangan Perangkat Lunak EDIBON, Didukung oleh NI LabVIEW™
ECR

Sistem Industri Modular EDIBON dengan NI CompactRIO
ESN

Sistem EDIBON Scada-Net
ECL

Pendidikan Jarak Jauh EDIBON

Laboratorium

8TV
 Laboratorium Mekanika Fluida untuk Pendidikan Teknik dan Kejuruan
8HE
 Laboratorium Mekanika Fluida untuk Perguruan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

The Computer Controlled Centrifugal Compressor Demonstration Unit, "HCCC", allows the students to measure the operation characteristics of a multistage centrifugal compressor. For that purpose, the unit carries out the actual measurements of the compressor's inlet flow, the speed and power of the compressor, the differential pressure to know the pressure increment in the compressor, and the temperature at the air inlet and outlet.

There are two transparent ducts with butterfly valves at the inlet and outlet of the multiple-stage compressor to regulate the inlet and outlet flows.

Besides, the unit includes a variable speed drive to change the compressor speed from the computer.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Calculation of the flow by means of the orifice plate.
  2. Demonstration of the air compression phenomenon, after passing through the compressor impeller.
  3. Calculation of the characteristic curve of a centrifugal compressor at a constant turn speed according to the flow used by the symmetrical stopper.
  4. Representation of the characteristic curves of a multiple-stage compressor.
  5. Calculation of the efficiency of the compressor.
  6. Study of the variation of compressor efficiency with speed.
  7. Introduction to the scaling similarity laws.
  8. Study and comparison of the practical results and the results calculated by the students.
  9. Sensors calibration.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the HCCC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the HCCC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
