EMMC Peralatan Energi Ombak, Dikendalikan dari Komputer (PC)

5.3.4.- ENERGI LAUT
COMPUTER CONTROLLED TIDAL ENERGY UNIT - EMMC

SISTEM INOVATIF

The Computer Controlled Tidal Energy Un"EMMC", is designed for simulating this energy generation system, allowing the study and tests of the operation and performance of a tidal barrage system for energy generation.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
FSS

Sistem Simulasi Kegagalan
PLC

Pengendalian Proses Industri oleh PLC
ELK

Kit Pengembangan Perangkat Lunak EDIBON, Didukung oleh NI LabVIEW™
ECR

Sistem Industri Modular EDIBON dengan NI CompactRIO
ESN

Sistem EDIBON Scada-Net
ECL

Pendidikan Jarak Jauh EDIBON

Laboratorium

5RTV
 Laboratorium Energi Terbarukan untuk Pendidikan Teknik dan Kejuruan
5RHE
 Laboratorium Energi Terbarukan untuk Pendidikan Tinggi

BERITA TERKAIT

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Baca lebih lanjut
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut

GAMBARAN UMUM

Tidal energy is another way to generate electricity extracting energy from the sea. Twice a day big volumes of water rise and fall with the tides.

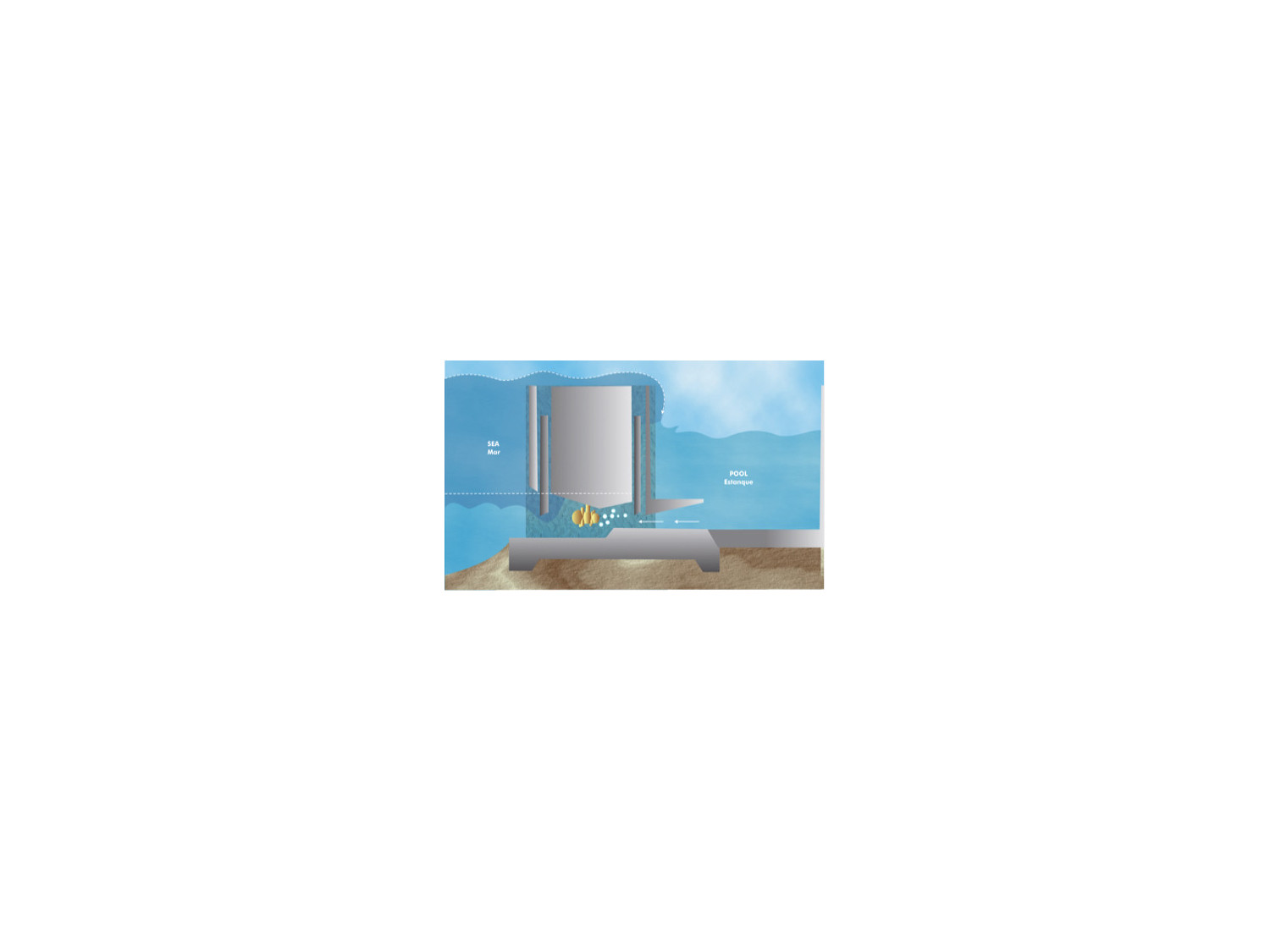

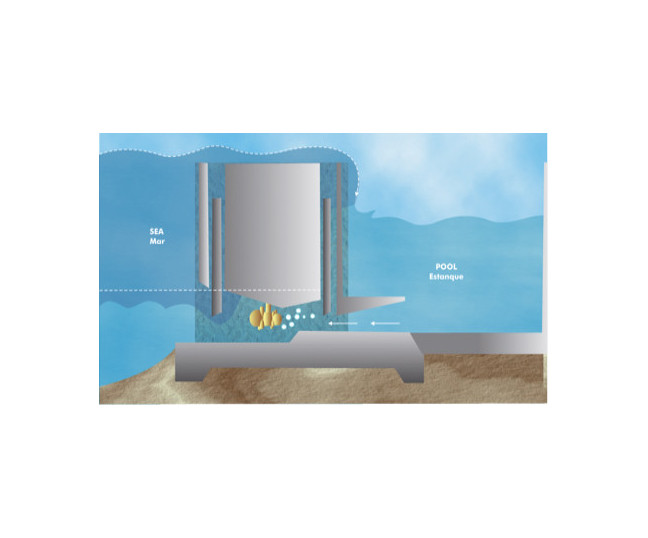

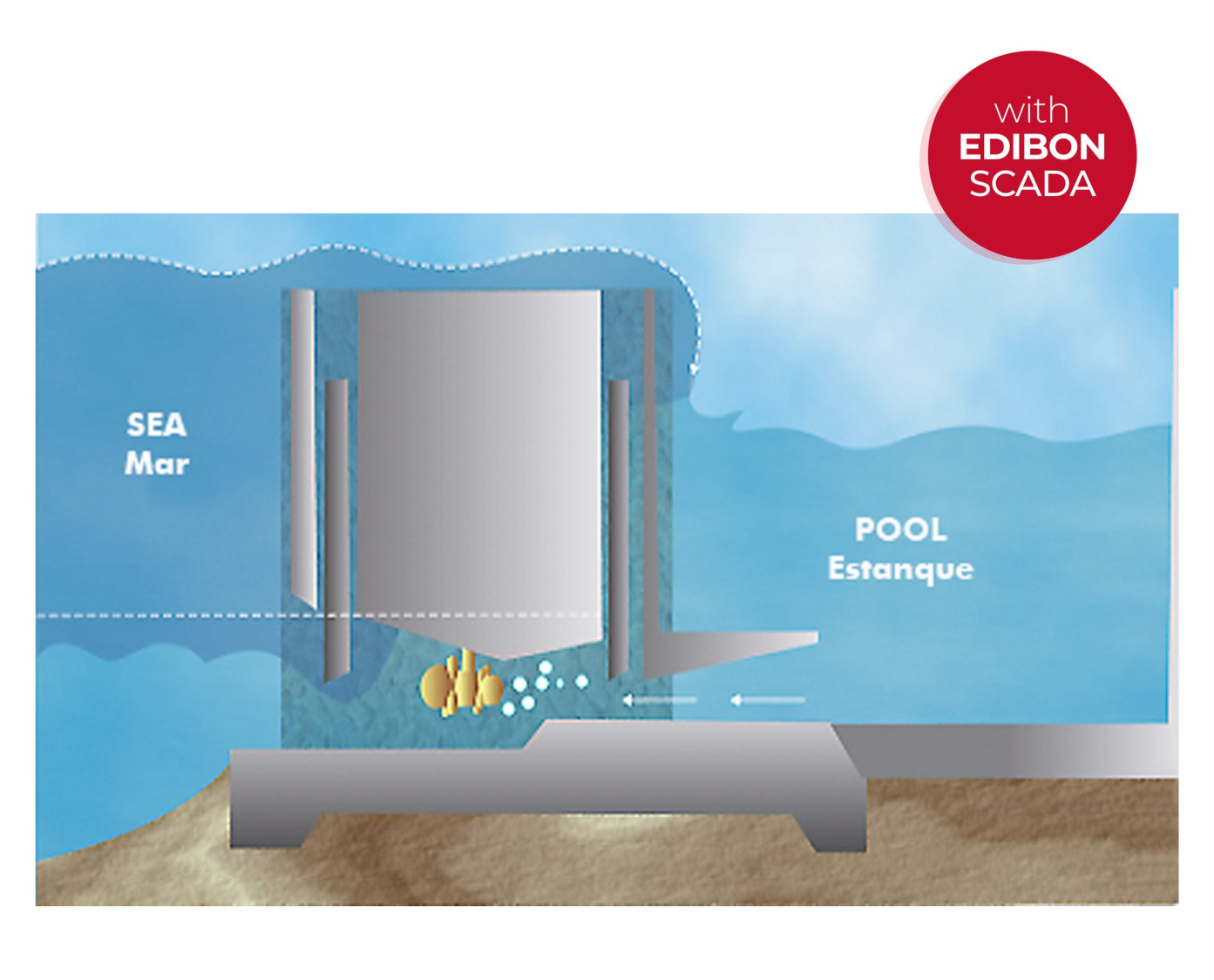

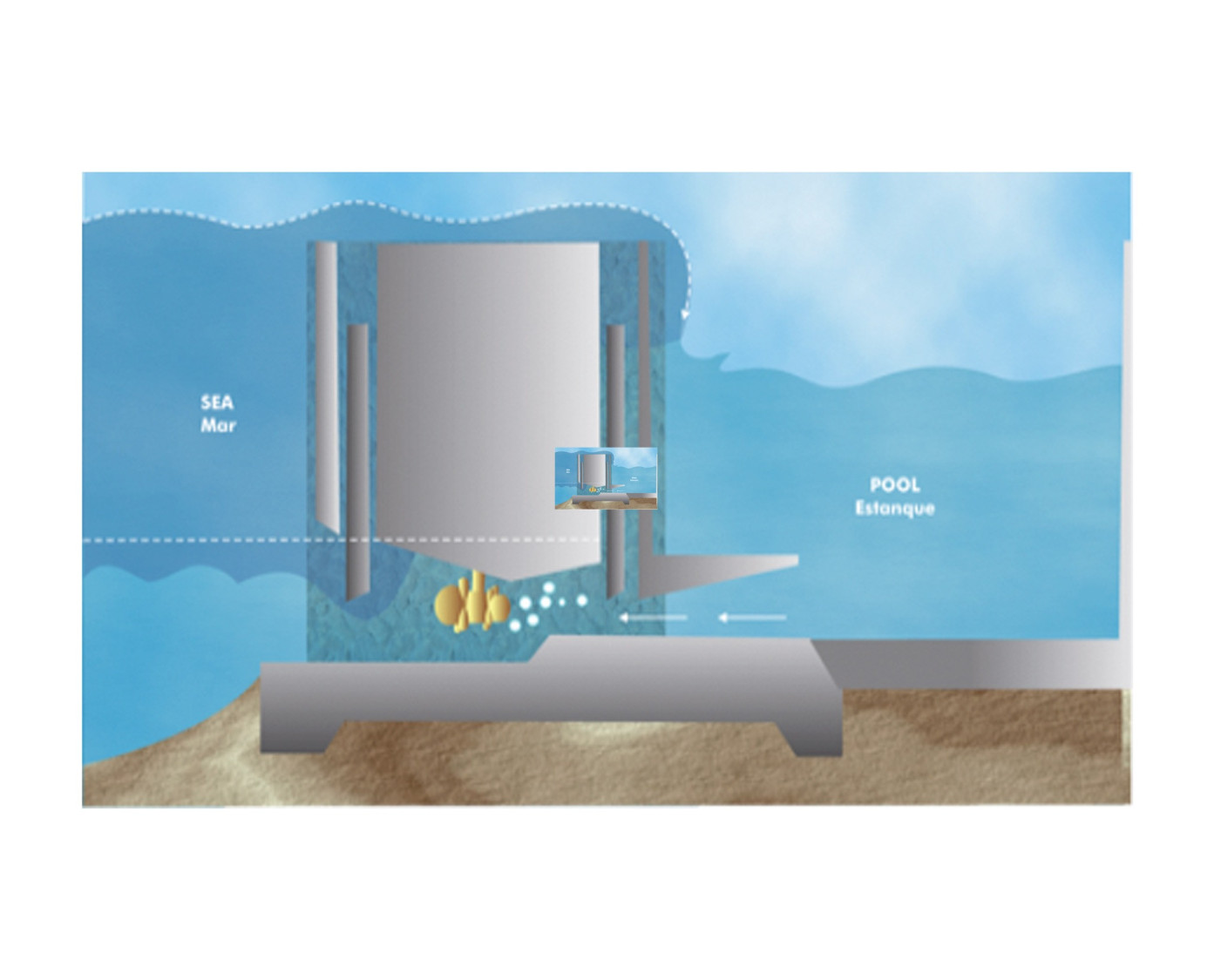

A Tidal Barrage make use of the potential energy in the difference in height (or head) between high and low tides.

This system is based on constructing a dam which dams the water entering by a tide into an estuary or pool. Practicing an entry on the dam wall, the water is obliged to enter through it, increasing its speed and, therefore, allowing to use it by turbines for energy generation.

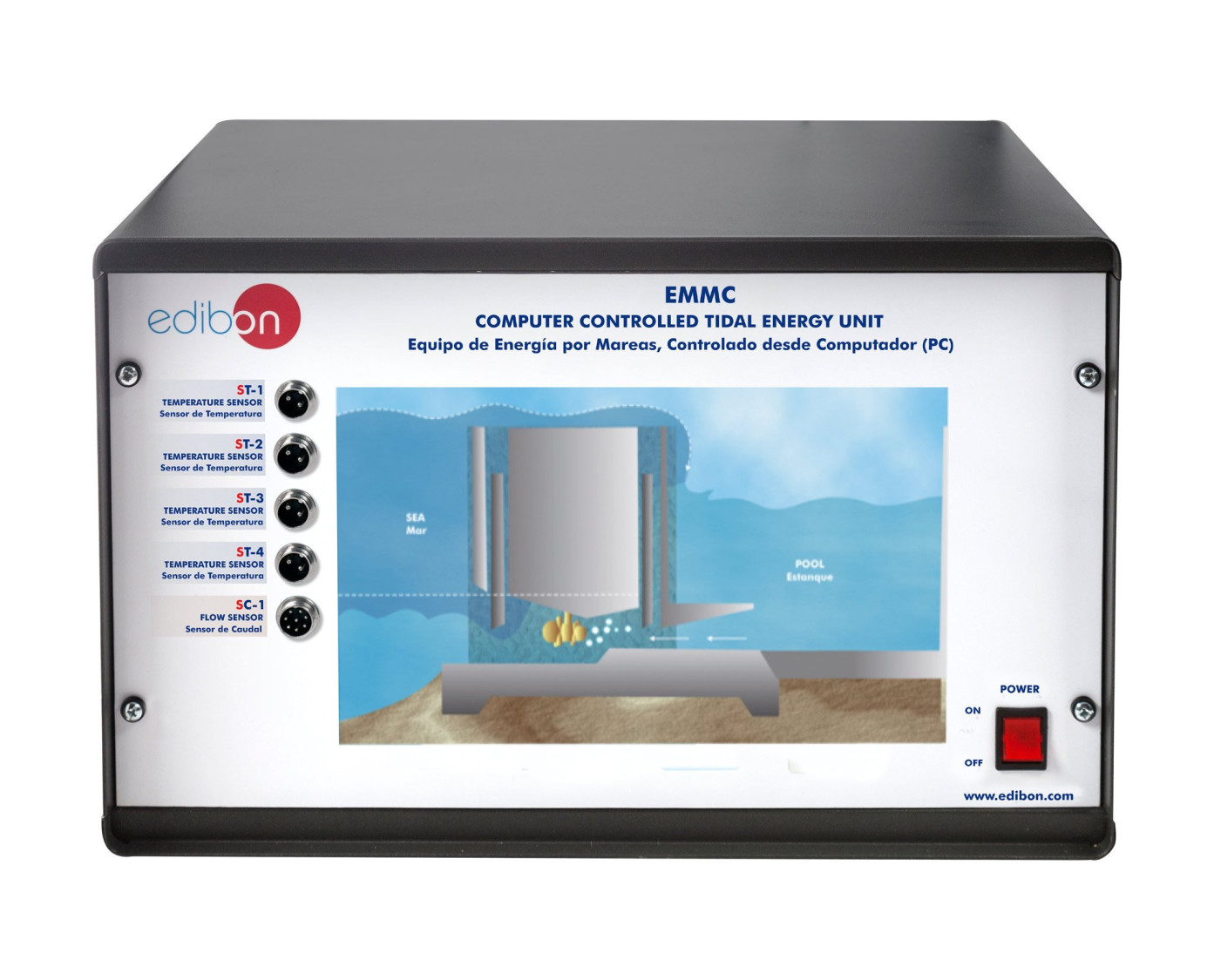

The Computer Controlled Tidal Energy Un"EMMC", is designed for simulating this energy generation system, allowing the study and tests of the operation and performance of a tidal barrage system for energy generation.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Electrical energy generation with different type of tides.
  2. Measures and controls.
  3. Sensors calibration.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the EMMC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the EMMC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
