EFLP Peralatan Filtrasi Lapisan Dalam

11.1.11.- FILTRASI, SEDIMENTASI, DAN PENCAMPURAN 12.3.- PENGOBATAN AIR MINUM 13.3.- PENGOLAHAN AIR LIMBAH
DEEP BED FILTER UNIT - EFLP

SISTEM INOVATIF

The Deep Bed Filter Unit, "EFLP", enables to study filtration in open and closed circuit, as well as to visualize the bed washing process.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Baca lebih lanjut
Penangkapan Udara Langsung: Teknologi Kunci dalam Perang Melawan Perubahan Iklim
Penangkapan Udara Langsung: Teknologi Kunci dalam Perang Melawan Perubahan Iklim
Direct Air Capture (DAC) adalah teknologi inovatif yang menghilangkan CO₂ langsung dari udara menggunakan reaksi kimia dengan pelarut cair atau penyerap padat. Meskipun menghadapi tantangan seperti biaya tinggi dan konsumsi energi, DAC menawarkan solusi potensial untuk mengurangi konsentrasi CO₂...
Baca lebih lanjut
Memahami dan Meningkatkan Sistem Pengolahan Air Minum
Memahami dan Meningkatkan Sistem Pengolahan Air Minum
Instalasi Pengolahan Air Limbah Sementara pabrik pengolahan air minum berfokus pada penyediaan air minum yang aman, instalasi pengolahan air limbah menangani pengolahan air bekas sebelum dilepaskan kembali ke lingkungan. Instalasi ini memainkan peran penting dalam melindungi sumber daya air dan...
Baca lebih lanjut
Installation at UPC - Universidad Peruana de Ciencias Aplicadas
Installation at UPC - Universidad Peruana de Ciencias Aplicadas
We are grateful for the trust of UPC - Universidad Peruana de Ciencias Aplicadas that has allowed us to install seven units [EBGC, EFLP, EII, PDAC, PDS, PEAI, PEF] to help future engineers to understand in a simpler way everything related to #environmental engineering
Baca lebih lanjut
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
Baca lebih lanjut

GAMBARAN UMUM

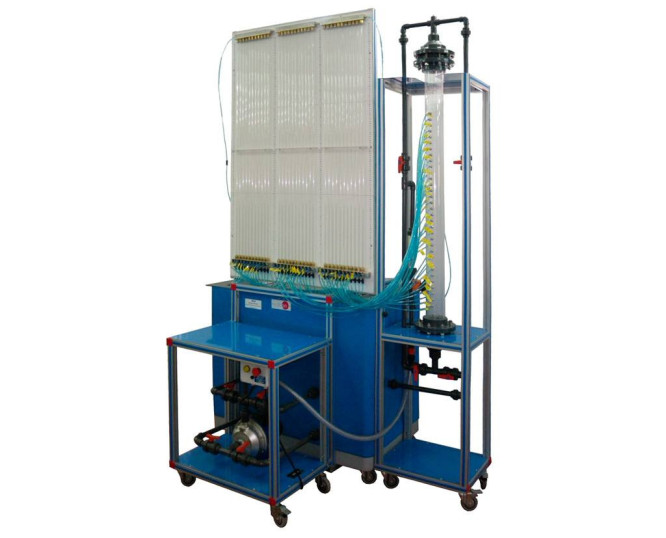

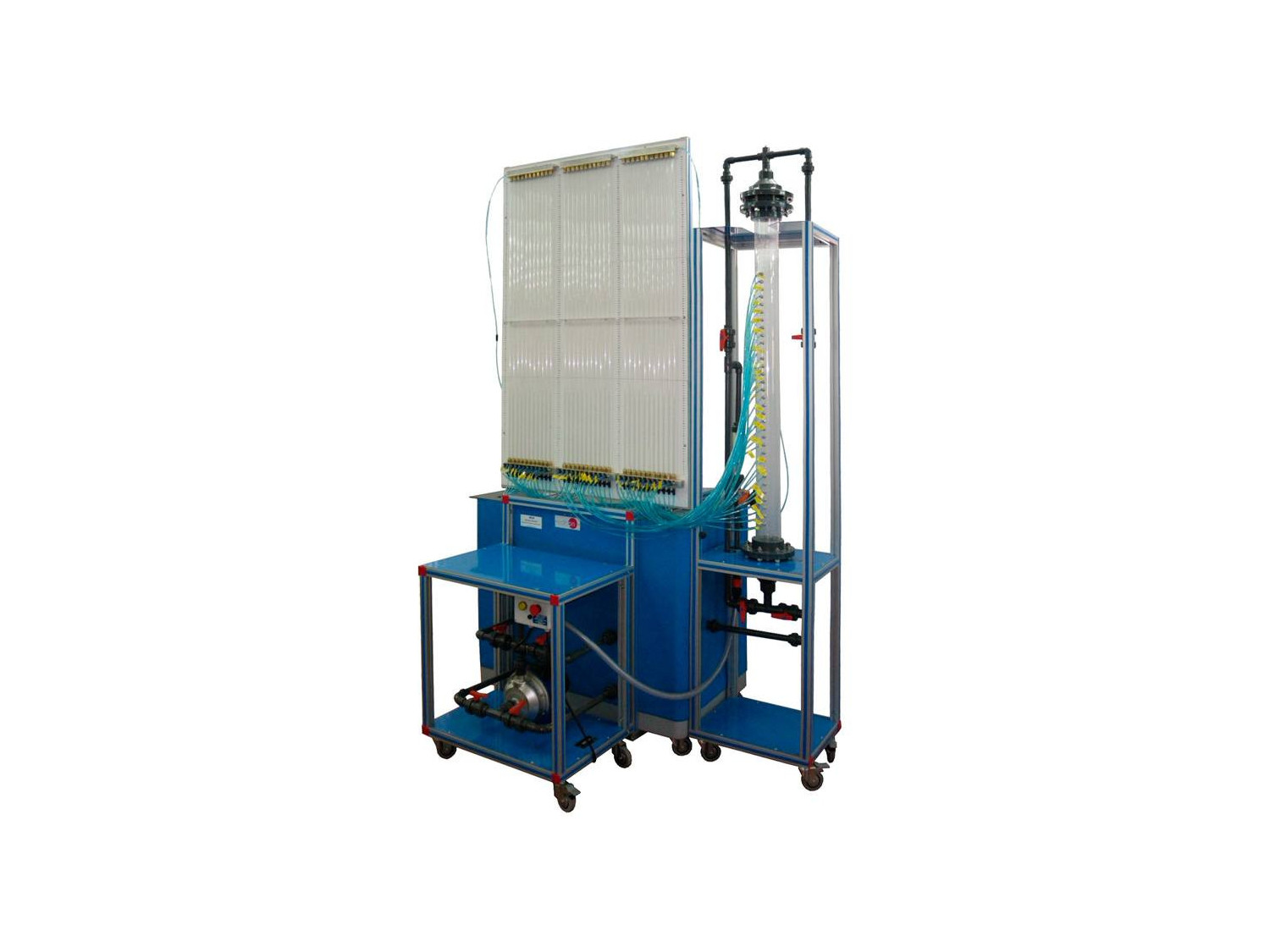

The Deep Bed Filter Unit, "EFLP", allows us to filter a fluid in order to eliminate particles in suspension, to have it in more adequate conditions for its subsequent use or consumption.

The pump takes raw water from one of the reservoirs of the unit and propels it towards the upper part of the column. That raw water passes through a diaphragm valve that controls the inlet flow rate of the column and a flowmeter that measures such flow rate.

The liquid to be filtered goes down the column, crossing the filtering media settled as a bed and the pressure along the entire bed is measured at 30 points. It enables the measurement of the pressure drop that is visualized by the increase of the resistance that the filter opposes to the fluid.

The filtration process can be performed in closed or open circuit.

The solids settled in the filter can be removed by countercurrent washing.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Determination of the initial head loss of a deep bed.
  2. Evolution through time of the head loss of the deep bed.
  3. Measuring pressure drop profiles through the bed.
  4. Demonstration of reversed flow and backwashing fluidisation.
  5. Filtering in open and closed circuit.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. The column may be readily adapted for absorption and ion exchange studies.
  2. Measuring suspension concentration profiles through the filter bed.
  3. Filtration efficiency. Clarification.
