The Stress Hypothesis Testing Unit, "STH", designed by EDIBON, allows the verification of stress hypotheses in specimens of different materials.

Lihat uraian umum

Katalog

Spesifikasi Kontes

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

GAMBARAN UMUM

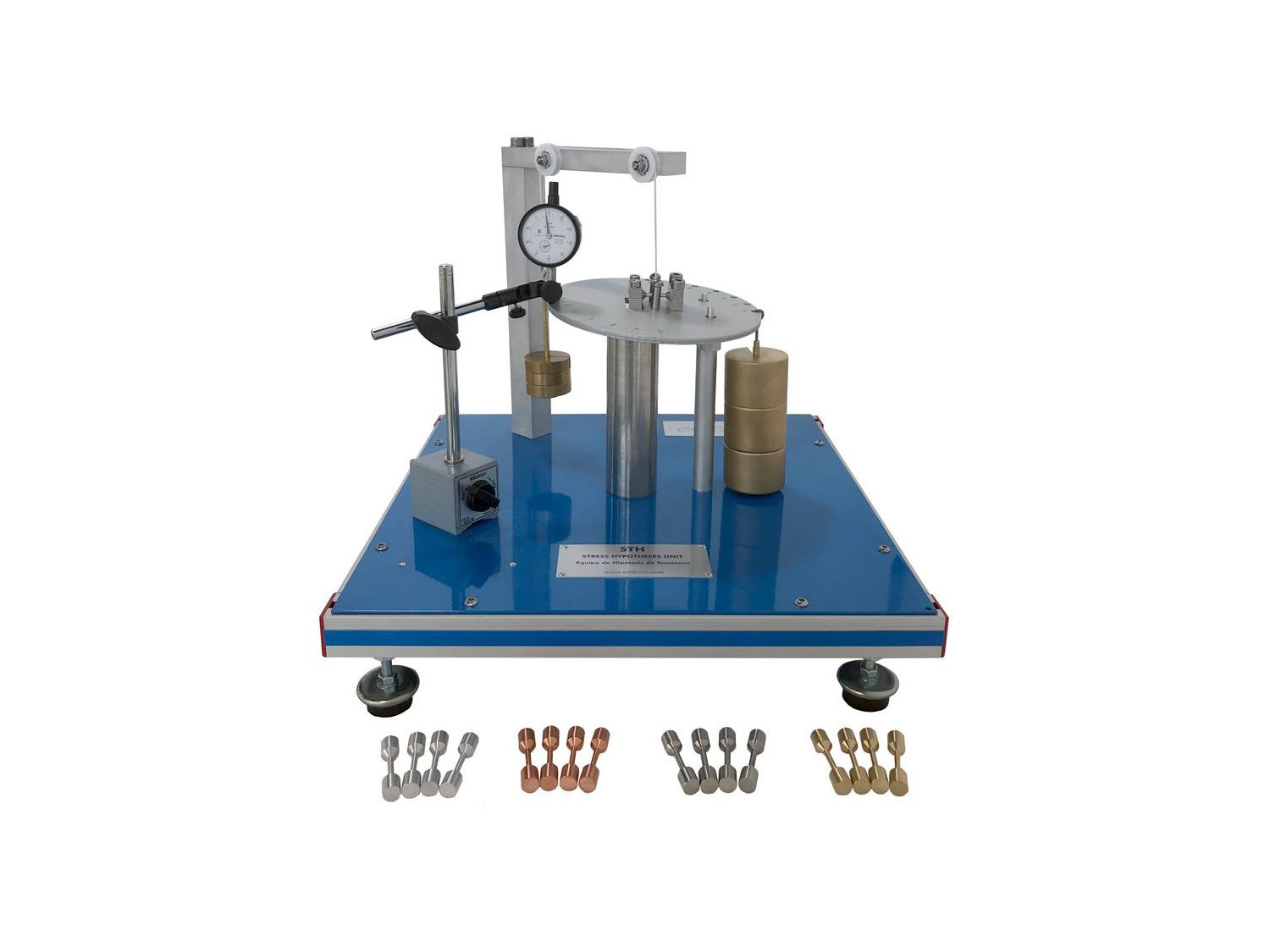

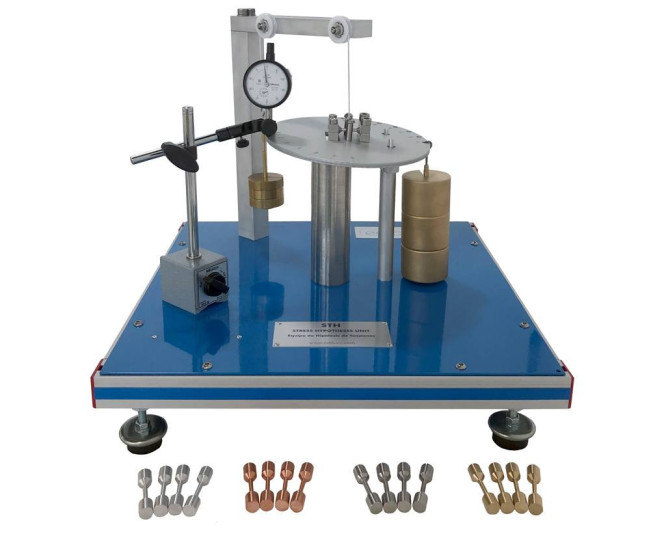

The Stress Hypotheses Unit, "STH", allows the study and testing of stress hypotheses by applying loads in different directions on a test specimen point and measuring the deformations produced.

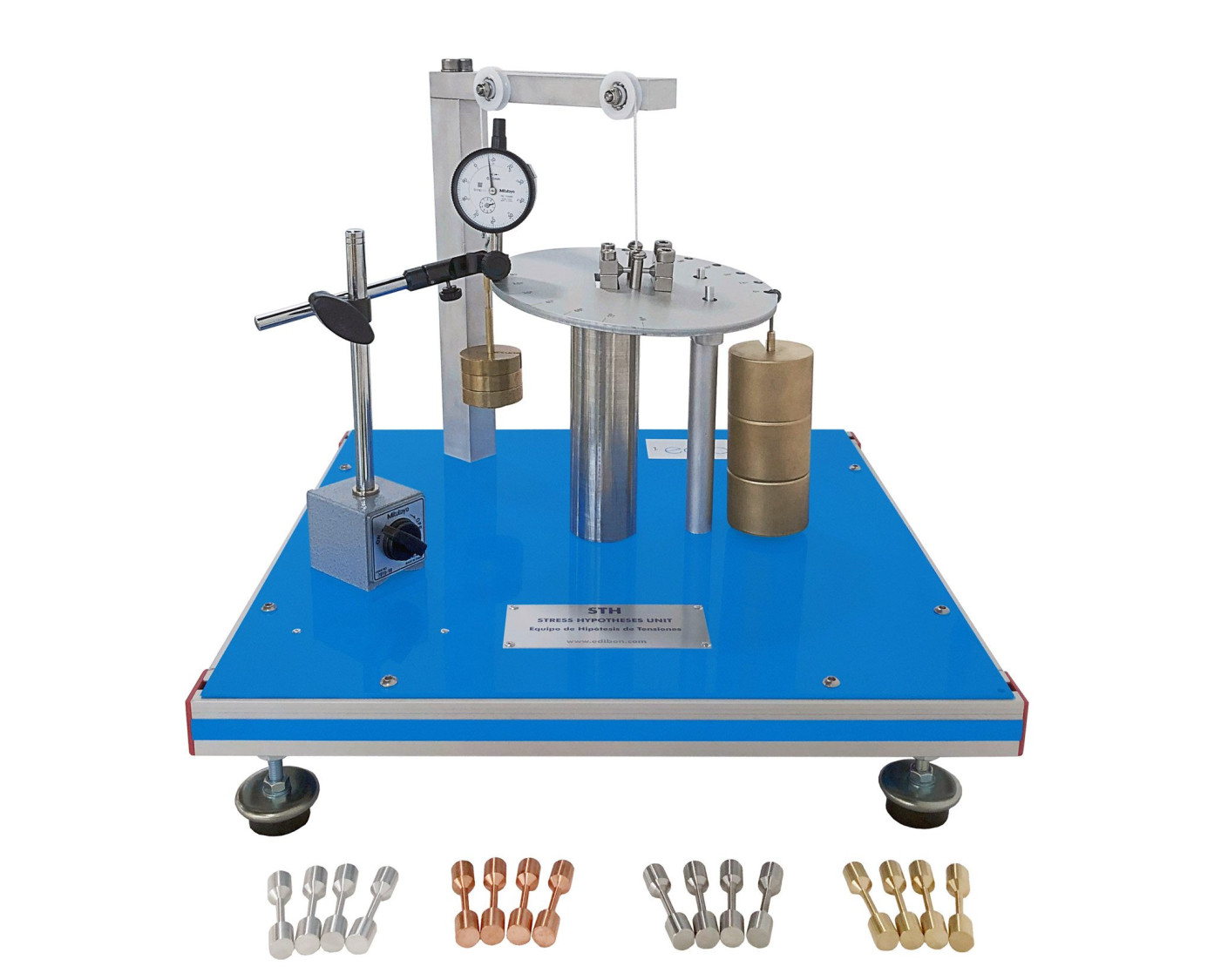

Normal and shear stresses are applied, avoiding transverse stresses. The test specimen is fixed to the unit on one side and weights are placed on the other side to create the stresses. A counterweight is used to compensate these weights.

These stress-creating weights are supported on a graduated plate placed on the specimen, which allows the weights to be fixed at 15° differences, adding also bending and torsional moments.

The test specimens have an annular cross-section in their loaded zone and the ends are reinforced for support.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

Study of the normal stresses hypothesis.
Study of the shear stresses hypothesis.
Study of the generation of different load moments: bending and torsion.
Study of the yield stress.
Representation of stresses in Mohr’s circle.

PERALATAN KOMPLEMENTER

UNIT FOR STUDYING FORCES IN A JIB CRANE - MFPG

MFPG

Available

7.1.6.- MEKANIKA STRUKTURAL

MFPG

Peralatan Studi Gaya pada Lengan Crane

The Unit for studying Forces in a Jib Crane, "MFPG", is designed to study the tensile and compressive forces in a planar central force system based on the example of a crane jib.The unit represents a planar central force system in which multiple...

Available

7.1.6.- MEKANIKA STRUKTURAL

MVS

Peralatan Jembatan Gantung

The Suspension Bridge Unit, "MVS", has been meticulously designed by EDIBON to explore the dynamics of stresses in a suspension bridge system. This unit simulates a suspension bridge using a deck and two parallel main cables, allowing students to...

MARP

Available

7.1.6.- MEKANIKA STRUKTURAL

MARP

Peralatan Busur Parabola

The Parabolic Arch Unit "MARP" contains a pre-shaped articulated arch, which can be subjected to point or evenly distributed loads by means of seven uniformly distributed cables (cords) with hangers.One support of the arch is fixed whereas the...

MART

Available

7.1.6.- MEKANIKA STRUKTURAL

MART

Peralatan Busur Tiga Titik Artikulasi

The Three-Hinged Arch Unit "MART" allows the student to become familiar with three-hinged arches, to calculate the bearing forces (for point load, for uniformly distributed load and for moving load), to investigate the influence of the load on the...

UNIT FOR STUDYING FORCES IN A SIMPLE BAR STRUCTURE - MFBS

MFBS

Available

7.1.6.- MEKANIKA STRUKTURAL

MFBS

Peralatan untuk Studi Gaya pada Struktur Batang Sederhana (Rangka Sederhana)

The Unit for Studying Forces in a Simple Bar Structure, "MFBS", designed by EDIBON allows the study of forces acting on a simple truss when is subjected to a point load in one of the nodes that make up the structure.It consists of a group of five...

UNIT FOR STUDYING FORCES IN DIFFERENT SINGLE PLANE TRUSSES - MFCS1

MFCS1

Available

7.1.6.- MEKANIKA STRUKTURAL

MFCS1

Peralatan Studi Gaya pada Berbagai Konfigurasi Rangka Bidang

The Unit for studying Forces in Different Single Plane Trusses, "MFCS1", allows the measurement of the bar forces in various single plane trusses, the study of the dependency on the external force and the comparison of the experimental bar forces...

UNIT FOR STUDYING FORCES IN AN OVERDETERMINATE TRUSS - MFCS2

MFCS2

Available

7.1.6.- MEKANIKA STRUKTURAL

MFCS2

Peralatan Studi Gaya pada Rangka Hiperstatik

The Unit for studying Forces in an Overdeterminate Truss, "MFCS2", allows the measurement of the bar forces in a statically determinate truss and in a statically overdeterminate truss, the study of the distribution of forces in the single plane...

UNIT FOR STUDYING DEFORMATION OF TRUSSES - MFCS3

MFCS3

Available

7.1.6.- MEKANIKA STRUKTURAL

MFCS3

Peralatan untuk Studi Deformasi pada Rangka

The Unit for studying Deformation of Trusses, "MFCS3", allows the measurement of the stresses in the bars in different types of trusses, and the study of the dependence of the external force and the comparison of the experimental forces in the...

MCPG

Available

7.1.6.- MEKANIKA STRUKTURAL

MCPG

Peralatan Silinder Berdinding Tebal

In the Thick-Walled Cylinder Unit, "MCPG", the stresses are determined through the measurement of the strains produced on the surface. These strains are measured by strain gauges.The thick-walled vessel consists of an aluminum cylinder of length...

Available

7.1.6.- MEKANIKA STRUKTURAL

MFL

Peralatan Busur Dua Titik Artikulasi

The Two Hinged Arch Unit, "MFL", designed by EDIBON allows to study the response of an arched beam when an external load is applied on it.The arch is supported on two supports, a fixed one and a movable one. The displacement and horizontal...

Available

7.1.6.- MEKANIKA STRUKTURAL

MPO

Peralatan Portal

The Portal Frame Unit, "MPO", designed by EDIBON, allows for precise measurements of vertical and horizontal deflection in an embedded rectangular portal frame. By applying various loads with specific weights, changes in the portal frame’s...

SIMPLE STABILITY PROBLEMS STUDY UNIT - MEPE

MEPE

Available

7.1.6.- MEKANIKA STRUKTURAL

MEPE

Peralatan untuk Studi Masalah Stabilitas

The Simple Stability Problems Study Unit, "MEPE", has been designed to study the stability of a bar subjected to buckling by obtaining the critical load in different configurations. The unit consists of two bars of same length connected by a...
