MEBM Peralatan Modus Tekuk Euler

7.1.6.- MEKANIKA STRUKTURAL 7.3.2.1.- UJI MEKANIK 14.1.8.- UJI MEKANIK
EULER BUCKLING MODES UNIT - MEBM

SISTEM INOVATIF

With the Euler Buckling Modes Unit, "MEBM", the four Euler buckling cases are demonstrated, for which four elastic bars are fixed or supported in a frame and subjected to compression load with a system of weights.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Baca lebih lanjut
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Baca lebih lanjut
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Baca lebih lanjut

GAMBARAN UMUM

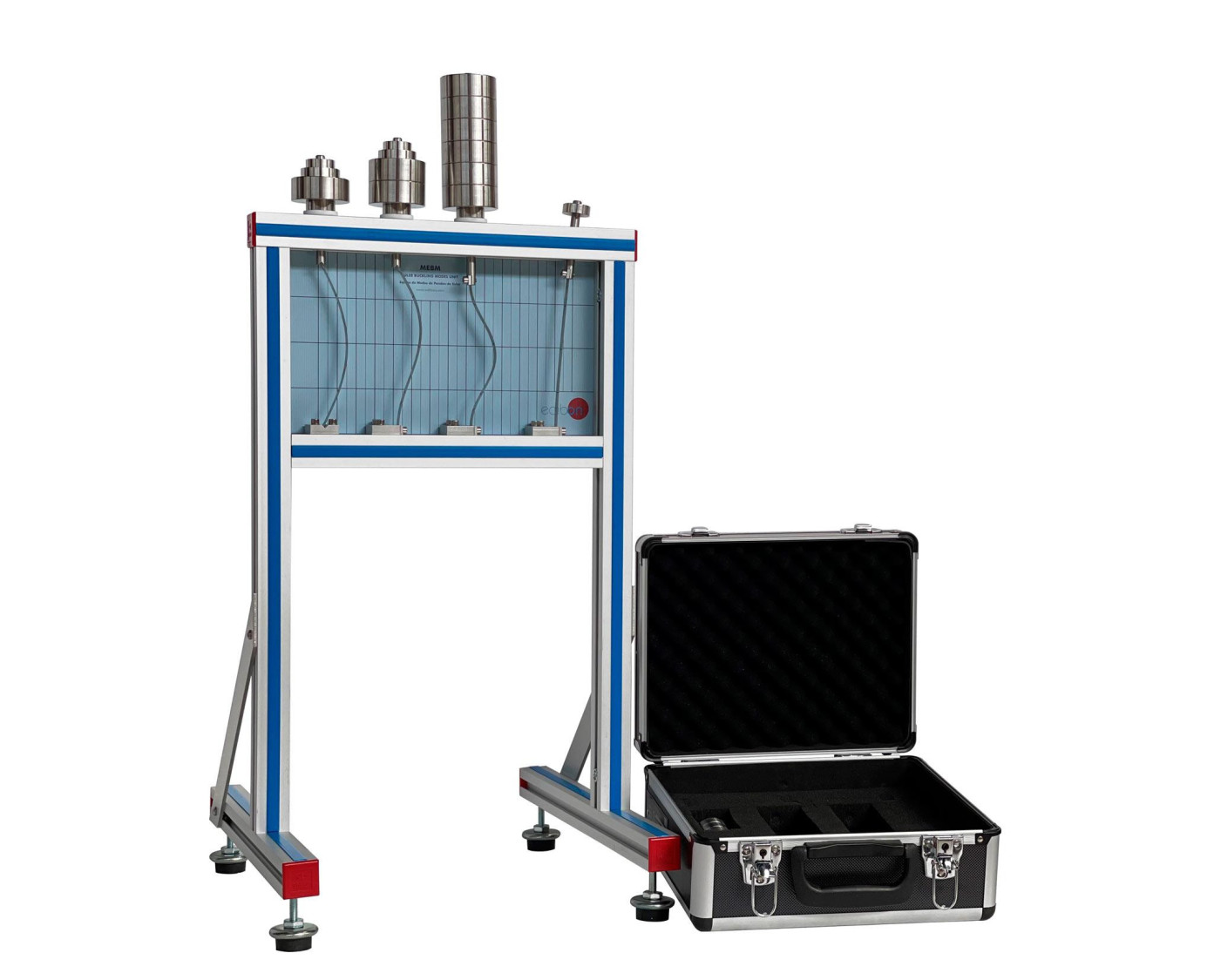

With the Euler Buckling Modes Unit, "MEBM", the four Euler buckling cases are demonstrated, for which four elastic bars are fixed or supported in a frame and subjected to compression load with a system of weights.

The elastic bars can be free or supported by embedment or articulation and different weights can be placed on the upper supports in a staggered manner to apply the compression load until buckling starts and the axes of the bars are laterally deformed determining the critical buckling load.

The different supports of the elastic bars allow the study of:

  • Free - fixed end.
  • Pinned - pinned end.
  • Fixed - pinned end.
  • Fixed - fixed end.

The buckling length can be easily determined with the help of a grid located on the rear wall of the frame.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Representation of the Euler buckling cases:
  • Free - fixed end.
  • Pinned - pinned end.
  • Fixed - pinned end.
  • Fixed - fixed end.
  1. Study of the relationship between the buckling length and the critical buckling load.
  2. Study of the relationship between the critical buckling load and the various forms of support.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Study of the relationship between the buckling length and the different forms of support.
