TEVT Peralatan Pelatihan Tangki Ekspansi

9.10.3.- PRAKTIK INSTALASI DAN PEMELIHARAAN
EXPANSION VESSEL TRAINING UNIT - TEVT

SISTEM INOVATIF

The Expansion Vessel Training Unit, "TEVT", is a test unit for sanitary and heating techniques that allows studying the operation of an expansion vessel. It also allows studying the pressure – volume characteristic curve of it.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Baca lebih lanjut

GAMBARAN UMUM

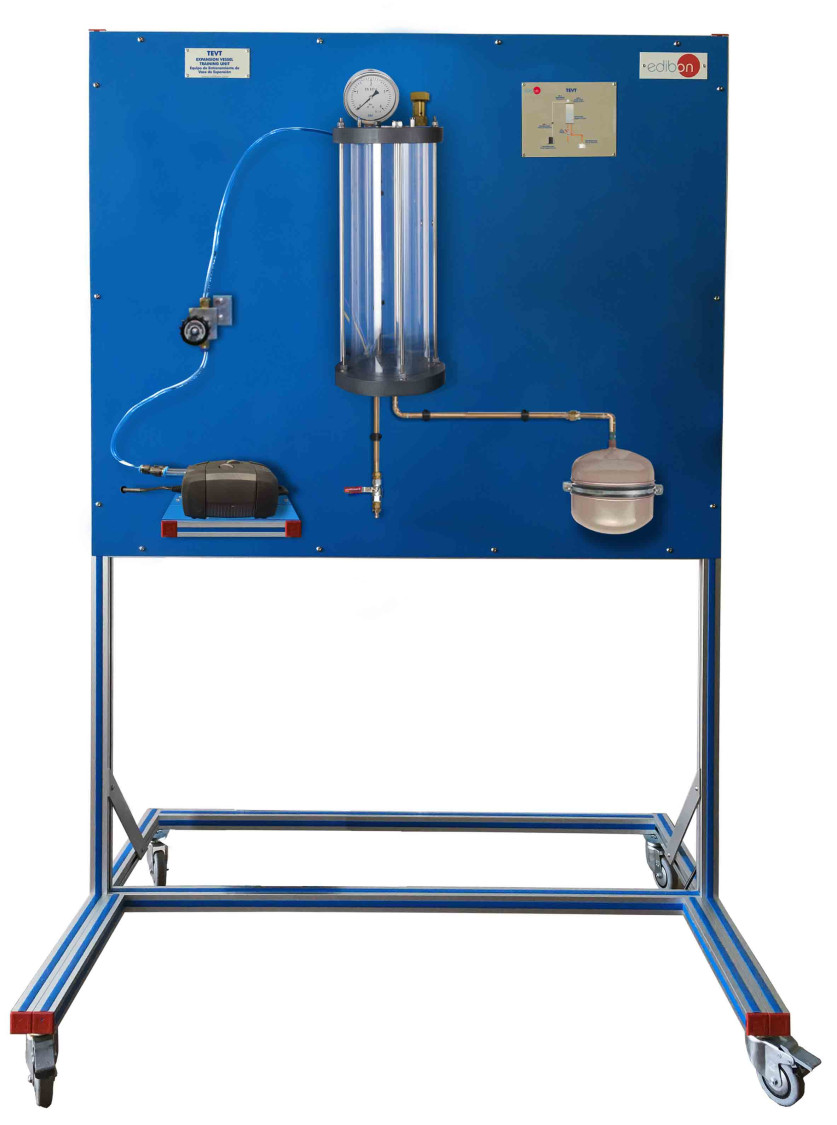

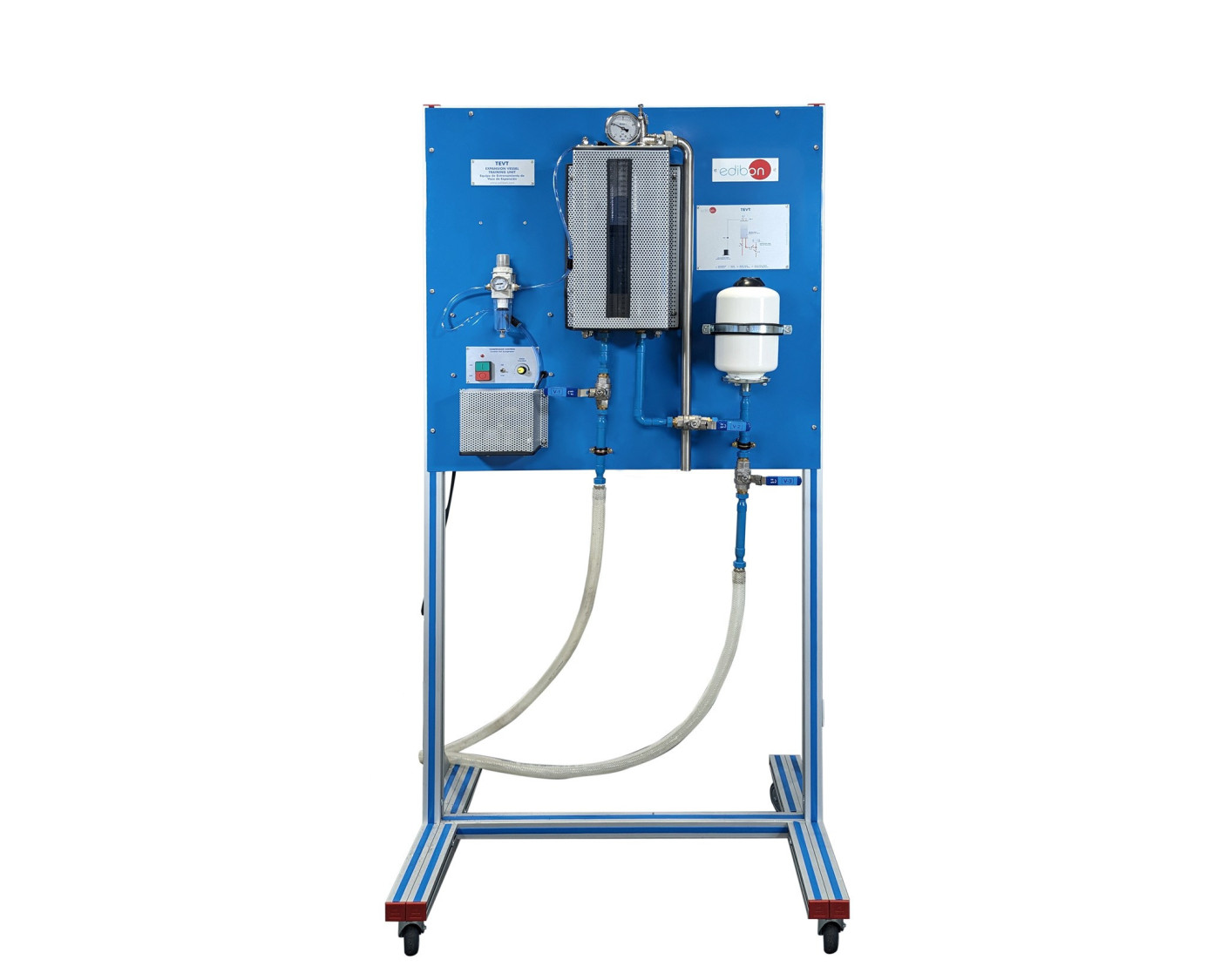

The Expansion Vessel Training Unit, "TEVT", is a test unit for sanitary and heating techniques that allows studying the operation of an expansion vessel. It also allows studying the pressure – volume characteristic curve of it.

The aim element of study is an expansion vessel from which it is possible to represent its pressure – volume characteristic curve, for which it is filled with water from a storage and measurement tank.

The way to fill the expansion vessel for its study is to introduce water that comes from the transparent storage and measurement tank that includes the unit. Using a small air compressor, pressure is generated on the measuring tank, which will allow the passage of part of the water it contains to the expansion vessel.

The air pressure generated in the tank can be regulated by controlling the air flow to be introduced by means of a pressure regulator.

On the other hand, for the representation of the pressure – volume characteristic curve, the unit has a pressure gauge that measures the pressure exerted by the air and, the volume will be determined by the displacement experienced by the water in the storage and measurement tank that is observed in the scale it contains.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Study of the operation and function of an expansion vessel.
  2. Volume variation in an expansion chamber as a function of pressure.
  3. Representation of the pressure-volume characteristic curve of an expansion vessel.
  4. Study of an expansion vessel cutaway model.
