RYC-C Peralatan Pengendalian dan Pengaturan Aliran dengan PID

2.4.1.- INSTRUMENTASI & KONTROL 6.1.1.1.- DASAR-DASAR TEORITIS-PRAKTIS 10.1.- TEORITIS - DASAR PRAKTIS 14.2.2.- INSTRUMENTASI & KONTROL
FLOW RATE CONTROL MODULE - RYC-C

SISTEM INOVATIF

The "RYC-C" Flow Rate Control module has been designed to study a practical control system, through the flow rate of a close water circuit.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
EMAK

Kit EDIBON untuk Matlab

Laboratorium

2TV
 Laboratorium Elektronika Pendidikan Teknik dan Kejuruan
2HE
 Laboratorium Elektronika untuk Perguruan Tinggi
11PTC
 Laboratorium Pusat Pelatihan Perminyakan
6TV
 Laboratorium Mekatronika dan Otomasi untuk Pendidikan Teknik dan Vokasi
6HE
 Laboratorium Mekatronika dan Otomasi Pendidikan Tinggi

BERITA TERKAIT

The future of Process Control: Innovation, training, and the industry 4.0 revolution
The future of Process Control: Innovation, training, and the industry 4.0 revolution
Automation and process control have been fundamental pillars in the evolution of both industry and scientific research. With the advent of Industry 4.0, the integration of new technologies has driven an unprecedented transformation in the way industrial and research systems operate, optimize...
Baca lebih lanjut
What is Process Control, and Why is It Essential in Modern Industry?
What is Process Control, and Why is It Essential in Modern Industry?
Today, automation and efficiency are key factors in industrial and scientific development. Process control plays a crucial role in this context by enabling the monitoring, regulation, and optimization of industrial systems and processes, ensuring they operate efficiently, safely, and consistently.
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Baca lebih lanjut
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Baca lebih lanjut

GAMBARAN UMUM

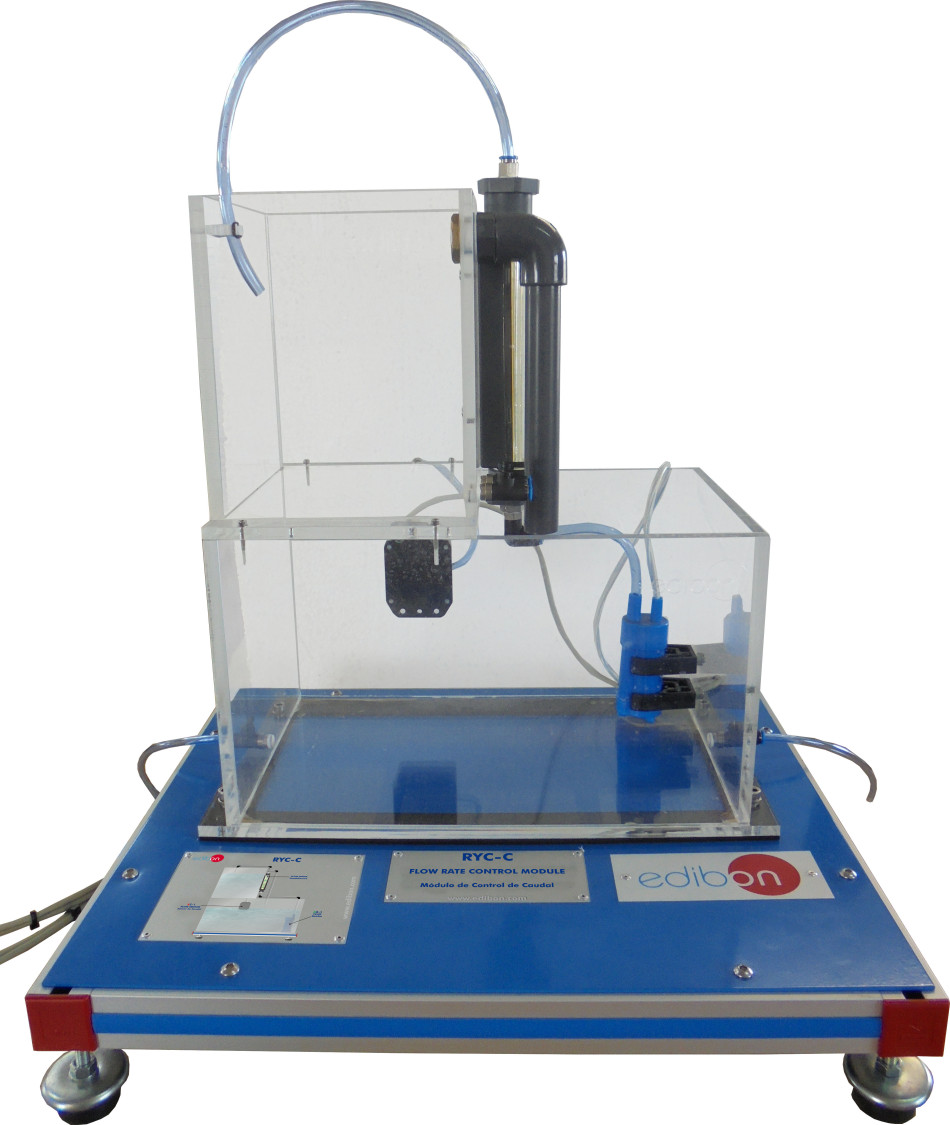

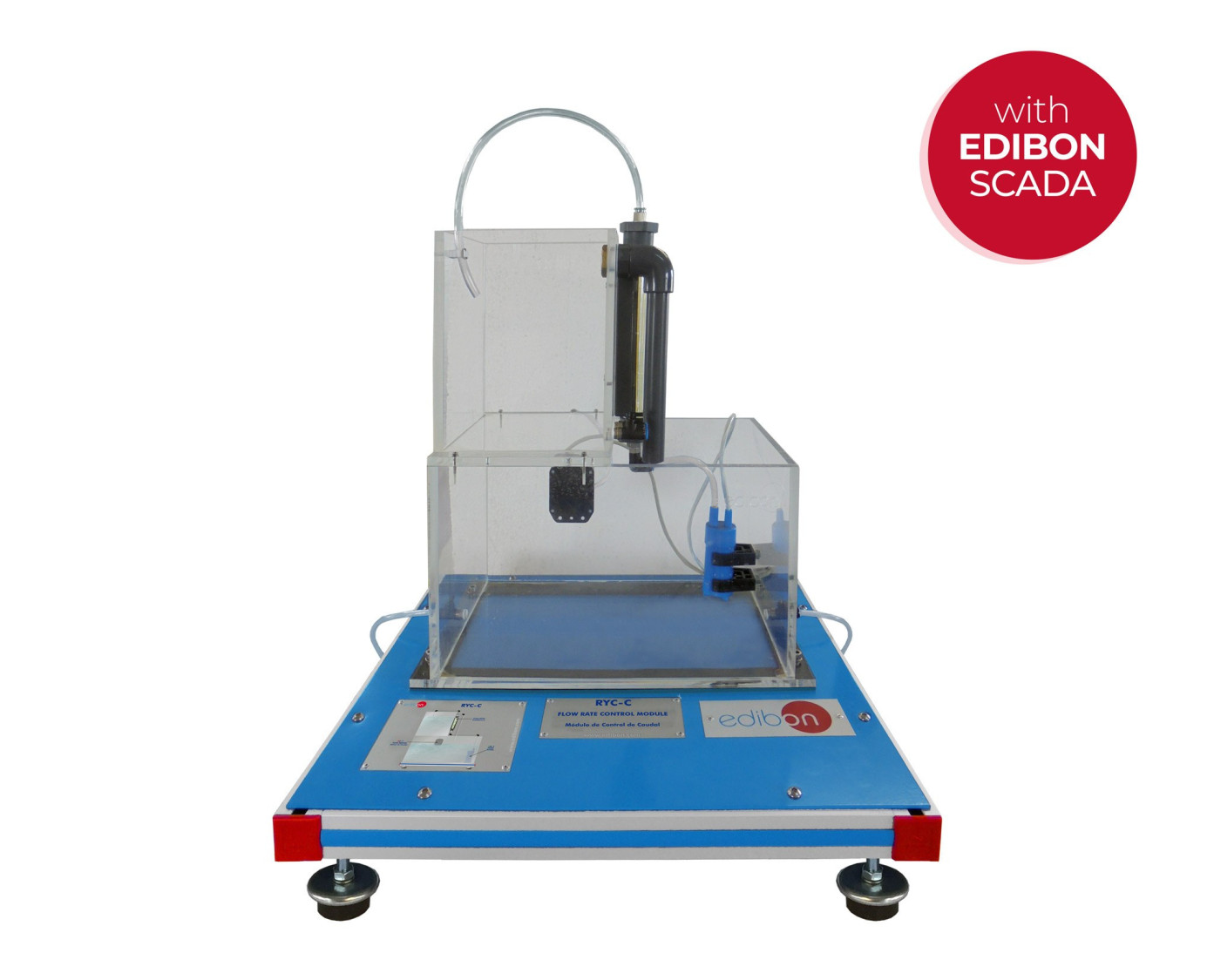

The "RYC-C" Flow Rate Control module has been designed to study a practical control system, through the flow rate of a close water circuit.

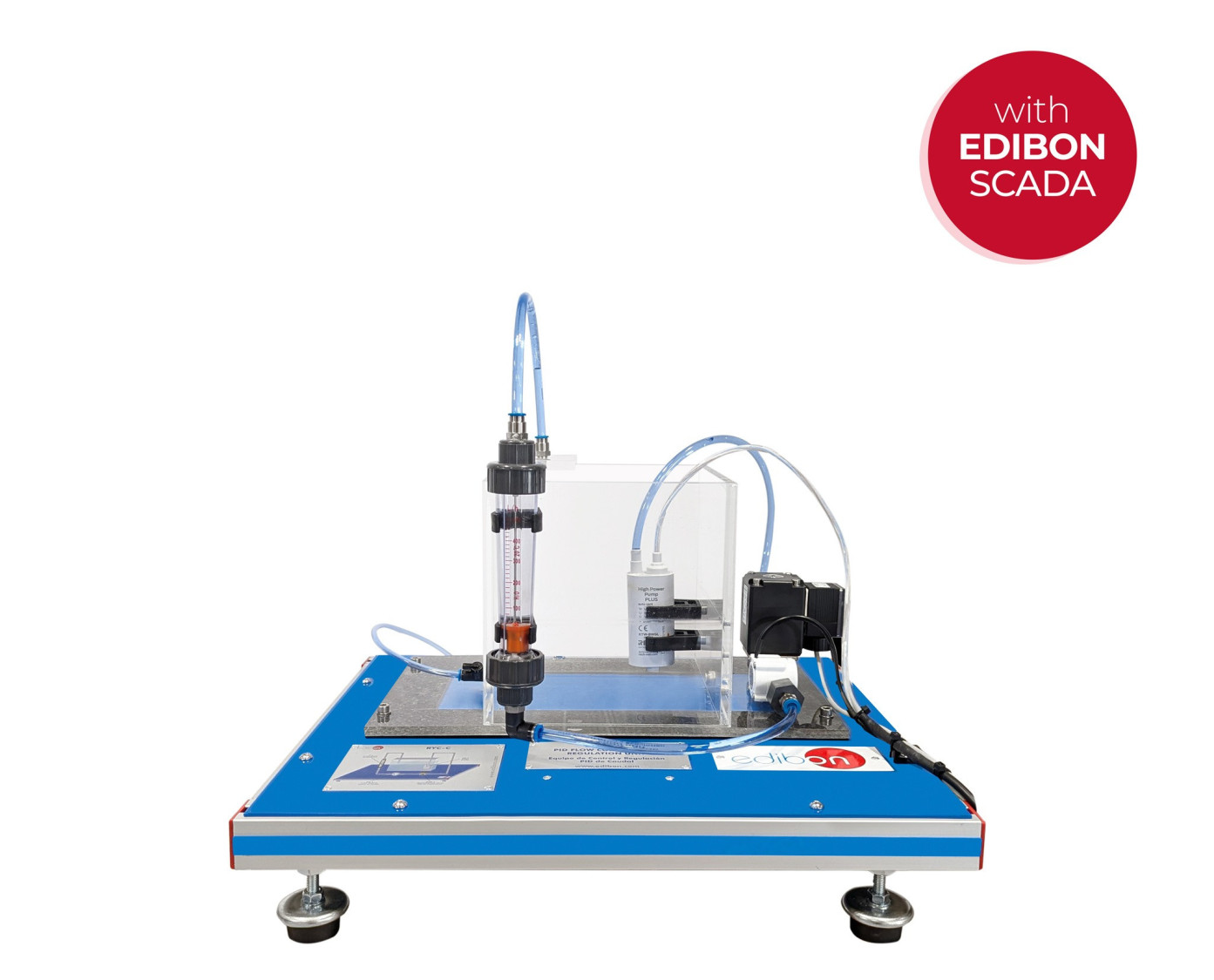

The "RYC-C" module consists of two main components: the "RYC-C" apparatus and the "RYC-C" interface box. The "RYC-C" apparatus contains all the sensors and actuators such as electronic proportional valve, water pump, flow meter, etc. The "RYC-C" interface box contains all necessary components for power supplying, signal conditioning, etc.

The components are used in conjunction with the "RYC" unit to control the water flow rate of a close circuit, through the control of the electronic valve. The system allows to insert disturbances manually.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Familiarization with the main module components.
  2. Analyze the transient response of the system.
  3. Analyze the system response in open loop.
  4. Analyze the system response in closed loop.
  5. Flow rate control with a P, PI, PD and PID controller.
  6. Setting and optimizing the parameters of the PID control.
  7. Analysis of the different responses of the system to modifications of PID parameters.
  8. Study of the disturbances in a controlled system with a PID controller.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  4. This unit can be used for doing applied research.
  5. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  6. Control of the RYC unit process through the control interface box without the computer.
  7. Visualization of all the sensors values used in the RYC unit process.
  8. Several other exercises can be done and designed by the user.

BARANG YANG DIBUTUHKAN

KUALITAS

LAYANAN PURNA JUAL

Meminta informasi
