HEMP Peralatan Pengukuran Tekanan
SISTEM INOVATIF
The Pressure Measurement Unit, "HEMP", designed by EDIBON, allows to study pressure measurement techniques widely, since different manometers can be used to understand and compare the operation characteristics of the different devices and to study their calibration principles.
Laboratorium
BERITA TERKAIT
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
GAMBARAN UMUM

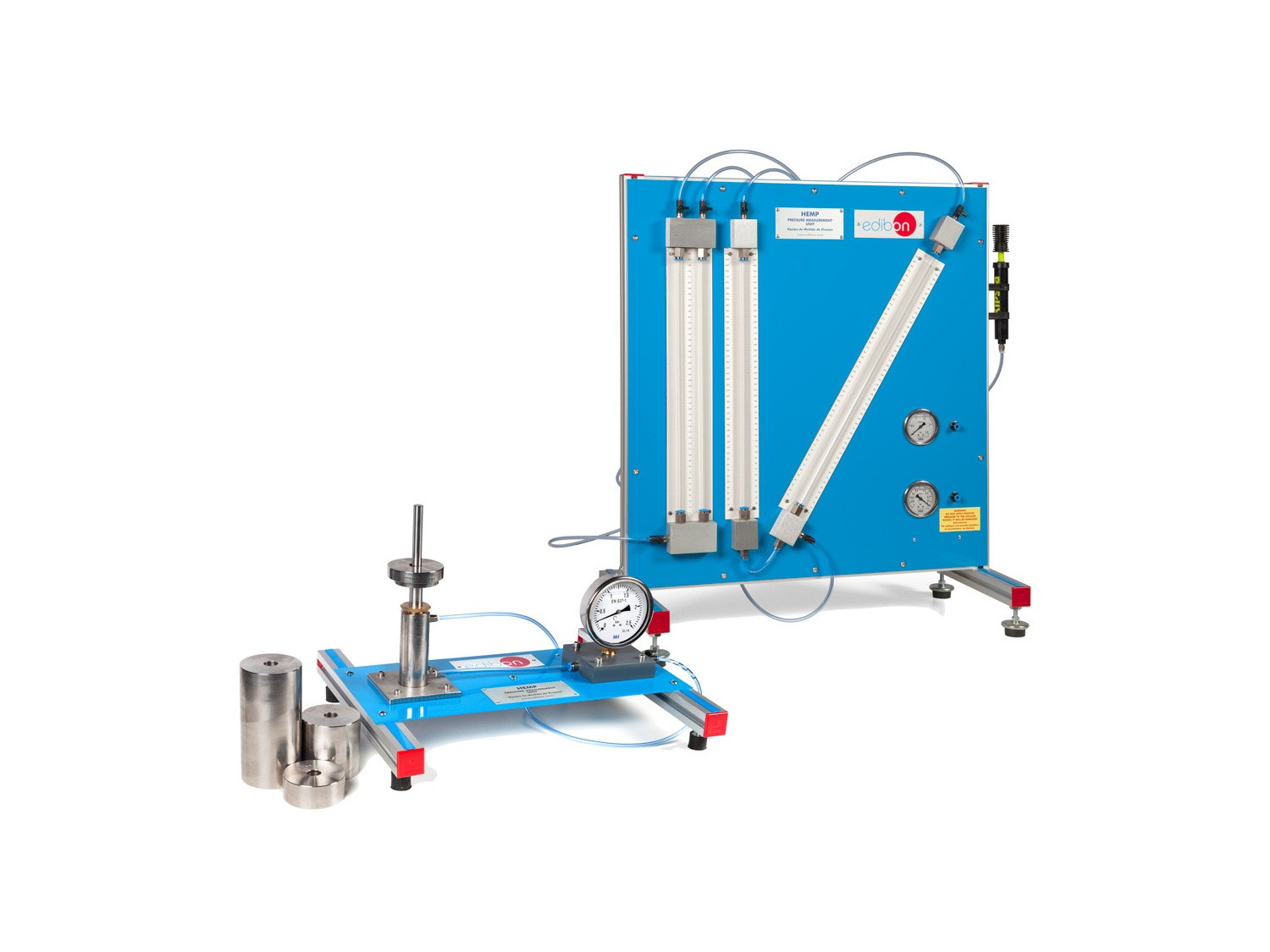

The Pressure Measurement Unit, "HEMP", enables a wide range of investigations and studies into pressure measurement techniques, using Bourdon type manometers and different U-tube manometers, to understand the operation, the characteristics of the devices, and to study the principles of calibration and to do practical exercises and experiments about it.
The "HEMP" unit mainly consists of:
- Vertical "U" type manometer (direct measurement).
- Inclined "U" manometer (direct measurement).
- Positive pressure Bourdon manometer (indiret measurement).
- Negative pressure Bourdon manometer (indiret measurement).
In addition, the unit includes a Dead Weight Calibrator, "FME10". It consists of a cylinder with a sliding precision piston fitted inside. A mass calibrated system is added to generate a certain amount of preset pressures inside the cylinder. The Bourdon manometer, whose correct operation has to be checked beforehand with the aid of the piston and masses, is connected to the cylinder through a flexible tube.
LATIHAN DAN PRAKTEK PEDOMAN
LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN
- Familiarisation with different pressure measurement methods.
- Study of the function and characteristics of a Bourdon type manometer.
- Study of the function and characteristics of an "U" tube manometers.
- Pressure measurements with Bourdon type manometers. Indirect measurement.
- Pressure measurements with vertical or inclined U-tube manometers. Direct measurement.
- Comparison between the different methods of pressure measurement.
- Calibration of a pressure gauge.
- Determination of measurement errors.
- Checking the readings of a Bourdon type manometer using a calibrated standard set of masses.
- Determination of the hysteresis curve of a manometer.
