MFD Peralatan Rem Cakram

7.2.1.- BRAKES AND CLUTCHES
DISC BRAKE UNIT - MFD

SISTEM INOVATIF

The Disc Brake Unit, "MFD", has been designed by EDIBON to carry out experiments to investigate the relationship between the normal force acting on the brake pads, the effective radius of the brake pads and the braking torque.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

7TV
 Laboratorium Mekanika, Otomotif dan Material untuk Pendidikan Teknik dan Vokasi
7HE
 Laboratorium Mekanika, Otomotif dan Material Pendidikan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Setting up with the Ministry of Education, Culture and Sports of Castilla La Mancha (Spain)
Setting up with the Ministry of Education, Culture and Sports of Castilla La Mancha (Spain)
We have supplied some of our units to the IES Pedro Mercedes (Cuenca), IES Aguas Vivas (Guadalajara) and IES Juanelo Turriano (Toledo).
Baca lebih lanjut

GAMBARAN UMUM

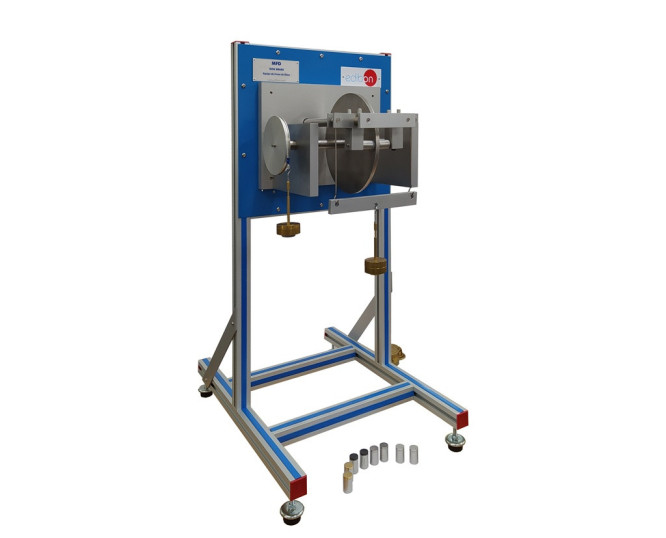

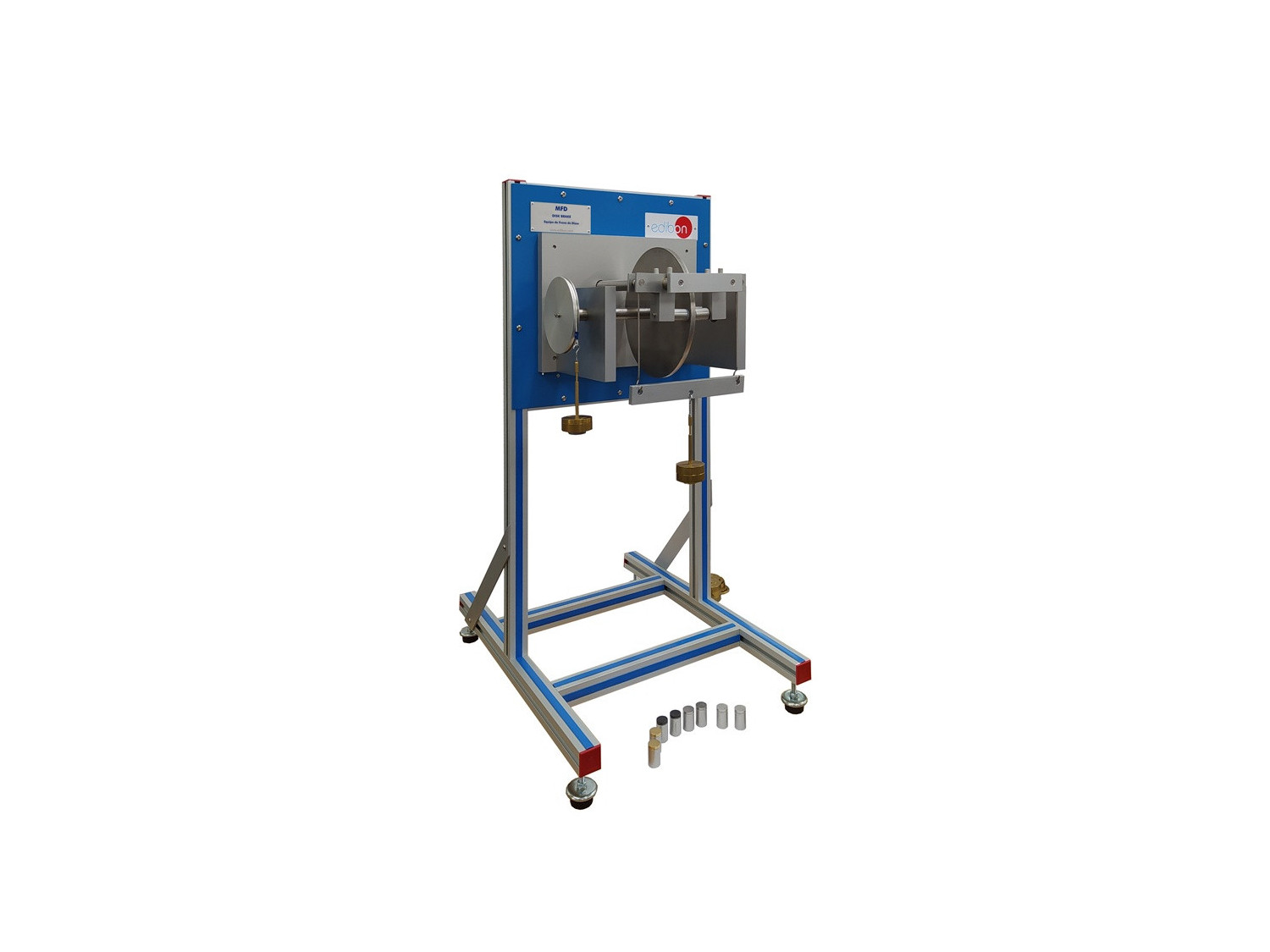

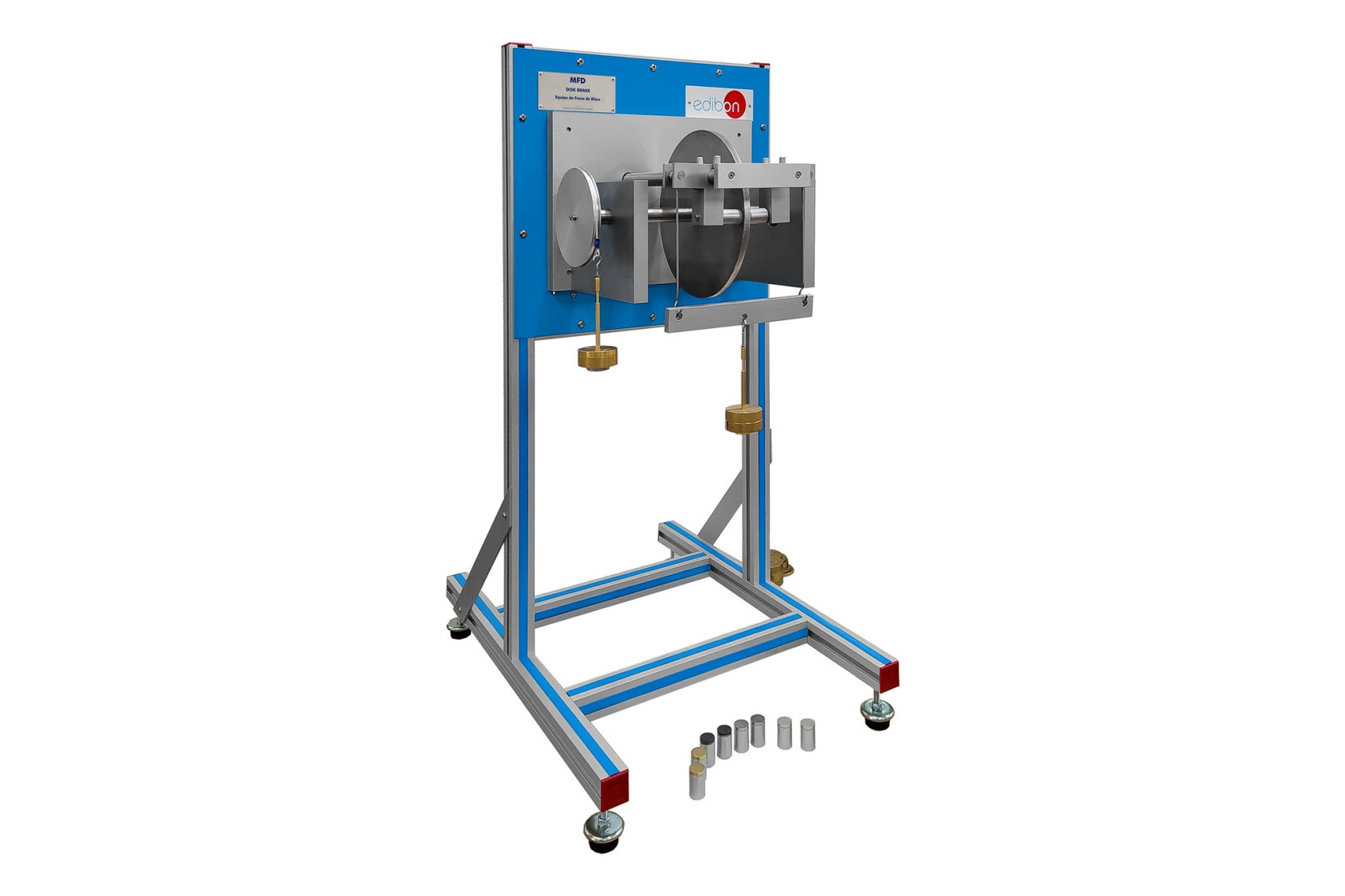

The Disc Brake Unit, "MFD", has been designed by EDIBON to carry out experiments to investigate the relationship between the normal force acting on the brake pads, the effective radius of the brake pads and the braking torque.

The brake pads are located on bell crank levers to which the load hangers may be attached. A load beam is supplied for use when carrying out experiments with two brake pads.

The support shafts are drilled and pins provided so that the bell crank levers can be located in different radial positions.

Different brake pads materials can be tested.

The braking torque can be determined by attaching masses or weights to a cord wrapped round the pulley on the disc shaft.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Normal force acting on the brake pads.
  2. Friction and material suitability of the brake pads.
  3. Determination of the effective radius of the brake pads.
  4. Determination of the braking torque.
