MCF Peralatan Sabuk Gesek

7.1.5.- TRIBOLOGY (FRICTION, WEAR, LUBRICATION) 14.1.5.- TRIBOLOGY (FRICTION, WEAR, LUBRICATION)

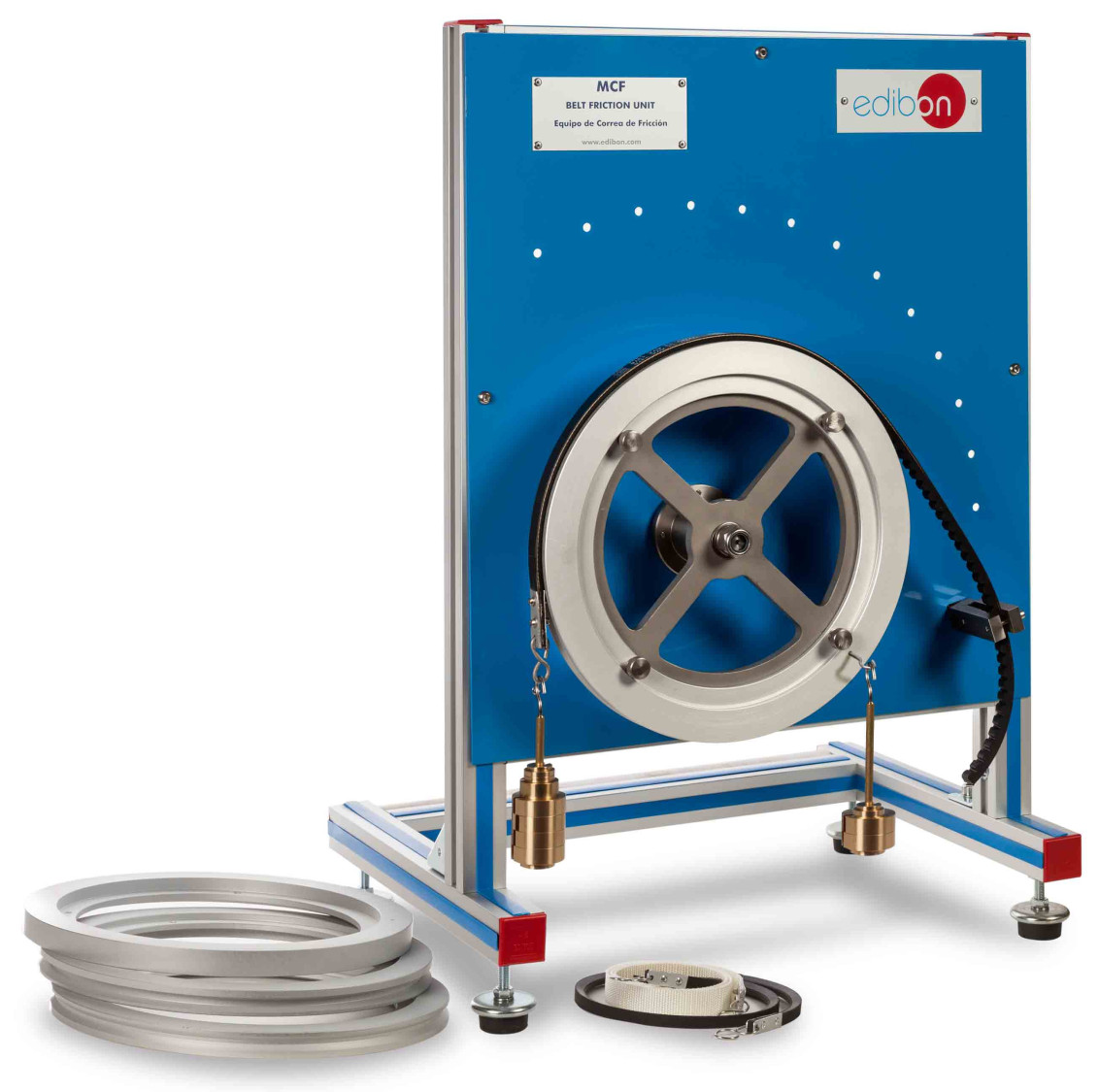

BELT FRICTION UNIT - MCF

SISTEM INOVATIF

The Belt Friction Unit, "MCF", allows us to carry out studies and investigations to compare the driving torque for a given degree of overlap of a flat belt (leather or rope) and a V belt.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

7TV
 Laboratorium Mekanika, Otomotif dan Material untuk Pendidikan Teknik dan Vokasi
7HE
 Laboratorium Mekanika, Otomotif dan Material Pendidikan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

The Belt Friction Unit, "MCF", allows us to carry out studies and investigations to compare the driving torque for a given degree of overlap of a flat belt (leather or rope) and a V belt.

With this unit the relationship between the tensions in the two sides of a belt can be observed, to evaluate the differences between flat (leather or rope) and V belts and to investigate the effect of the angle lap, among others.

Tension is introduced into the belt by hanging masses or weights. The slipping torque is determined by the addition of suitable masses attached to a cord wrapped round the drum.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Investigation of the relationship between the belt tensions and the angle of lap for a flat belt.
  2. Comparison of the driving torque for a given angle of lap.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Evaluation of the differences between flat belts and V-shaped belts.
  2. Evaluation of the differences between V-shaped toothed and flat belts.
  3. Determination of the coefficient of friction between the pulley and belt for the belt sections.
  4. Verification of the belt tension equation.

PERALATAN SIMILAR TERSEDIA

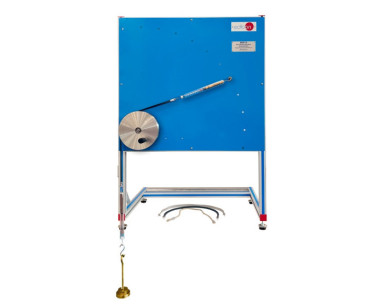

BELT FRICTION UNIT WITH DYNAMOMETERS - MCF/A
  • MCF/A
Available
7.1.5.- TRIBOLOGY (FRICTION, WEAR, LUBRICATION)
MCF/A
Peralatan Sabuk Gesek dengan Dinamometer
The Belt Friction Unit with Dynamometers, "MCF/A", allows studies and investigations to compare the friction coefficient for a given contact angle of a flat belt and a V-belt.With this unit it is possible to observe the relationship between...
Lihat Unit
