MCF/A Peralatan Sabuk Gesek dengan Dinamometer

7.1.5.- TRIBOLOGY (FRICTION, WEAR, LUBRICATION) 14.1.5.- TRIBOLOGY (FRICTION, WEAR, LUBRICATION)
BELT FRICTION UNIT WITH DYNAMOMETERS - MCF/A

SISTEM INOVATIF

The Belt Friction Unit with Dynamometers, "MCF/A", allows studies and investigations to compare the friction coefficient for a given contact angle of a flat belt and a V-belt.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

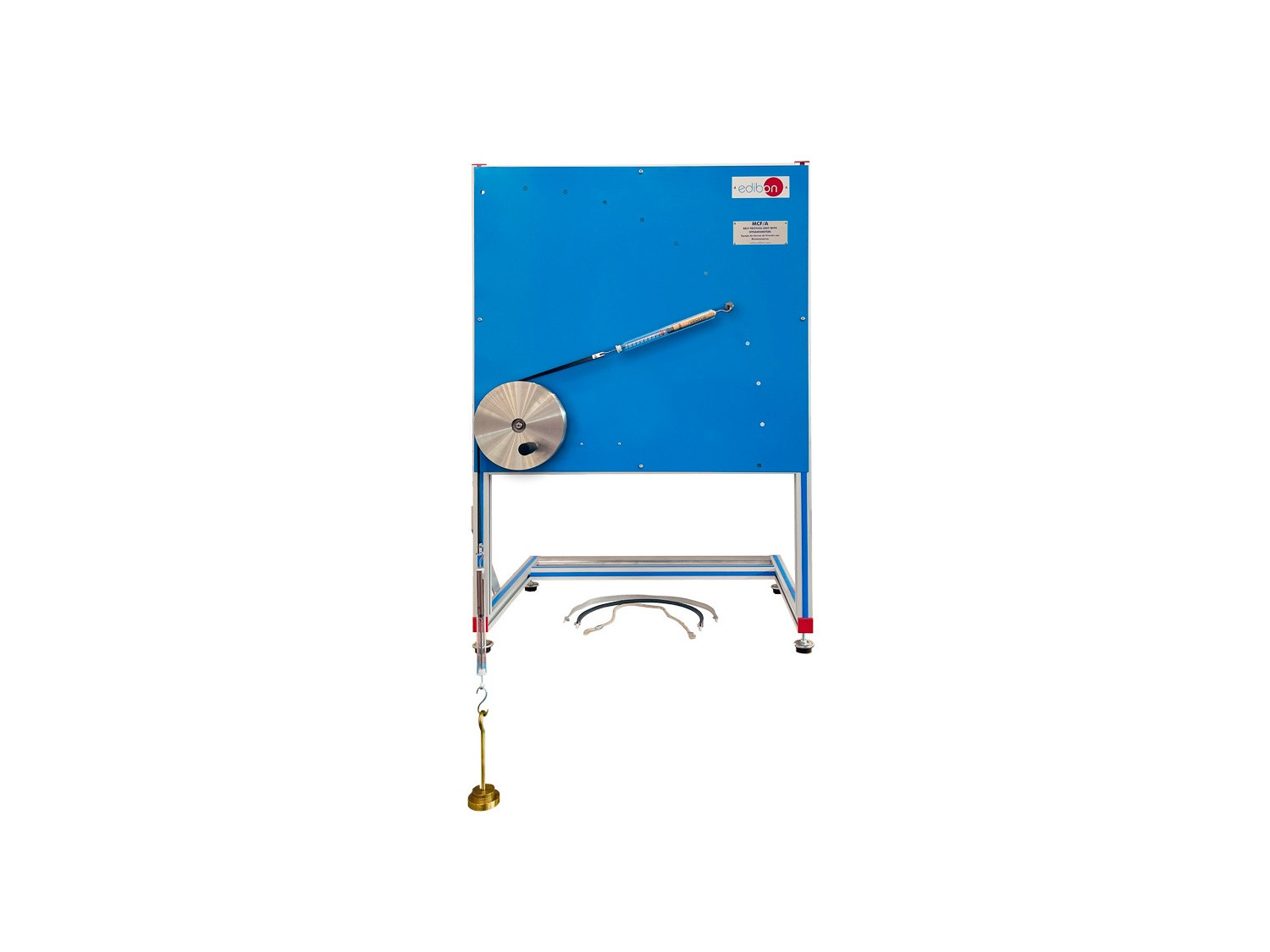

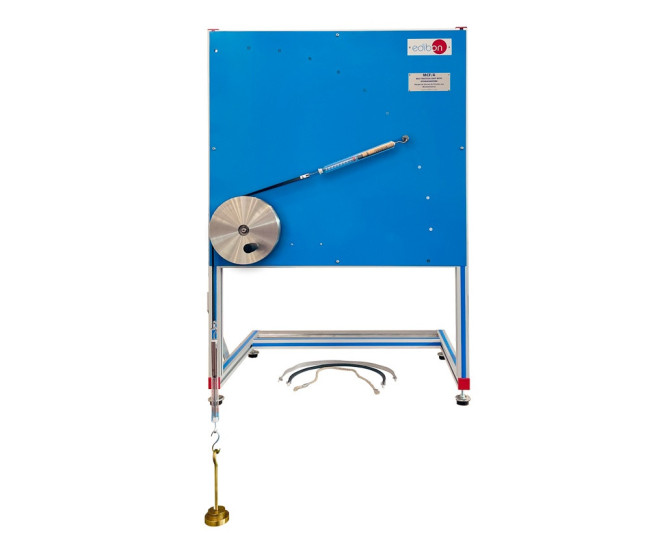

The Belt Friction Unit with Dynamometers, "MCF/A", allows studies and investigations to compare the friction coefficient for a given contact angle of a flat belt and a V-belt.

With this unit it is possible to observe the relationship between tensions on both sides of a belt, to evaluate the differences between flat belts (different material) and V-belts and to investigate, among other things, the effect of the contact angle.

The pulley has different grooves to accommodate different belts and is balanced and mounted on bearings to reduce friction losses.

The pulley is driven by a crank and two dynamometers record the tensile forces at each end of the belt. Belt tension can be adjusted at one end of the belt.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Evaluation of the differences between a flat belt and a V-belt.
  2. Investigation of the relationship between the belt tension and the angle of lap for a flat belt.
  3. Determination of the coefficient of friction between the pulley and the belt for the belt sections.
  4. Verification of the belt tension equation.
  5. Analysis of the effect of a badly fitted V-belt.
