The Electrical Connection of Refrigerant Compressors Unit, "TECR", includes the electrical elements required for the start and operation of a refrigerant compressor and the necessary safety elements, arranged on a panel in a clear and visible way, with connections distributed in such a way that they can be easily identified.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Baca lebih lanjut

GAMBARAN UMUM

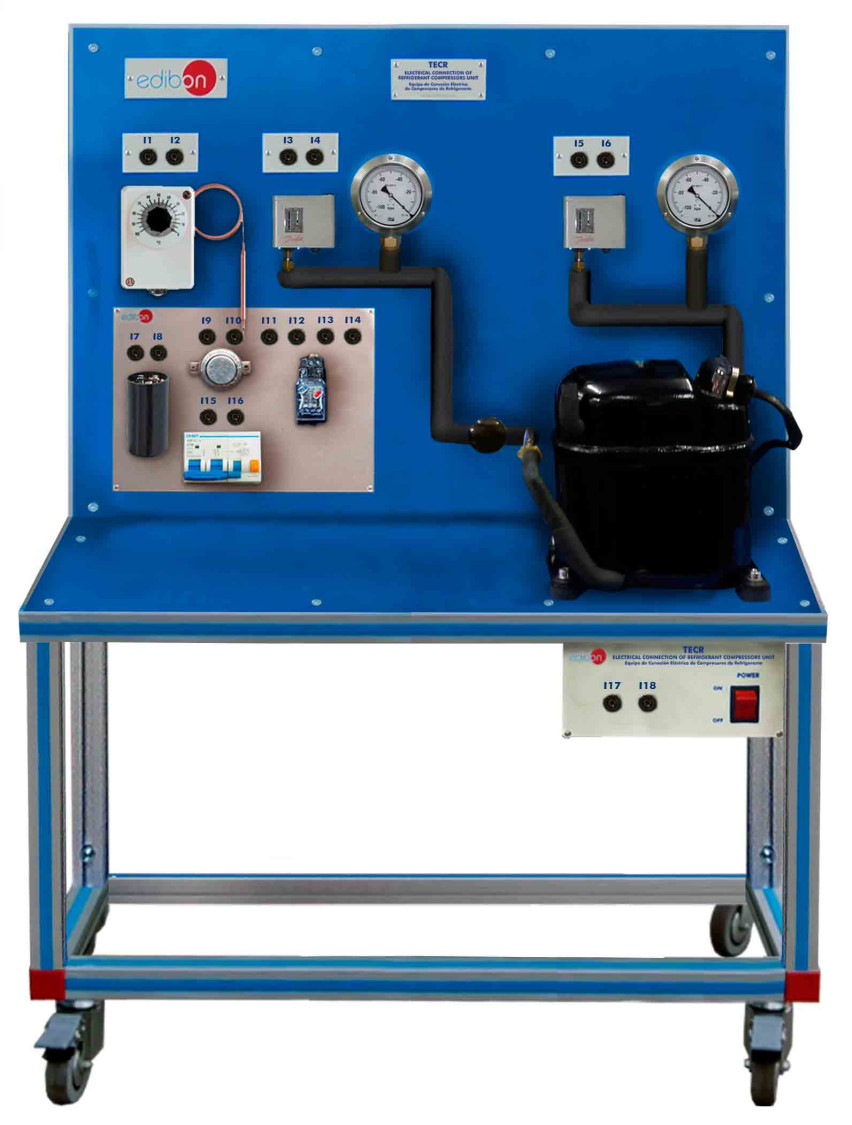

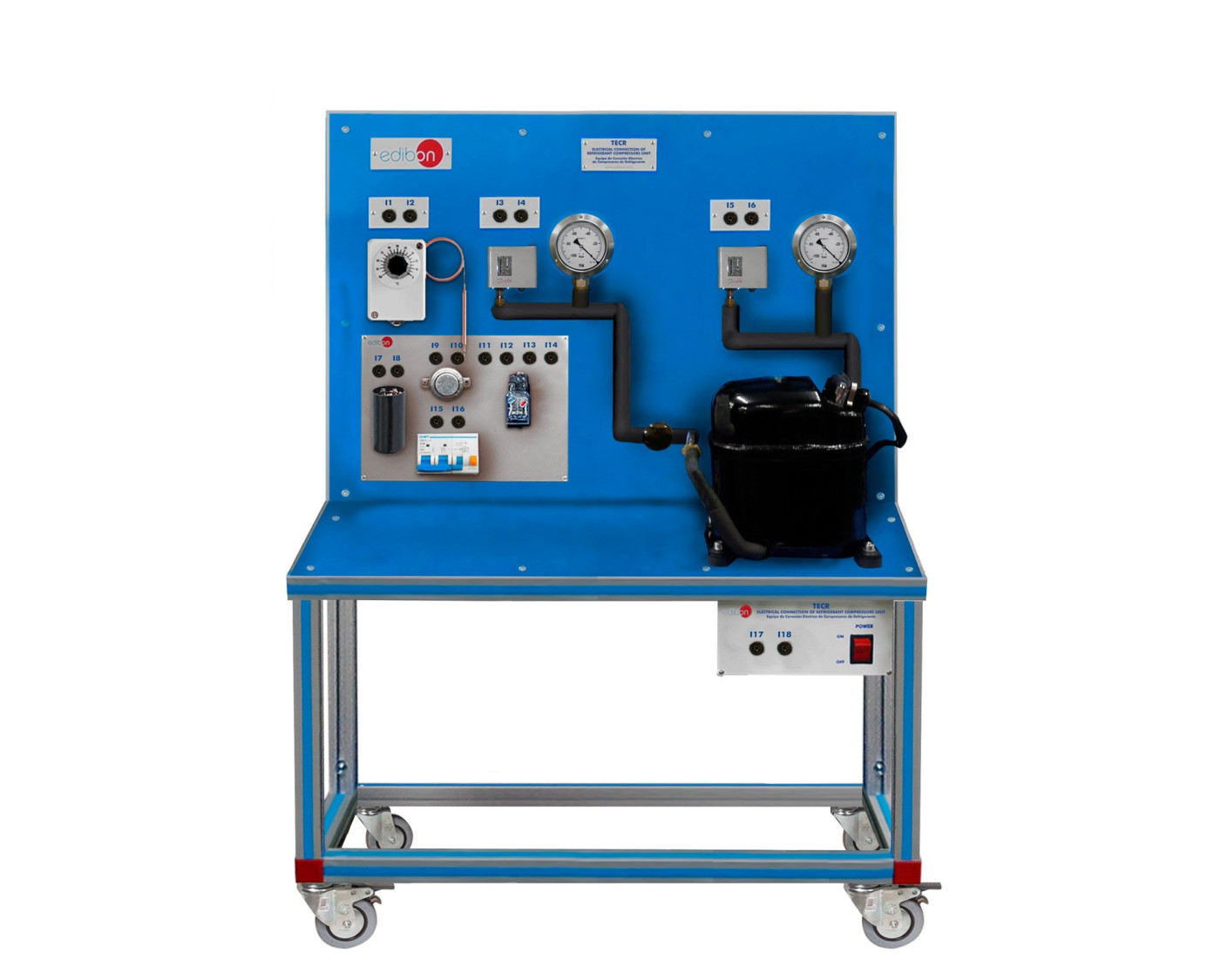

The Electrical Connection of Refrigerant Compressors Unit, "TECR", includes the electrical elements required for the start and operation of a refrigerant compressor and the necessary safety elements, arranged on a panel in a clear and visible way, with connections distributed in such a way that they can be easily identified.
