MCPG Peralatan Silinder Berdinding Tebal

7.1.6.- MEKANIKA STRUKTURAL 14.1.5.- TRIBOLOGY (FRICTION, WEAR, LUBRICATION)

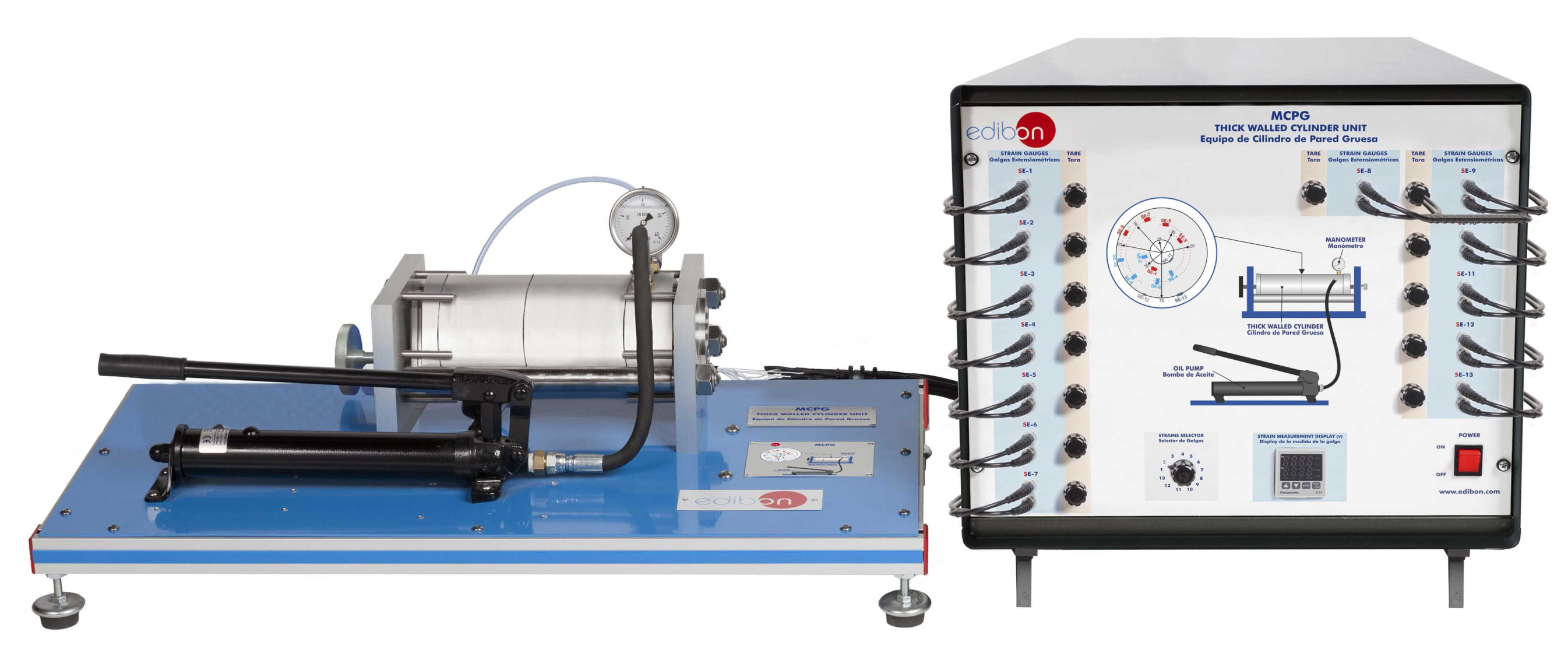

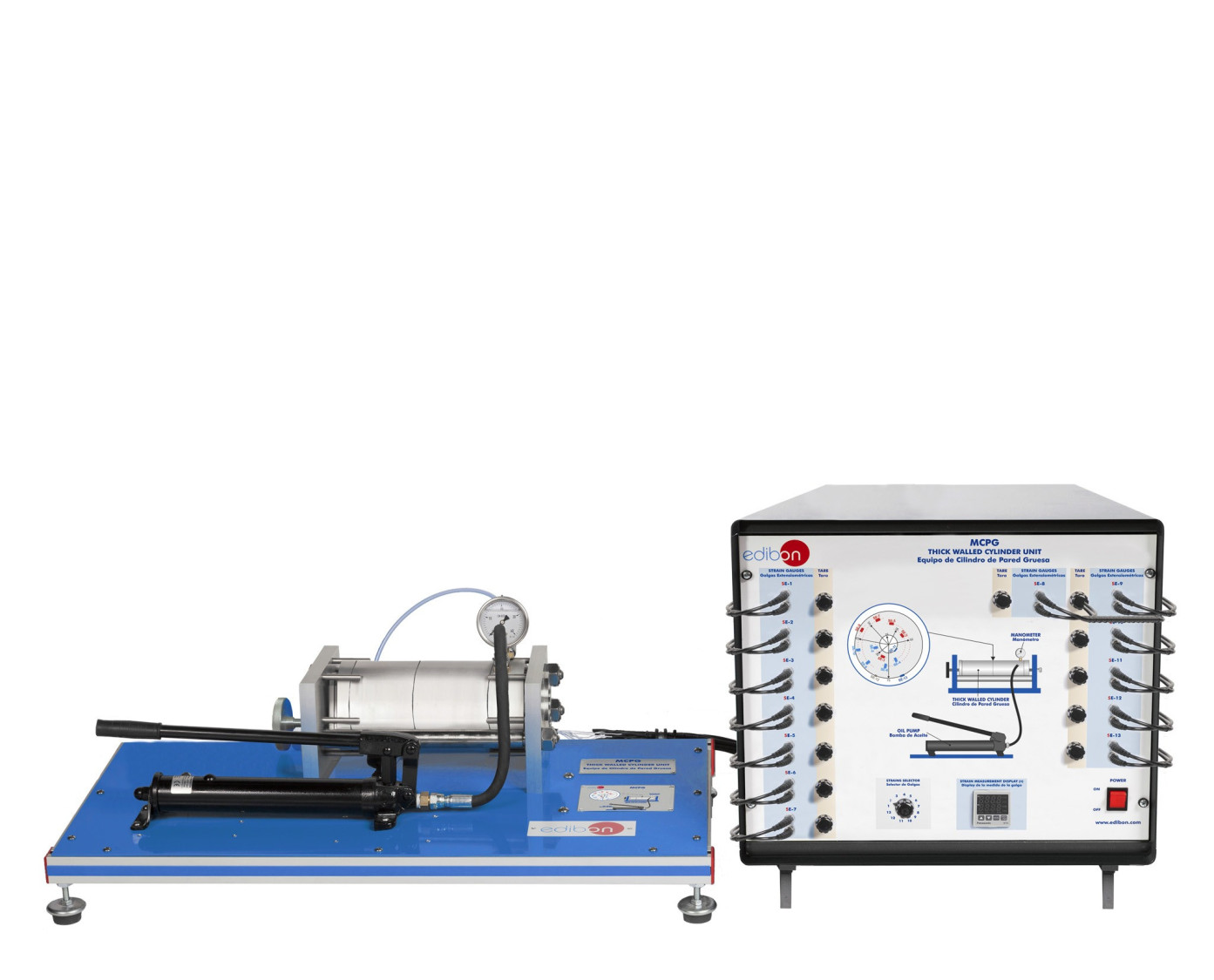

THICK WALLED CYLINDER UNIT - MCPG

SISTEM INOVATIF

The Thick-Walled Cylinder Unit, "MCPG", has been designed to study stresses and strains in a thick-walled cylinder under internal pressures.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

In the Thick-Walled Cylinder Unit, "MCPG", the stresses are determined through the measurement of the strains produced on the surface. These strains are measured by strain gauges.

The thick-walled vessel consists of an aluminum cylinder of length 300 mm, whose walls have a thickness of 50 mm. It is divided into two parts (closed on both sides) and the strain gauges are arranged in different radii in the center, in an eccentric slot.

In addition, there are also gauges on the inner and outer walls of the cylinder, allowing the measurement of strains in radial, tangential and axial direction.

Pressure inside is generated with oil by means of a hand-operated hydraulic pump and measured by a manometer located in the cylinder.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Study of stress in a thick-walled vessel under internal pressure.
  2. Measurement of strains with strain gauges.
  3. Study of stress distribution in three axes. Mohr’s circle.
  4. Determination of normal stress distribution in radial, tangential and axial direction.
  5. Analysis of the existing relationships between strains, pressure and stresses generated.

PERALATAN SIMILAR TERSEDIA

THIN CYLINDER UNIT - MCD
  • MCD
Available
7.1.5.- TRIBOLOGY (FRICTION, WEAR, LUBRICATION)
MCD
Peralatan Silinder Tipis
The Thin Cylinder Unit, "MCD", has been developed to enable the student to verify various analytical formulae with actual measured results. Strain gauges mounted in various positions and orientations on the cylinder provide an opportunity for...
Lihat Unit
