TARB Peralatan Sirkulasi Ulang Udara pada AC

9.2.- PEMANASAN, VENTILASI, AC DAN AIR PANAS
RECIRCULATING AIR CONDITIONING UNIT - TARB

SISTEM INOVATIF

The objective of the Recirculating Air Conditioning Unit, "TARB", is to introduce the student into the complex world of air conditioning systems, as well as studying and determining the optimal parameters for the operation of the unit in function of the environmental requirements (humidity, heat, temperature and cooling, etc.).

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Baca lebih lanjut
Setting up at Université Euromed de Fès
Setting up at Université Euromed de Fès
We are very pleased that the number of universities provided with EDIBON equipment is increasing exponentially worldwide. On this occasion, our engineers have moved to Université Euromed de Fès, Morocco, to install the Recirculating Air Conditioning Unit. The #TARB allows the engineering students...
Baca lebih lanjut

GAMBARAN UMUM

The Recirculating Air Conditioning Unit, "TARB", has been designed to study both the changes in the air conditions and the refrigeration circuit. For that purpose, temperature sensors, pressure meters and flow meters have been strategically located, allowing to study the refrigeration cycle and to quantify the capacity of the evaporation and condensation unit.

It can work with fresh air and recycled air.

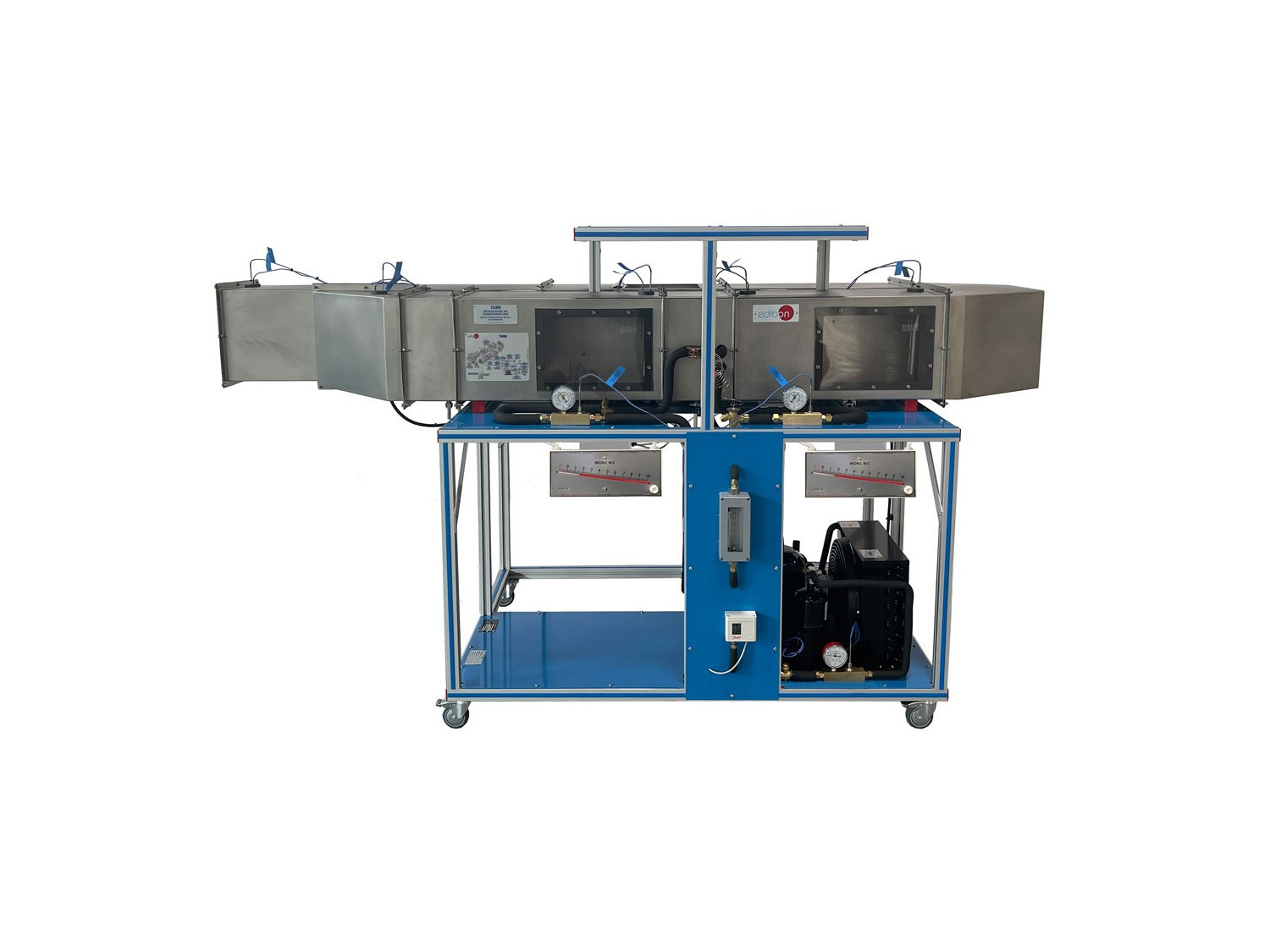

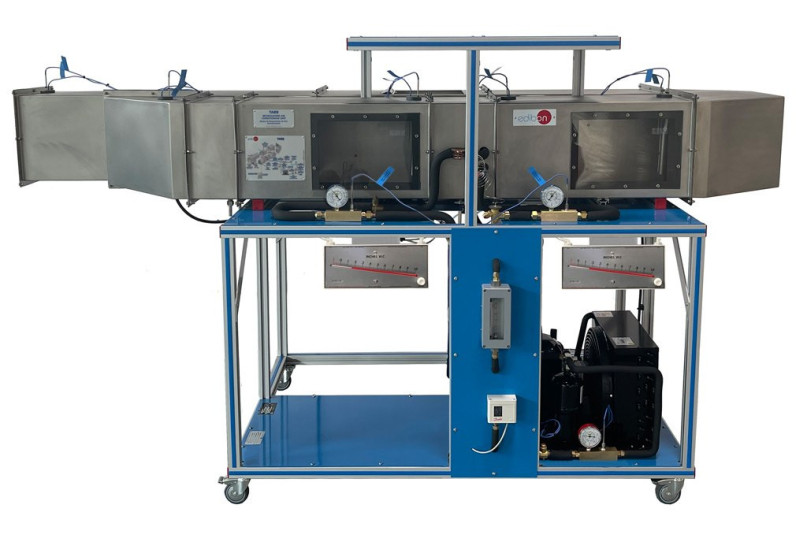

The unit basically consists of a testing tunnel made of stainless steel, which has four windows (sight glasses). Inside there is an axial fan, two heating elements, one at the inlet of the evaporation unit of 2000 W and other at the outlet of 1000 W. There are also five hygrometers strategically located along the tunnel. These hygrometers consist of two temperature sensors (wet and dry bulb).

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Demonstration of the processes of air heating, cooling, humidification, de-humidification, recirculating and mixing.
  2. Efficiency determination of the preheating element.
  3. Preheating effect in an air conditioning installation.
  4. Dehumidification process study.
  5. Mass balance in the evaporator.
  6. Energy balance in the evaporator.
  7. Re-heat effect.
  8. Experimental determination of the air specific heating capacity.
  9. Study of de-humidification in a recycling process.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Psychrometric chart.
  2. Usage of Psychrometric chart.
  3. Determination of the air flow.
  4. Example of the air properties determination.
  5. Properties of the refrigerant R-513a.
  6. Enthalpy-Pressure diagram for the refrigerant R-513a.
  7. Demonstration of recirculating and the adiabatic mixing of two air streams at different states.
  8. Obtaining of the steam generator efficiency curve.
  9. Energy balance in the steam generator.
