MPCO Peralatan Studi Distribusi Tekanan pada Bantalan

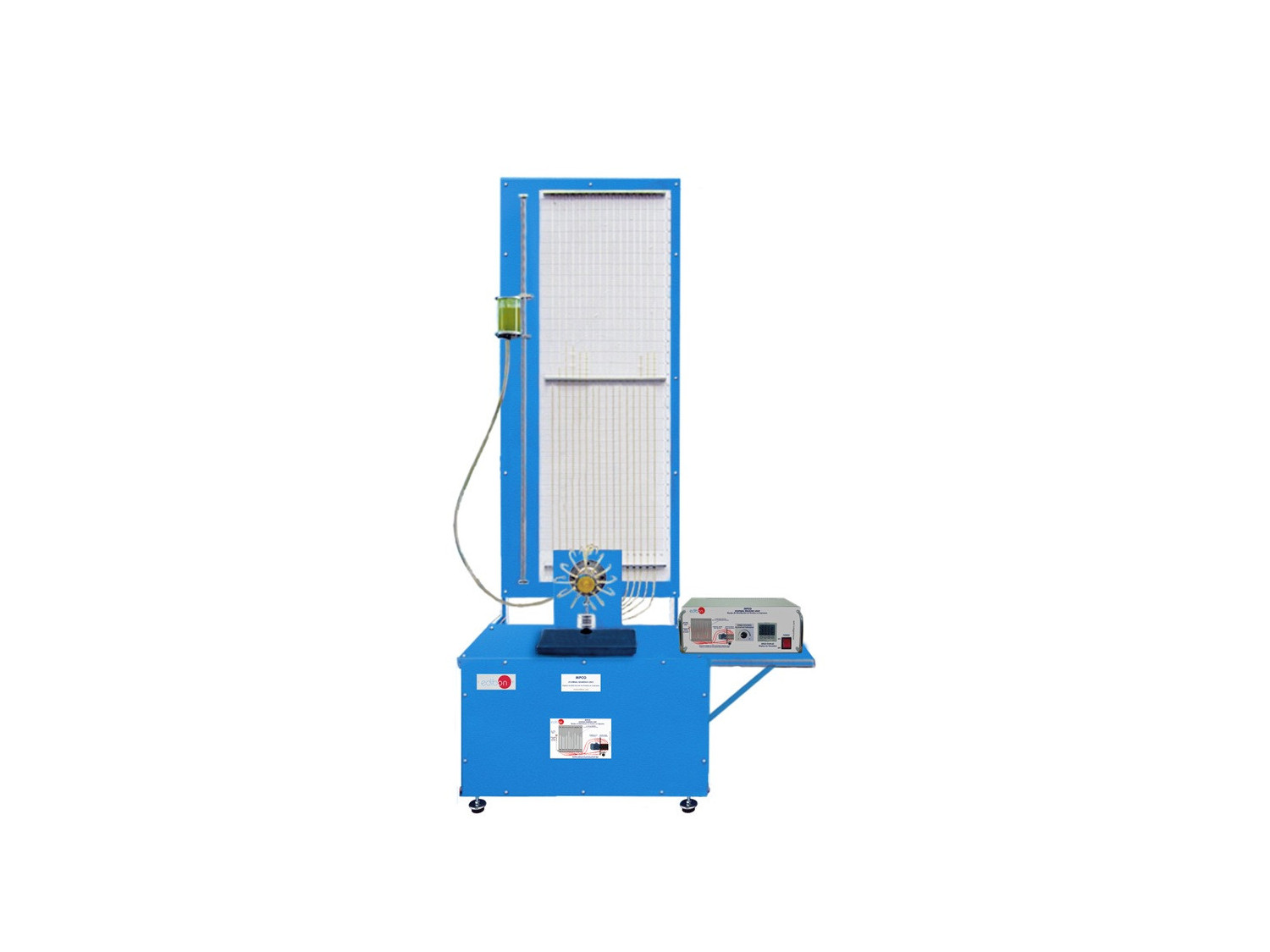

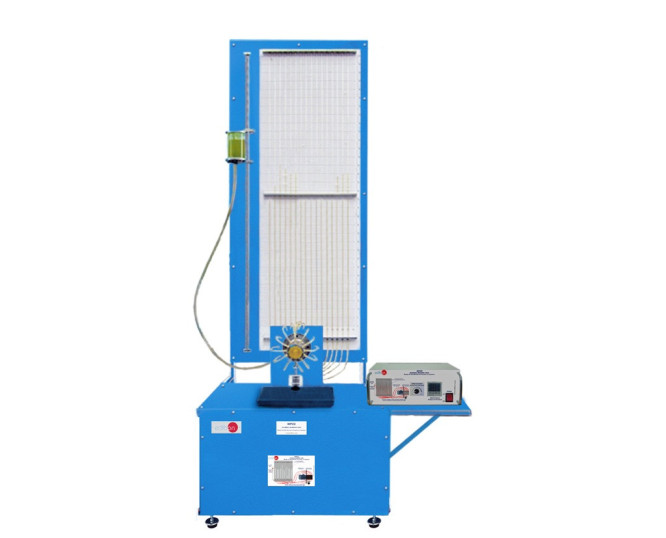

The Journal Bearing Unit, "MPCO", allows to study the pressure distribution in sliding bearings. It illustrates the principle of hydrodynamic lubrication.

The unit is mounted on a metallic structure assembled on wheels for its mobility.

The sliding bearing consists of a journal bearing driven by an electrical motor and a freely moving bearing housing. The bearing can be loaded with different interchangeable weights. The journal bearing shifting and the oil film can be seen through a transparent bearing housing.

The distribution of pressure and the carrying capacity can be determined on a sliding bearing model at different bearing loads and speeds.

The radial and the axial distribution of pressure of the oil film in the sliding bearing can be recorded in the bearing gap at 12 equi-spaced pressure tappings around its perimeter and four along the length. All pressure tappings are connected by flexible plastic tubes to the rear multi-manometer panel with 16 tube manometers mounted on board, to show the pressure of oil at all 16 points at all times.

The loads are applied using a hanger and a weights set. The motor speed is controlled from an electronic console.

The unit includes an adjustable methacrylate tank to fill it with oil.
