EPICYCLIC GEAR UNIT (1 ELEMENT) - MTE1

SISTEM INOVATIF

The Epicyclic Gear Unit (1 element), "MTE1", designed by EDIBON, includes a set of epicyclic gears that allows the student to study different reduction ratios (direct drive and overdrive), as well as torque conversion.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

7TV
 Laboratorium Mekanika, Otomotif dan Material untuk Pendidikan Teknik dan Vokasi
7HE
 Laboratorium Mekanika, Otomotif dan Material Pendidikan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut

GAMBARAN UMUM

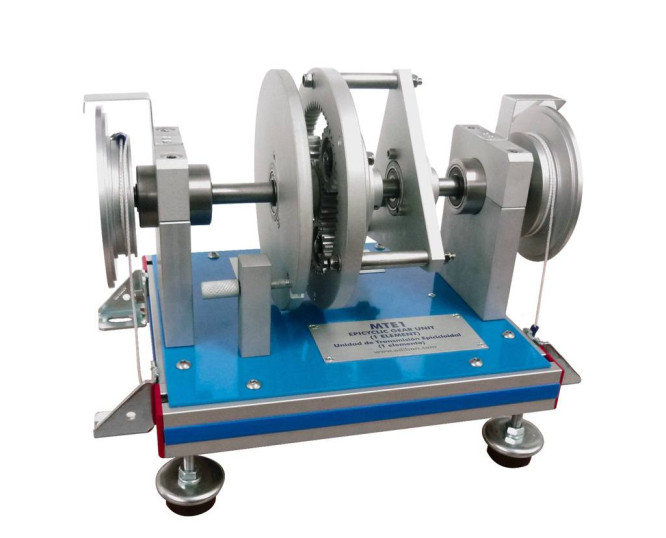

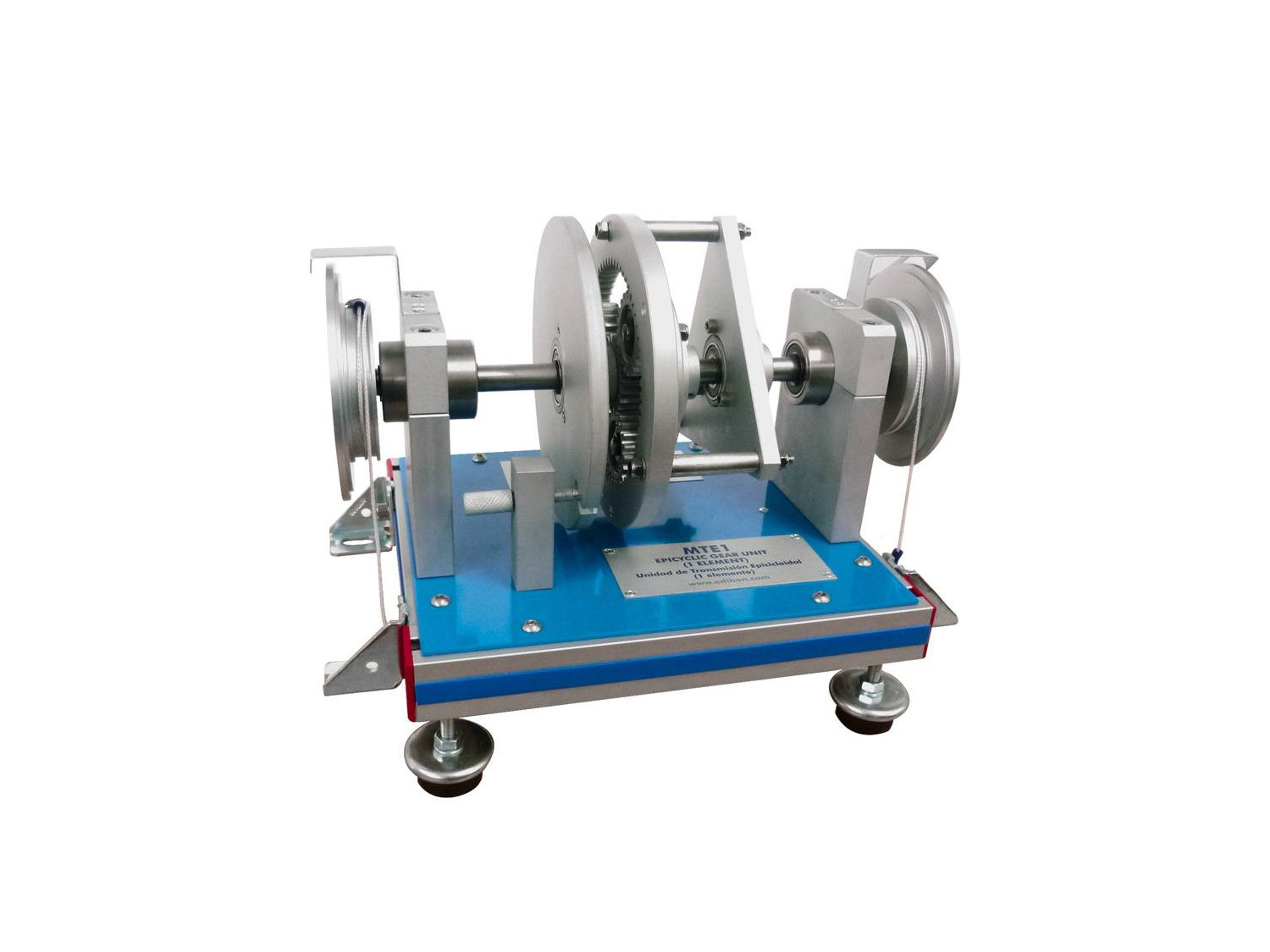

The Epicyclic Gear Unit (1 element), "MTE1", includes a set of epicyclic gears that allows the student to study different reduction ratios (direct drive and overdrive), as well as torque conversion.

A simple epicyclic gears set consists of:

  • Sun gear that rotates together with the input shaft.
  • Planet gears whose carrier can rotate.
  • Ring gear that rotates together with the output shaft.

One of the three elements will provide motion to the system, it will be called driving element. Other element will be kept static, by braking it, and the third element will act as driven element.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. To demonstrate the operation of an epicyclic gears system.
  2. To determine and verify the speed and torque ratio between the input and output shafts.
  3. To study the mechanical advantage and efficiency of an epicyclic system.
  4. To determine the angular displacement at the input and output and to compare with the ratio calculated.
  5. To determine the minimum effort required at the input to raise a load at the output.
  6. Selection of gears:
  • Overdrive.
  • Direct drive.
  1. Power transmission: checking the relation between input torque and output torque.

PERALATAN SIMILAR TERSEDIA

BORG-WARNER AUTOMATIC TRANSMISSION - MBW
  • MBW
Available
7.2.2.- GEARS, DIFERENSIAL, DAN TRANSMISI
MBW
Transmisi Otomatis BorgWarner
The main distinguishing element of automatic transmissions is its group of epicyclic gearing.The gear assembly of the "MBW" unit consists of:Two sun gears, one to transfer forward gear ratios and one reverse gear.Two sets of planet gears: long and...
Lihat Unit
EPICYCLIC GEAR UNIT (2 ELEMENTS) - MTE2
  • MTE2
Available
7.2.2.- GEARS, DIFERENSIAL, DAN TRANSMISI
MTE2
Peralatan Transmisi Epikloidal (2 Elemen)
The Epicyclic Gear Unit (2 elements), "MTE2", consists of two coupled epicyclic gears sets. It will allow the students to carry out experiments of different gear ratios, as well as the torque conversions.The epicyclic gears installed in the...
Lihat Unit
EPICYCLIC GEAR UNIT (3 ELEMENTS) - MTE3
  • MTE3
Available
7.2.2.- GEARS, DIFERENSIAL, DAN TRANSMISI
MTE3
Peralatan Transmisi Epikloidal (3 Elemen)
The Epicyclic Gear Unit (3 elements), "MTE3", designed by EDIBON, consists of three coupled epicyclic gears sets. It will allow the students to carry out experiments of different gear ratios, as well as the torque conversions.The epicyclic gears...
Lihat Unit
