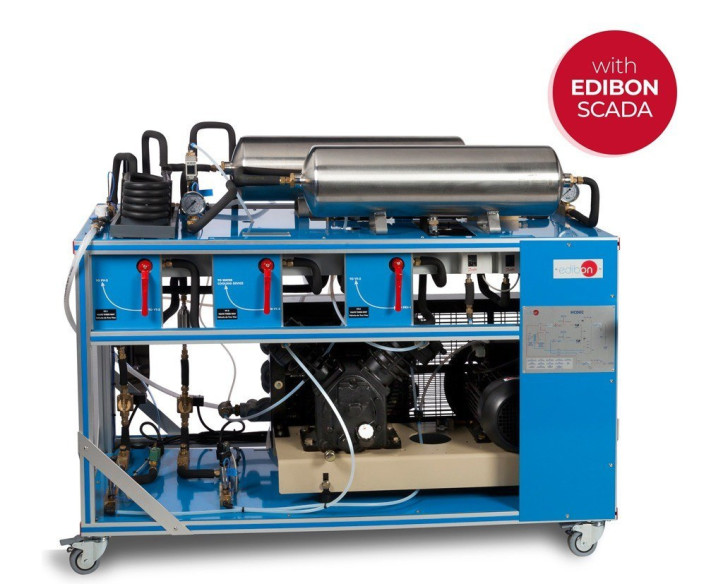

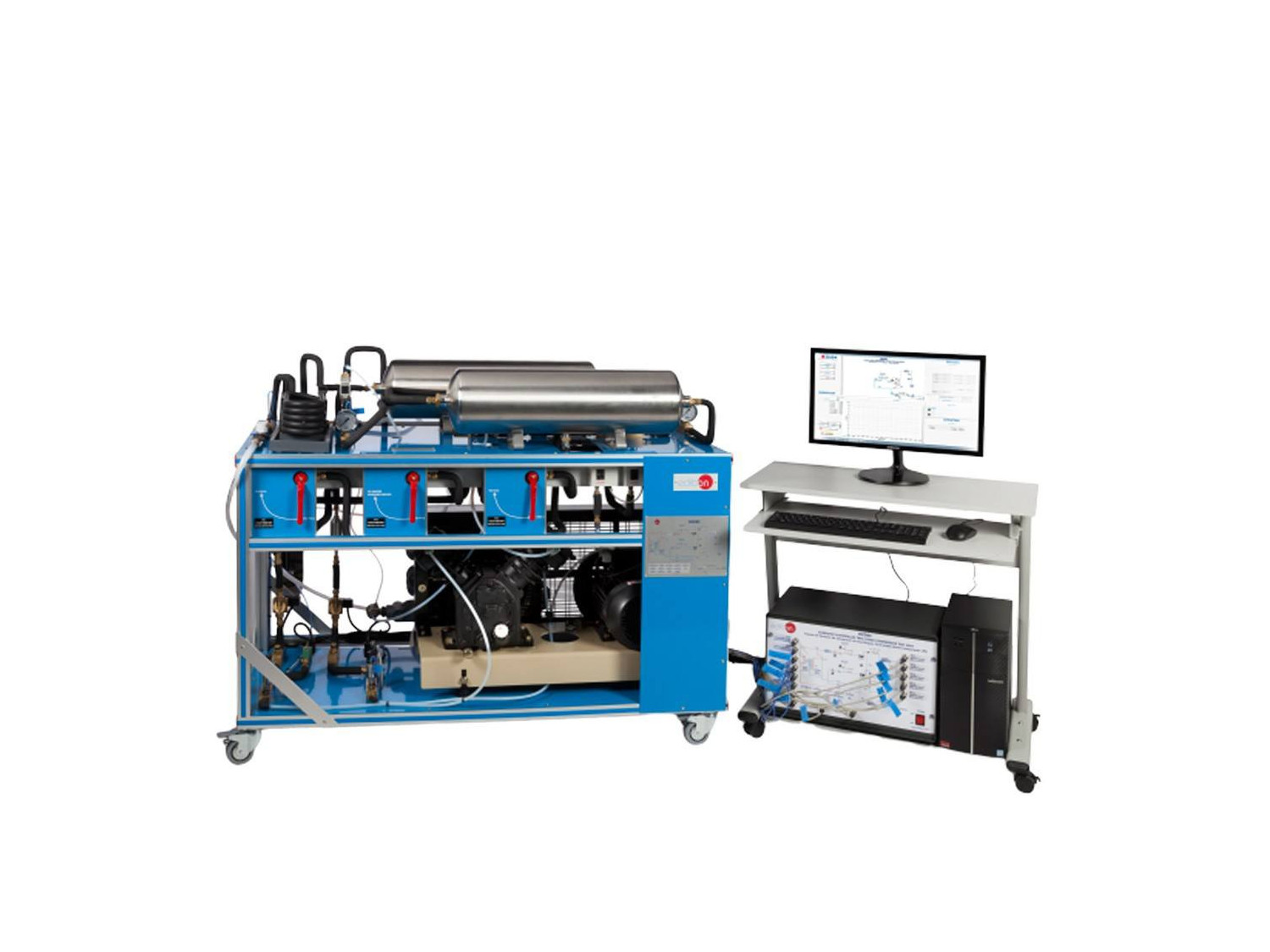

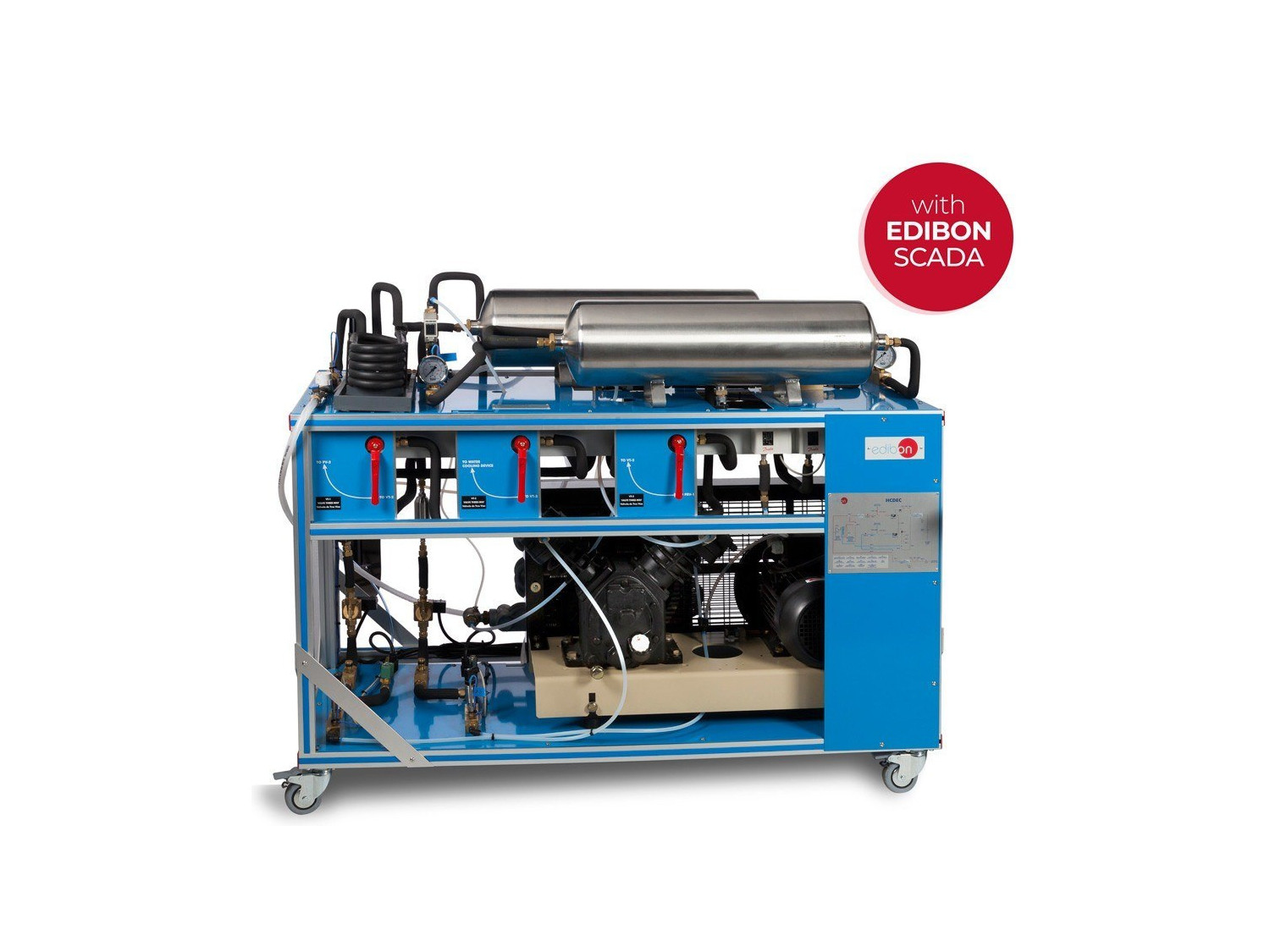

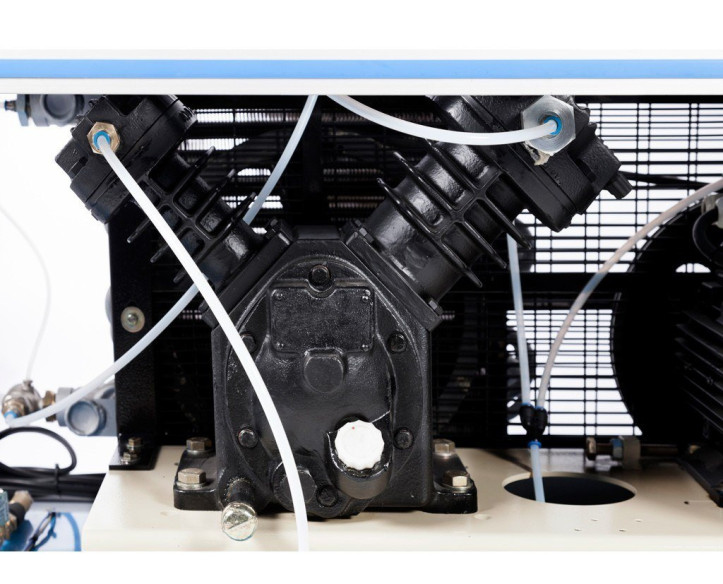

Complete HCDEC unit

COMPUTER CONTROLLED TWO-STAGE COMPRESSOR TEST UNIT - HCDEC

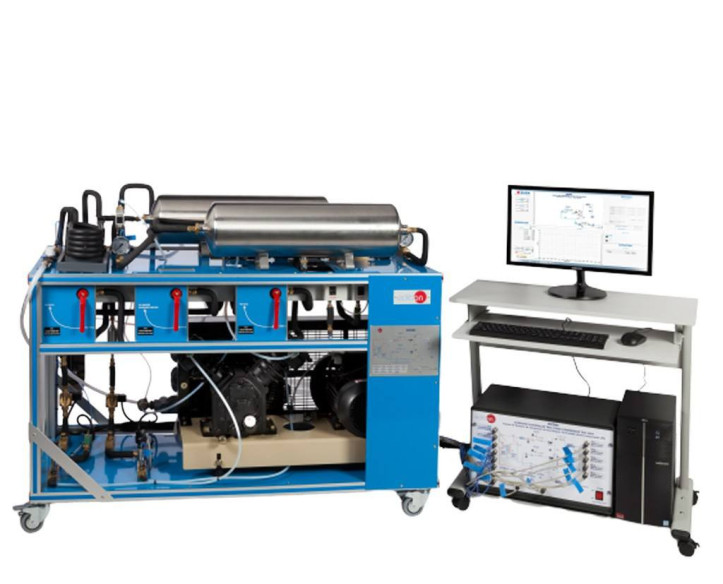

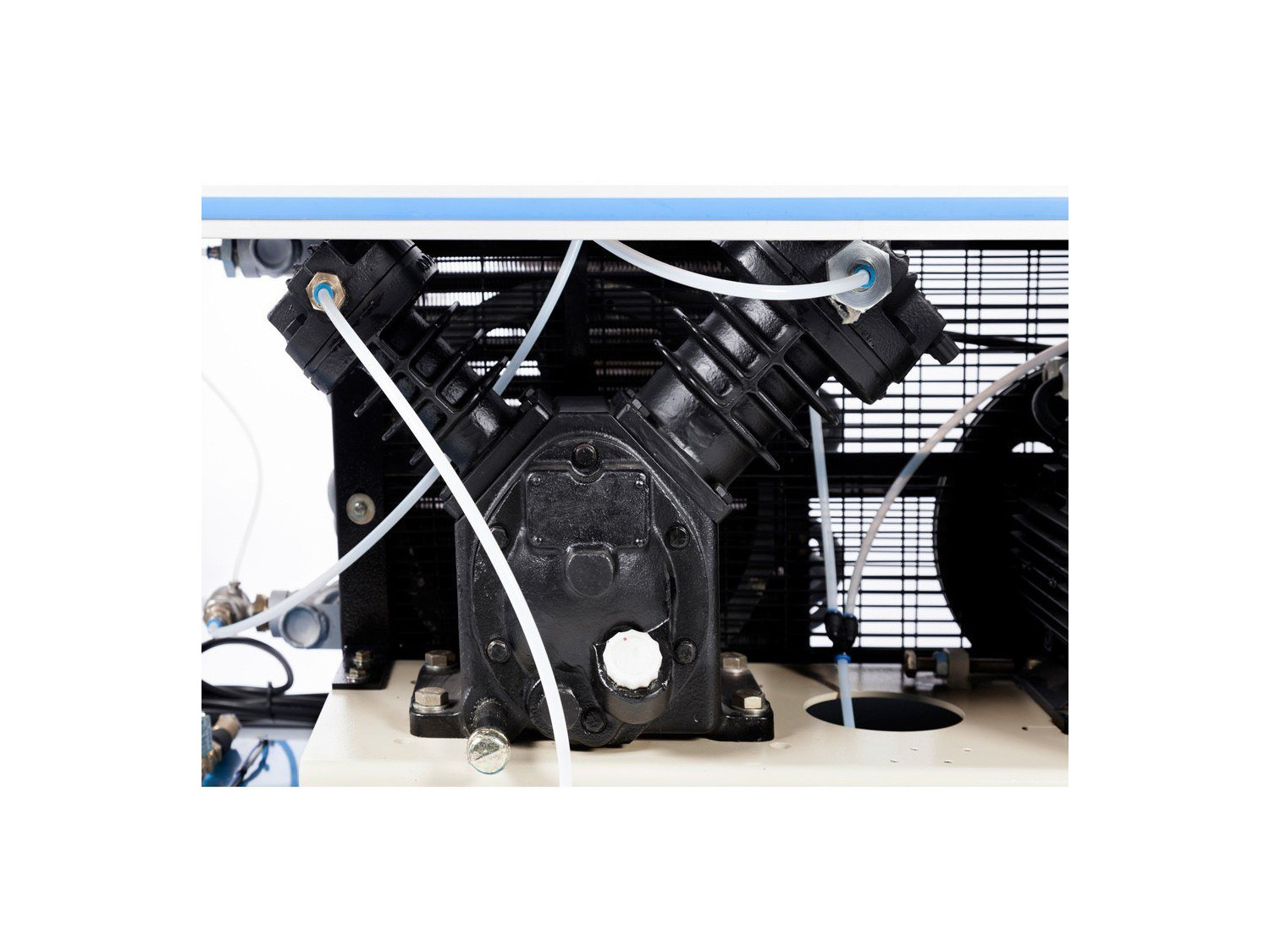

Unit details

COMPUTER CONTROLLED TWO-STAGE COMPRESSOR TEST UNIT - HCDEC

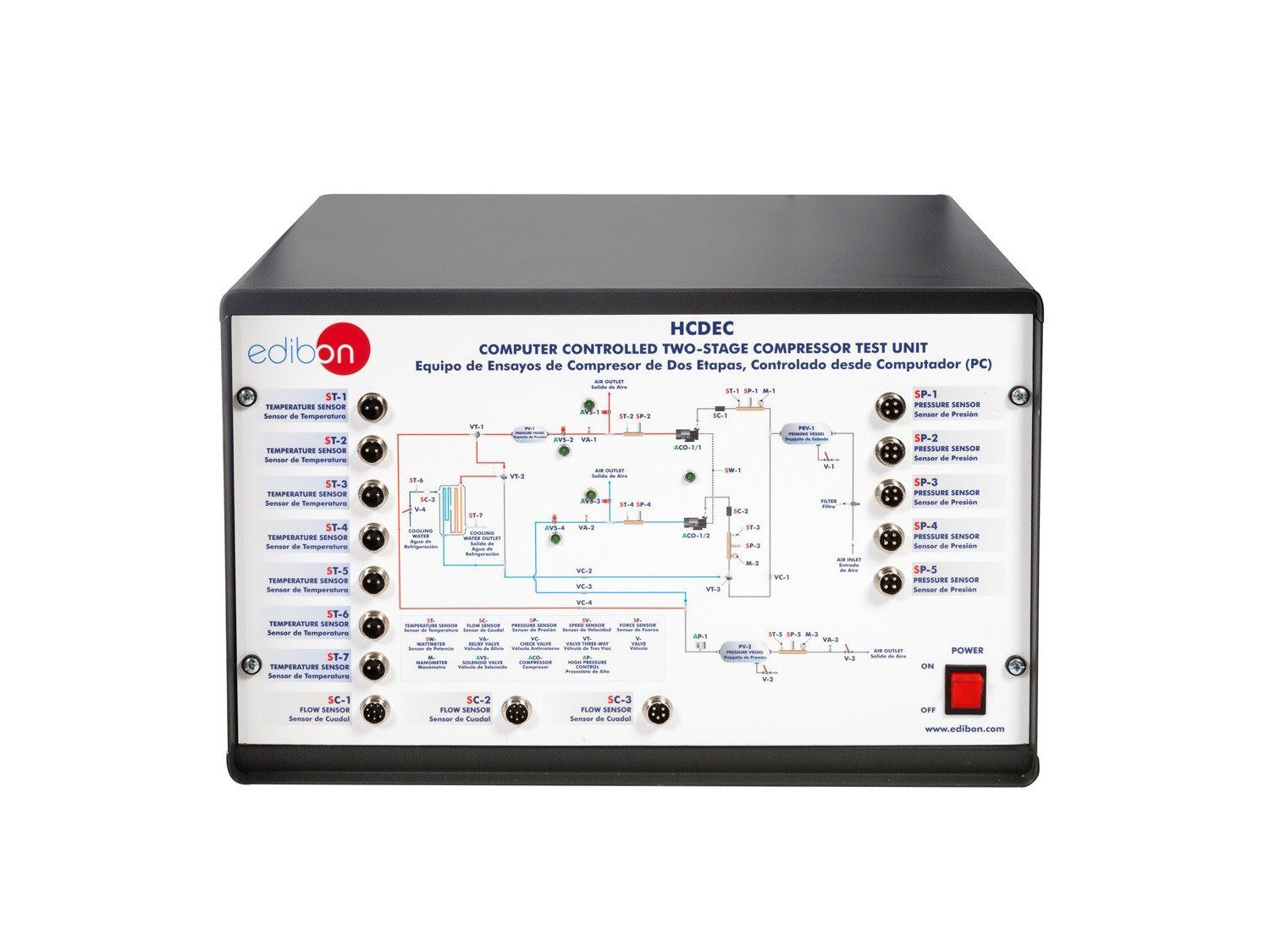

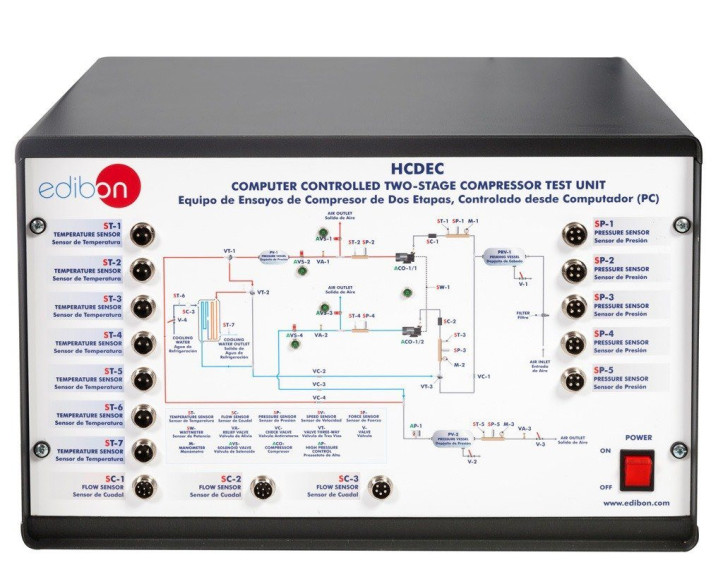

HCDEC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED TWO-STAGE COMPRESSOR TEST UNIT - HCDEC

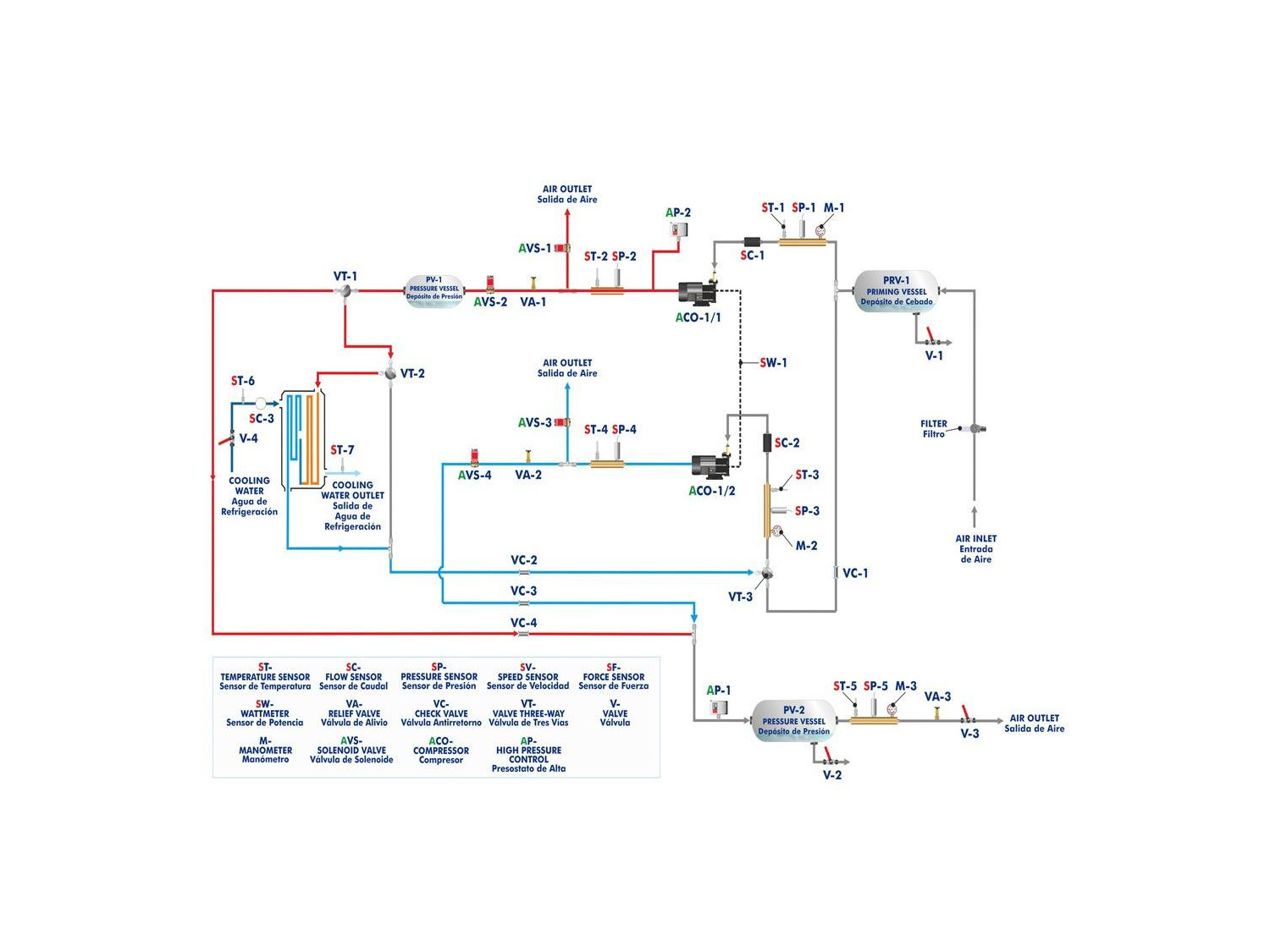

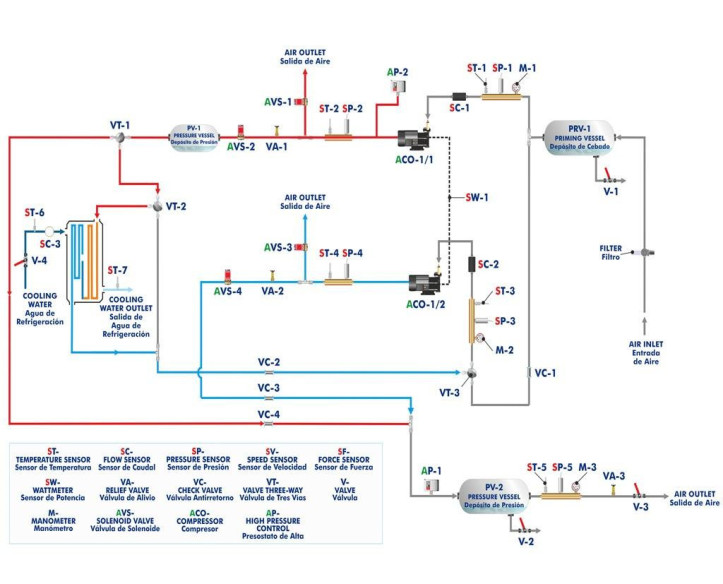

Process diagram and unit elements allocation

COMPUTER CONTROLLED TWO-STAGE COMPRESSOR TEST UNIT - HCDEC

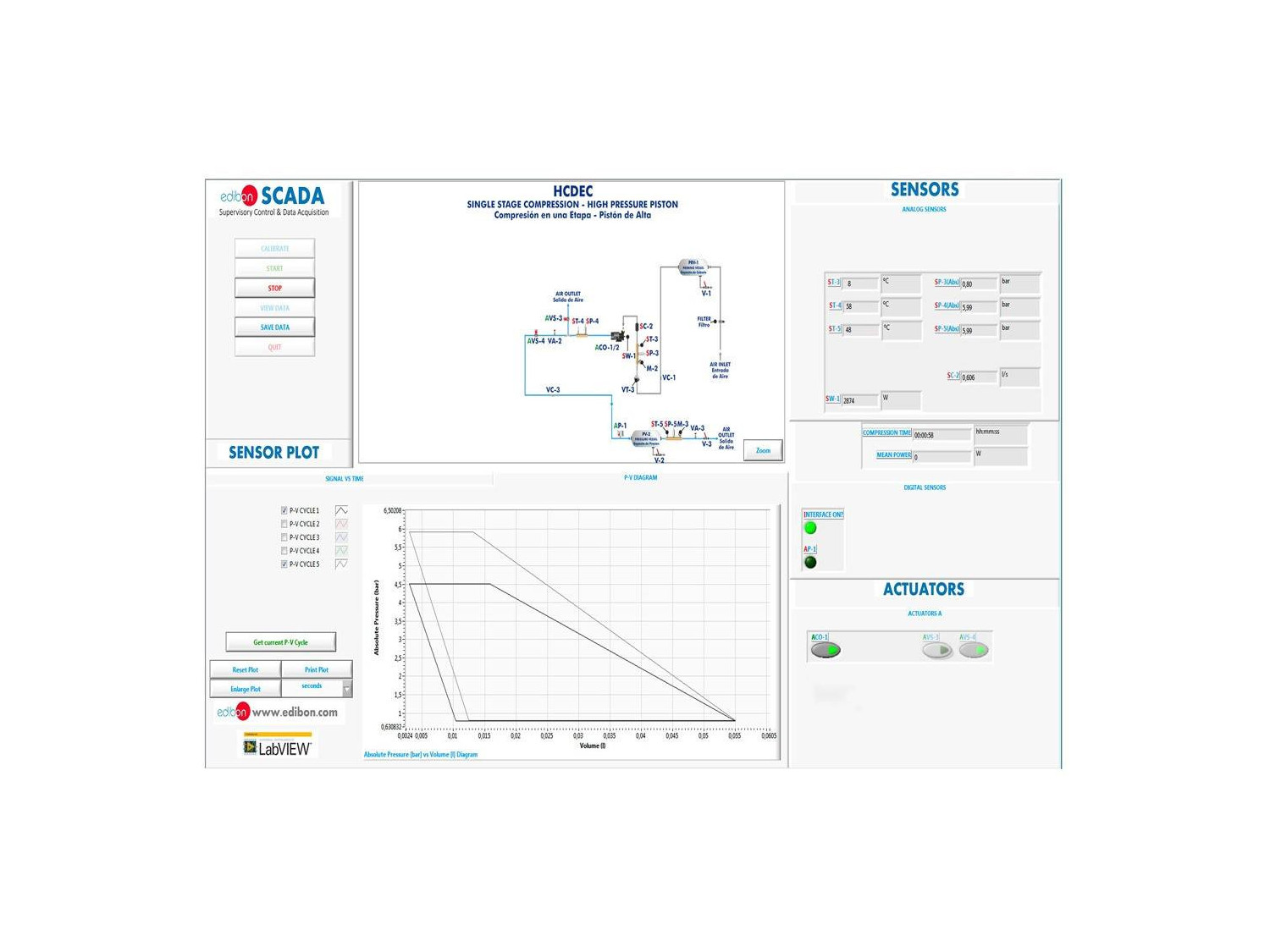

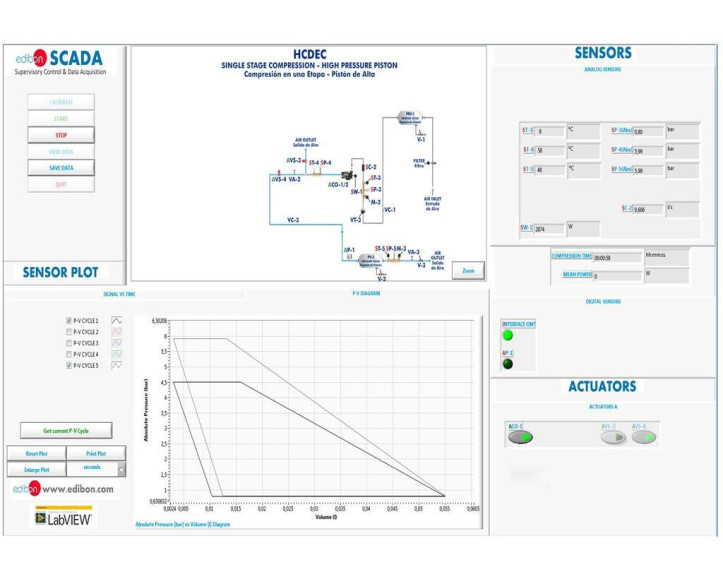

HCDEC/SOF. HCDEC Software. Main Screen

COMPUTER CONTROLLED TWO-STAGE COMPRESSOR TEST UNIT - HCDEC
COMPUTER CONTROLLED TWO-STAGE COMPRESSOR TEST UNIT - HCDEC
COMPUTER CONTROLLED TWO-STAGE COMPRESSOR TEST UNIT - HCDEC
COMPUTER CONTROLLED TWO-STAGE COMPRESSOR TEST UNIT - HCDEC
COMPUTER CONTROLLED TWO-STAGE COMPRESSOR TEST UNIT - HCDEC
COMPUTER CONTROLLED TWO-STAGE COMPRESSOR TEST UNIT - HCDEC

SISTEM INOVATIF

The Computer Controlled Two-Stage Compressor Test Unit, "HCDEC", is a unit that allows for studying single-stage compression and two-stage compression (compression work, efficiency, P-V curves and thermodynamic properties among others). Besides, it allows for studying compression with and without refrigeration in the intermediate stage.
