THAR22B Pompa Panas + AC + Pendinginan dengan 2 kondensor dan 2 evaporator (Air/UDara)

9.4.- PENDINGINAN
HEAT PUMP + AIR CONDITIONING + REFRIGERATION WITH 2 CONDENSERS AND 2 EVAPORATORS (WATER/AIR) - THAR22B

SISTEM INOVATIF

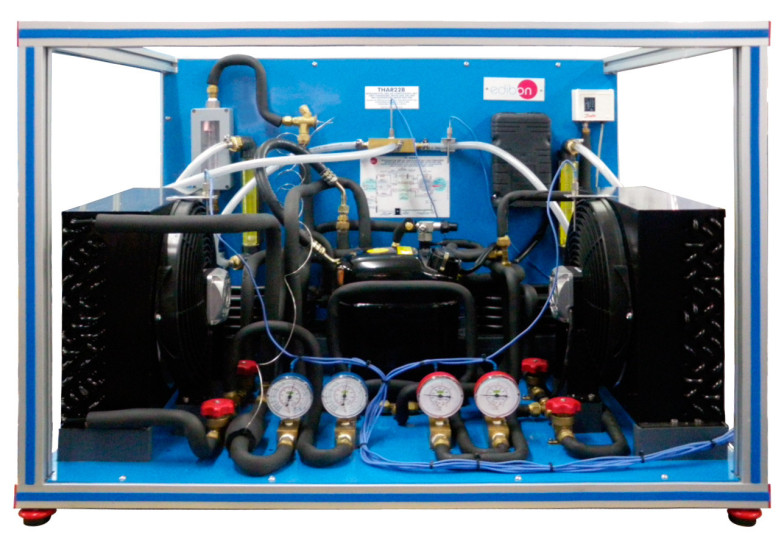

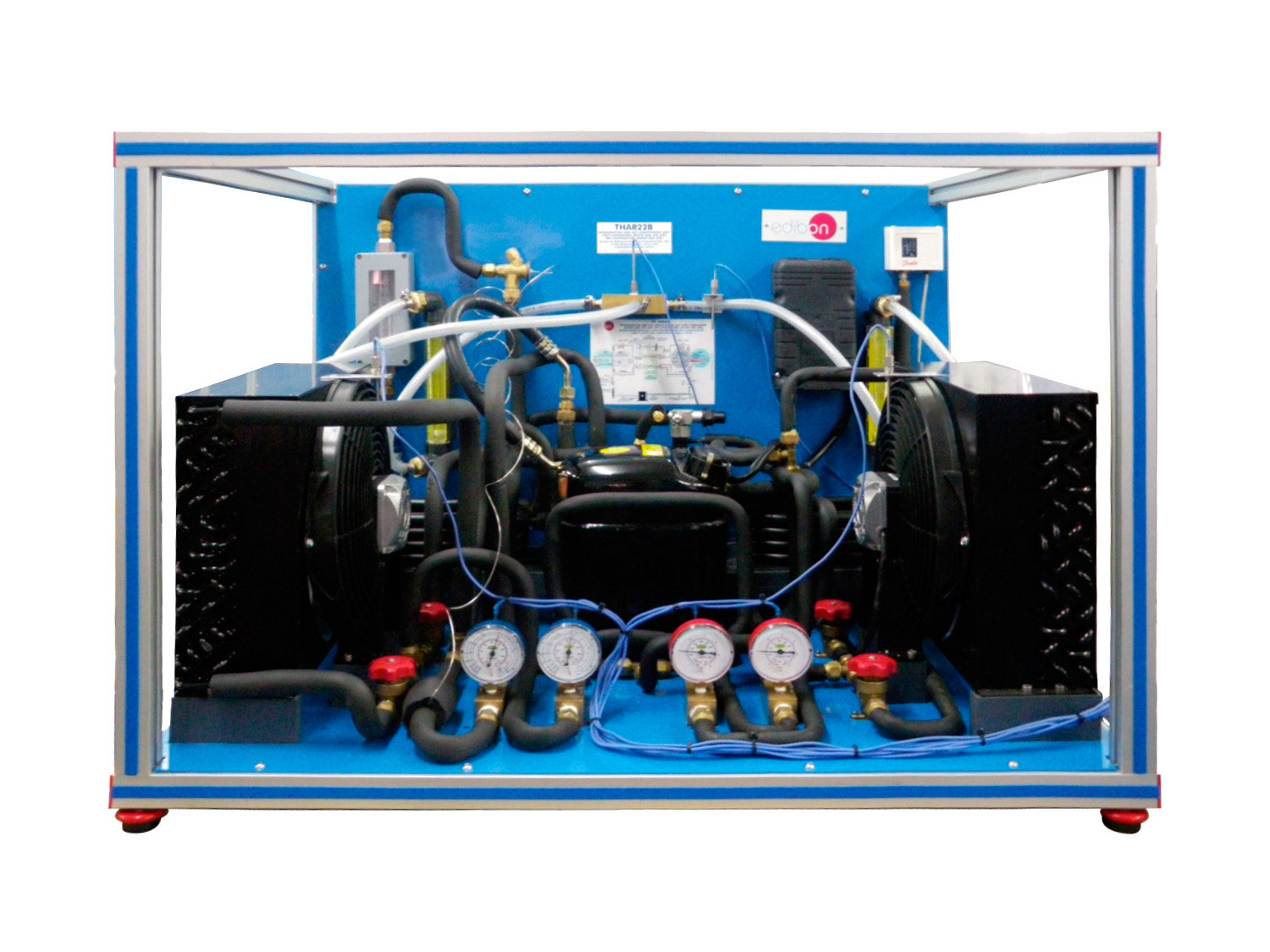

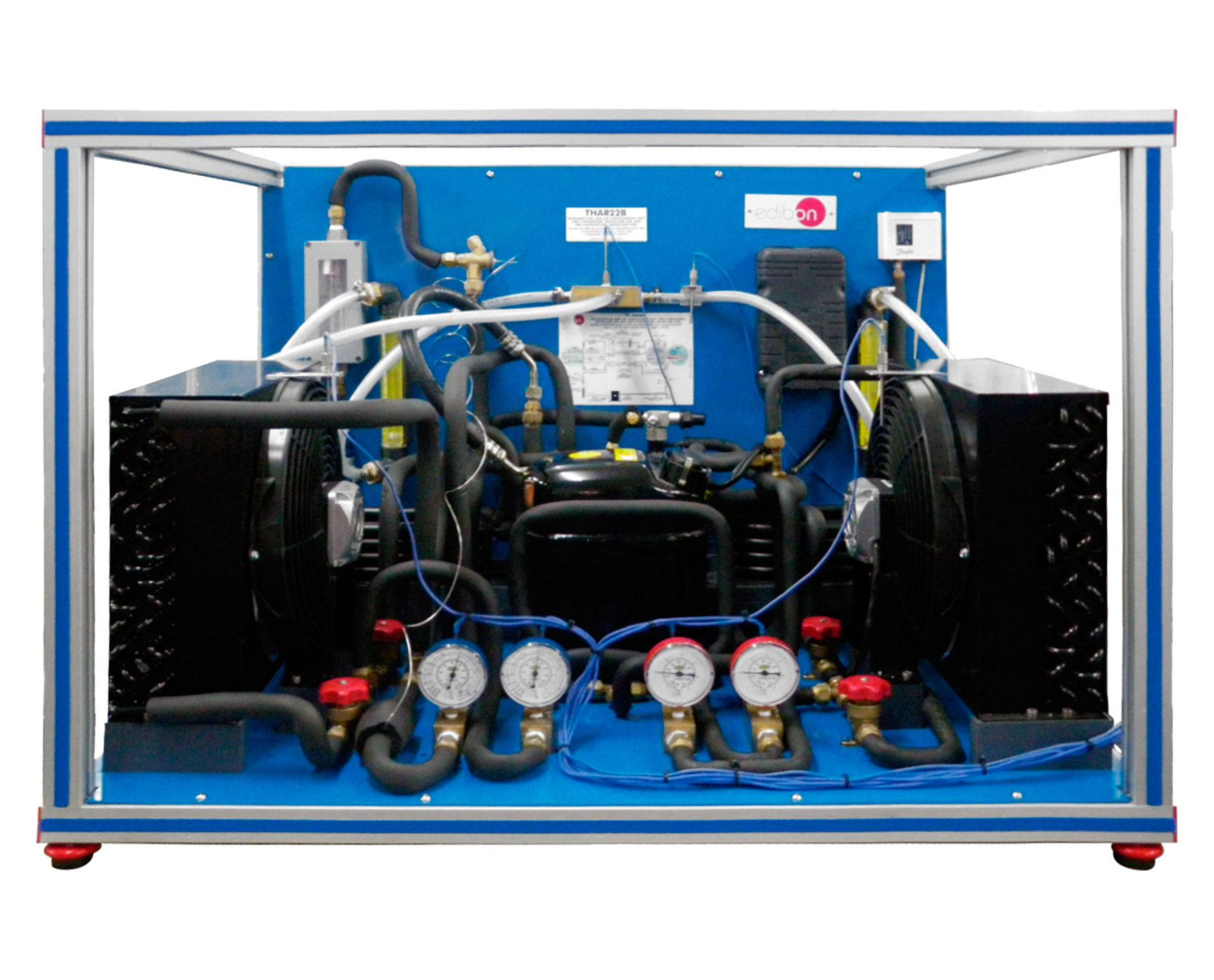

The Heat Pump + Air Conditioning + Refrigeration with 2 Condensers and 2 Evaporators (Water/Air)), "THAR22B", has as aim introducethe student to the study of the heat pumps, air conditioning and refrigeration, as well as the analysis and determination of the operationtypical parameters of the unit depending on the two types of fluids used in the processes of evaporation and condensation (air and water).
