SCSP Sistem Kalibrasi Sensor Tekanan

2.4.1.- INSTRUMENTASI & KONTROL 8.2.- PENGUKURAN 14.2.2.- INSTRUMENTASI & KONTROL

SISTEM INOVATIF

The Pressure Sensors Calibration System, "SCSP", is a unit with a very simple operation that allows to carry out different experiments which require measuring the pressure accurately, being it negative or positive..

Lihat uraian umum

Katalog

Spesifikasi Kontes

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

Laboratorium

2TV

Laboratorium Elektronika Pendidikan Teknik dan Kejuruan

2HE

Laboratorium Elektronika untuk Perguruan Tinggi

11PTC

Laboratorium Pusat Pelatihan Perminyakan

BERITA TERKAIT

EDIBON and its commitment to European Skills

At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.

Baca lebih lanjut

NEW Fluid Mechanics Course

Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.

Baca lebih lanjut

Completion of the Small Laboratory Equipment Repair Course

On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...

Baca lebih lanjut

GAMBARAN UMUM

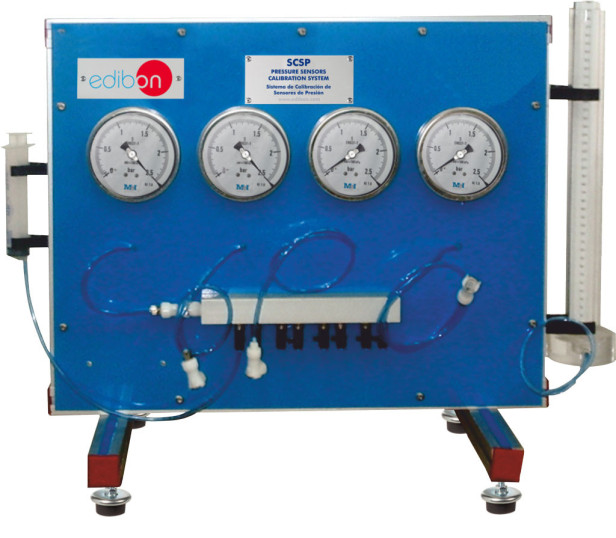

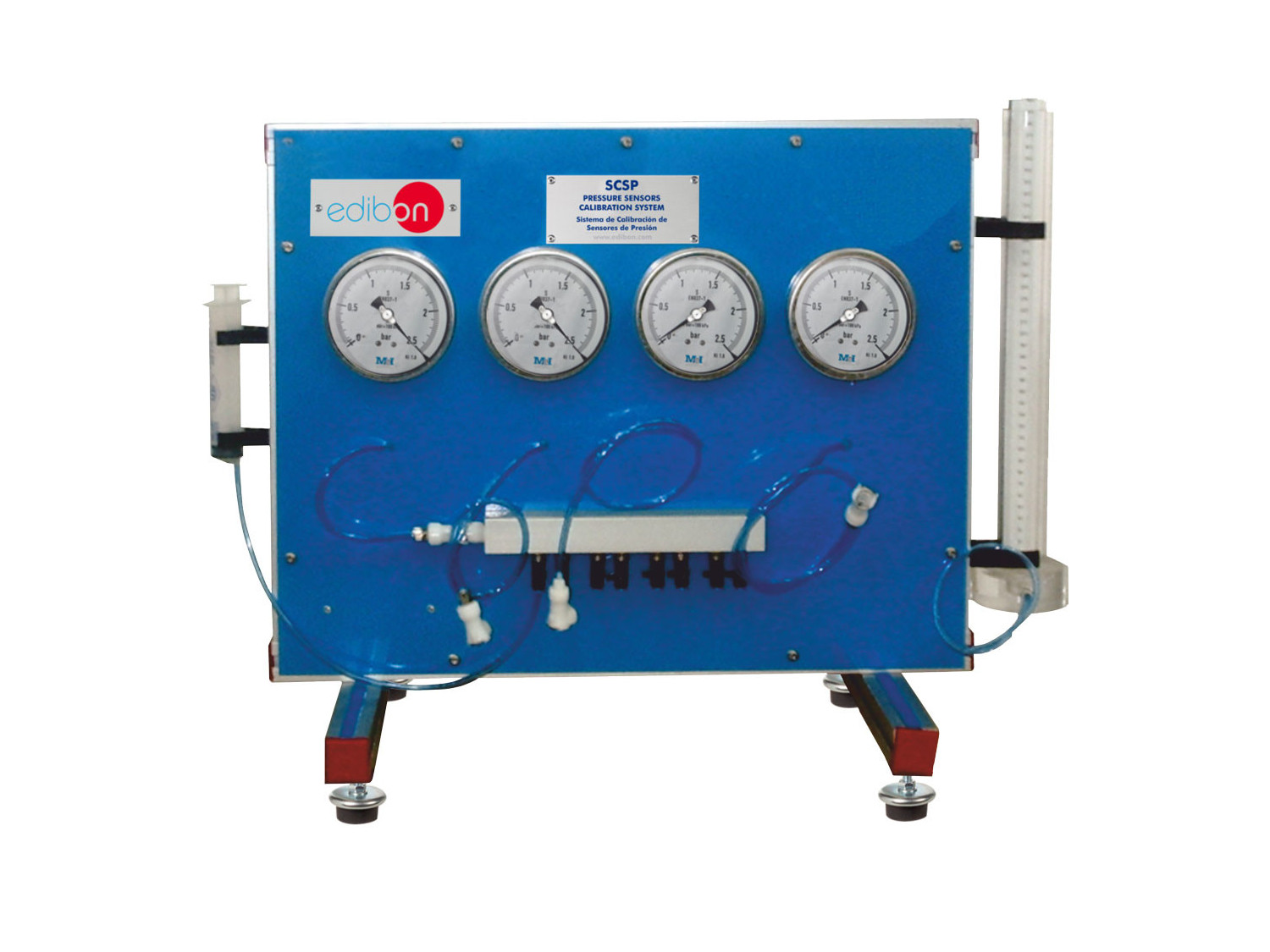

The Pressure Sensors Calibration System, "SCSP", is mainly composed of two pressure manometers on one hand, one measuring up to 1000 millimeters of water or 100 millibars and the other one measuring up to 2.5 bars and on the other hand, two vacuum gages or negative pressure manometers measuring up to 100 and 1000 millibars.

Furthermore, it includes a graduated cylinder which is used to measure water pressure in millimeters, and at the same time it allows to check the correct calibration of the unit’s manometers.

Finally, there is a syringe on the other side to both inject pressure and create vacuum.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

Pressure measurements with a pressure gauge.
Pressure measurements with a vacuum gauge.
Pressure measurements in water column.
Calibration of pressure gauges.
