QRQC Sistem Pelatihan Reaktor Kimia, Dikendalikan dari Komputer (PC)

11.2.- REAKTOR KIMIA

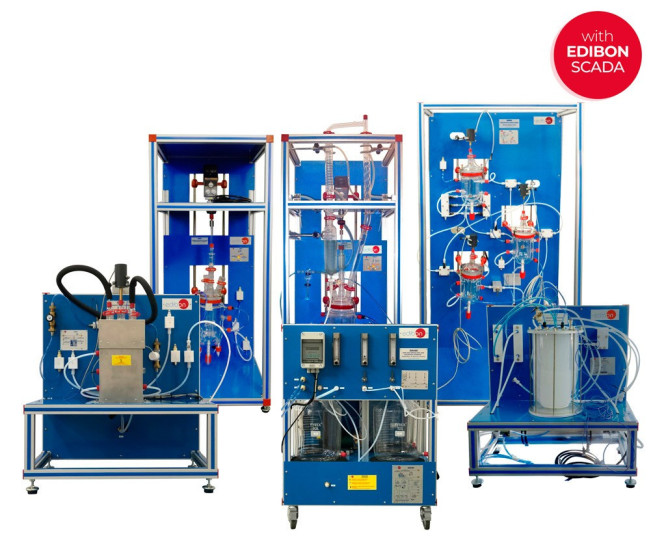

COMPUTER CONTROLLED CHEMICAL REACTORS TRAINING SYSTEM - QRQC

SISTEM INOVATIF

The Computer Controlled Chemical Reactors Training System, "QRQC," has been designed by EDIBON to facilitate advanced study for students, professors and researchers on the attributes, scenarios, and various types of reactors prevalent in the chemical industry.

Lihat uraian umum

Laboratorium

12TV
 Laboratorium Teknologi Pangan untuk Pendidikan Teknik dan Vokasi
12HE
 Laboratorium Teknologi Pangan untuk Perguruan Tinggi
11TV
 Laboratorium Teknik Kimia untuk Pendidikan Teknik dan Vokasi
11HE
 Laboratorium Teknik Kimia untuk Perguruan Tinggi
11PTC
 Laboratorium Pusat Pelatihan Perminyakan

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Baca lebih lanjut
Chemical Engineering and its Processes
Chemical Engineering and its Processes
Chemical engineering is a fascinating discipline that merges chemical science with engineering to create and optimize processes that transform raw materials into valuable products. In this journey into the heart of chemical engineering, we will explore various key aspects, from chemical reactors...
Baca lebih lanjut

GAMBARAN UMUM

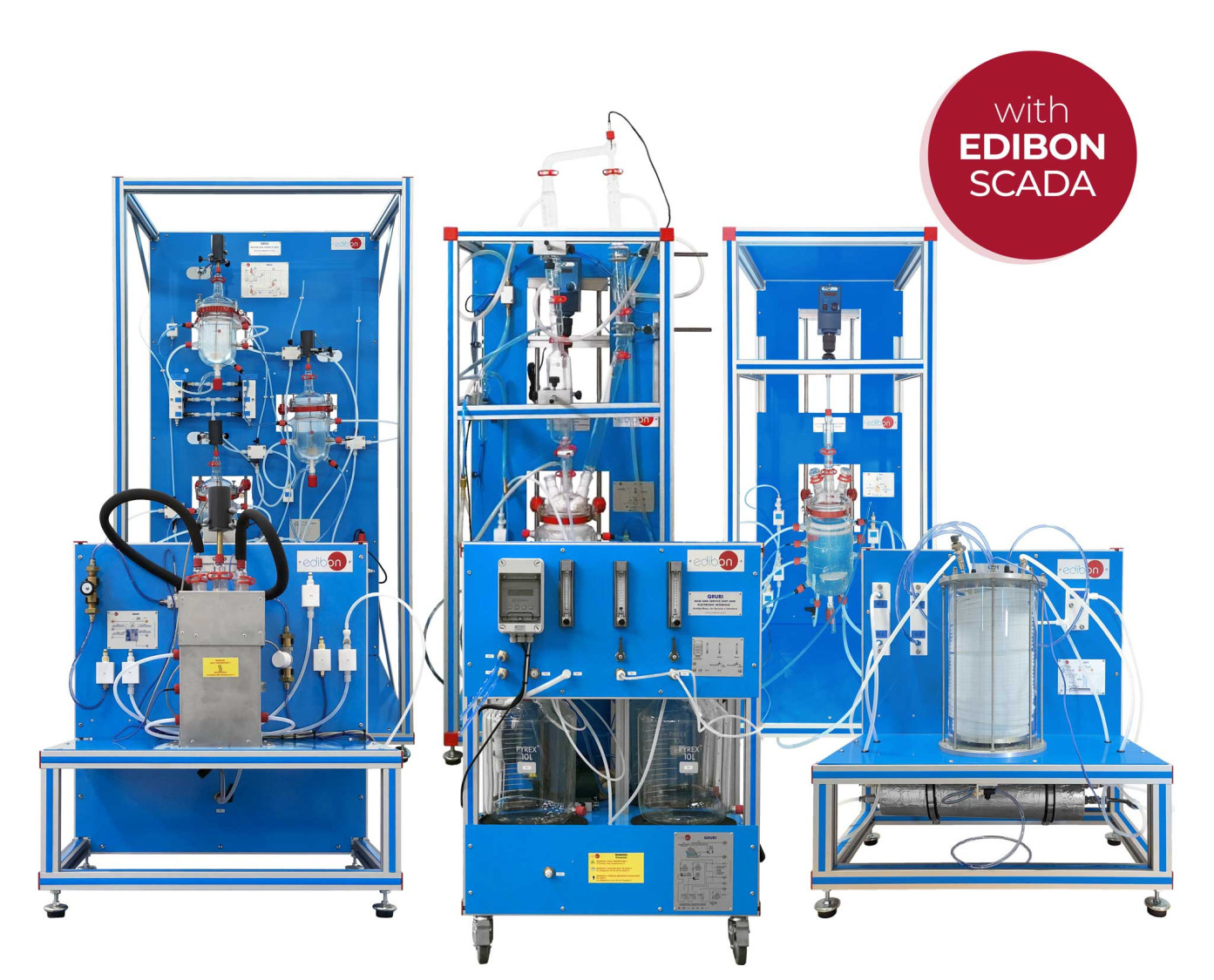

The Computer Controlled Chemical Reactors Training System, "QRQC," has been designed by EDIBON to facilitate advanced study for students, professors and researchers on the attributes, scenarios, and various types of reactors prevalent in the chemical industry.

These reactors enable the analysis of residence time, reaction temperature and the presence of inert gases in reactors with volumes of up to 2 liters. The scope of supply for these reactors includes a temperature control system (up to 70 °C), three 10-liter tanks, reagent feeding pumps (up to 7 l/min), and a flow control system for gas-phase products (up to 1440 Nl/h), thus allowing for a comprehensive study of the characteristics or scenarios that may occur in different types of reactors.

The Base Service Unit, "QRUBI", provides the necessary elements for the operation of the different reactor modules.

It performs the following functions:

  • Liquid reagent feeding: comprised of two 10-liter glass tanks, two dosing pumps with a capacity of up to 7 liters per hour, and all necessary connections.
  • Gas feeding: consisting of a flow meter, manual regulation valve, and all necessary connections. This allows for the addition of gaseous reagents to the reactor or the introduction of an inert gas.
  • Temperature control: comprising a thermostatic bath and a circulation pump.
  • Product collection system: Enables the quick and easy transfer of products obtained in the reactors to the base module and their deposition in a 10-liter glass tank.
  • Reaction monitoring system: consists of a conductivity cell and a conductivity meter installed on the front panel of the base module.
  • This unit allows for reagent feeding, product collection, and temperature control in reactors with a volume of up to 2 liters or more.

These Computer Controlled Units are supplied with EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Aksesoris

BASE-SERVICE UNIT - QRUBI
  • QRUBI
Available
11.2.- REAKTOR KIMIA
QRUBI
Unit Dasar dan Layanan untuk QRQC
The Base Service Unit, "QRUBI", provides the necessary elements for the operation of the different reactor modules.It performs the following functions:Liquid reagent feeding: comprised of two 10-liter glass tanks, two dosing pumps with a capacity...
Lihat Unit
ISOTHERMAL REACTOR WITH STIRRER - QRIA
  • QRIA
Available
11.2.- REAKTOR KIMIA
QRIA
Reaktor Isotermal dengan Pengaduk
The Stirred Isothermal Reactor, "QRIA," designed by EDIBON, provides a controlled and uniform environment for carrying out chemical reactions. This reactor is essential for advancing knowledge in the fields of chemistry and process engineering,...
Lihat Unit
ISOTHERMAL REACTOR WITH STIRRER AND DISTILLATION - QRIA/D
  • QRIA/D
Available
11.2.- REAKTOR KIMIA
QRIA/D
Reaktor Isotermal dengan Pengaduk dan Distilasi
The Isothermal Reactor with Stirrer and Distillation, "QRIAD/D," designed by EDIBON, enables the calculation and comparison of kinetic constants, as well as the determination of activation energy for the studied reactions. This reactor is...
Lihat Unit
TUBULAR FLOW REACTOR - QRFT
  • QRFT
Available
11.2.- REAKTOR KIMIA
QRFT
Reaktor Aliran Pipa
The Tubular Flow Reactor, "QRFT," specifically designed by EDIBON, is intended for the kinetic study of liquid-liquid homogeneous reactions. This unit allows for a wide range of practices, including the determination of kinetic equations, the...
Lihat Unit
ADIABATIC AND ISOTHERMAL REACTOR - QRAD
  • QRAD
Available
11.2.- REAKTOR KIMIA
QRAD
Reaktor Adiabatik dan Isotermal
The Adiabatic and Isothermal Reactor, "QRAD", designed by EDIBON, is used as a calorimeter for the kinetic study of homogeneous liquid-liquid reactions.Characterized by maintaining a constant temperature with no heat exchange with the...
Lihat Unit
REACTORS WITH STIRRER IN SERIES - QRSA
  • QRSA
Available
11.2.- REAKTOR KIMIA
QRSA
Reaktor Pengaduk Seri

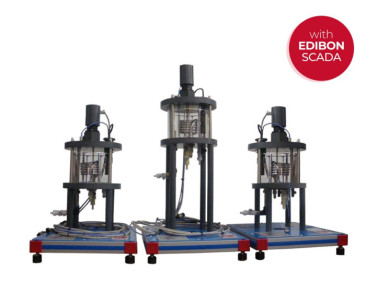

The Series Stirred Reactors, "QRSA," designed by EDIBON, provide the ability to investigate the kinetics of liquid-liquid homogeneous reactions and conduct experiments with multiple reactors in series. This configuration allows the outlet flow of...
Lihat Unit

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

Practices to be done with the Isothermal Reactor with Stirrer (QRIA):

  1. Determining the ionic conductivities.
  2. Batch operation. Obtaining the reaction order with respect to the ethyl acetate. Method of initial rates.
  3. Batch operation. Obtaining the reaction order with respect to the sodium hydroxide. Method of initial rates.
  4. Batch operation. Calculation of the rate constant. Constant sodium hydroxide initial concentration.
  5. Batch operation. Calculation of the rate constant. Constant ethyl acetate initial concentration.
  6. Rate equation formulation.
  7. Batch operation. Variation of the kinetic constant with temperature. Arrhenius equation.
  8. Batch operation. Theoretical and experimental conversion comparison. Deviation from ideality.
  9. Batch operation. Mixture effects.
  10. Continuous operation.
  11. Continuous operation. Mixture effects.
  12. Sensors calibration.

Practices to be done with Isothermal Reactor with Distillation (QRIA/D):

  1. Determination of the ionic conductivities.
  2. Batch operation. Obtaining the reaction order with respect to the ethyl acetate. Method of initial rates.
  3. Batch operation. Obtaining the reaction order with respect to the sodium hydroxide. Method of initial rates.
  4. Batch operation. Calculation of the rate constant. Constant sodium hydroxide initial concentration.
  5. Batch operation. Calculation of the rate constant. Constant ethyl acetate initial concentration.
  6. Rate equation formulation.
  7. Batch operation. Variation of the kinetic constant with temperature. Arrhenius equation.
  8. Batch operation. Theoretical and experimental conversion comparison. Deviation from ideality.
  9. Batch operation. Mixture effects.
  10. Continuous operation.
  11. Continuous operation. Mixture effects.
  12. Sensors calibration.

Practices to be done with the Tubular Flow Reactor (QRFT):

  1. Determination of the ionic conductivities.
  2. Theoretical conversion of the tubular reactor.
  3. Experimental determination of the tubular reactor conversion.
  4. Dependence on the residence time.
  5. Determination of the reaction order.
  6. Dependence of the rate constant and the conversion with the temperature.
  7. Sensors calibration.

Practices to be done with the Reactors with Stirrer in Series (QRSA):

  1. Determination of the ionic conductivities.
  2. Continuous operation with only one reactor.
  3. Continuous operation with only one reactor with mixture effects.
  4. Continuous operation with the three reactors.
  5. Sensors calibration.

Practices to be done with the Adiabatic and Isothermal Reactor (QRAD):

  1. Determination of the ionic conductivities.
  2. Batch operation. Obtaining the reaction order with respect to the ethyl acetate. Method of initial rates.
  3. Bach operation. Obtaining the reaction order with respect to the sodium hydroxide. Method of initial rates.
  4. Batch operation. Calculation of the rate constant. Constant sodium hydroxide initial concentration.
  5. Batch operation. Calculation of the rate constant. Constant ethyl acetate initial concentration.
  6. Rate equation formulation.
  7. Batch operation. Variation of the kinetic constant with temperature. Arrhenius equation.
  8. Batch operation. Theoretical and experimental conversion comparison. Deviation from ideality.
  9. Batch operation. Effect of concentration on conversion.
  10. Calculation of the heat transfer coefficient of the coil.
  11. Batch operation. Mixing effects.
  12. Continuous operation.
  13. Sensors calibration.
Lihat Lebih Banyak

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivate parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.

PERALATAN SIMILAR TERSEDIA

COMPUTER CONTROLLED CHEMICAL REACTORS - QRC
  • QRC
Available
11.2.- REAKTOR KIMIA
QRC
Reaktor Kimia, Dikendalikan dari Komputer (PC)
The Computer Controlled Chemical Reactors, "QRC", has been designed by EDIBON for the study and comparison of different types of chemical reactors in an easy and simple way and thus allowing, on a small scale, to carry out the necessary studies...
Lihat Unit

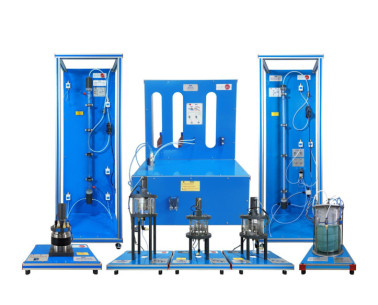

CHEMICAL REACTORS - QR
  • QR
Available
11.2.- REAKTOR KIMIA
QR
Reaktor Kimia

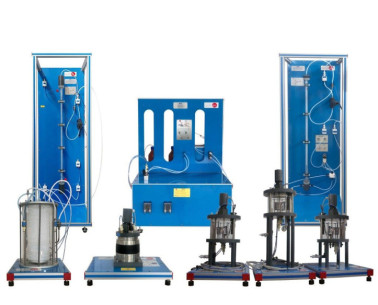

The Chemical Reactors, "QR", has been designed by EDIBON for the study and comparison of different types of chemical reactors in an easy and simple way and thus allowing, on a small scale, to carry out the necessary studies and practices to...
