COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

Unit: CTAC. Computer Controlled Coupled Tanks System

COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

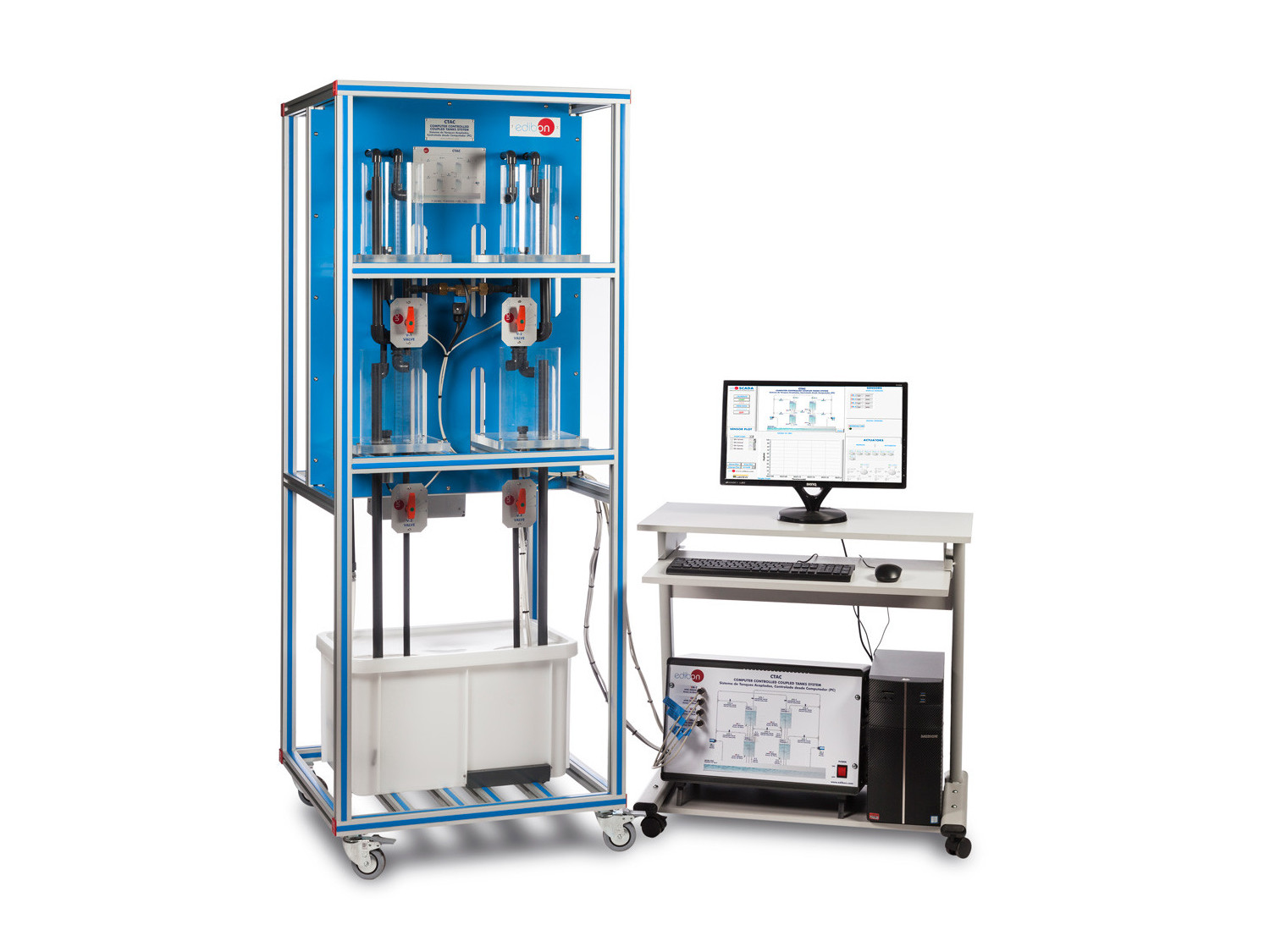

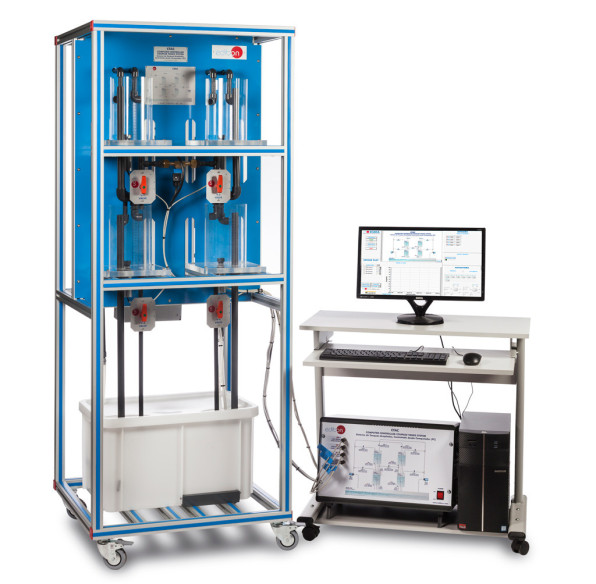

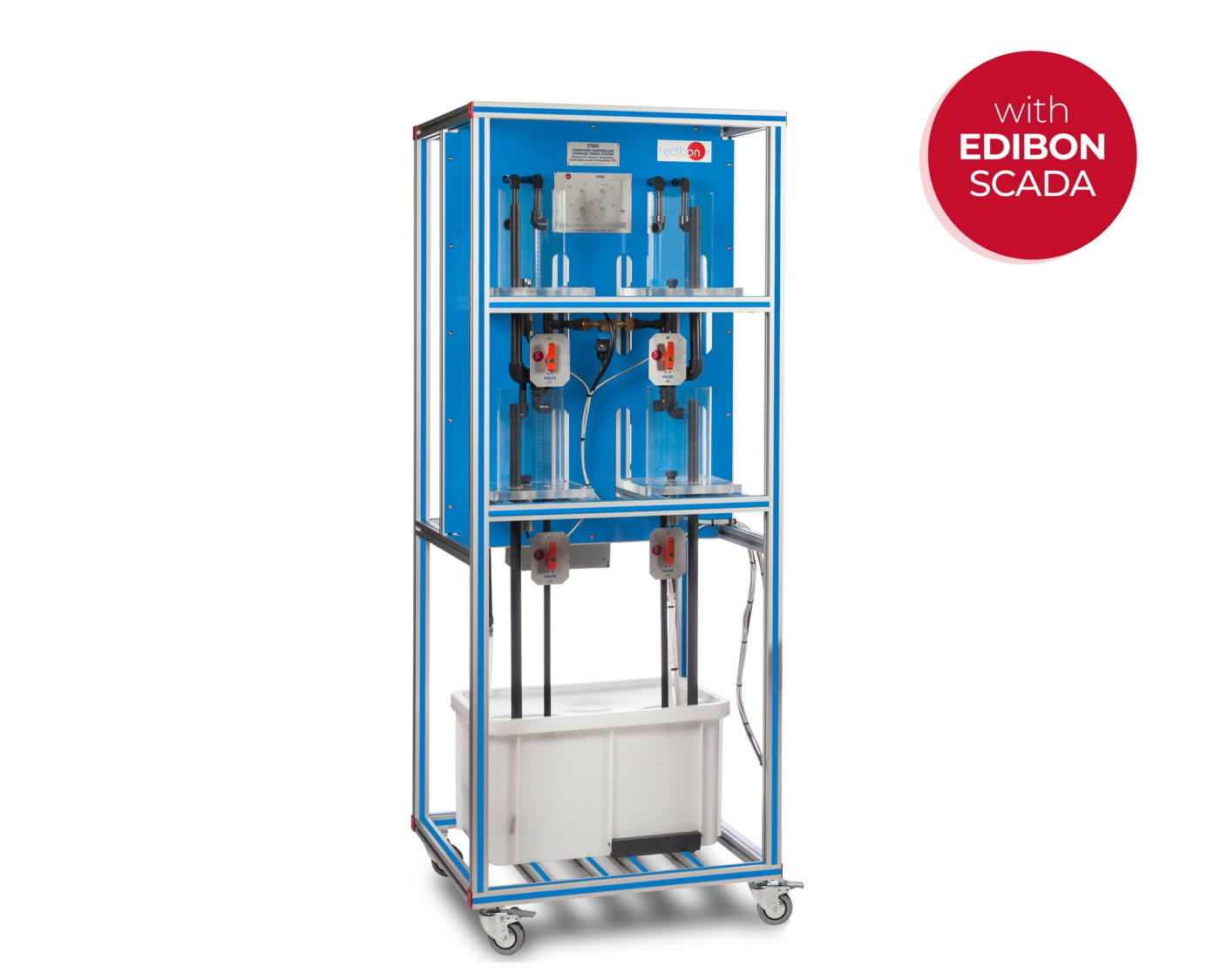

Complete CTAC unit

COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

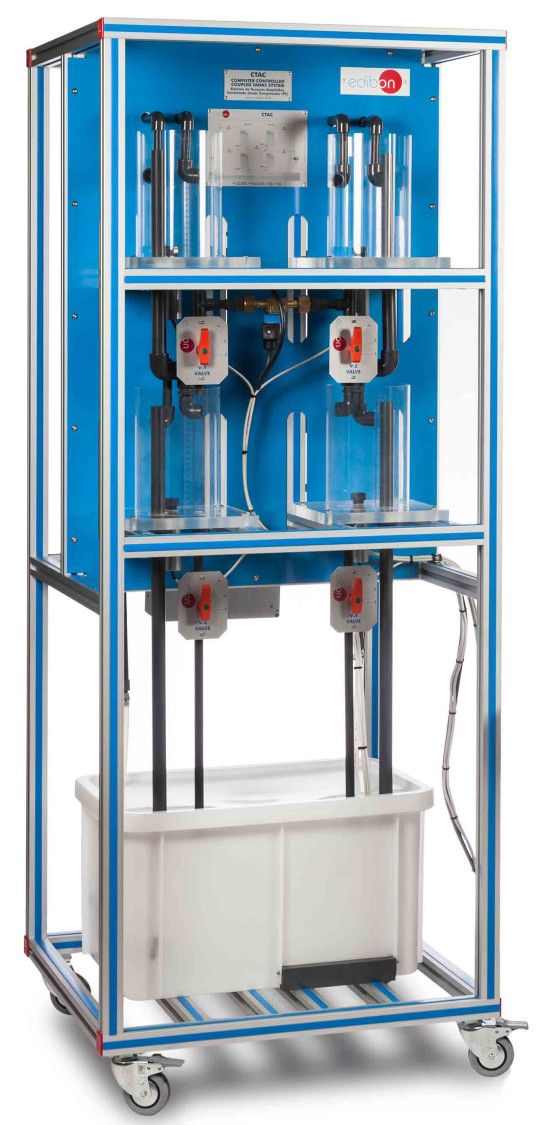

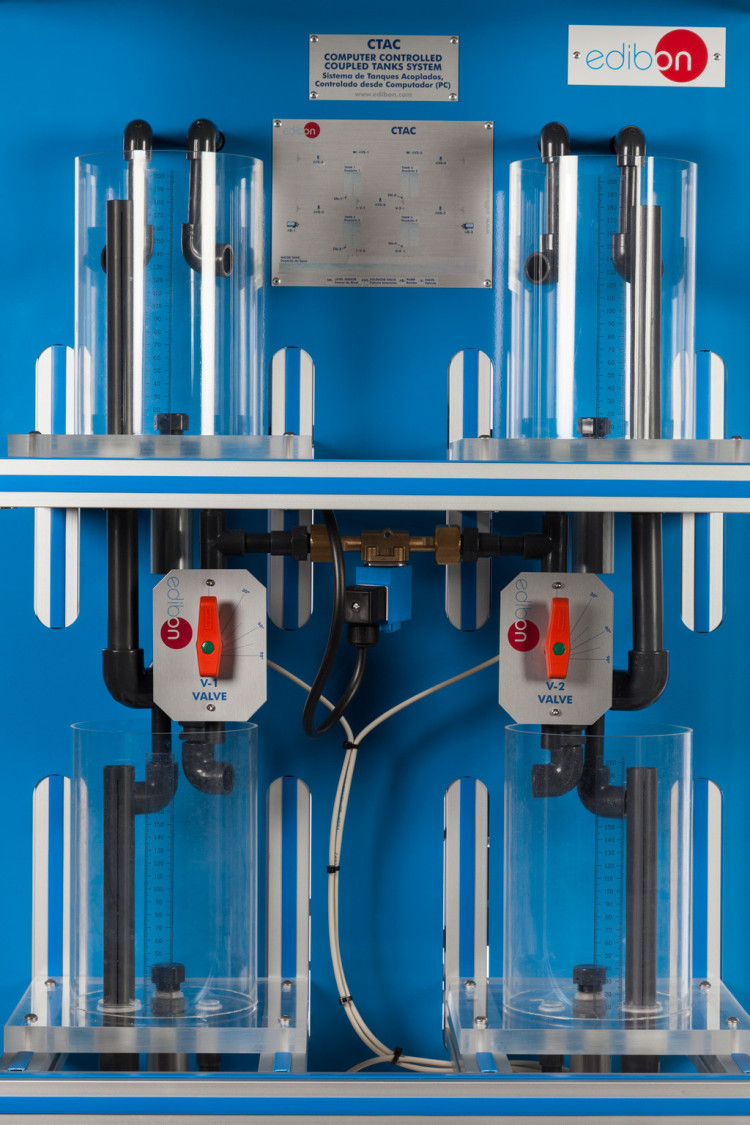

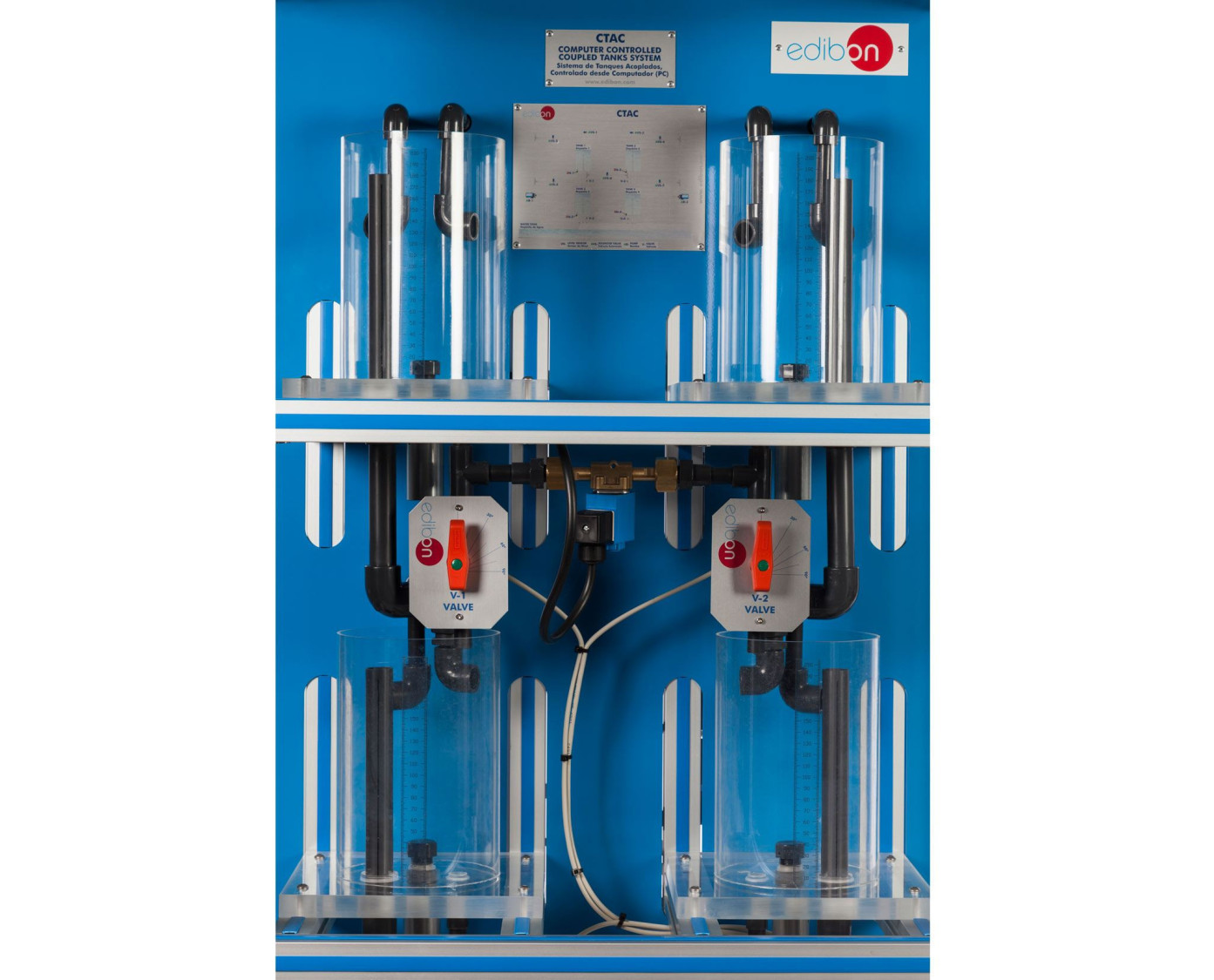

Unit details

COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

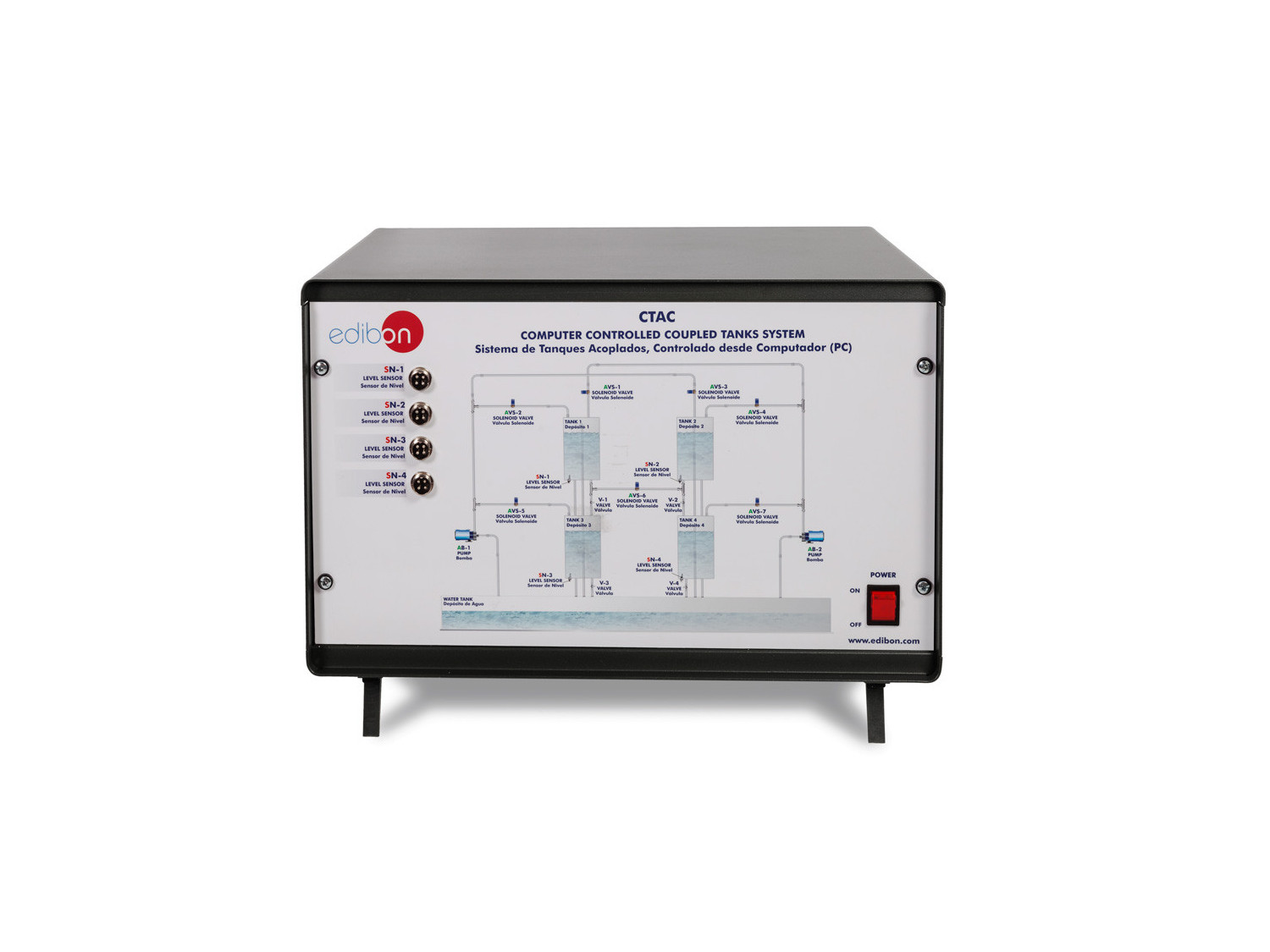

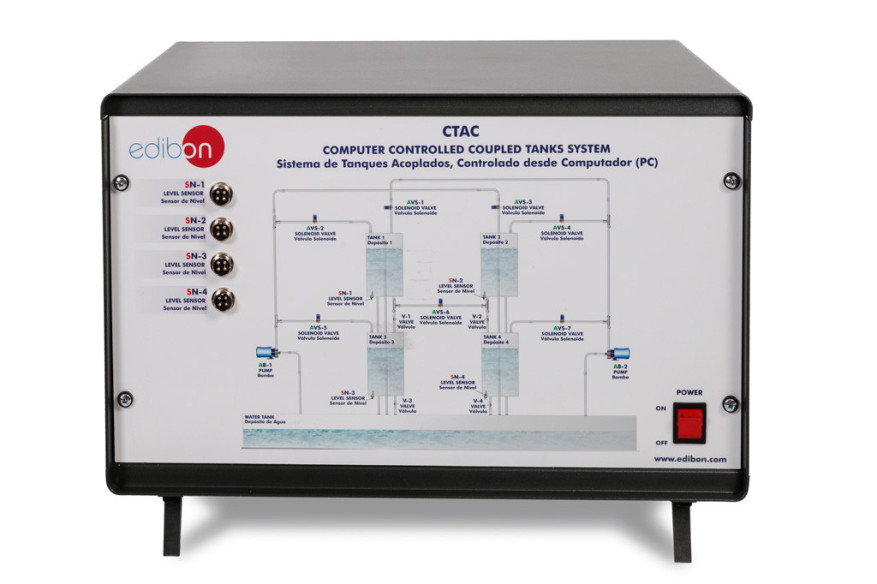

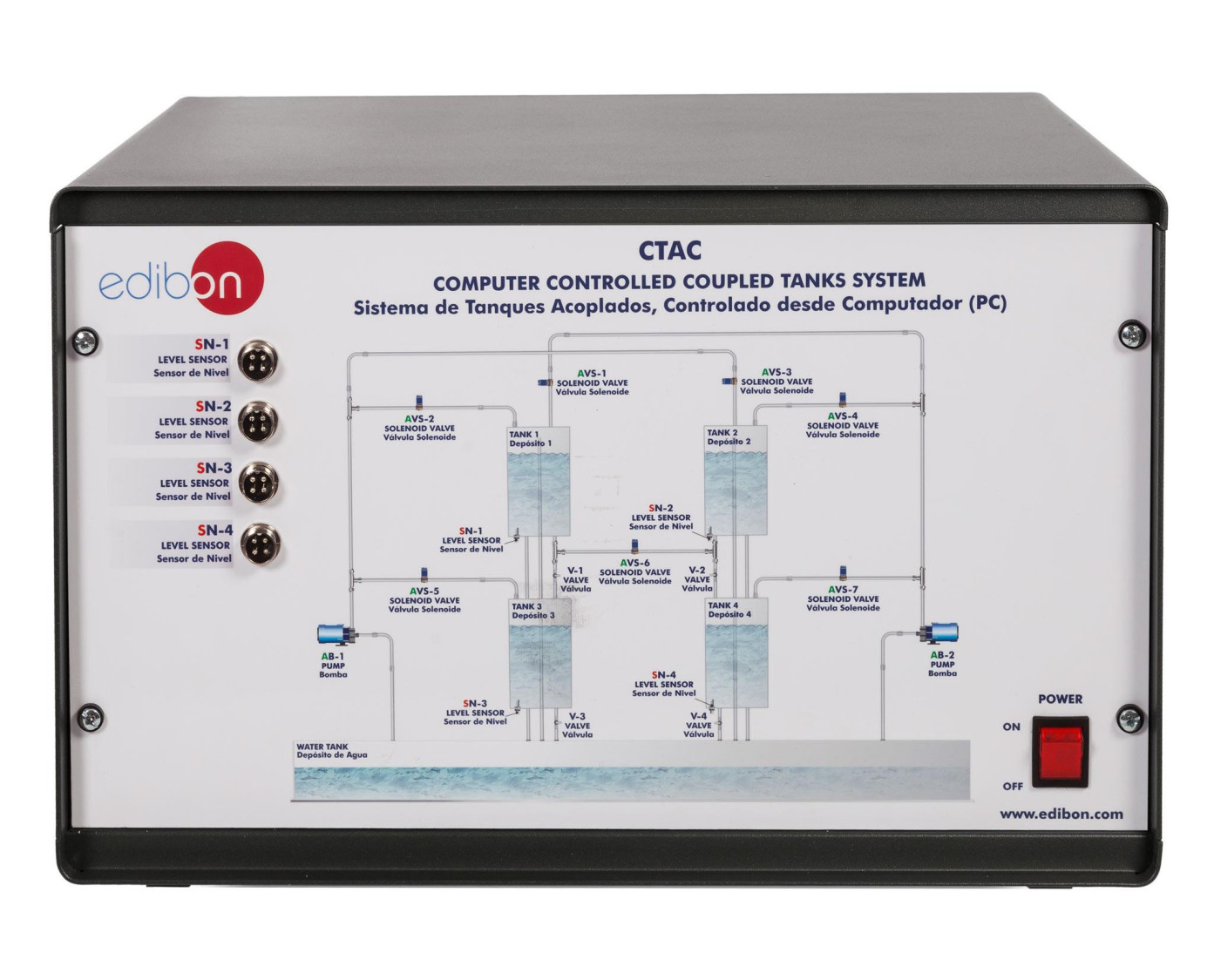

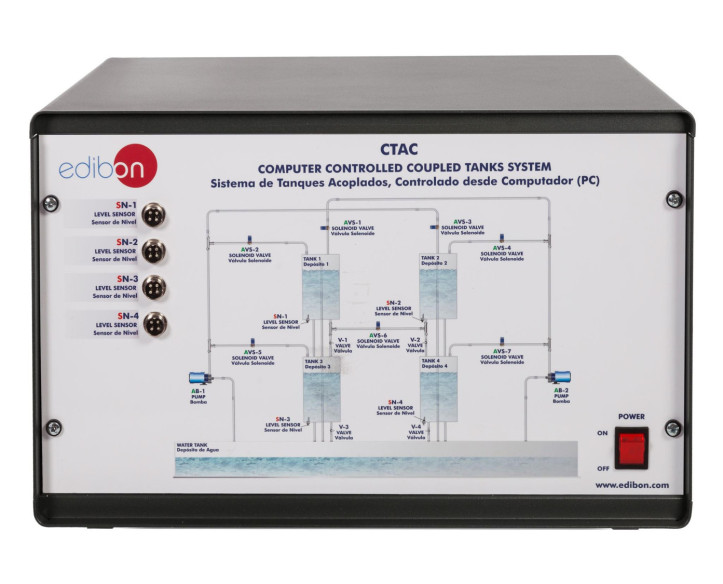

CTAC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

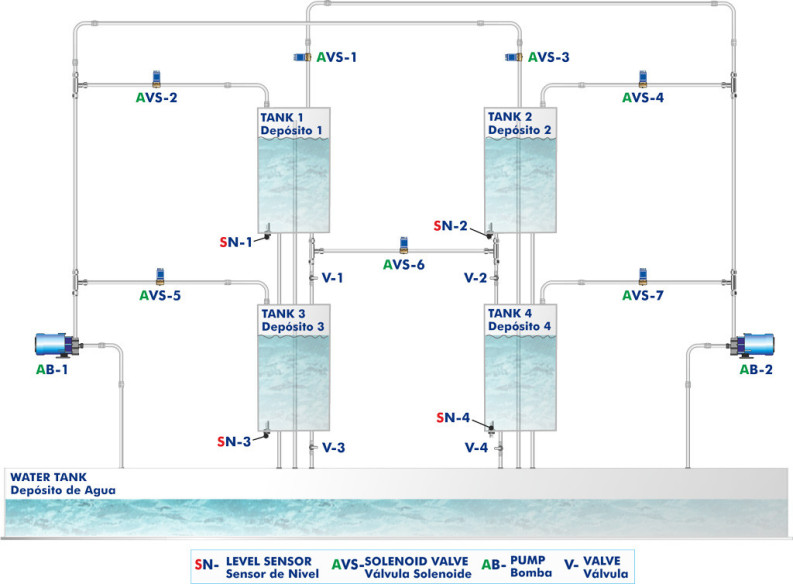

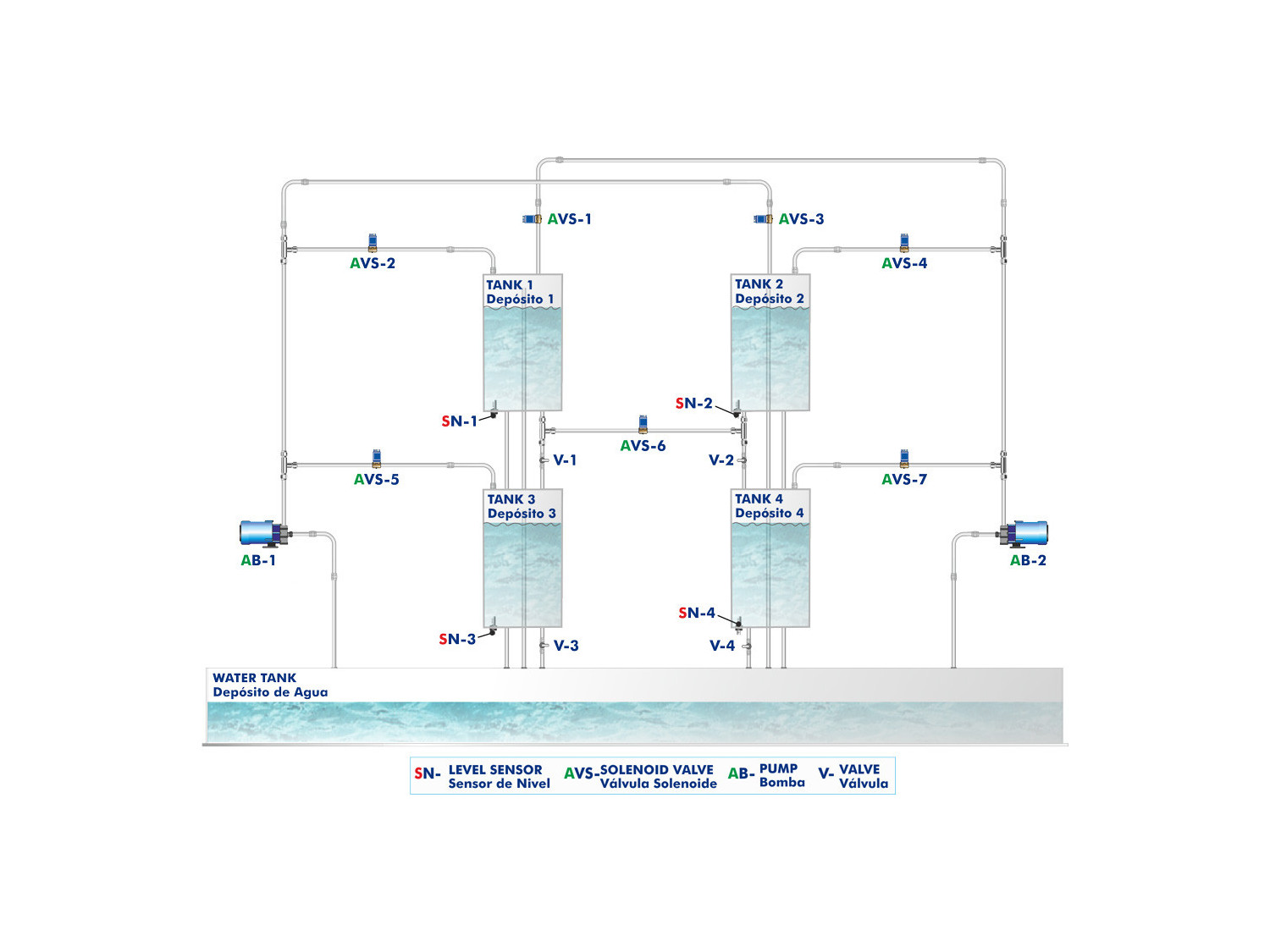

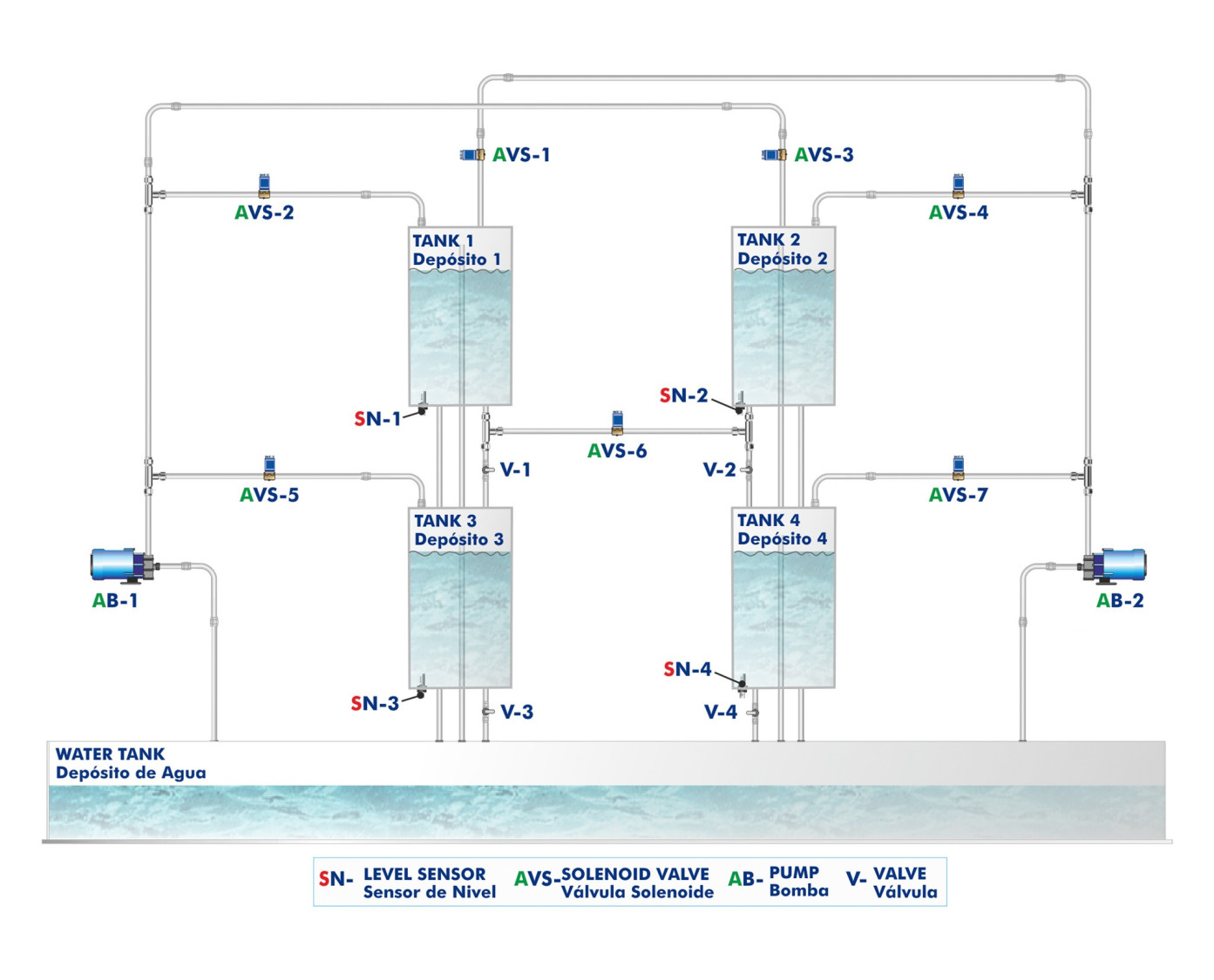

Process diagram and unit elements allocation

COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

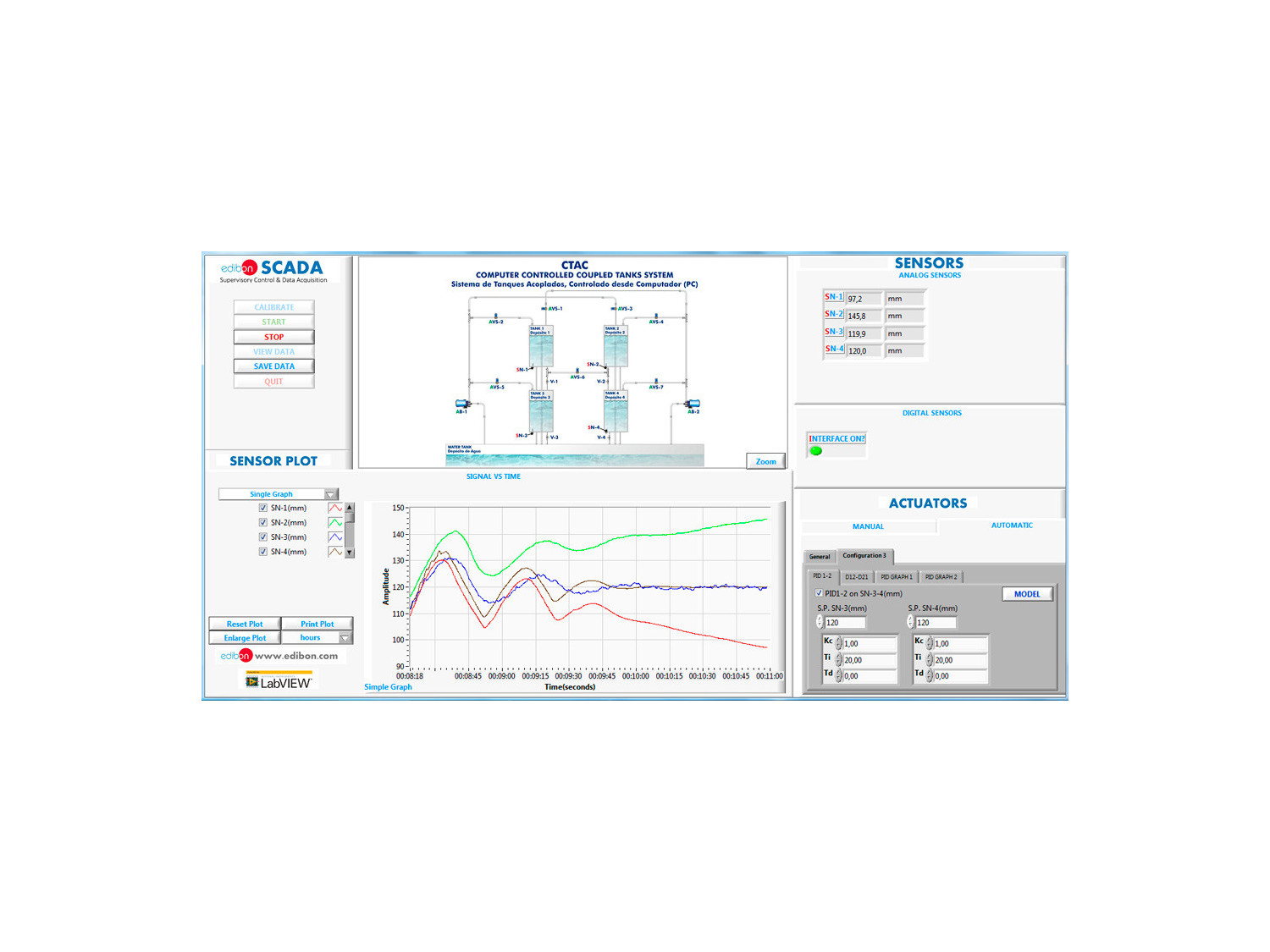

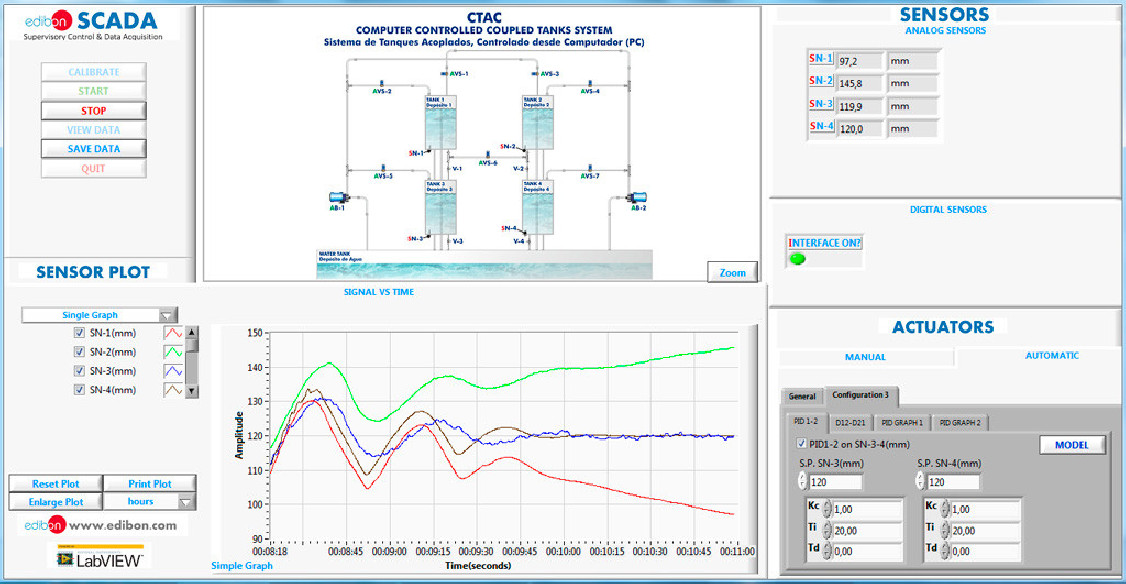

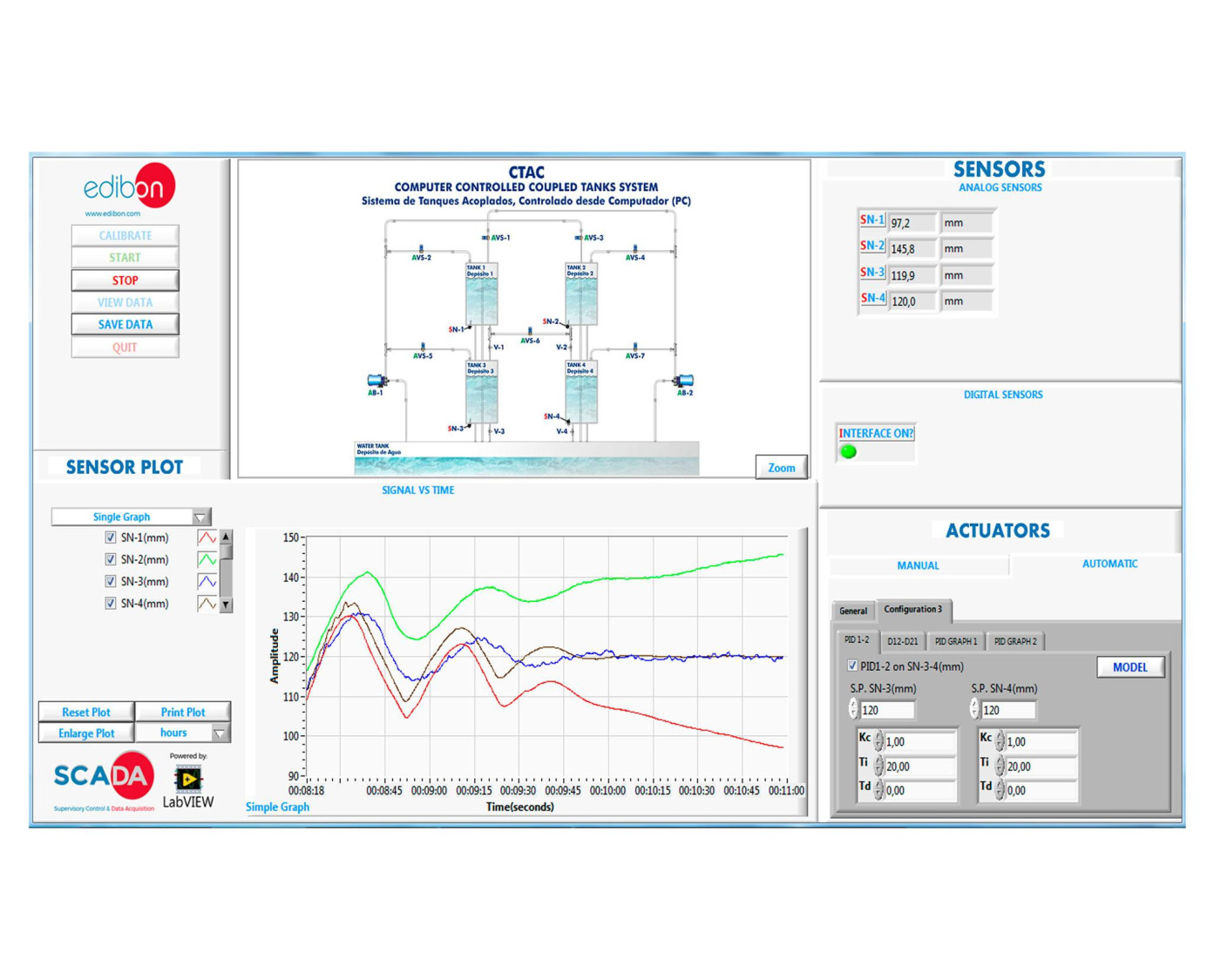

CTAC/SOF. CTAC Software. Main Screen

COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC
COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC
COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC
COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC
COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC
COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

SISTEM INOVATIF

The Computer Controlled Coupled Tanks System, "CTAC", consists of four transparent tanks, each with a pressure sensor to measure the water level.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
FSS

Sistem Simulasi Kegagalan
PLC

Pengendalian Proses Industri oleh PLC
PLCHMI

Kontrol dan Pemantauan IIoT Lokal/Jarak Jauh dengan HMI
ELK

Kit Pengembangan Perangkat Lunak EDIBON, Didukung oleh NI LabVIEW™
EMAK

Kit EDIBON untuk Matlab
ECR

Sistem Industri Modular EDIBON dengan NI CompactRIO
ESN

Sistem EDIBON Scada-Net
ECL

Pendidikan Jarak Jauh EDIBON

Laboratorium

6TV
 Laboratorium Mekatronika dan Otomasi untuk Pendidikan Teknik dan Vokasi
6HE
 Laboratorium Mekatronika dan Otomasi Pendidikan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Baca lebih lanjut

GAMBARAN UMUM

The Computer Controlled Coupled Tanks System, "CTAC", consists of four transparent tanks, each with a pressure sensor to measure the water level.

The coupling configuration between tanks can be modified by the use of computer controlled solenoid valves.

Two independently computer controlled pumps drive the water from the bottom to the tanks and, depending on how the valves are configured, from one tank to another.

Besides, the outlet of each tank includes a manual valve to introduce non measurable perturbations in the system.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Study of nonlinear systems.
  2. Determination of the linear model of a tank: linearization.
  3. Determination of the linear model of a system with two coupled tanks.
  4. Study of the structure of a PID controller.
  5. PID control of the water level in a tank.
  6. Simultaneous control of the water level in a system formed by two tanks.
  7. Identification of systems.
  8. Study of different tanks coupling configurations.
  9. Study of the influence of some tanks on others in a four tanks system.
  10. Study of decouplers.
  11. Disturbance rejection.
  12. Sensors calibration.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the CTAC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the CTAC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
