AE-PLC-MEMB Stasiun Pembotolan

6.2.5.2.- APLIKASI WORKSTATION PROSES

SISTEM INOVATIF

The "AE-PLC-MEMB" is a bottling workstation commanded by a PLC that provides pieces to the system and mount them inside of the base pieces.

Lihat uraian umum

Katalog

Spesifikasi Kontes

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

GAMBARAN UMUM

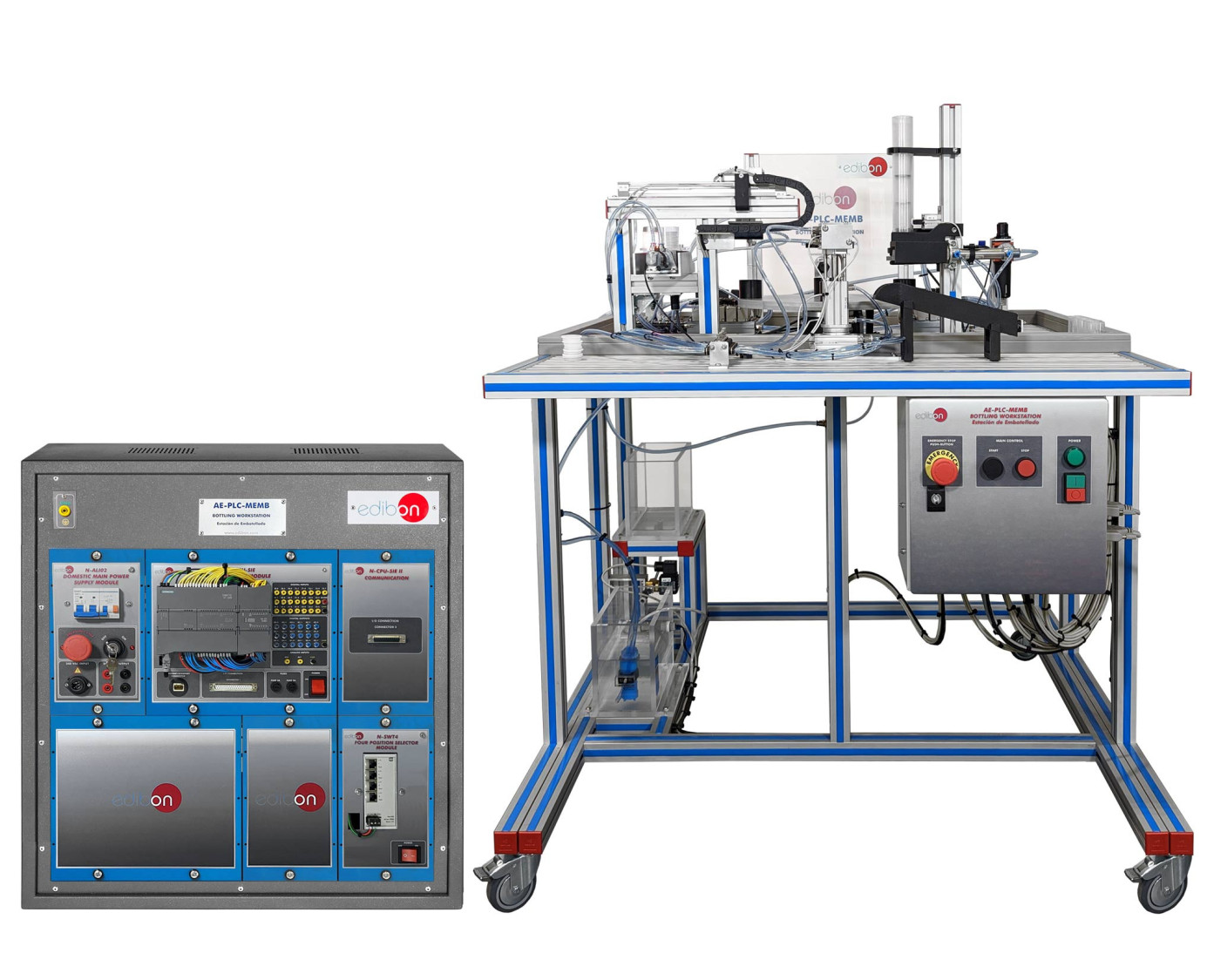

The "AE-PLC-MEMB" is a bottling workstation commanded by a PLC that provides pieces to the system and mount them inside of the base pieces.

The "AE-PLC-MEMB" transport the input bottles, to the filling area. In this zone, the "AE-PLC-MEMB" fills each bottle by controlling a solenoid valve and a pump. Finally, the "AE-PLC-MEMB" cap the bottles, and transport the bottles to the exit area. The "AE-PLC-MEMB" has one reservoir tank and a buffer tank to provide liquid to the bottle filler of the unit.

The "AE-PLC-MEMB" workstation is designed as a modular system to facilitate the understanding of the unit. The main components are:

The PLC: is composed by an AE-PLCB (with HMI devices, analog and digital input/output, etc.) unit and all the extra modules needed to perform a correct working of the workstation.
The control panel: with start/stop button, emergency push button, reset button, light indicators to show current state of the process, etc.
The workstation: is composed by real industrial components used by the industrial feeder systems such as reed sensors, presence sensors, electric pump, solenoid valve, etc.

The "AE-PLC-MEMB" is an independent workstation that can work alone and/or in conjunction with other workstation to make up acomplete Flexible Manufacturing system*.

*The Flexible manufacturing systems product list is available at "Flexible Manufacturing Systems (FMS)" area of the general catalogue.
