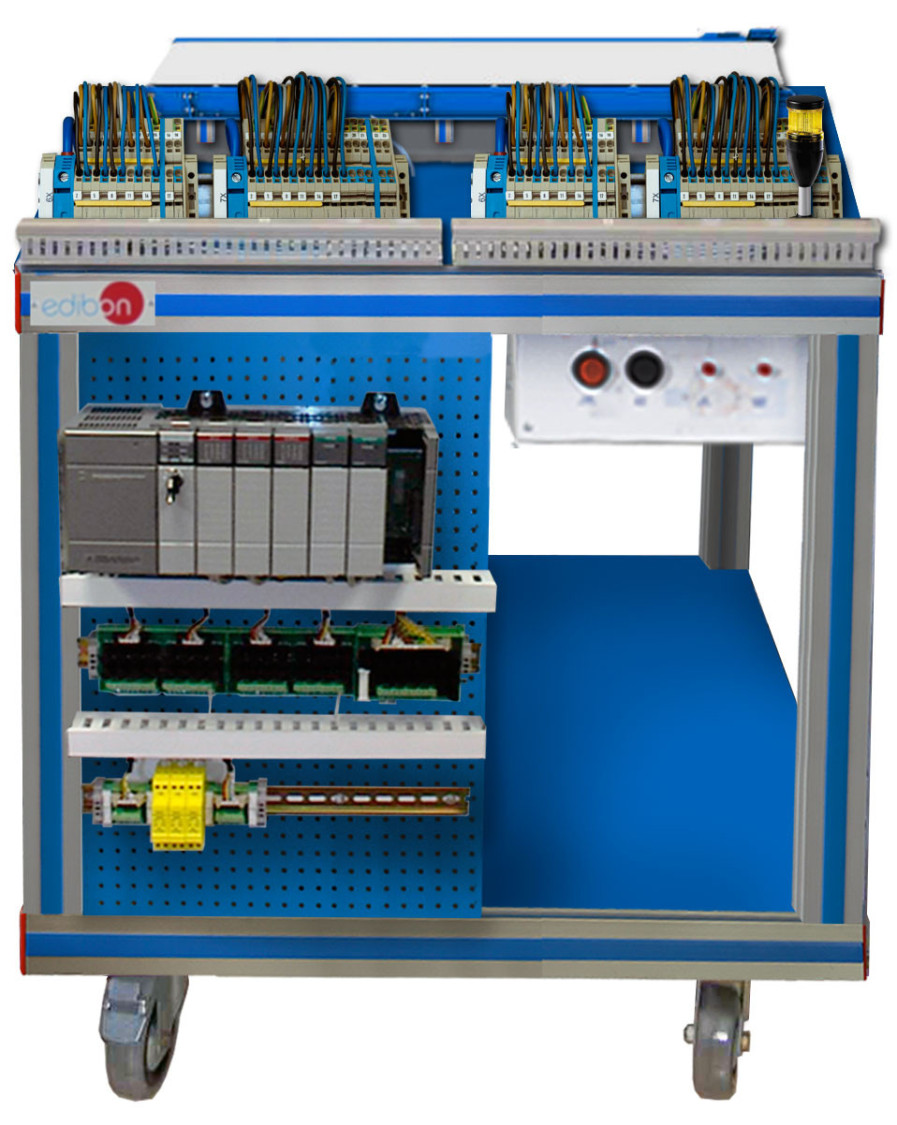

AE-PLC-CTCA Stasiun Sabuk Konveyor AC

6.2.5.4.- BAGIAN PENANGANAN APLIKASI WORKSTATION
AC CONVEYOR BELT WORKSTATION - AE-PLC-CTCA

SISTEM INOVATIF

The "AE-PLC-CTCA" is an AC powered conveyor system commanded by a PLC.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut

GAMBARAN UMUM

The "AE-PLC-CTCA" is an AC powered conveyor system commanded by a PLC. The "AE-PLC-CTCA" is composed by a conveyor, 4 position sensors to stop the conveyor at different positions, motor positioner, AC motor driver and three-phased motor to a complete control of the conveying.

The "AE-PLC-CTCA" workstation has been designed as a modular system to facilitate the understanding of the equipment operation:

  • The PLC: is composed by the CPU PLC unit and all the extra modules needed to perform a correct working of the workstation.
  • The control panel: with start/stop button, emergency pushbutton, reset button, light indicators to show current state of the process, etc.
  • The workstation: is composed by real components used by the industrial automatic conveyor systems such as: capacitive sensors, limit switch sensors, position sensor, etc.

The "AE-PLC-CTCA" workstation that can work alone and/or in conjunction with other workstations to make up a complete Flexible Manufacturing system*.

*The Flexible manufacturing systems product list is available at "Flexible Manufacturing Systems (FMS)" area of the general catalogue.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Introduction to flexible manufacturing system (FMS).
  2. Study of the sensor detection.
  3. Manual control of an AC conveyor.
  4. Automatic control of an AC conveyor.
  5. Change the parameters of the conveyor system.
  6. Optimize the process time.
  7. Study the faults inserted in the process with the fault generation module.
