9.7.- PENUKAR PANAS

Penukar panas adalah perangkat mekanis yang dirancang untuk mentransfer panas antara dua fluida. Panas dapat ditransfer melalui kontak antar fluida atau melalui dinding padat yang memisahkannya. Mereka adalah elemen dasar dalam sistem pendingin dan AC.

Lihat Lebih Banyak

Penukar panas kontak langsung adalah yang panas ditransfer melalui gesekan dua arus. Exchanger jenis ini digunakan bila setelah proses transfer cairan mudah dipisahkan, misalnya di menara pendingin.

Kontak tidak langsung penukar panas memiliki dinding pemisah yang memisahkan dua fluida, menghasilkan perpindahan panas melalui konveksi dan konduksi. Ada dua subgrup dalam pertukaran kontak tidak langsung:

  • Alternatif: fluida melewati ruang yang sama secara bergantian. Fluida panas memindahkan panas ke permukaan dan diserap oleh dingin saat bersentuhan dengan permukaan.
  • Permukaan: panas ditransfer melalui penghalang padat yang memisahkan fluida. Mereka paling tersebar luas di semua jenis sistem. Bergantung pada permukaan pemisahnya, mereka dapat:
  • Pelat penukar panas: permukaan pemisah adalah dinding yang datar.
  • Penukar tabung: permukaan pemisah adalah dinding tabung. Sebuah fluida bersirkulasi melalui interior dan tabung lain ditempatkan di luar tempat fluida lain bersirkulasi. Menurut arah arus, terdapat aliran arus cocurrent dan arus berlawanan.

Menurut konstruksinya, ada konfigurasi penukar panas yang tak terhitung banyaknya, tetapi yang paling umum adalah tabung selubung, tabung konsentris dan piring penukar panas.

Terlepas dari sistem AC, penukar panas ditemukan di industri apa pun. Beberapa contohnya adalah industri maritim, pengolahan permukaan, industri makanan, industri kimia dan pembangkit listrik tenaga nuklir.

Lihat Produk
Materi Terkait

PENUKAR PANAS PERALATAN

1.- FISIKA 2.- ELEKTRONIKA 3.- KOMUNIKASI 4.- LISTRIK 5.- ENERGI 6.- MEKATRONIK & OTOMASI 7.- MEKANIKA 8.- MEKANIKA FLUIDA 9.- TERMODINAMIK DAN TERMOTEKNIK 10.- PENGENDALIAN PROSES 11.- TEKNIK KIMIA 12.- TEKNOLOGI PANGAN & AIR 13.- LINGKUNGAN HIDUP 14.- TEKNIK BIOMEDIS AKSESORIS LABORATORIUM PABRIK PILOT SESUAI PESANAN
9.1.- FUNDAMENTAL DAN KONSEP DASAR TERMODINAMIKA 9.2.- PEMANASAN, VENTILASI, AC DAN AIR PANAS 9.3.- POMPA PANAS 9.4.- PENDINGINAN 9.5.- SISTEM PIPA HIDROLIK TERMAL 9.6.- PERPINDAHAN PANAS 9.7.- PENUKAR PANAS 9.8.- MESIN TERMAL 9.9.- MESIN PEMBAKARAN INTERNAL 9.10.- PEMASANGAN DAN PEMELIHARAAN
Tidak ada grup yang tersedia untuk subarea ini
Menampilkan 1 -36 dari 43 produk
12 24 36
CONCENTRIC TUBE HEAT EXCHANGER FOR TICC - TITC
  • Aksesori dari TICC
Available
9.7.- PENUKAR PANAS

TITC

Penukar Panas Tabung Konsentris untuk TICC

Aksesori dari TICC
The Concentric Tube Heat Exchanger for TICC, "TITC", designed by EDIBON, allows for the study of heat transfer between two fluids: the hot water flowing through the inner tube and the cold water flowing through the annular zone between the inner...
Lihat Unit
PLATE HEAT EXCHANGER FOR TICC - TIPL
  • Aksesori dari TICC
Available
9.7.- PENUKAR PANAS

TIPL

Penukar Panas Pelat untuk TICC

Aksesori dari TICC
The Plate Heat Exchanger for TICC, "TIPL", designed by EDIBON, allows the study of heat transfer between hot and cold water flowing through alternate channels formed between parallel plates. This unit enables the analysis of how heat transfer...
Lihat Unit
SHELL & TUBE HEAT EXCHANGER FOR TICC - TICT
  • Aksesori dari TICC
Available
9.7.- PENUKAR PANAS

TICT

Penukar Panas Shell dan Tabung untuk TICC

Aksesori dari TICC
The Shell and Tube Heat Exchanger for TICC, "TICT", designed by EDIBON, provides a comprehensive environment for the study of heat transfer. It allows analysis of the overall energy balance, heat losses in parallel and counterflow configurations,...
Lihat Unit
JACKETED VESSEL HEAT EXCHANGER FOR TICC - TIVE
  • Aksesori dari TICC
Available
9.7.- PENUKAR PANAS

TIVE

Penukar Panas Wadah Berjaket untuk TICC

Aksesori dari TICC
The Jacketed Vessel Heat Exchanger for TICC, "TIVE", designed by EDIBON, provides a comprehensive environment for the detailed study of heat transfer between two non-mixing fluids. In this unit, hot water flows through a jacket, transferring heat...
Lihat Unit
COIL VESSEL HEAT EXCHANGER FOR TICC - TIVS
  • Aksesori dari TICC
Available
9.7.- PENUKAR PANAS

TIVS

Penukar Panas Wadah Berjaket dengan Koil untuk TICC

Aksesori dari TICC
The Coil Vessel Heat Exchanger for TICC, "TIVS", designed by EDIBON, provides a comprehensive environment for the detailed study of heat transfer between two non-mixing fluids. In this unit, hot water circulates through a coil, transferring heat...
Lihat Unit
TURBULENT FLOW HEAT EXCHANGER FOR TICC - TIFT
  • Aksesori dari TICC
Available
9.7.- PENUKAR PANAS

TIFT

Penukar Panas Aliran Turbulen untuk TICC

Aksesori dari TICC
Heat exchangers with turbulent flow are widely used in various industries such as chemical, food, pharmaceutical, and energy generation. These devices play a fundamental role in heating and cooling fluids, as well as in cooling systems for...
Lihat Unit
CROSS FLOW HEAT EXCHANGER FOR TICC - TICF
  • Aksesori dari TICC
Available
9.7.- PENUKAR PANAS

TICF

Penukar Panas Aliran Silang untuk TICC

Aksesori dari TICC
The Cross-Flow Heat Exchanger for TICC, "TICF", designed by EDIBON, provides an effective thermal research tool by enabling the study of heat transfer between two fluids in a cross-flow configuration. In this system, a stream of hot water from the...
Lihat Unit
HEAT EXCHANGER TRAINING SYSTEM - TICB
  • TICB
Available
9.7.- PENUKAR PANAS

TICB

Sistem Pelatihan Penukar Panas

Heat exchangers are widely used in refrigeration, air conditioning, heating, energy generation, chemical processing, etc. They have many applications in engineering and, as a consequence, there are many models adapted to each application to obtain...
Lihat Unit
CONCENTRIC TUBE HEAT EXCHANGER FOR TICB - TITCB
  • Aksesori dari TICB
Available
9.7.- PENUKAR PANAS

TITCB

Penukar Panas Tabung Konsentris untuk TICB

Aksesori dari TICB
The Concentric Tube Heat Exchanger for TICB, "TITCB", designed by EDIBON, allows for the study of heat transfer between two fluids: the hot water flowing through the inner tube and the cold water flowing through the annular zone between the inner...
Lihat Unit
PLATE HEAT EXCHANGER FOR TICB - TIPLB
  • Aksesori dari TICB
Available
9.7.- PENUKAR PANAS

TIPLB

Penukar Panas Pelat untuk TICB

Aksesori dari TICB
The Plate Heat Exchanger for TICB, "TIPLB", designed by EDIBON, allows the study of heat transfer between hot and cold water flowing through alternate channels formed between parallel plates. This unit enables the analysis of how heat transfer...
Lihat Unit
EXTENDED PLATE HEAT EXCHANGER FOR TICB - TIPLAB
  • Aksesori dari TICB
Available
9.7.- PENUKAR PANAS

TIPLAB

Penukar Panas Pelat yang Diperluas untuk TICB

Aksesori dari TICB
The Expanded Plate Heat Exchanger for TICB, "TIPLAB", designed by EDIBON, enables detailed study of heat transfer between hot and cold water flowing through alternate channels formed between parallel plates. This unit facilitates analysis of heat...
Lihat Unit
SHELL & TUBE HEAT EXCHANGER FOR TICB - TICTB
  • Aksesori dari TICB
Available
9.7.- PENUKAR PANAS

TICTB

Penukar Panas Shell dan Tabung untuk TICB

Aksesori dari TICB
The Shell and Tube Heat Exchanger for TICB, "TICTB", designed by EDIBON, provides a comprehensive environment for the study of heat transfer. It allows analysis of the overall energy balance, heat losses in parallel and counterflow configurations,...
Lihat Unit
JACKETED VESSEL HEAT EXCHANGER FOR TICB - TIVEB
  • Aksesori dari TICB
Available
9.7.- PENUKAR PANAS

TIVEB

Penukar Panas Wadah Berjaket untuk TICB

Aksesori dari TICB
The Jacketed Vessel Heat Exchanger for TICB, "TIVEB", designed by EDIBON, provides a comprehensive environment for the detailed study of heat transfer between two non-mixing fluids. In this unit, hot water flows through a jacket, transferring heat...
Lihat Unit
COIL VESSEL HEAT EXCHANGER FOR TICB - TIVSB
  • Aksesori dari TICB
Available
9.7.- PENUKAR PANAS

TIVSB

Penukar Panas Wadah Berjaket dengan Koil untuk TICB

Aksesori dari TICB
The Vessel with Coil Heat Exchanger for TICB, "TIVSB", designed by EDIBON, provides a comprehensive environment for the detailed study of heat transfer between two non-mixing fluids. In this unit, hot water circulates through a coil, transferring...
Lihat Unit
TURBULENT FLOW HEAT EXCHANGER FOR TICB - TIFTB
  • Aksesori dari TICB
Available
9.7.- PENUKAR PANAS

TIFTB

Penukar Panas Aliran Turbulen untuk TICB

Aksesori dari TICB
The Turbulent Flow Heat Exchanger for TICB, "TIFTB", designed by EDIBON, provides a comprehensive environment for the detailed study of heat transfer between hot water flowing through an internal tube and cold water circulating in the annular...
Lihat Unit
CROSS FLOW HEAT EXCHANGER FOR TICB - TICFB
  • Aksesori dari TICB
Available
9.7.- PENUKAR PANAS

TICFB

Penukar Panas Aliran Silang untuk TICB

Aksesori dari TICB
The Cross-Flow Heat Exchanger for TICB, "TICFB", designed by EDIBON, provides an effective thermal research tool by enabling the study of heat transfer between two fluids in a cross-flow configuration. In this system, a stream of hot water from...
Lihat Unit
CROSS FLOW HEAT EXCHANGER - TIFCB
  • TIFCB
Available
9.7.- PENUKAR PANAS

TIFCB

Penukar Panas Aliran Silang

The Cross Flow Heat Exchanger (TIFCB) basically consists of a rectangular wind tunnel made of stainless steel, resistant to corrosion. It has a bellshaped inlet and a central opening arranged longitudinally with two supporting elements made of...
Lihat Unit

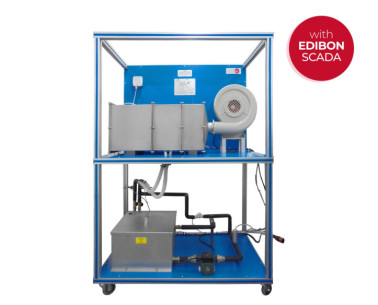

COMPUTER CONTROLLED WATER-TO-AIR HEAT EXCHANGER UNIT - TIAAC
  • TIAAC
Available
9.7.- PENUKAR PANAS

TIAAC

Penukar Panas Air-Udara, Dikendalikan dari Komputer (PC)

The Computer Controlled Water-to-Air Heat Exchanger Unit, "TIAAC", includes a stainless steel duct with a heat exchanger in its center and a centrifugal fan at one end. The fan impels the air through the heat exchanger. The heat exchanger...
Lihat Unit
LAMINAR/VISCOUS FLOW HEAT TRANSFER UNIT - TFLVB
  • TFLVB
Available
9.7.- PENUKAR PANAS

TFLVB

Peralatan Transfer Panas, Aliran Laminar/Viscous

The Laminar/Viscous Flow Heat Transfer Unit, "TFLVB", is a laboratory scale unit designed to study heat transfer between hot oil flowing inlaminar flow through an internal tube and cold water that flows through the annulus (ring-shaped area).Oil...
Lihat Unit
HEAT EXCHANGERS IN THE REFRIGERATION UNIT - THER
  • THER
Available
9.7.- PENUKAR PANAS

THER

Peralatan Penukar Panas pada Sistem Pendinginan

The "THER" consists of a refrigeration circuit, with the most common heat exchangers in refrigeration circuits. All the elements are clearly mounted in the front panel of the unit. The evaporator is an air cooling finned tube heat exchanger and a...
Lihat Unit
FILM AND DROPWISE CONDENSATION UNIT - TCPGB
  • TCPGB
Available
9.7.- PENUKAR PANAS

TCPGB

Peralatan Kondensasi (Lapisan dan Tetes)

The Film and Dropwise Condensation Unit, "TCPGB", has been specially designed for students use and to provide visual results and quantitative results related to heat transfer during condensation.Self-contained unit, which has its own steam...
Lihat Unit
