TKC Turbin Kaplan, Dikendalikan dari Komputer (PC)

5.3.6.- ENERGI HIDROLIK 8.7.3.- TURBIN
COMPUTER CONTROLLED KAPLAN TURBINE - TKC

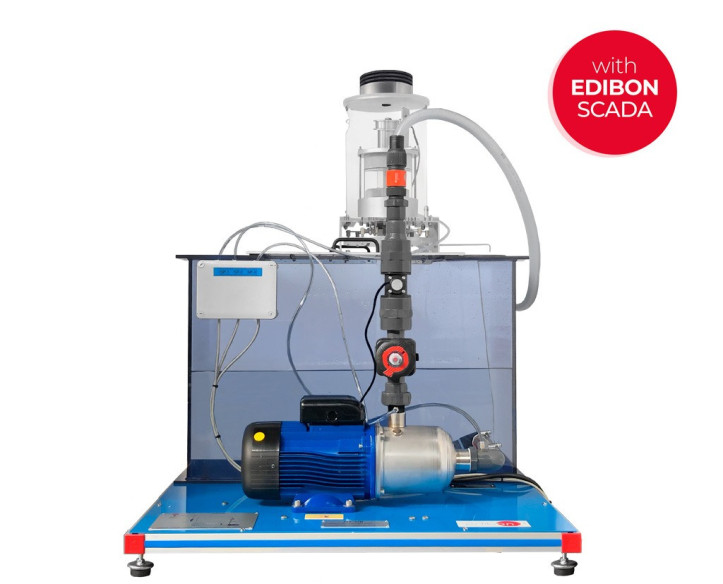

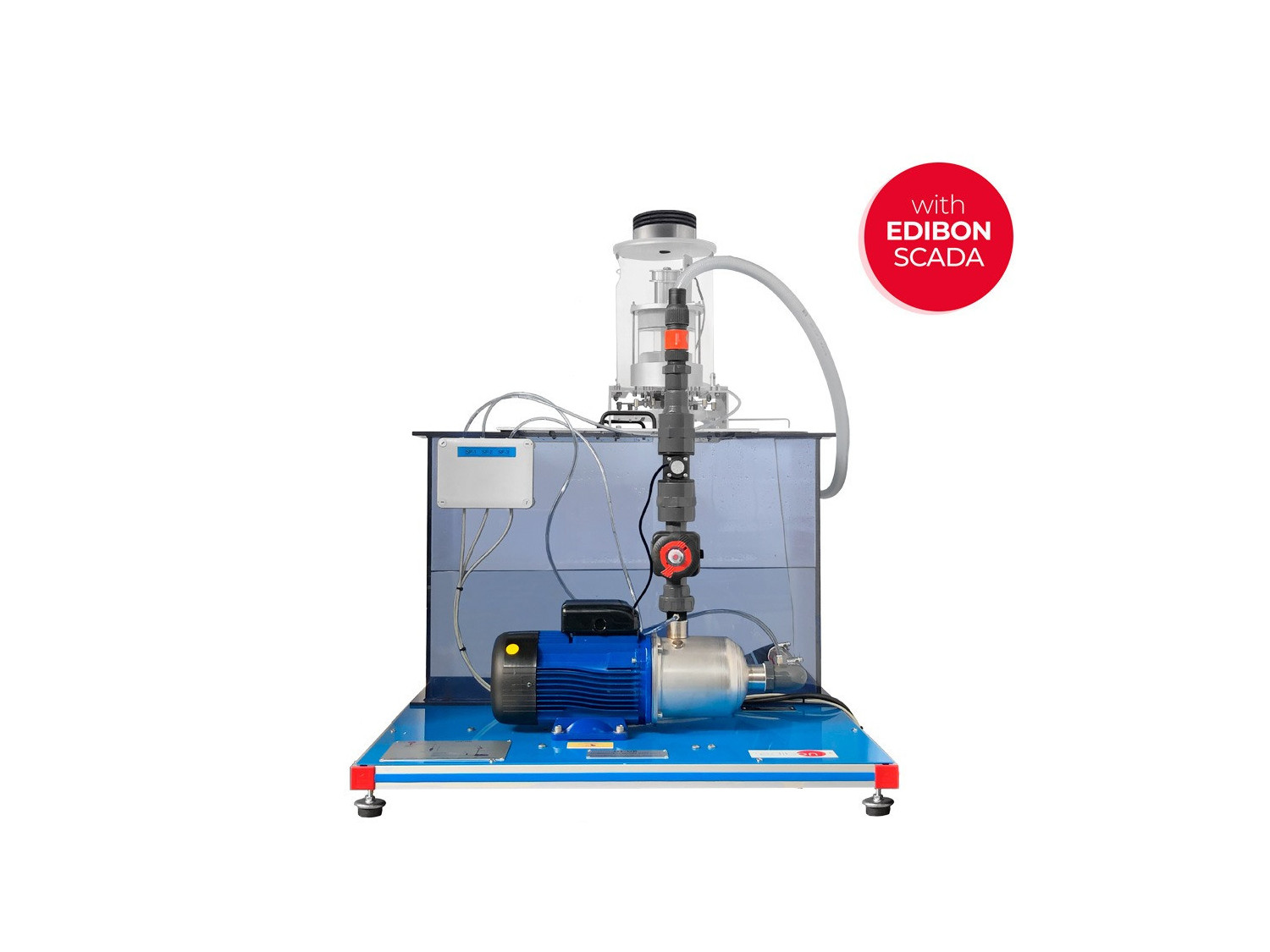

Unit: TKC. Computer Controlled Kaplan Turbine

COMPUTER CONTROLLED KAPLAN TURBINE - TKC

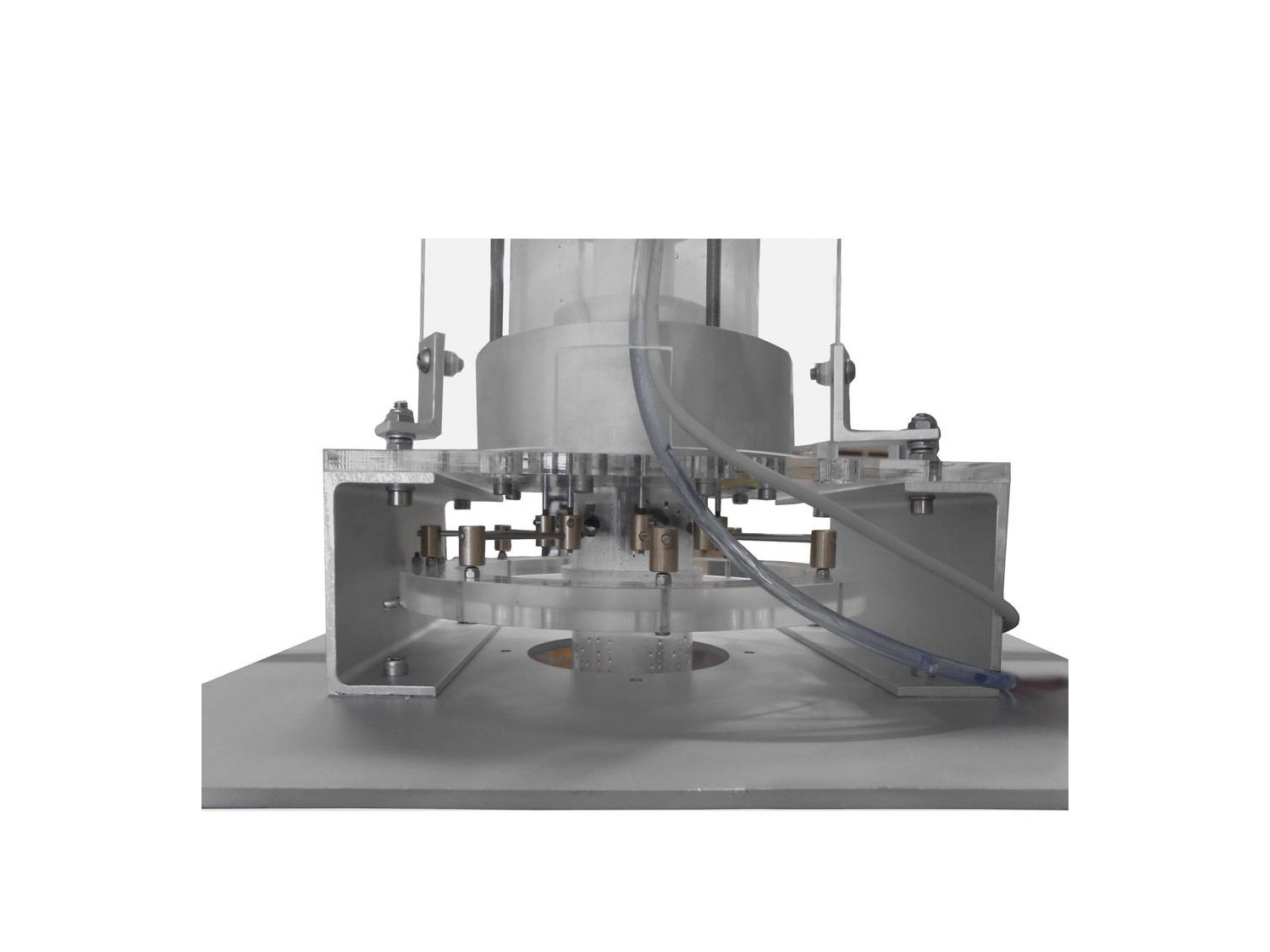

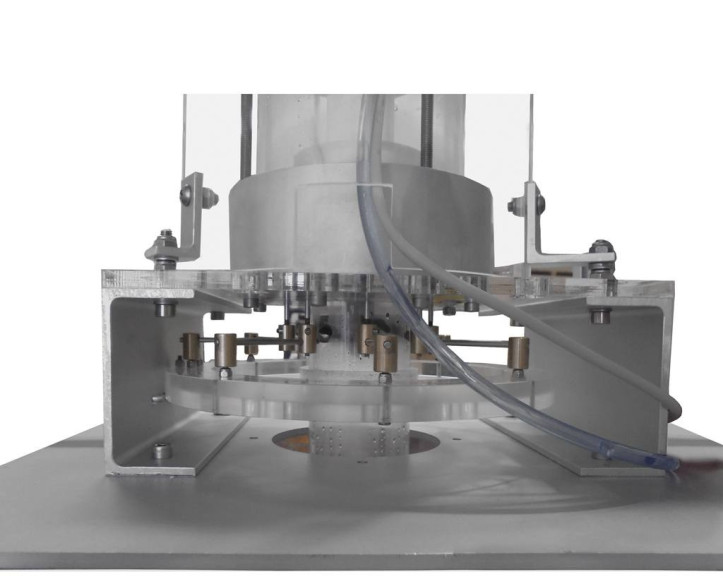

Unit details

COMPUTER CONTROLLED KAPLAN TURBINE - TKC

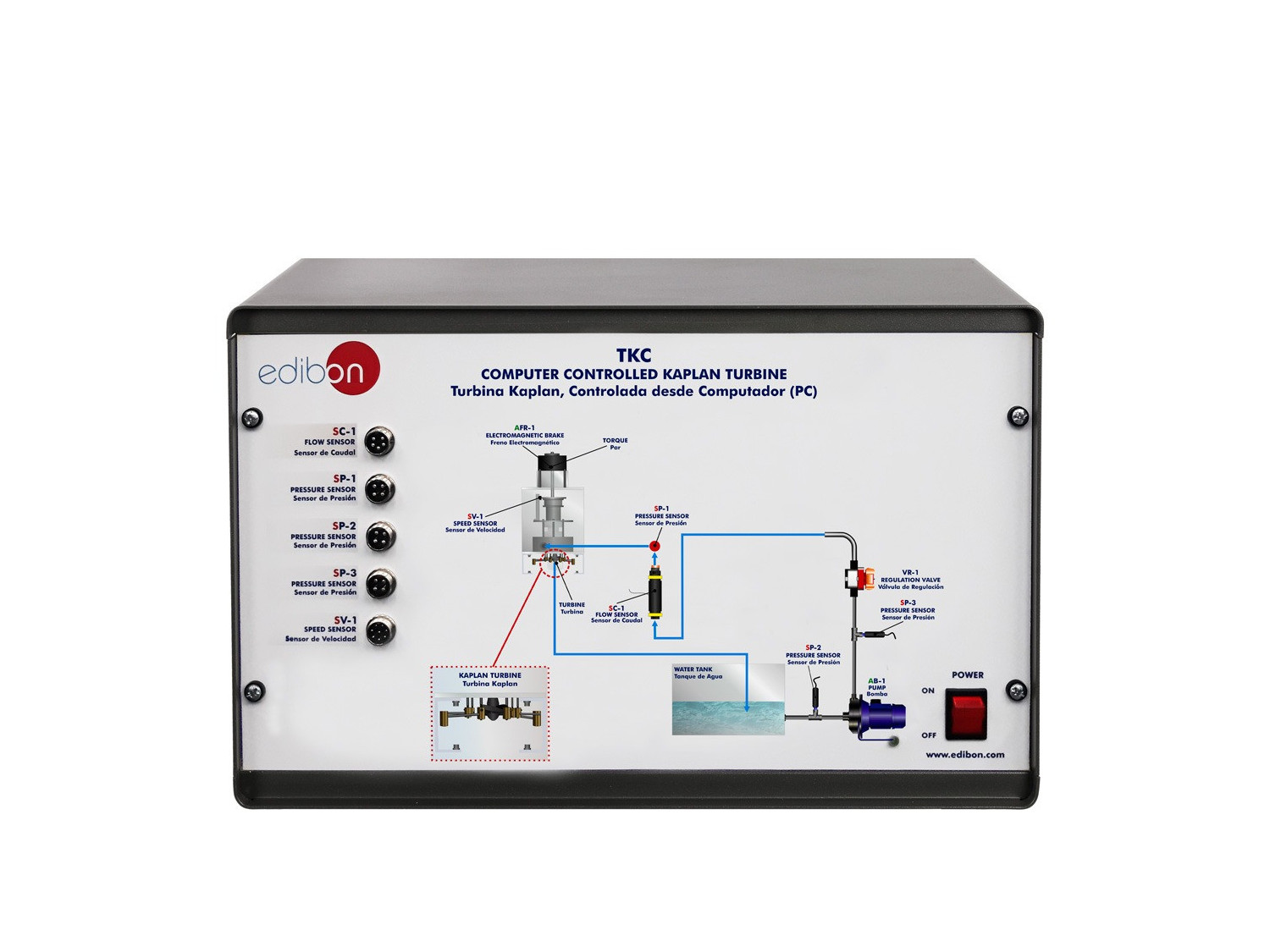

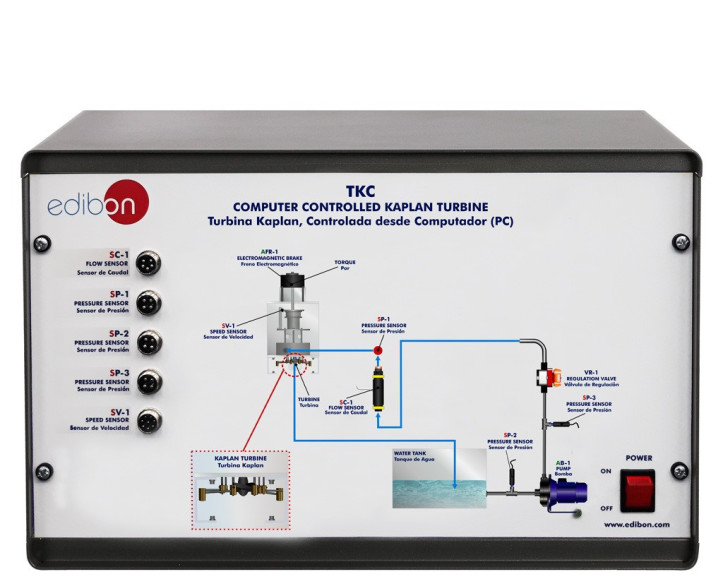

TKC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED KAPLAN TURBINE - TKC

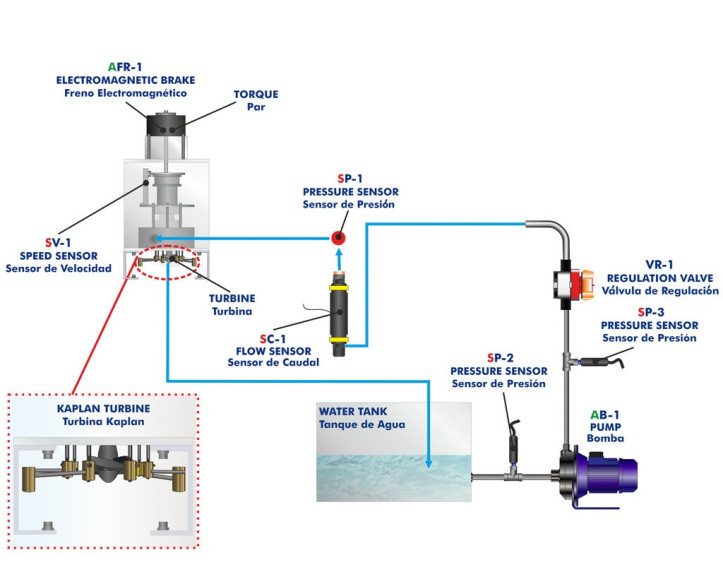

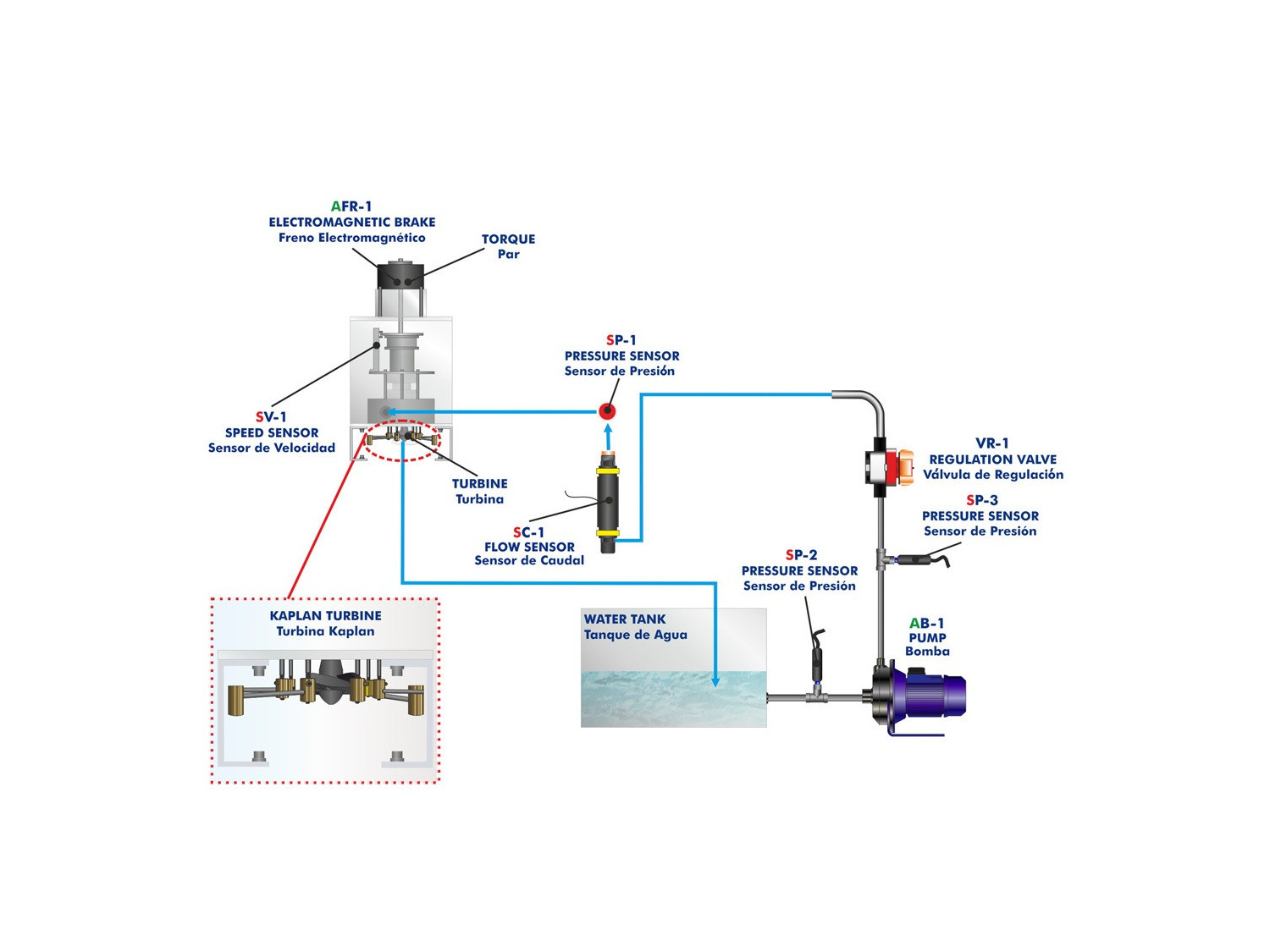

Process diagram and unit elements allocation

COMPUTER CONTROLLED KAPLAN TURBINE - TKC

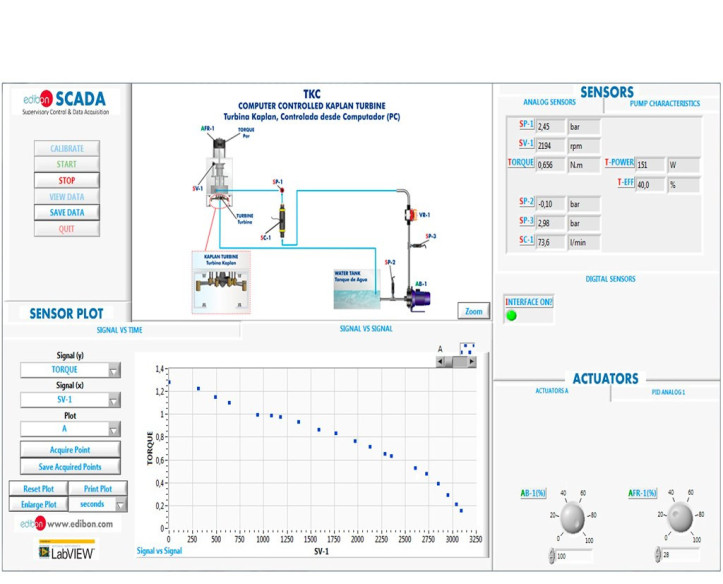

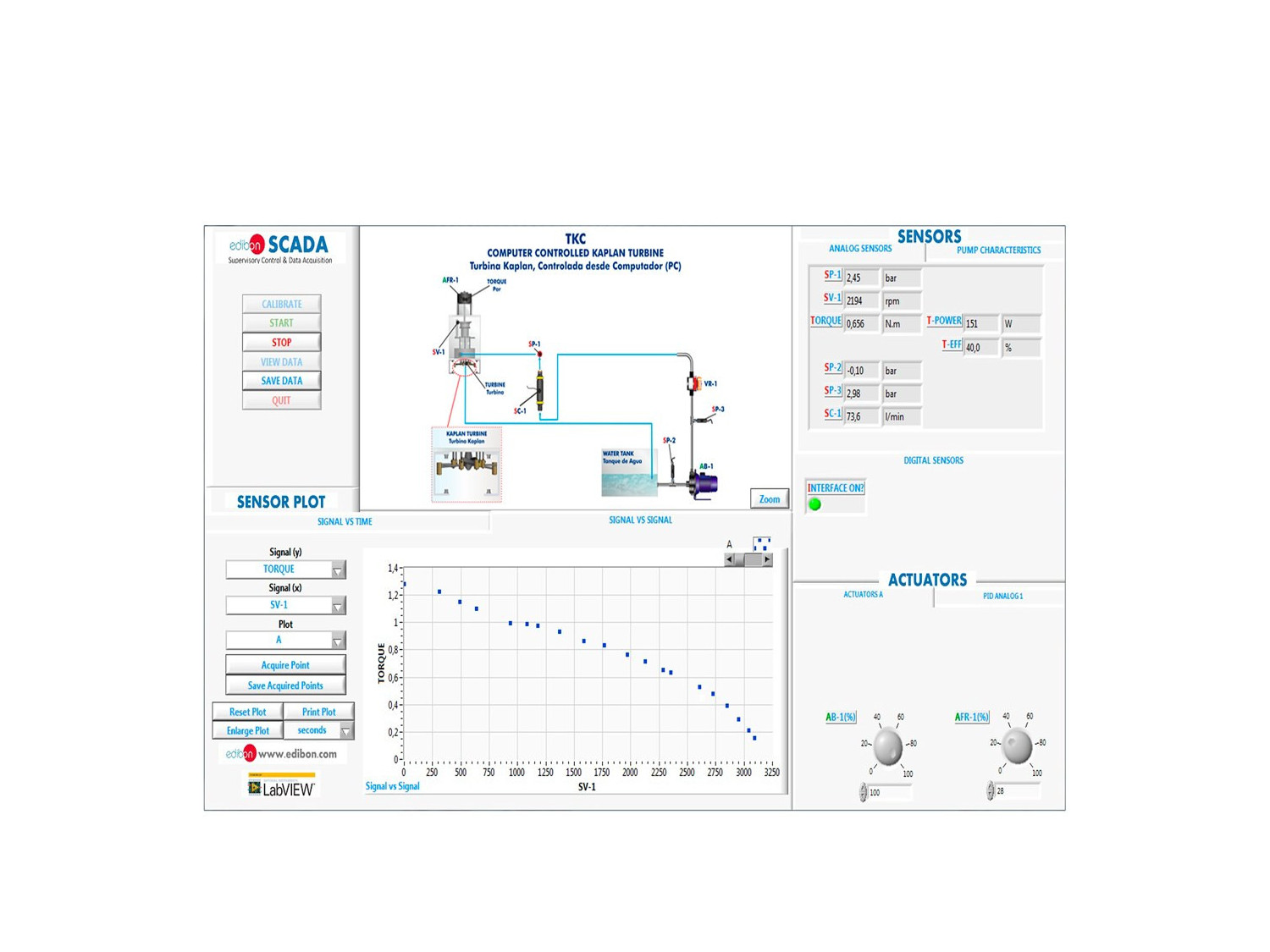

TKC/SOF. TKC Software. Main Screen

COMPUTER CONTROLLED KAPLAN TURBINE - TKC
COMPUTER CONTROLLED KAPLAN TURBINE - TKC
COMPUTER CONTROLLED KAPLAN TURBINE - TKC
COMPUTER CONTROLLED KAPLAN TURBINE - TKC
COMPUTER CONTROLLED KAPLAN TURBINE - TKC

SISTEM INOVATIF

The Computer Controlled Kaplan Turbine, "TKC", is a small scale Kaplan turbine (reaction turbine). Kaplan turbines are used in many parts of the world for electricity production, as they cover the lowest water sites and are especially suitable for high flow conditions.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
FSS

Sistem Simulasi Kegagalan
PLC

Pengendalian Proses Industri oleh PLC
PLCHMI

Kontrol dan Pemantauan IIoT Lokal/Jarak Jauh dengan HMI
ELK

Kit Pengembangan Perangkat Lunak EDIBON, Didukung oleh NI LabVIEW™
ECR

Sistem Industri Modular EDIBON dengan NI CompactRIO
ESN

Sistem EDIBON Scada-Net
ECL

Pendidikan Jarak Jauh EDIBON

Laboratorium

8TV
 Laboratorium Mekanika Fluida untuk Pendidikan Teknik dan Kejuruan
8HE
 Laboratorium Mekanika Fluida untuk Perguruan Tinggi

BERITA TERKAIT

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Baca lebih lanjut
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

The Computer Controlled Kaplan Turbine, "TKC", consists of a small-scale Kaplan turbine that has a ring with adjustable guide vanes, which allow the control of water flow in the turbine.

In order to raise the fluid, it has a computer controlled pump that enables the impelled flow to pass through the turbine, in which part of its energy is left, causing the turbine to turn, overcoming the external resistance caused by an electromagnetic brake. This computer controlled brake makes it possible to vary the braking load on the turbine.

In addition, the unit is equipped with a pressure sensor placed at the turbine water inlet which measures the inlet pressure, a flow sensor to measure the turbine water inlet flow, an optical sensor which determines the speed of the turbine shaft, and has two pressure sensors at the pump inlet and outlet, in order to obtain its characteristic curve.

The pump-turbine group has a tank and a pipes system which allow to work constantly with recirculated fluid to avoid the indiscriminate water consumption.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. To determine the operating characteristics of a Kaplan turbine at different speeds.
  2. Investigation of the conversion of hydraulic energy into mechanical energy.
  3. Determination of the characteristic curves of a turbine: Power M (n, Ha), Torque Nm (n, Ha), efficiency h (n, Ha).
  4. Determination of the characteristic curve of a hydraulic pump.
  5. Determination of the height of a hydraulic turbine.
  6. Effect of guide vanes setting on the turbine performance.
  7. Adimensional analysis.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Calibration of sensors.
  2. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  3. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  4. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  5. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  6. This unit can be used for doing applied research.
  7. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  8. Control of the TKC unit process through the control interface box without the computer.
  9. Visualization of all the sensors values used in the TKC unit process.
  10. By using PLC-PI additional 19 more exercises can be done.
  11. Several other exercises can be done and designed by the user.
