BSUB Unit Dasar untuk BS

2.4.1.- INSTRUMENTASI & KONTROL 6.1.2.1.- SENSOR DAN INSTRUMENTASI ELEKTRONIK 14.2.2.- INSTRUMENTASI & KONTROL

SISTEM INOVATIF

The BSUB is a complete unit designed to provide signal conditioning for many sensors and transducers output signals that must be conditioned.

Lihat uraian umum

Katalog

Spesifikasi Kontes

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

EMSK

Kit Pengembangan Simulasi Sirkuit EDIBON, Didukung oleh NI LabVIEW™

BERITA TERKAIT

GAMBARAN UMUM

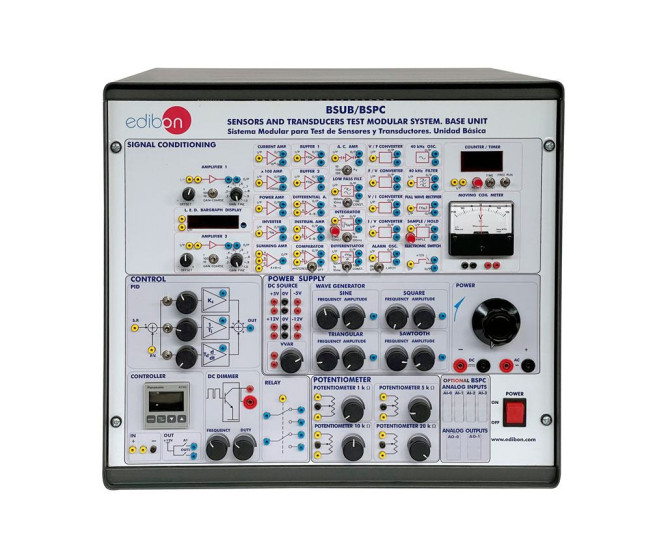

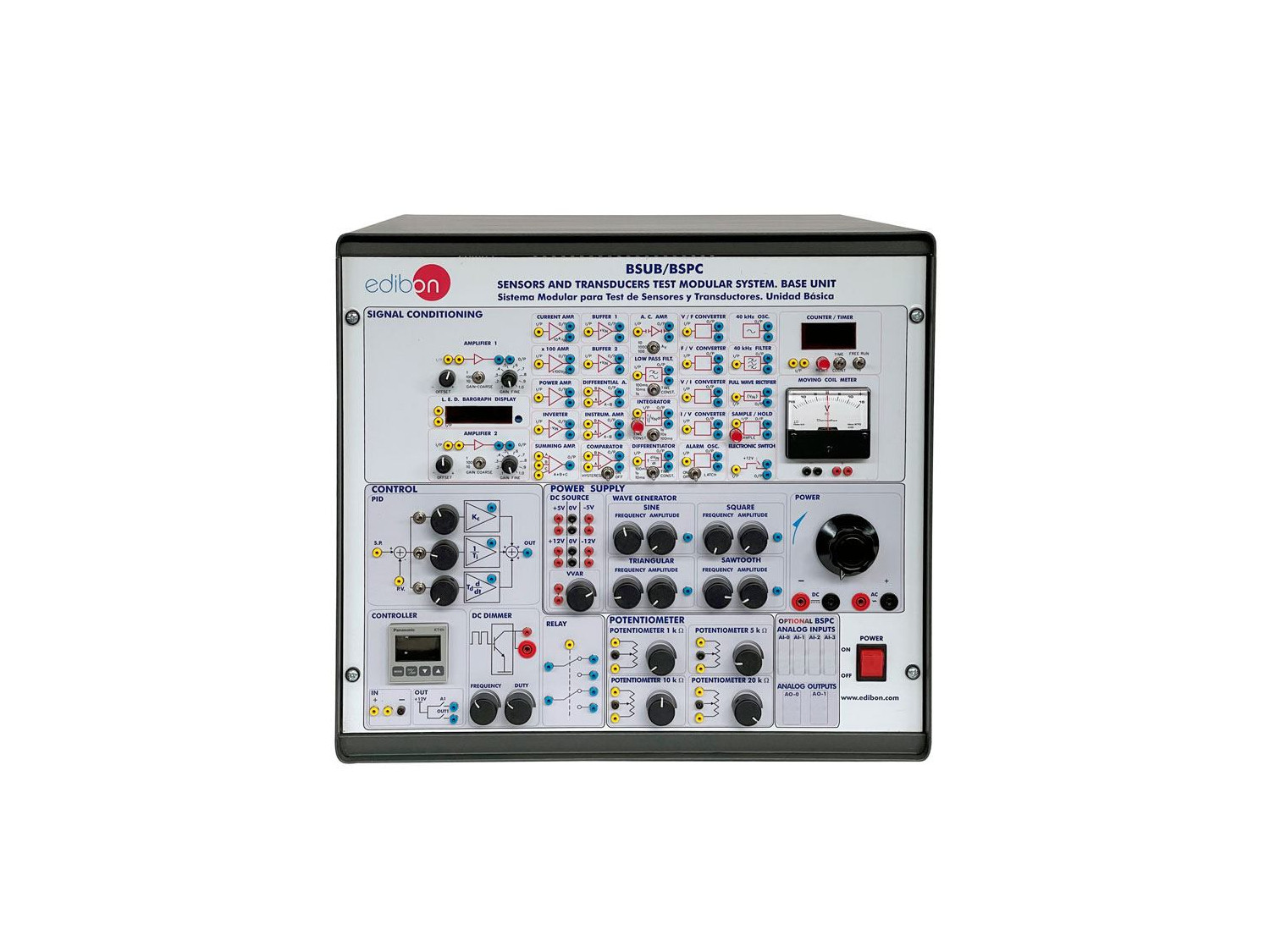

The BSUB is a complete unit designed to provide signal conditioning for many sensors and transducers output signals that must be conditioned. These circuits consist of differential and instrumentation amplifiers, filters, current to voltage and frequency to voltage converters, etc., developed for transducers such as potentiometers, RTD’s, thermocouples, strain gauge bridges, etc.

The BSUB also includes a PID controller, industrial controller, DC dimer and other interesting elements that can be used to introduce students the concepts about process control.

The sensors connect to the base unit and with power supplies through 2 mm terminals located in the front panel of each test module. The test modules may operate independently one of another.

This unit is common for the different test modules type "BS", and can work with one or several modules.
