MDA アッカーマンステアリング機構

7.1.2.1.- メカニズム 14.1.2.1.- メカニズム

革新的なシステム

The Ackermann Steering Mechanism, "MDA", allows to explain the special features of the Ackermann steering geometry and to study the influence of the steering angle with varying steering geometry.

一般的な説明を表示

カタログ

コンテストの仕様

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

MSAC

モジュラーな取得および制御システム

研究室

7TV

機械・自動車・材料研究室

7HE

高等教育のための機械・自動車・材料研究室

概要

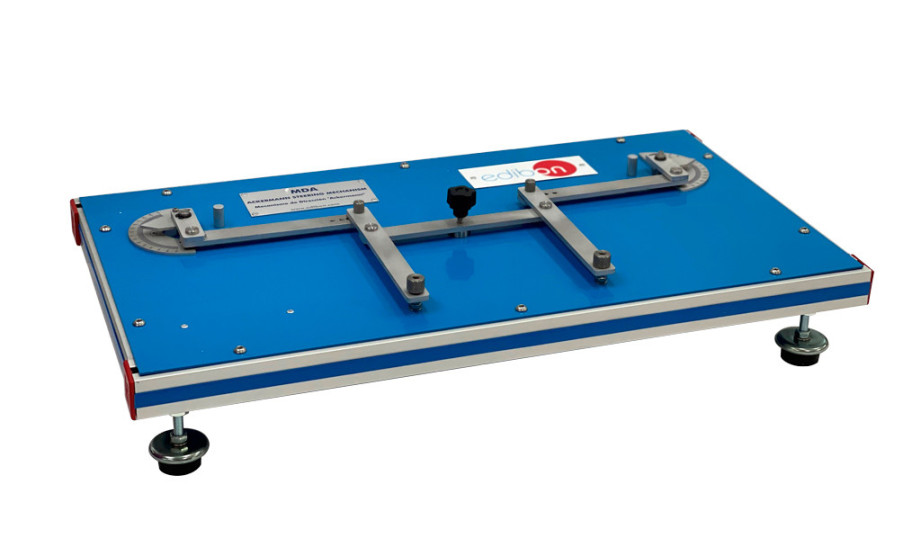

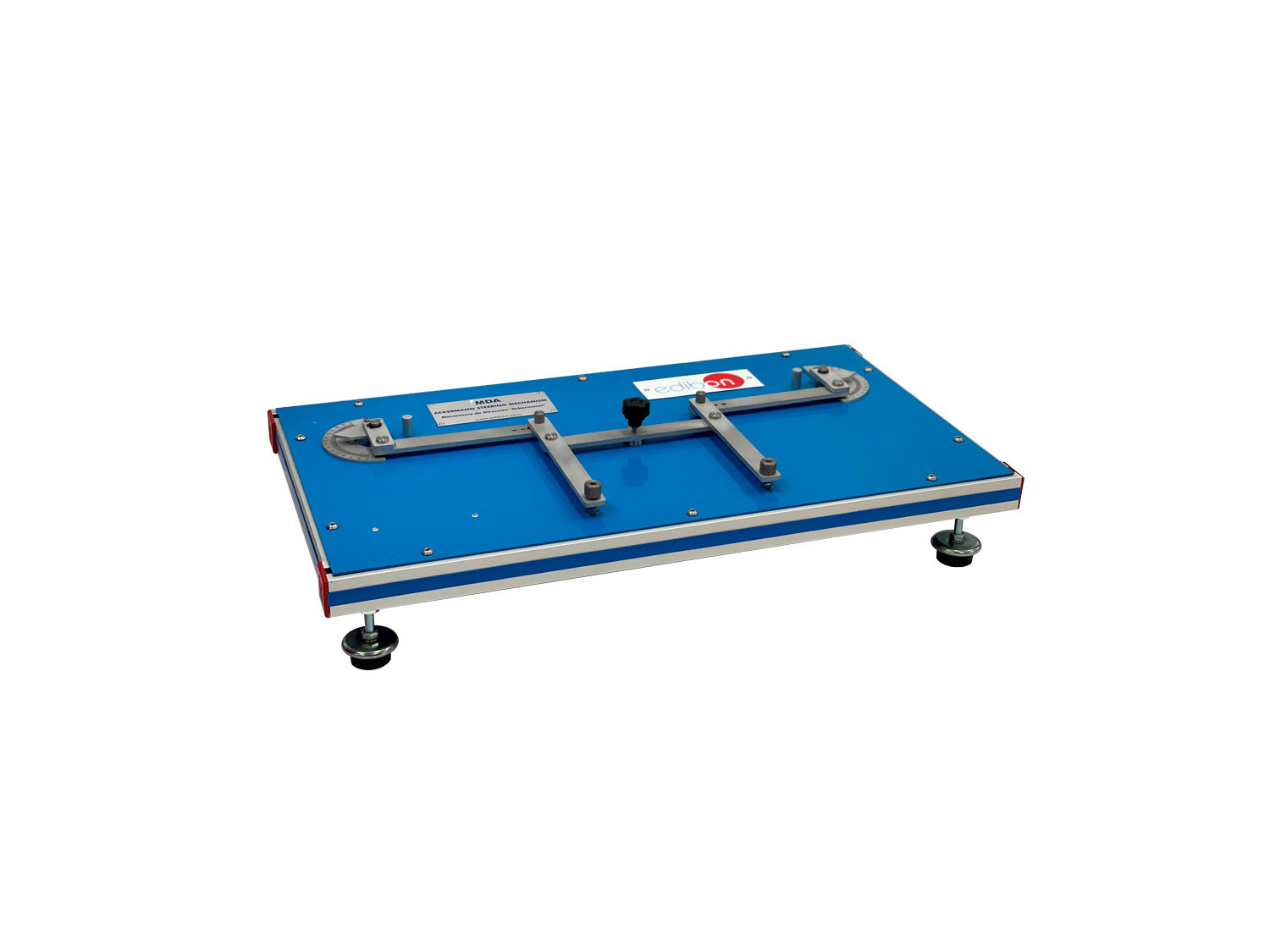

The Ackermann Steering Mechanism, "MDA", is a bench-mounted unit designed to determine the lead angle of a steering trapezoid in an Ackermann steering mechanism, the disadvantages of incorrectly adjusted track rods and the influence of the track rod length.

This unit consists of a complete Ackermann linkage model mounted on a flat frame. The symmetrical linkage system consists of two track rods and an intermediate steering rod.

Each track rod is coupled to a lever and a pivot. These pivots simulate the point where each wheel of a car is connected to. The whole system can turn from left to right by hand. There are two rotating indicators, attached to the pivots, which indicate the steering angle on graduated discs.

The linkage system is fully adjustable so that Ackermann angles can be varied. The length of the track rods may be modified to demonstrate the effect of misalignment or damage of the steering.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Determination of the lead angle of a steering trapezoid.
Demonstrating how Ackermann angles are determined in a steering system.
Study of the influence of the track rod length.
Determining the steering error as a function of the steering angle with varying steering geometry.
Determining the variation on turns caused by track maladjustment.
Determining the variation on turns caused by damage.
