AMP Assembly and Maintenance of Pumps
革新的なシステム

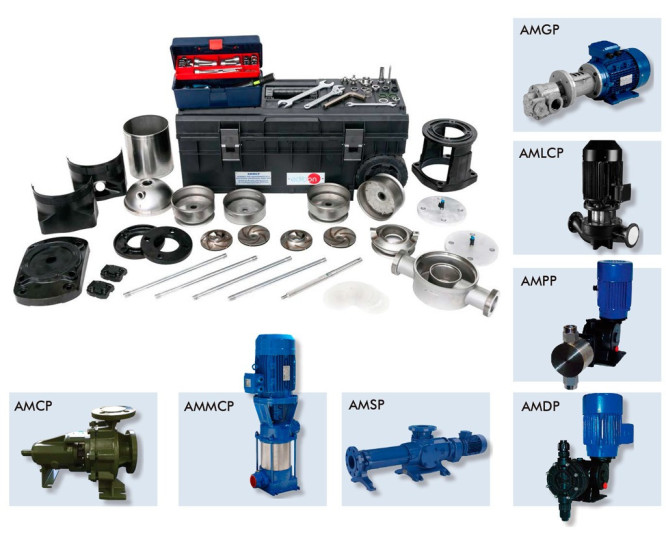

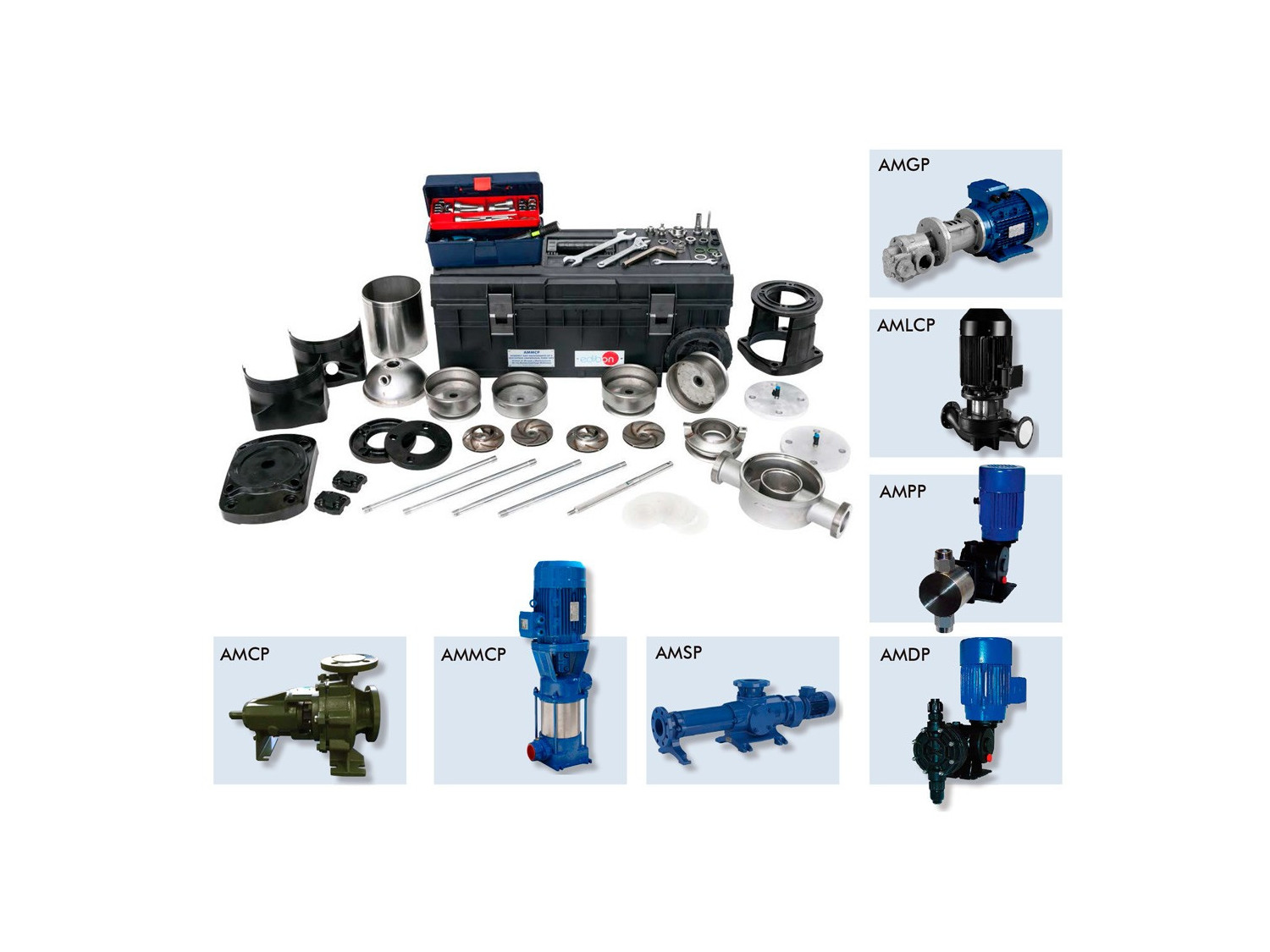

The different sets for the assembly and maintenance of pumps have all the parts in a case for an easy transport, facilitating the clearidentification of all the components and allowing the systematic assembly and disassembly, maintenance and repair of the main types ofpump that are usually used.
関連ニュース
概要
The different sets for the assembly and maintenance of pumps have all the parts in a case for an easy transport, facilitating the clearidentification of all the components and allowing the systematic assembly and disassembly, maintenance and repair of the main types ofpump that are usually used.
In addition, each set includes a tightness set for checking purposes, as well as a toolbox with compartments including everything neededto work with each set: open end wrenches, screwdrivers, non-ferrous hammers, spare gaskets, bearing puller, etc.
It serves to work both alone and in small groups, where the student will know all the components and their operation, as well as the structureand the pump operation. Each set is provided with the corresponding assembly diagrams, two-dimensional drawings, identification ofthe field of application, PFD and PID diagrams, operational data, technical designation, materials, exploded diagrams and operatingmanuals.
付属品
8.9.2.- 取り外し可能なモデル
AMCP
The centrifugal pumps belong to the group of rotodynamic pumps, where the fluid is boosted thanks to the acceleration acquired whenpassing through the operating impeller.This acceleration, which starts from the center of the impeller and goes to...
8.9.2.- 取り外し可能なモデル
AMMCP
多段階遠心ポンプ取り付けと保守装置
The multistage centrifugal pumps belong to the group of rotodynamic pumps, where the water is driven by centrifugal forces caused by the rotational movement of the impeller. Multi-stage centrifugal pumps can increase its lifting height, depending...
8.9.2.- 取り外し可能なモデル
AMSP
スクリューポンプ取り付けと保守装置
The screw pumps belong to the group of positive displacement pumps, which use aneccentric helical screw (rotor) that moves inside a sleeve (stator), making the liquid flowbetween the screw and the sleeve. The most important applications of this...
8.9.2.- 取り外し可能なモデル
AMDP
ダイアフラムポンプ取り付けと保守装置
Membrane pumps or diaphragm pumps belong to the group of positive displacement pumps, where the pressure increase is obtained by pushing elastic walls, known as, membranes or diaphragms, which change the volume of the chamber. Retention valves,...
8.9.2.- 取り外し可能なモデル
AMPP
プランジャーポンプ取り付けと保守装置
The piston pumps belong to the group of positive displacement pumps, where there are one or several fixed cavities whose volume can be changed due to the effect of a piston. The movement of the fluid is discontinuous and the charge and discharge...
8.9.2.- 取り外し可能なモデル
AMLCP
インライン遠心ポンプ取り付けと保守装置
The centrifugal in-line pumps belong to the rotodynamic pump group, these pumps are the most used currently to pump liquids in general. In-line pumps are installed in straight pipes, and the main difference with a standard pump is that the suction...
8.9.2.- 取り外し可能なモデル
AMGP
歯車ポンプ取り付けと保守装置
The gear pumps belong to the group of positive displacement, rotary piston pumps, which produce flow by transporting the fluid betweenthe teeth of two coupled gears. One of them is driven by the shaft of the pump (driving shaft), which turns the...
演習と指導の慣行
マニュアルに含まれるガイド付き実習
- Analysis and study of the operation and structure of the main types of pumps by identifying the components of the structure:
- Centrifugal pump.
- Centrifugal Multistage Pump.
- Screw Pump.
- Diaphragm Pump.
- Dosing Piston Pump.
- Centrifugal In-line Pump.
- Gear Pump.
- Set Assembly and Disassembly Study and Exercises.
- Study of tightness by means of the cable gland principle.
- Analysis of frequent breakdowns.
- Analysis and establishment of work planning, primarily maintenance and repair of damages and anomalies.
- Study and performance of replacement exercises of different components.
- Reading comprehension of technical drawings and instructionmanuals.
